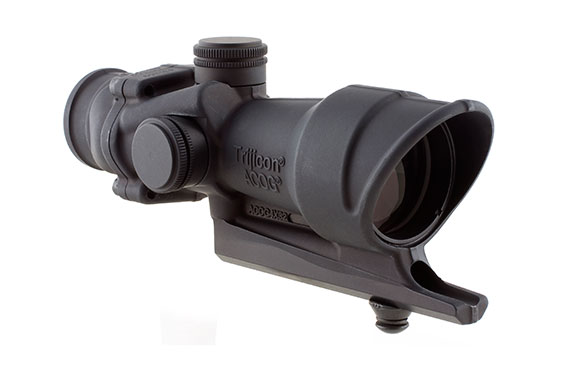

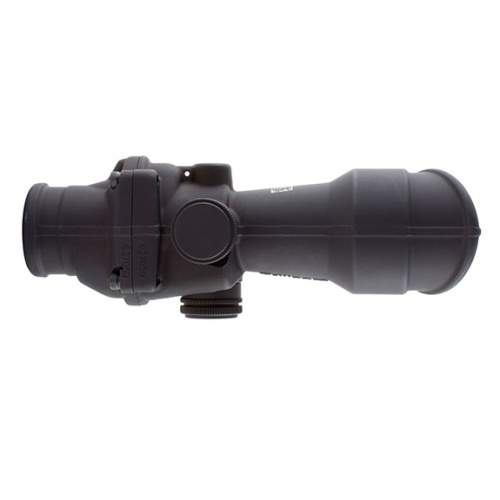

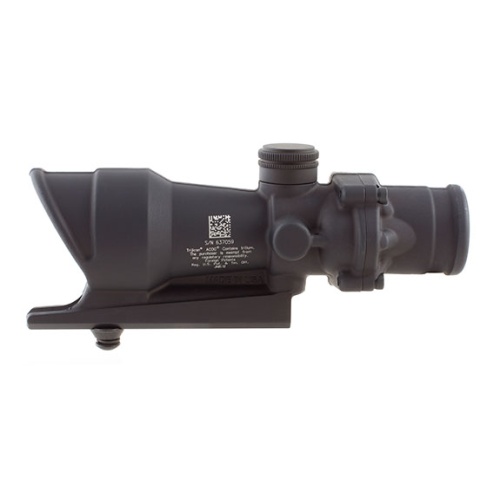

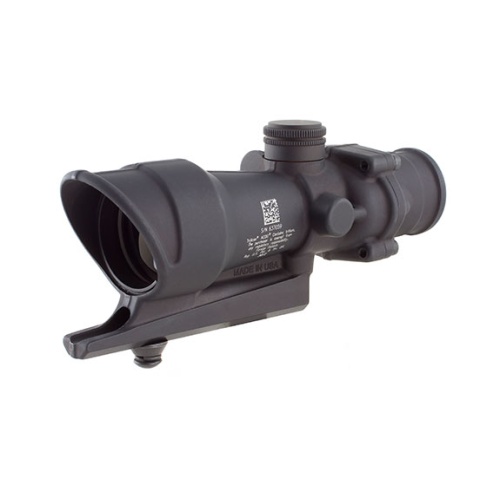

The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact
riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance

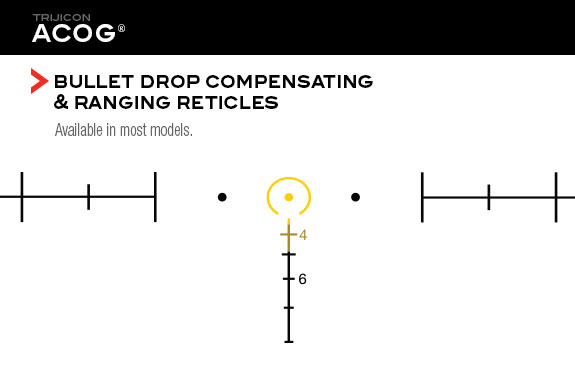

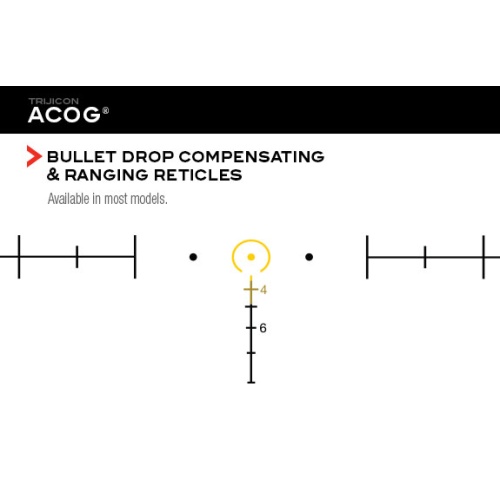

marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.
FEATURES

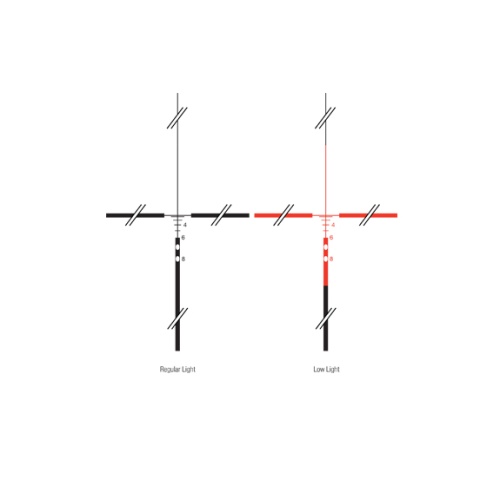

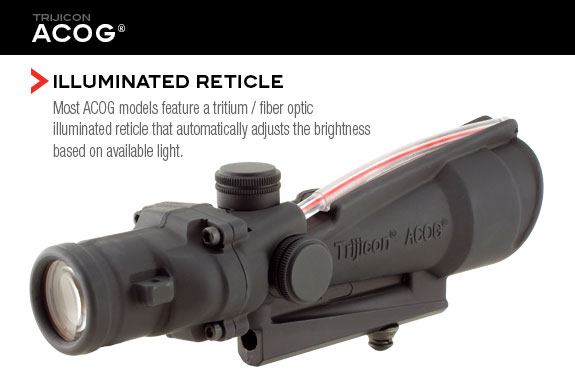

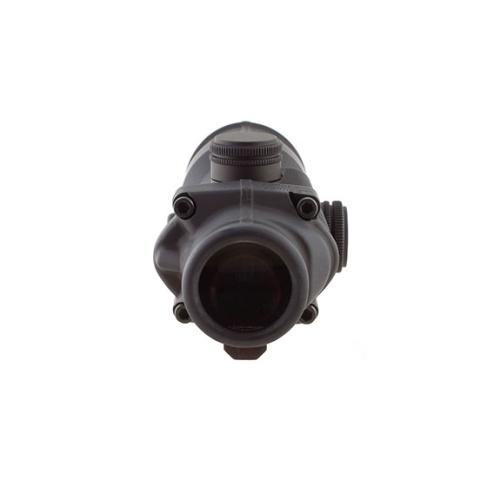

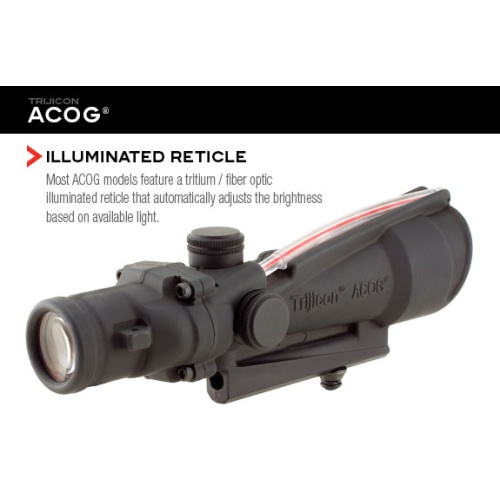

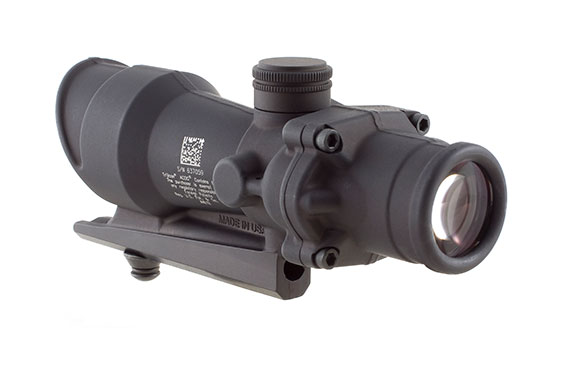

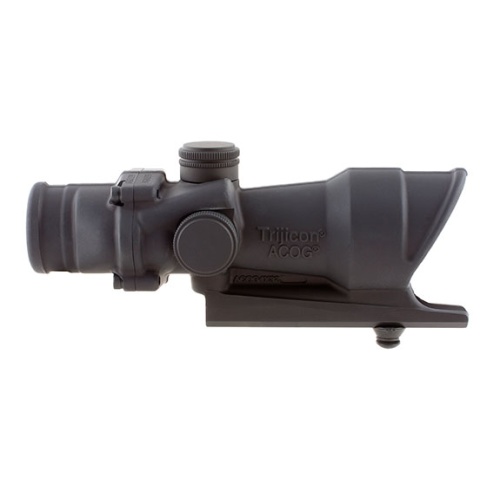

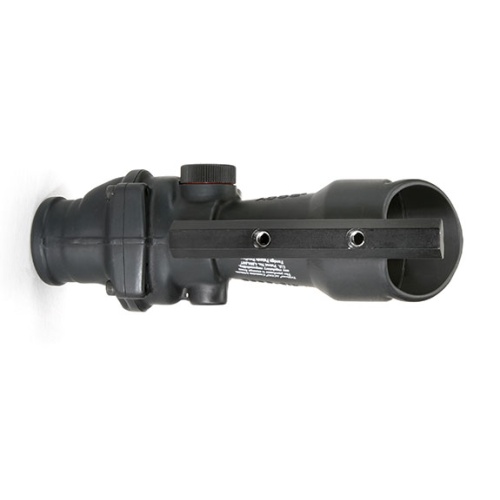

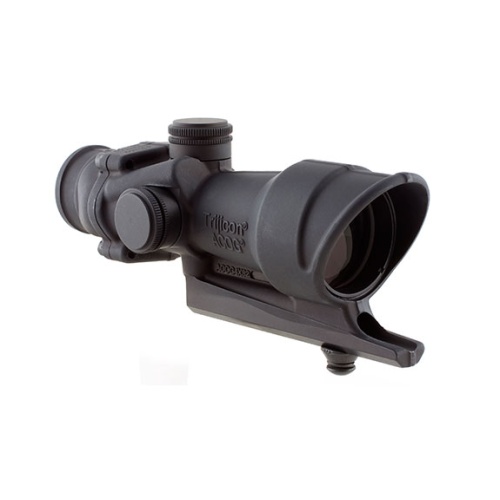

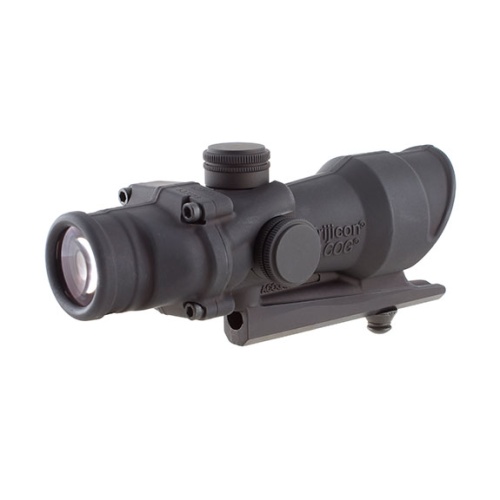

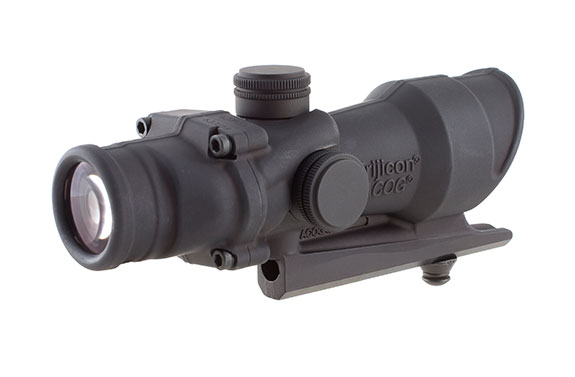

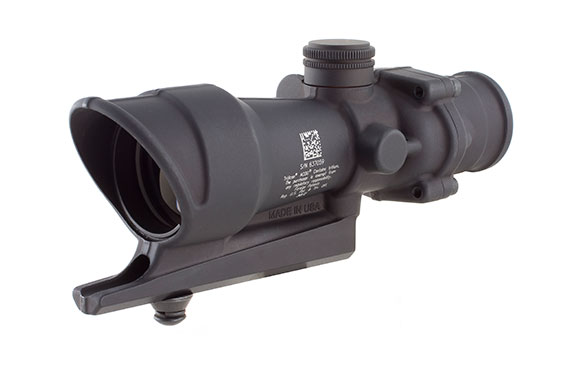

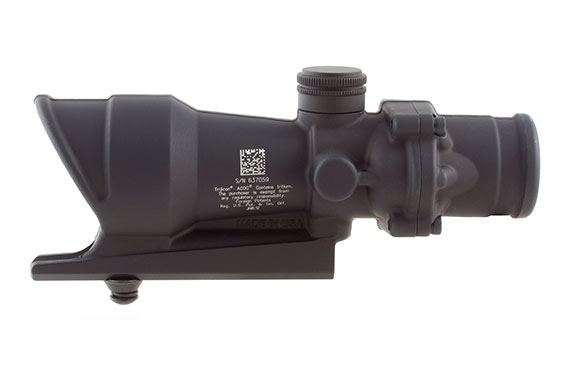

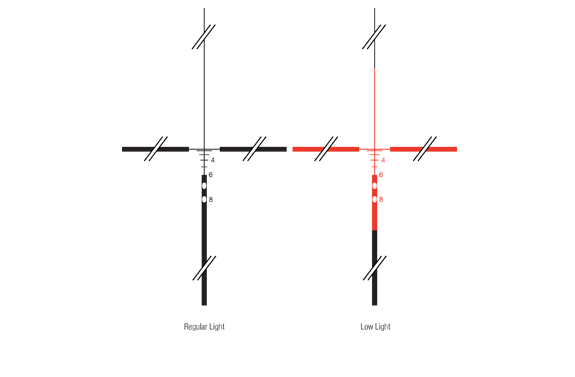

The concept is simple; a durable scope with a reticle that illuminates in low light situations. And the best part is that it doesn’t require batteries. Over 25 years later, the original ACOG stands the test of time and remains one of our most popular items. ACOG 4x32 Scope with Full Line Red Illumination features black crosshairs during daytime and tritium illuminates reticle at night. The reticle ranges out to 800 meters for 5.56 (.223 cal).
The TA01 also includes:
- 1 Carry Handle Screw and washer set (TA30)
- 1 4x32 Scopecoat (TA64)
- 1 Lenspen (TA56)
- 1 Lanyard Assembly for Adjuster Caps (TA71E)
- 1 Trijicon Logo Sticker (PR15)
- 1 ACOG Manual
- 1 Warranty Card
SPECIFICATIONS
Magnification |
4x |
Objective Size (mm) |
32 |
Bullet Drop Compensator |
Yes |
Length (in) |
5.8 |
Weight (oz) |
9.9 |
Illumination Source |
Tritium |
Reticle Pattern |
Crosshair |
Day Reticle Color |
Black |
Night Reticle Color |
Full Red |
Calibration |
0.223 |
Eye Relief (in) |
1.5 |
Exit Pupil (mm) |
8 |
Field of View (Degrees) |
7 |
Field of View @ 100 yards (ft) |
36.8 |
Adjustment @ 100 yards (clicks/in) |
2 |

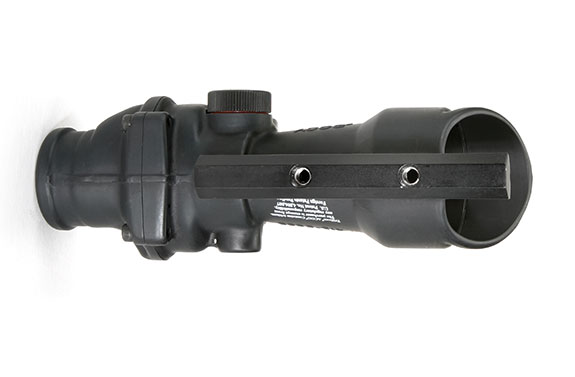

Mount Comes With |
Carry Handle |

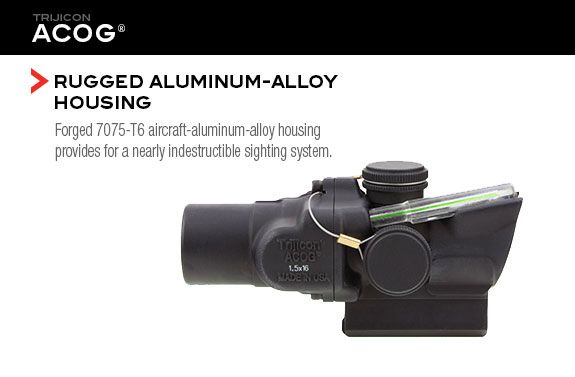

Housing Material |
Forged Aluminum |
