Mitee-Bite Knife Edge Clamps

Brand: Mitee-Bite CNC Fixture ClampsMitee-Bite CNC Fixture Clamps
CAD139.42 EA
Select
Cost: CAD139.42 EA -
Add to cart

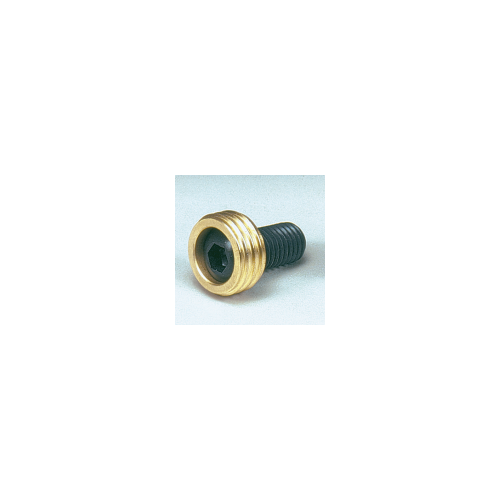

Knife Edge Clamps

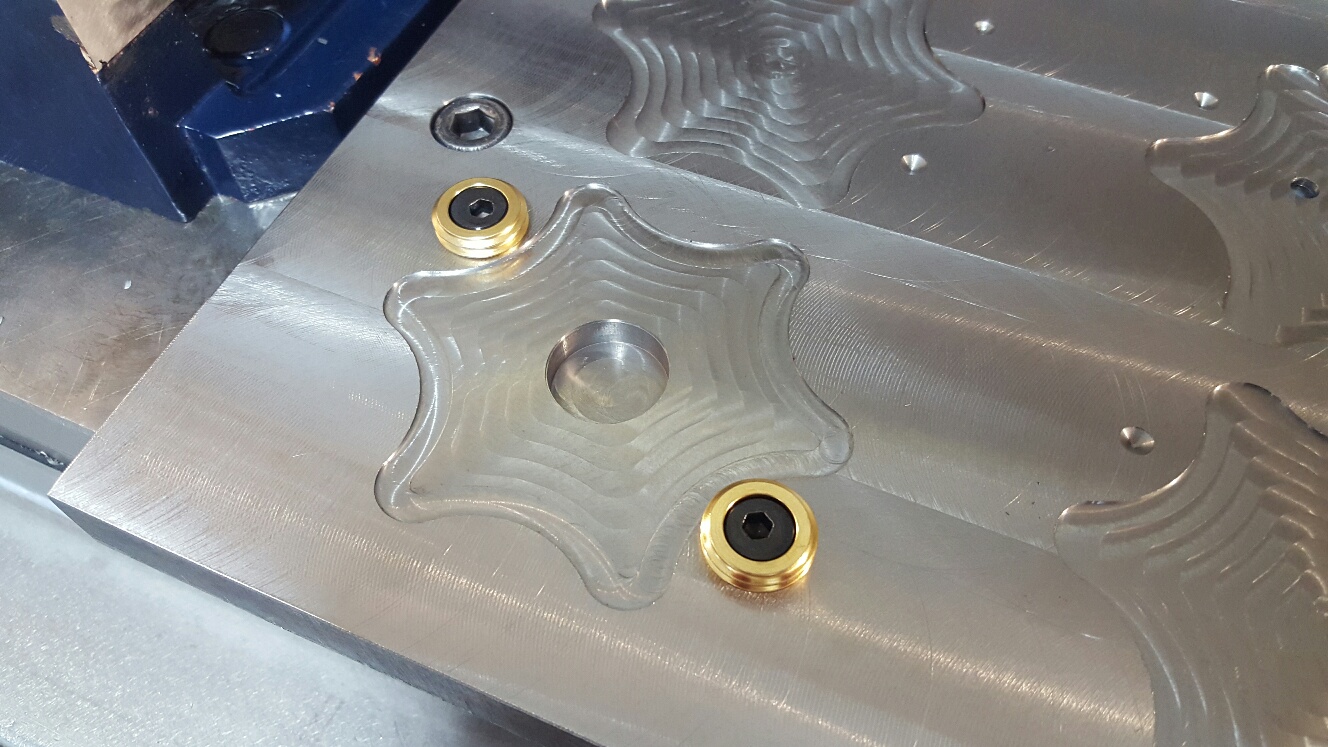

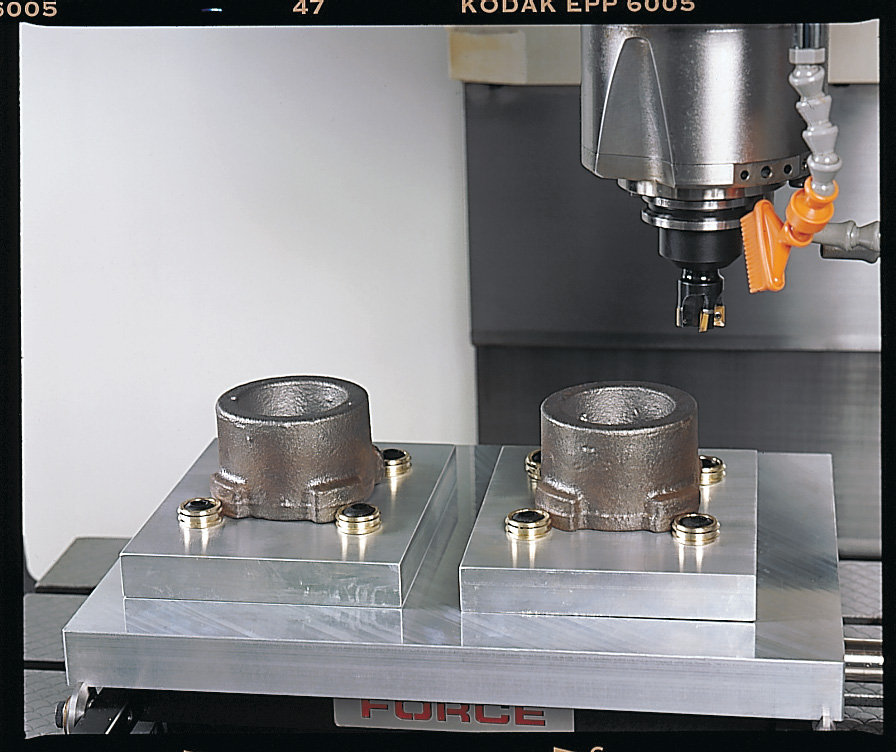

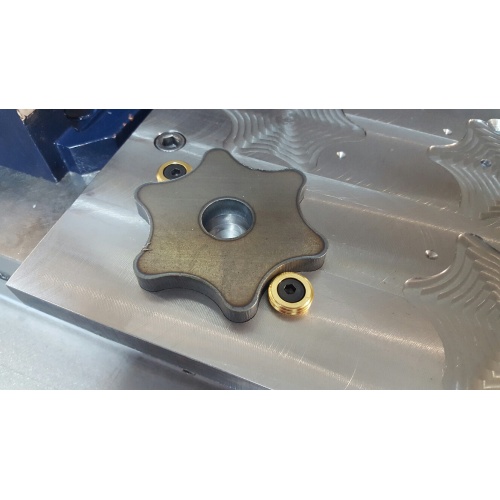

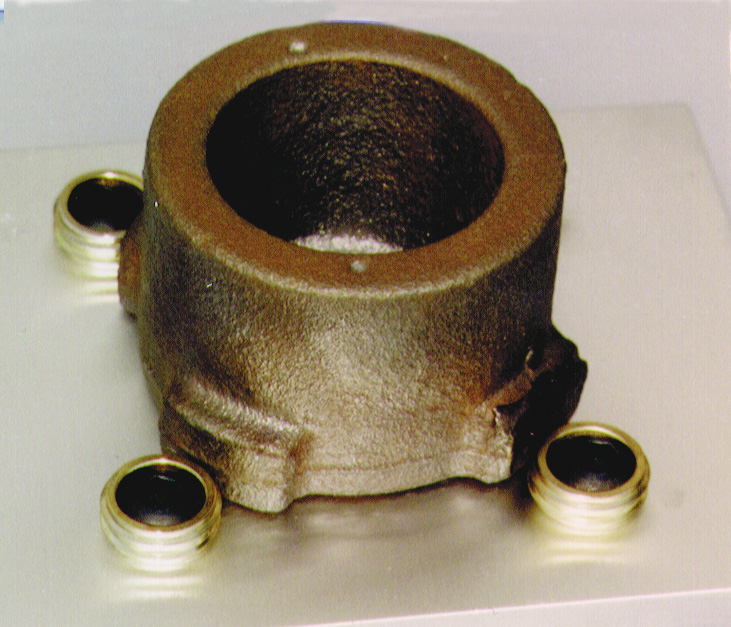

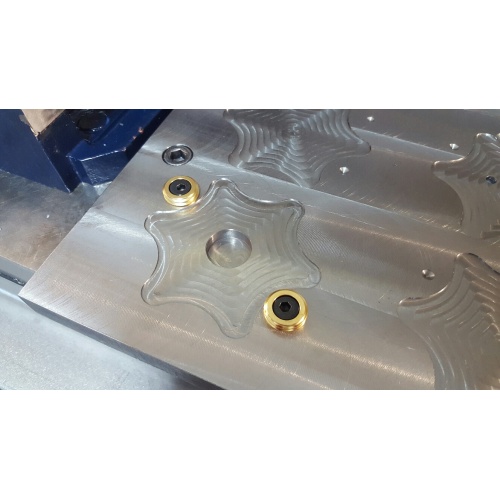

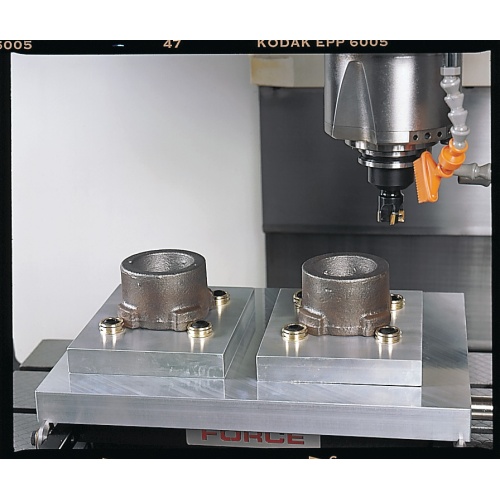

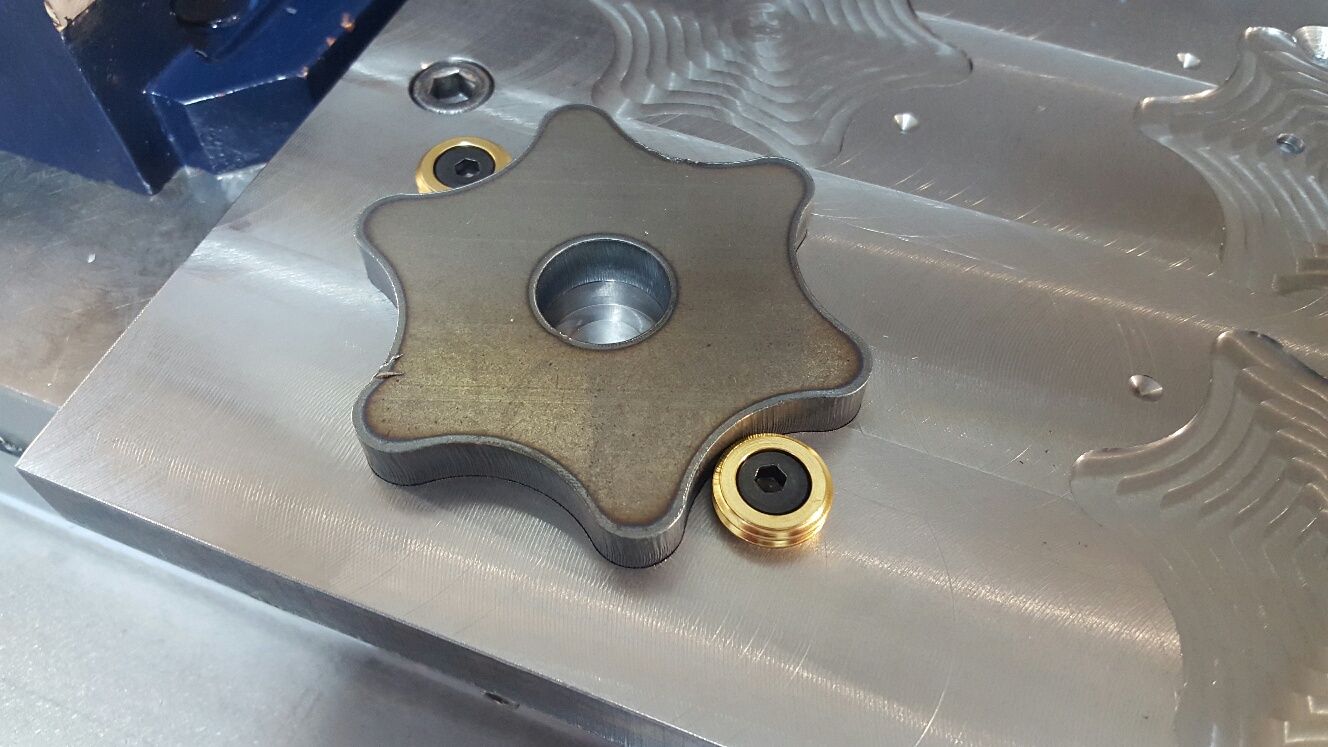

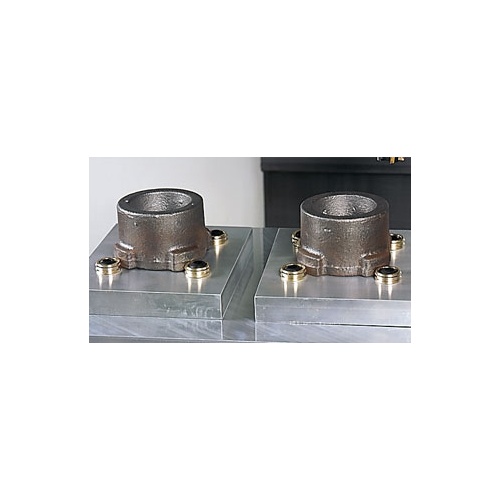

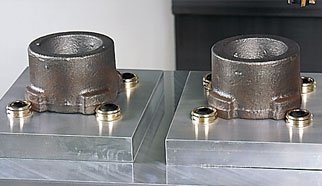

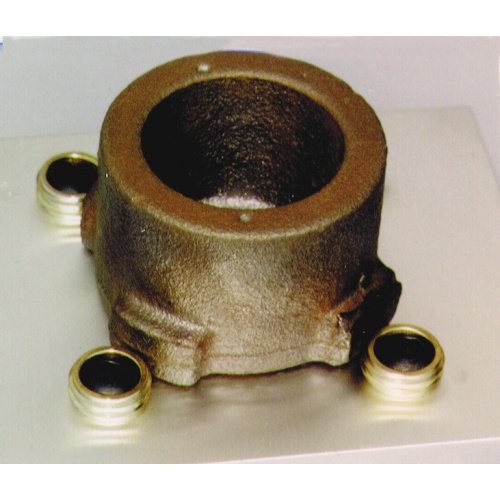

Our Knife Edge Clamps can be used instead of the original brass hex clamps for clamping rough cut stock, castings and any material that requires a hardened clamping element. Same "G" as original Fixture Clamp.

Inch

Part No. ABCDEFGTorque
(ft/lbs)		Holding
Force(lbs)		No. Clamps
Per Package		Replacement Cam ScrewsReplacement washers
22584   3/8-16 3/16 .050 .812 .250 .710 .400 16.6 2,000 lbs 8 10371 12584
22588B   1/2 13 5/16 .080 1.000 .375 .900 .500 52.0 4,000 lbs 8 10374 12588B
22592   5/8-11 3/8 .100 1.187 .500 1.125 .590 80.0 6,000 lbs 4 10375 12592



Metric

Part No. ABCDEFGTorque
(N.m.)		Holding
Force(N)		No. Clamps
Per Package		Replacement Cam ScrewsReplacement washers
82584   M10 7M 1.27 20.60 6.35 19.0 10.15 28.00 8,900 8 50369 12584
82588   M12 8M 2.03 25.40 9.52 22.8 12.70 88.00 17800 8 50371 12588B
82592   M16 12M 2.54 30.15 12.70 28.5 15.00 135.00 26700 4 50373 12592
