Mitee-Bite Loc-Down System

Brand: Mitee-Bite CNC Fixture ClampsMitee-Bite CNC Fixture Clamps
CAD85.90 EA
Select
Cost: CAD85.90 EA -
Add to cart

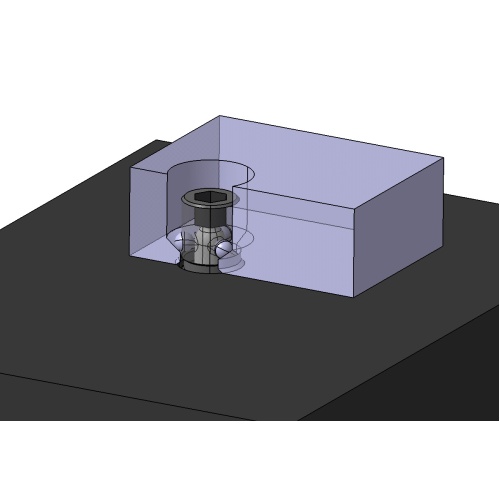

Loc-Down® System

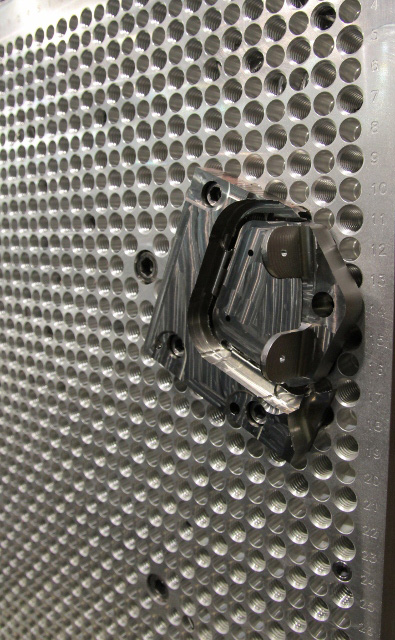

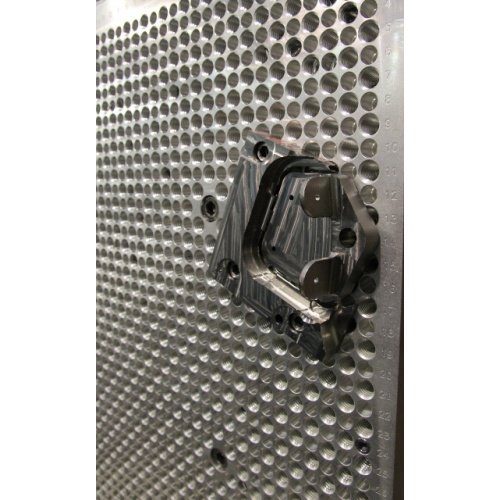

The Mitee-Bite Loc-Down® System was designed to be a programmer’s and operator’s dream for quickly and easily securing small to large aerospace parts. Its compact design allows for tighter pattern on grid plates compared to other options in the marketplace saving material cost on expensive aerospace alloys.

The Loc-Down® generates high holding force and provides low profile “out of the way” clamping allowing programmers to be very creative. Permits aggressive machining wihtout tooling interference or apply forces that would influence part, intended to streamline production for the Aerospace Industry.

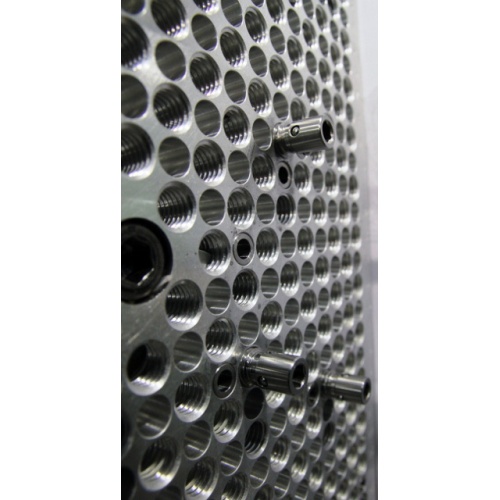

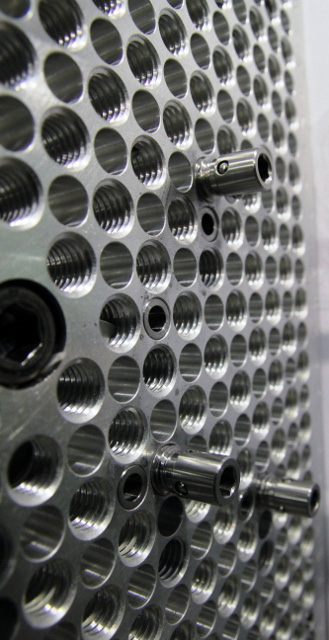

  • Ideal for grid plates, tombstones and custom applications
  • 100% Heat Treated Stainless Steel
Part No. DescriptionSize

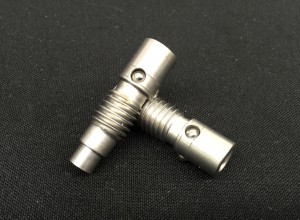

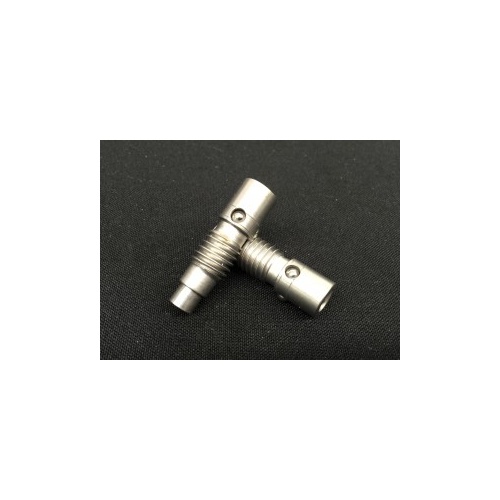

11500   Loc-Down® 1/2-13
11550   Loc-Down® Quick Change Kit* 1/2-13
11612   Loc-Down® M12
11650   Loc-Down® Quick Change Kit* M12
11530   Carbide Cutter
11535   Loc-Down® Insertion Tool
11520   Heavy Wall Loc-Down® Bushing

*Kit includes 4 Loc-Downs, 4 custom bushings, insertion tool,
4 liners, 1 diamond and tapered pin with mounting screws.

OLYMPUS DIGITAL CAMERAL

11520 NEW Heavy Wall Lock-Down Bushing

Loc-Down Kit with chip caps
We have combined our Loc-Down®, custom Bushings
and Locating Pins and Liners in a convenient kit (that
delivers a low-cost high precision quick change pallet
system with a repeatability of .0004″/0.01mm or better!

† – NEW Loc-Down® sizes available soon!

Maximum Torque* Chart

MaterialFt-lbs(Nm)
Loc-Down® Bushing 15 (20.3)
Aluminum/Brass 15 (20.3)
Mild Steel/Stainless 20 (27)
Hard Metals >45 Rc 15 (20.3)

*Hand tightening for majority of applications
is sufficient
