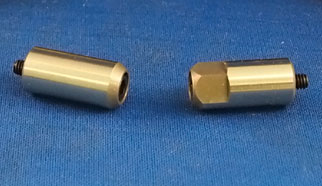

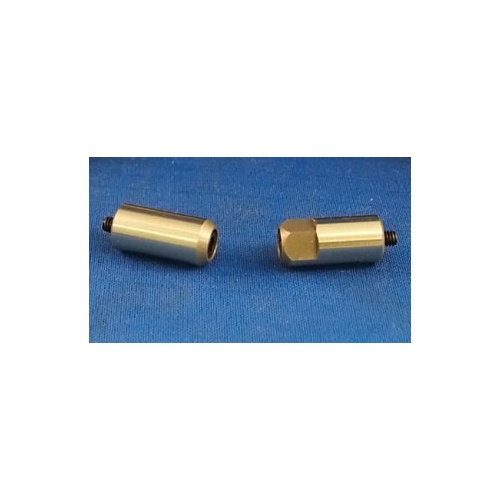

Mitee-Bite Locating Pins and Liners

Brand: Mitee-Bite CNC Fixture Clamps

CAD54.92 EA

Select

Cost: CAD54.92 EA -

Contact us for more information

Locating Pins and Liners

Use our Diamond and Tapered pins to standardize your shop with a universal pattern, allowing fixtures to be quickly mounted to any machining center.

Designed with simplicity in mind – easy to install and remove
Available with Inch or Metric hardware
Cylindrically ground
Heat treated 8620
Use with our Loc-Down® clamps for a low cost quick change system

Part Number	Description
51000	Set of pins with M4 screws
52000	Set of pins with 8-32 screws
45070	Liners (2 pk)

Loc-Down® Quick Change Kit

Part Number	Description	Size
11500	Loc-Down®	1/2-13
11550	Loc-Down® Quick Change Kit*	1/2-13
11612	Loc-Down®	M12
11650	Loc-Down® Quick Change Kit*	M12
11530	Carbide Cutter
11535	Loc-Down® Insertion Tool
11520	Custom Bushings

*Kit includes 4 Loc-Downs®, 4 custom bushings, insertion tool, 4 liners, 4 chip caps, 1 diamond and tapered pin with mounting screws.
