Mitee-Bite Locating Rails

Brand: Mitee-Bite CNC Fixture ClampsMitee-Bite CNC Fixture Clamps
CAD16.89 EA
Select
Cost: CAD16.89 EA -
Add to cart

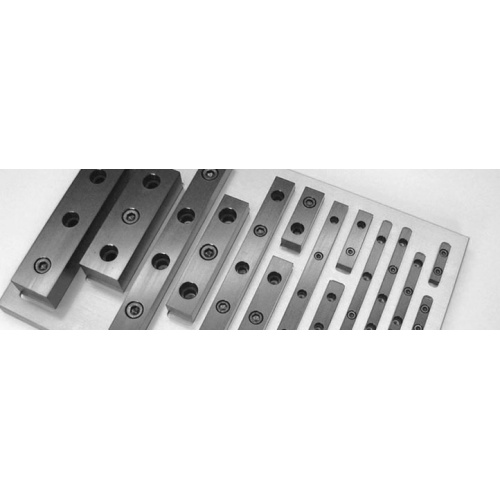

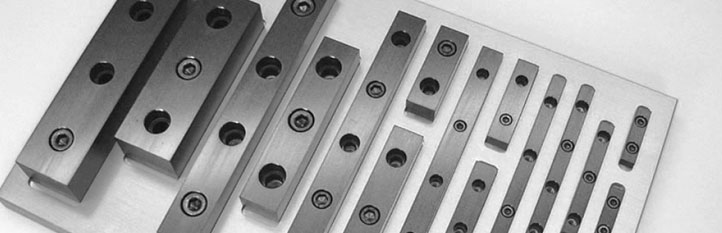

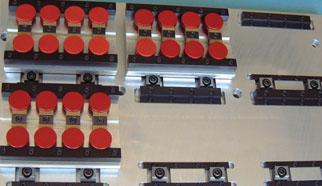

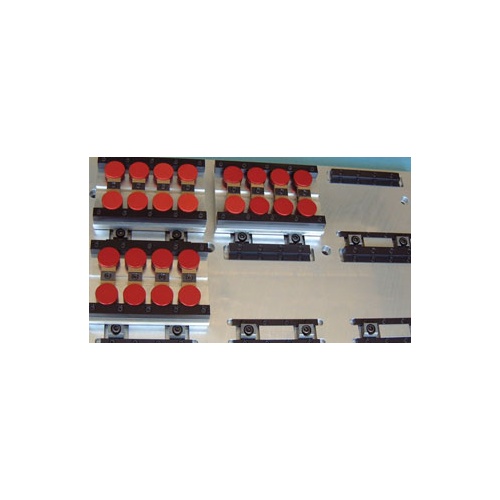

Locating Rails for Jigs and Fixtures

Is it taking too long to make a fixture to increase production?

Mitee-Bite Products makes fixture building easier and quicker with the addition of ready made locating rails.

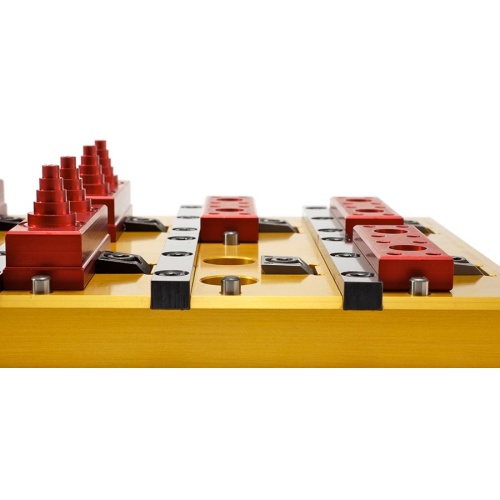

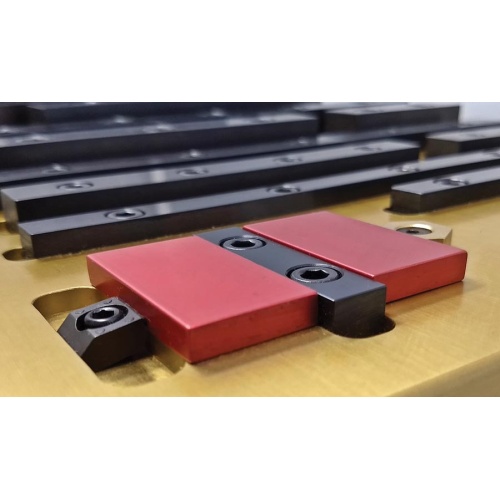

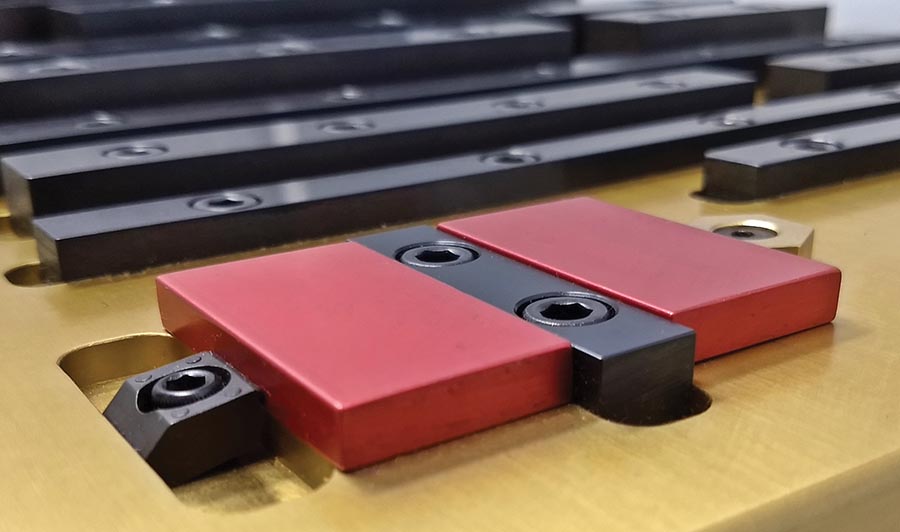

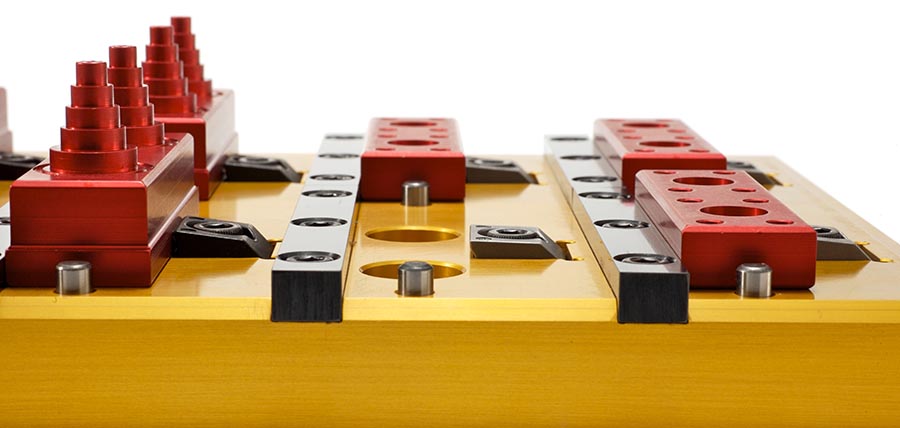

Rails are made of low carbon steel, then ground square. They are easily machined when used with our machinable clamps. Tungsten Carbide coating can be added to increase holding force.

locating_rails_drawinghttps://www.miteebite.com/wp-content/uploads/2014/01/locating_rails_drawing-300x114.png 300w" sizes="(max-width: 641px) 100vw, 641px" style="border-style: none;">


Inch

Part No. AB
+/-.0005		CDEFG# Holes
33110   .35 .480 .750 NA NA 1/4-20 .38 1
33120   .35 .480 2.00 .50 1.00 1/4-20 .38 2
33140   .35 .480 4.00 1.00 1.00 1/4-20 .38 3
33160   .35 .480 6.00 .75 1.50 1/4-20 .38 4
33180   .35 .480 10.00 1.00 2.00 1/4-20 .38 5
33200   .48 .730 3.00 .75 1.50 1/4-20 .38 2
33220   .48 .730 6.00 .75 1.50 1/4-20 .38 4
33240   .48 .730 10.00 1.00 2.00 1/4-20 .38 5
33260   .73 .980 3.00 .75 1.50 3/8-16 .62 2
33280   .73 .980 6.00 1.00 2.00 3/8-16 .62 3
33300   .73 .980 10.00 1.00 2.00 3/8-16 .62 5
33320   .98 1.230 6.00 1.00 2.00 1/2-13 .75 3
33340   .98 1.230 10.00 1.25 2.50 1/2-13 .75 4
33360   1.48 1.980 6.00 1.00 2.00 1/2-13 .75 3
33380   1.48 1.980 10.00 1.25 2.50 1/2-13 .75 4
  • Mounting screws included.


Metric

Part No.A
B
+.000 mm
-.013 mm
CDEFG# Holes
83200 12 15 50 15 20 M6 11mm 2
83210 12 15 100 20 30 M6 11mm 3
83220 12 15 150 30 30 M6 11mm 4
83240 12 15 250 25 50 M6 11mm 5
83260 18 24 75 20 35 M10 18mm 2
83280 18 24 150 30 30 M10 18mm 4
83300 18 24 250 25 50 M10 18mm 5
  • Mounting screws included.

Locating Rail Installation

  • Mill a slot to locate the rail. Depth of slot will determine rail height.
  • Drill and tap the required holes to mount the rail.
  • For better rigidity, the rail should be pinned to the fixuture plate with dowel pins.
  • If rails are to be machined to hold round pieces, the clamps should be mounted and both rail and clamp machined at the same time.
