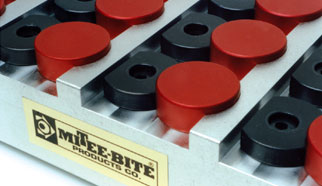

Mitee-Bite Machinable Fixture Clamps

Brand: Mitee-Bite CNC Fixture ClampsMitee-Bite CNC Fixture Clamps
CAD61.96 EA
Select
Cost: CAD61.96 EA -
Add to cart

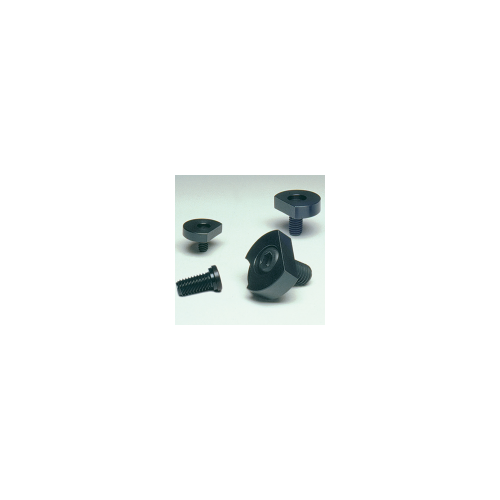

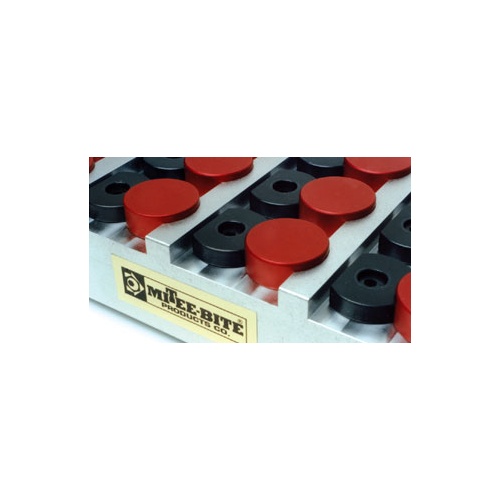

Machinable Fixture Clamps

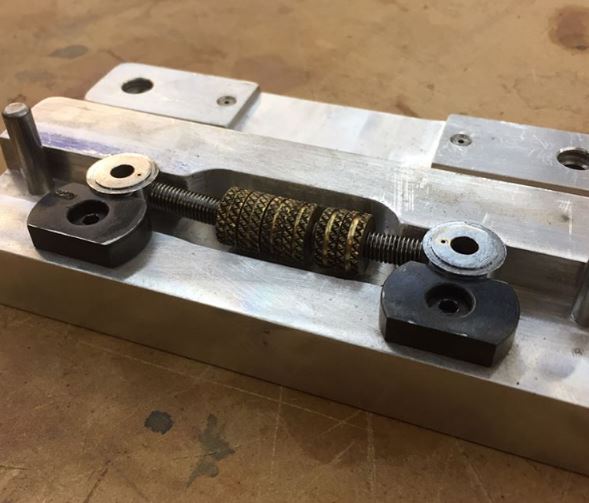

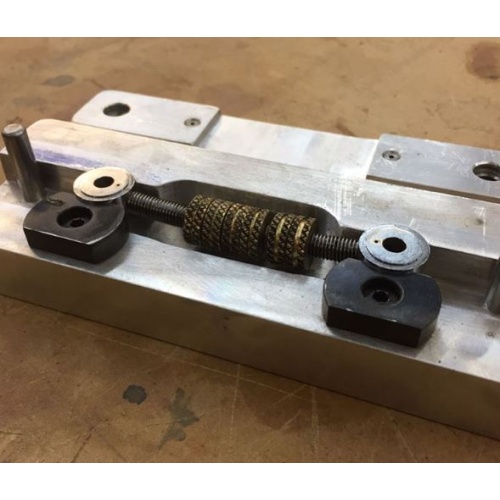

These clamps, with the machinable steel washers, provide more flexibility for holding round or unusual shaped parts. Parts can be held directly to the fixture plate surface or elevated for through-drilling. A special screw is provided with each package to hold the washer in the proper place during machining. The flat edge is the same location as our original fixture clamp. It can be used where a stronger clamping surface is required.

– Low profile

– Made of mild steel for machinability

Inch

Part No. ABCDEFG*H†Max
Torque
(ft/lbs)		 Holding
Force		Clamps
per pack		Replacement
Cam Screw		Replacement Washer
10504   1/4 – 20 1/8 .040 .980 .250 .470 .250 .308 6.2 800 lbs 4 10365 10604
10506   3/8 – 16 3/16 .050 1.230 .350 .710 .275 .400 20.8 2,000 lbs 4 10371 10606
10508   1/2 – 13 5/16 .100 1.480 .450 .900 .300 .500 65.0 4,000 lbs 4 10373 10608
10510   5/8 – 11 3/8 .100 1.730 .550 1.125 .350 .590 100.0 6,000 lbs 4 10375 10610

G* – amount of machinable stock.
H† – the distance to drill & tap hole from edge of workpiece to use flat face.
Every package includes one machining screw.



Metric

Part No. ABCDEFG*H†Max
Torque
(N.m.)		 Holding
Force		Clamps
per pack		Replacement
Cam Screw		Replacement Washer
50506   M6 4M 1.01 24.9 6.4 11.9 6.4 7.8mm 8.50 3358 N. 4 50365 10604
50510   M10 7M 1.52 31.2 8.9 18.0 7.0 10.2mm 28.00 8900 N. 4 50369 10606
50512   M12 8M 2.03 37.6 11.4 22.9 7.6 12.7mm 88.00 17800 N. 4 50371 10612
50516   M16 12M 2.54 43.9 14.0 28.6 8.9 15.0mm 135.00 26700 N. 4 50373 10610

G* – the amount of machinable stock.
H† – the distance to drill & tap hole from edge of workpiece to use flat face.
Every package includes one machining screw.
