Cadex Defence CDX-30 Patriot Lite (338 Lapua Mag)

The CDX-30 Guardian Lite, CDX-300 Freedom Lite, and CDX-33 Patriot Lite sniper rifles combine all mandatory features that an operator needs in the field. Nothing is left to chance and every detail has been designed to offer the best extreme range sub-minute sniper system on the market. The CDX sniper rifles will be your most reliable partner. One shot, one kill... Then extract safely.

SPECIFICATION
Muzzle Brake Ready
Ready to accomodate a muzzle brake or suppressor.
(Optional muzzle brake available)

V-Shaped Bedding System
Provides a stable platform that eliminates any movement of the action in the chassis.

Mirage Control Tube
Reduces image distortion from barrel heat.

Receiver

Bolt
3 lug bolt with 60o bolt throw.

Bolt Knobs
A: Oversized cross hatch bolt knob (0.850″ x 2.625″)
B: Grooved tactical knob (0.730″ x 2.8″)
C: Knurled tactical knob (0.730″ x 2.8″)
D: Rounded knob (0.981″ x 2.7″)

Barrel
In order for Cadex to offer the best extreme long range sub-MOA precision rifle, we selected Bartlein Barrels. Teamed with our Cadex designed 1.300” straight taper, fluted barrel and a threaded muzzle. All CDX-Lite barrels are Match Grade, Single Point cut, 5R rifling with an optimized twist rate.

Recoil Lug
Heavy duty 0.350″ recoil lug

Triggers
DX1 Single Stage: The Cadex DX1 trigger is a single stage trigger adjustable about 1.5 to 5 lbs. It features an adjustable trigger shoe to improve ergonomics.
DX2 Double Stage: The Cadex DX2 trigger is a double stage trigger adjustable about 2 to 5 lbs. Both stages can be adjusted separately. It features an adjustable trigger shoe to improve ergonomics.

Folding Butt Stock
Reverse folding butt stock offers bolt handle protection and ultra compact transport.

Locking Mechanism
Rattle free locking mechanism. Easy manipulation with gloves.

Folding Hinge
Offset cam to remove any free play.

Tool-Free Adjustable Butt Pad

Tool-Free Adjustable Length of Pull

Toll-Free Adjustable Cheek Rest

Detachable Base
Removable for trigger maintenance or tuning without need to remove your action and lose your zero.

Full Length Lite Top Rail
Full length lite top rail. Available in 20 MOA, 30 MOA, or 45 MOA depending on the model.

Magazine Sleeve
Multiple magazine sleeves are available to fit most magazine types on the market.

Grip
Finger grooved rubberized Ergo grip.

Trigger Guard
Oversized trigger guard and magazine release for easy manipulation with gloves.

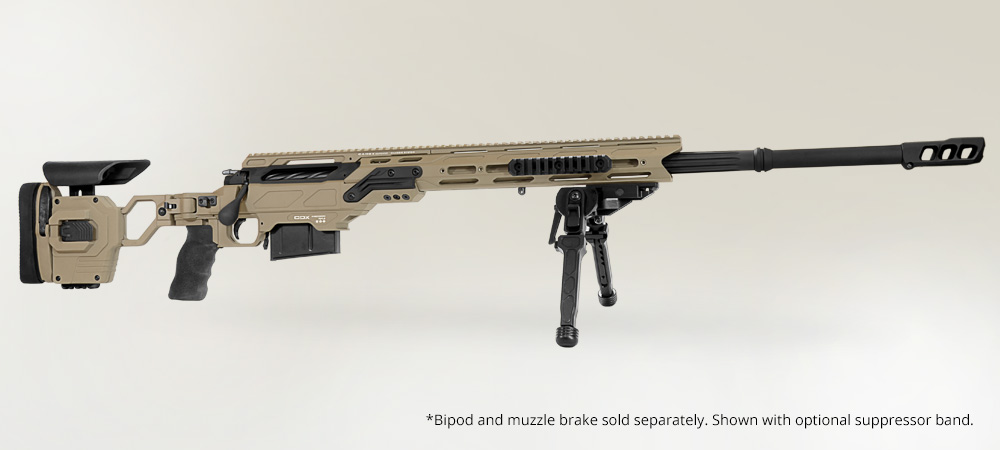

Cadex Precision Rifles Lite configurations
