Want to Learn more about the Raven? Raven Specifications
The Raven will be Canada's most ergonomic, advanced rifle on the market. Precision machined, and packed with operator friendly features, you'll be ready to crush the competition.
FEATURE LEVELS - EXPLAINED
Both the PLATINUM and GOLD models are the same firearm with the GOLD having some features removed.
The GOLD does not have the following features and associated parts.
[Last round bolt hold open] [Left hand magazine release] [Left hand bolt catch / release button]
At any time, you may purchase the missing parts from our spare parts catalog and upgrade from GOLD level to PLATINUM
The GOLD feature level does NOT include
1x Bolt Catch Plunger
1x Bolt Catch Plunger Spring
1x Right Bolt Catch Rear - Mid length
1x Left Bolt Catch Rear - Mid length
2x Raven Standard Button Retaining Pin
1x Raven Upgraded Ambi Magazine Catch Base - Mid Length
1x Raven Upgraded Ambi Magazine Catch Base Rollpin - Mid Length
1x Raven Upgraded Ambi Magazine Catch Base Connecting Hardware- Mid Length
1x Raven Upgraded Ambi Left Magazine Catch - Mid Length
1x Raven Upgraded Ambi Right Magazine Catch - Mid Length
Note: The GOLD model does include a basic AR15 right hand magazine release button system.

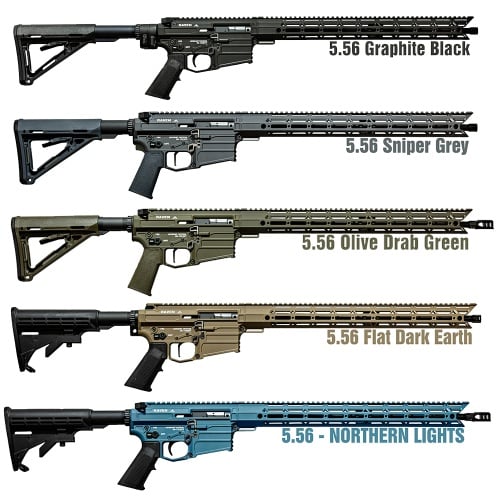

Multiple Color Options
Available in Black or Colored cerakote.
We're fully ambidextrous for safety selector, magazine release, bolt catch and charging operations.
Compatibility is everything.
The raven is already setup for top and /or side charging handle options making our platform fit your preferred style best.
Made For Canada!
Our team at Lockhart pulled off the near impossible task of blending form, function, lightweightness while making a beautiful rifle specifically for the Canadian market.
The heart of the Raven is it’s target smashing barrel. It’s match grade 18.6 inches of perfection is crafted from 416R stainless steel which is then 5R button rifled to squeeze every available milliradian of accuracy out of every round fired.
Twist Rate: 1:8
5R is an improvement over conventional rifling by changing the shape and configuration of the lands and grooves. Conventional rifling, while effective, can be improved upon in two ways.
1. Conventional rifling has sharp 90-degree corners from the top of the land to the bottom of the groove.
2. Conventional rifling has lands and grooves opposing one another. 5R rifling improves upon this by using 5 lands and grooves over the even numbers which puts lands opposite of grooves. Further, the transition from the top of the land to the groove is sloped.
5R reduces projectile deformation as it passes through the bore during the firing sequence. By placing the lands opposite of the grooves, the bullets are no longer squeezed on opposite sides ensuring the projectile stays uniform instead of squeezing material into the grooves. More uniform projectile means better accuracy.
Bolt Carrier Specifications
Crafted from 316 Stainless Steel and coated with a DLC (Diamond Like Carbon) coating. This coating is one of our favorites! It's an extremely tough, corrosion proof coating that has a very low coefficient of friction and bonds so tightly to the carrier that it's nearly indestructible. What does this mean for you? The Raven want's to party without needing to be soaked in oil!
Our proprietary bolt carrier fits all standard AR15 style bolt faces. This allows you to only have to swap out the bolt front half during caliber changes and allowing instant and easy access to the firing pin as well. We mentioned no tools required right?
Instead of requiring a proprietary extractor claw, we utilized a tested and proven off the shelf part to ensure replacements are always easy.
We also offer a dual picatinny mounting solution. Use either the twenty eight (28) provided MLOK attachment slots, or use our thirty (30) threaded holes to attach additional rails on the 3, 6, or 9 o'clock position.
We optimized every feature of our weapon system while keeping the Raven incredibly strong; resulting a work of art. Weighing less than nearly every other "competitor", the Raven is well balanced to ensure comfort while keeping you on target. Dominate your sport with the Raven.
- Made Specifically for Canadians!
- Weight: 6.8 LBS (3 KG)
- Semi Automatic 5.56 NATO rifle
- Dual style ambidextrous charging handles
- Ambidextrous safety Selectors
- Ambidextrous symmetrical magazine releases
- Ambidextrous symmetrical bolt catch / releases
- Automatic last round bolt hold open
- Match grade 416R stainless steel, 5R button rifled barrel
- Barrel Twist Rate: 1:8
- Threaded threaded and includes thread protector!
- 1 year warranty on firearm
- Accepts STANAG style magazines
- Compact. OAL is 37” fully extended, 34” fully collapsed
- Packs down to 26" long x 7” tall x 2” wide
- Stainless steel hardware enhances durability by resisting corrosion
- Billet 7075-T6 aluminum upper receiver
- Billet 7075-T6 aluminum lower receiver
- Billet 6061-T6 aluminum full length handguard
- Modular Receiver Design allows tool-less caliber changes
- Modular Stainless Steel Bolt Carrier w/ DLC coating for optimal perfomance
- Tool-less receiver take down for easy cleaning / storage
Accepts AR Style Buffer Tube
Accepts AR Style Buttstocks
Accepts AR Style Semi Auto Trigger Groups
Accepts STANAG Standard Magazines
*Other standard magazines will be able to be used with our caliber change kits.
Full Picatinny Rails Accept Any Standard Accessories!
Whats in the box
Each Raven is shipped with the following
- One Magazine
- Safe Use, Maintenance Instructional Manual
Want to have back up parts on hand? No problem. We'll have thousands of extra parts in stock to ensure your Raven never goes down.
