Compact Toe Clamps

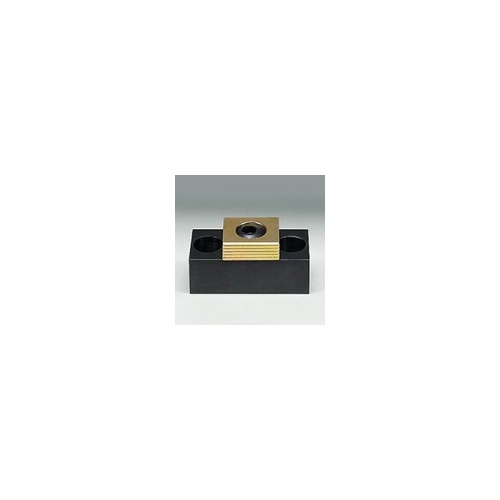

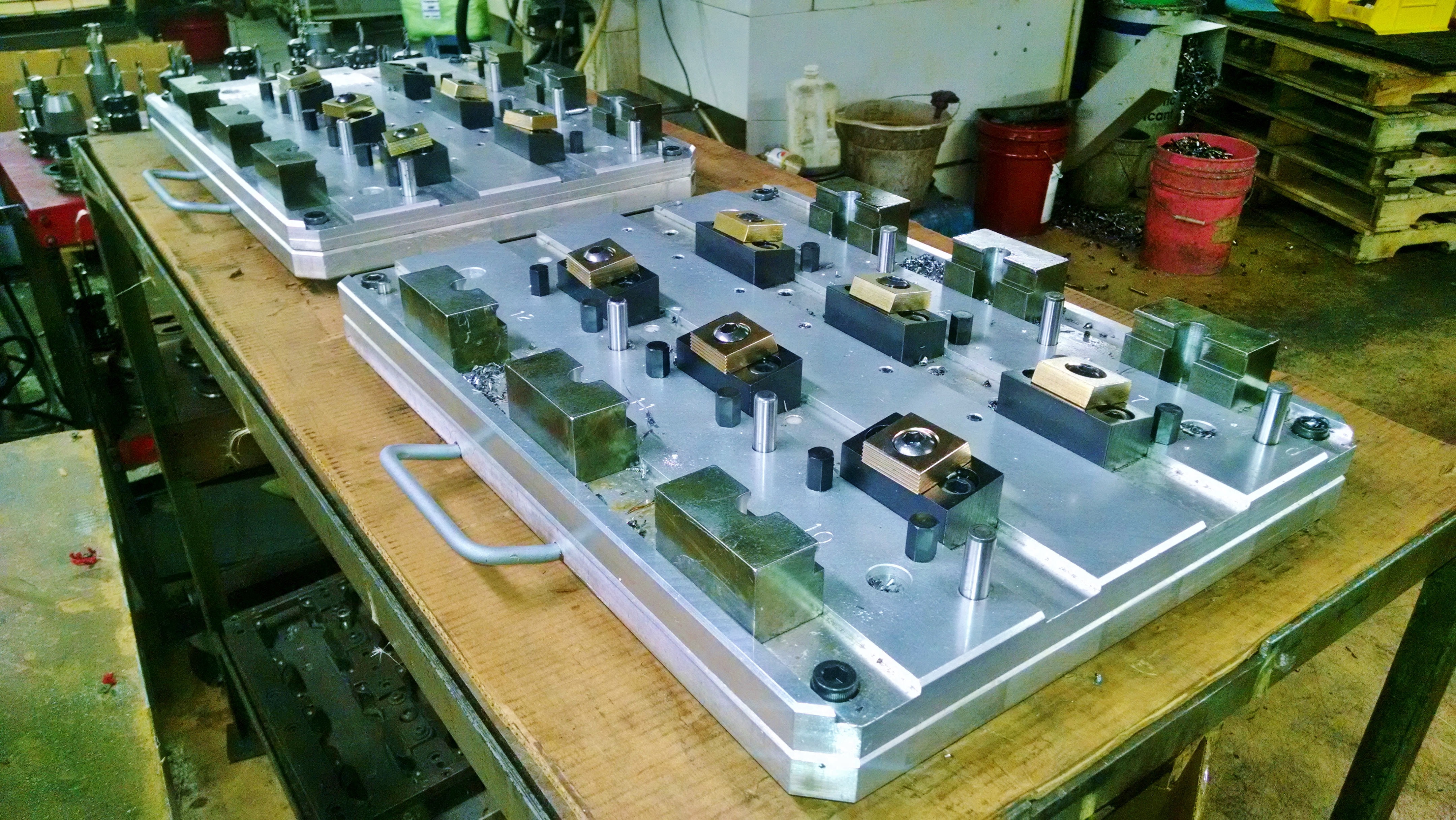

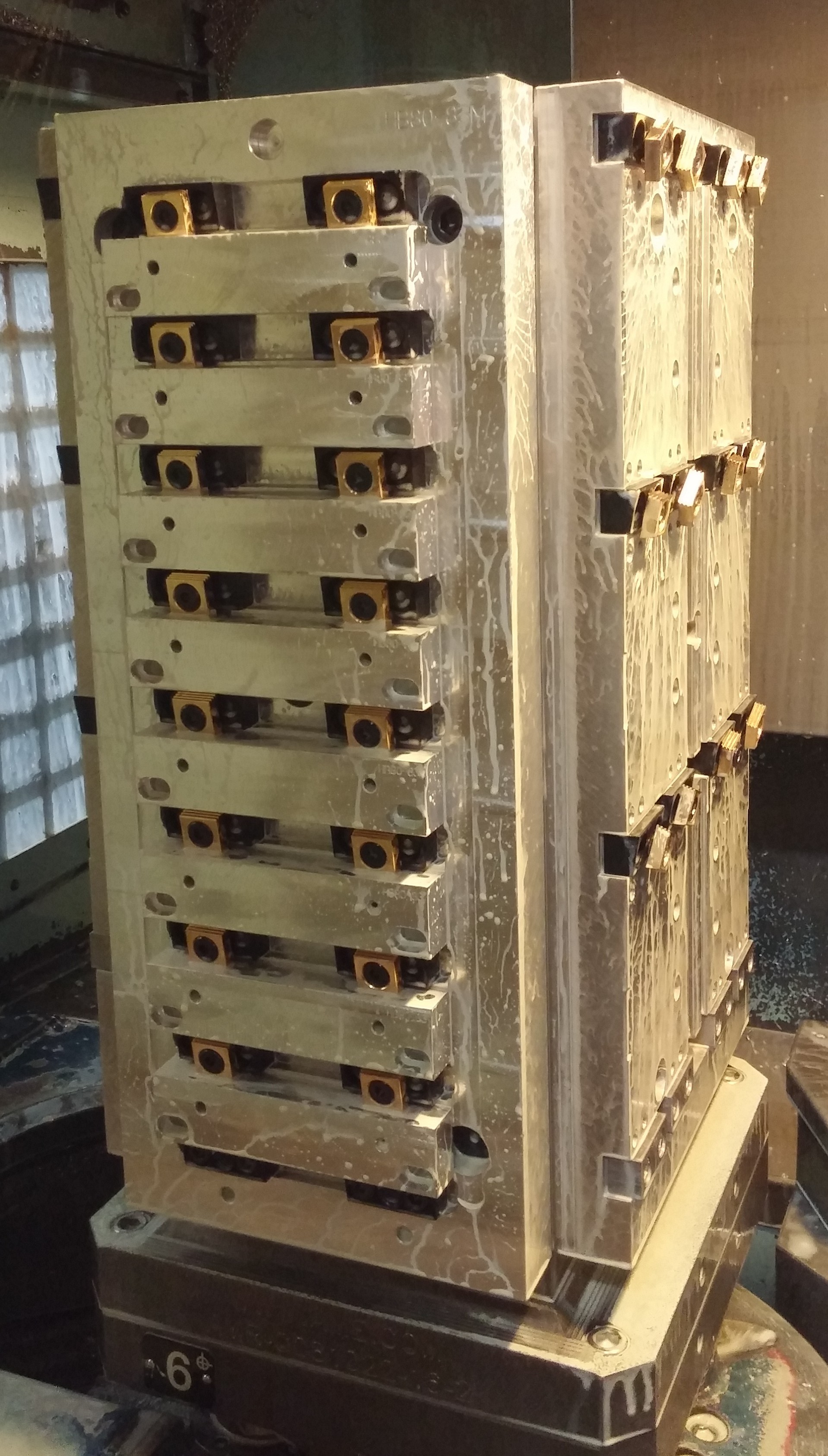

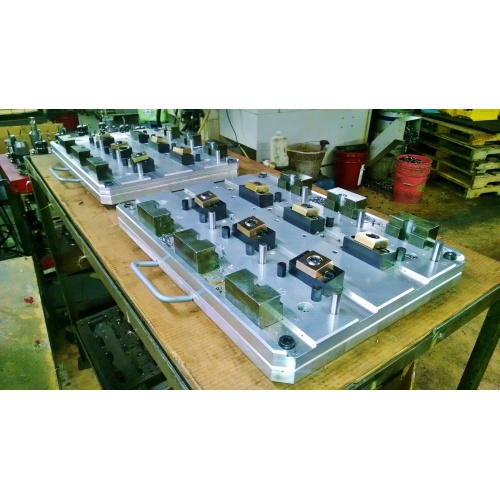

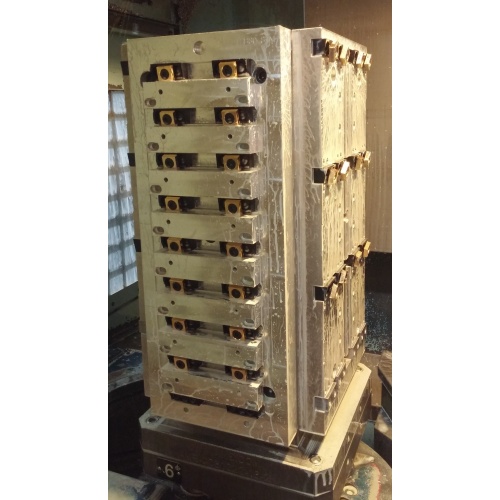

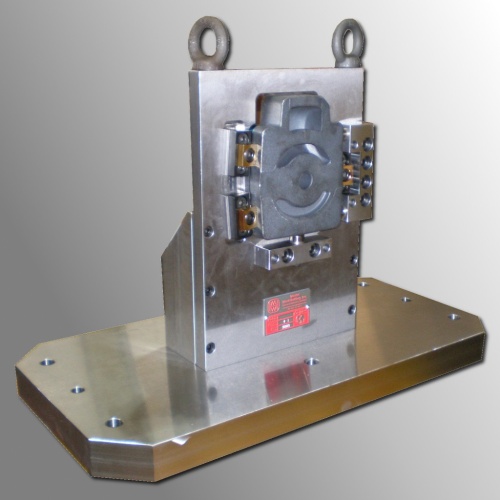

This cam action fixture clamp provides positive down force while using very little space on a fixture. Work pieces can be clamped in series by using the back surface of a clamp to locate the next work piece.
The hardened steel clamping element has both a smooth surface for machined work pieces and a serrated clamping surface for rougher work. The height of the clamp can be adjusted by milling the slot deeper in the fixture plate.
Inch
| Part No. | | A | B | C | D | E† | F | G | H | I* | Cam
Screw | Total
Distance of
Movement | Mounting
Screws
(Included) | Torque
(ft/lbs) | Holding
Force
(lbs) | Repl.
Cam Screw | Repl.
Square Washer |
|---|
| 24106 |
|
1.70 |
.75 |
.50 |
1.00 |
.090 |
.75 |
.25 |
.62 |
.845 |
10370 |
.050 |
5/16 – 18 x 3/4 LHCS |
20.8 |
2000 |
10370 |
21006 |
| 24108 |
|
2.12 |
1.00 |
.45 |
1.32 |
.110 |
1.00 |
.38 |
.62 |
.960 |
10372 |
.100 |
3/8 – 16 x 3/4 LHCS |
65.0 |
4000 |
10372 |
21016 |
| 24110 |
|
2.95 |
1.50 |
.99 |
2.00 |
.130 |
1.50 |
.50 |
1.25 |
1.70 |
10376 |
.100 |
1/2 – 13 x 1 1/4 SHCS |
100.0 |
6000 |
10376 |
21026 |
E† – The distance needed between the front of the clamp base and the work piece
I* – The distance from the top of the washer to the bottom of the clamp body.
Drill and tap the centerline of “B” for mounting holes.
Metric
| Part No. | | A | B | C | D | E† | F | G | H | I* | Cam
Screw | Total
Distance of
Movement | Mounting
Screws
(Included) | Torque
(N.m.) | Holding
Force
(N.) | Repl.
Cam Screw | Repl.
Square Washer |
|---|
| 54110 |
|
43.2 |
19.0 |
12.7 |
25.4 |
2.3 |
19.0 |
6.4 |
15.75 |
21.5 |
50368 |
1.6 |
M8x16 LHCS |
28.20 |
8900 |
50368 |
21006 |
| 54112 |
|
54.0 |
25.4 |
11.4 |
33.5 |
2.8 |
25.4 |
9.7 |
15.75 |
24.4 |
50372 |
2.0 |
M10x20 LHCS |
88.13 |
17800 |
50372 |
51016 |
| 54116 |
|
75.0 |
38.1 |
25.2 |
50.8 |
3.3 |
38.1 |
12.7 |
31.75 |
43.2 |
50374 |
2.5 |
M12x30 SHCS |
135.58 |
26700 |
50374 |
21026 |
E† is the distance needed between the front of the clamp base and the work piece.
I* The distance from the top of the washer to the bottom of the clamp body.
Drill and tap the centerline of “B” for mounting holes.
