Mitee-Bite Fixture Clamps

Brand: Mitee-Bite CNC Fixture ClampsMitee-Bite CNC Fixture Clamps
CAD71.82 EA
Select
Cost: CAD71.82 EA -
Add to cart

Fixture Clamps

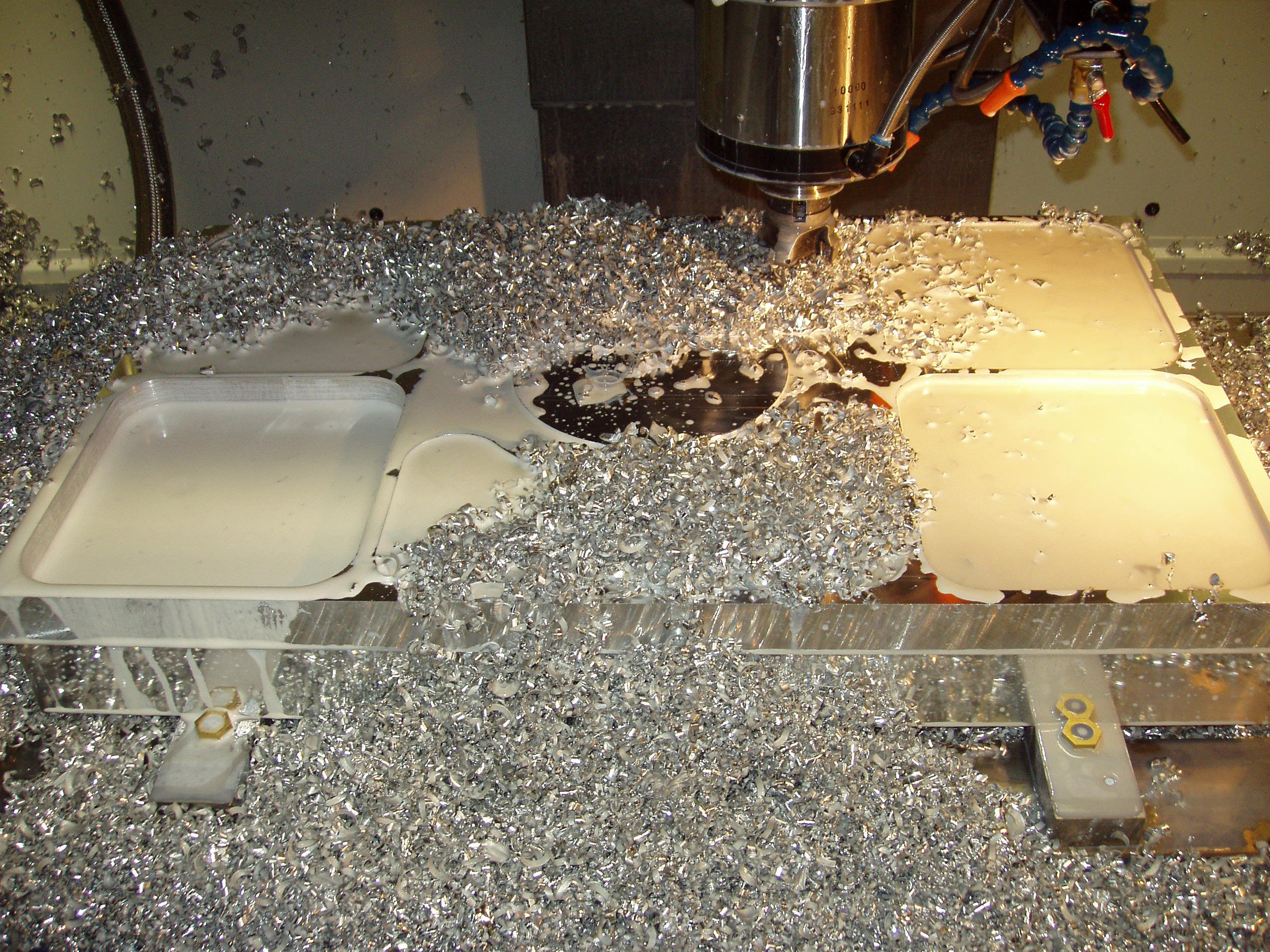

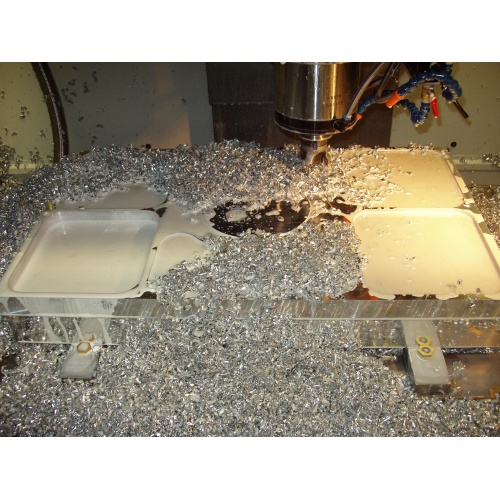

The Cam Action MITEE-BITE Fixture Clamp is made up of two simple components: a hardened steel socket cap screw with an offset head and a brass hexagonal washer.

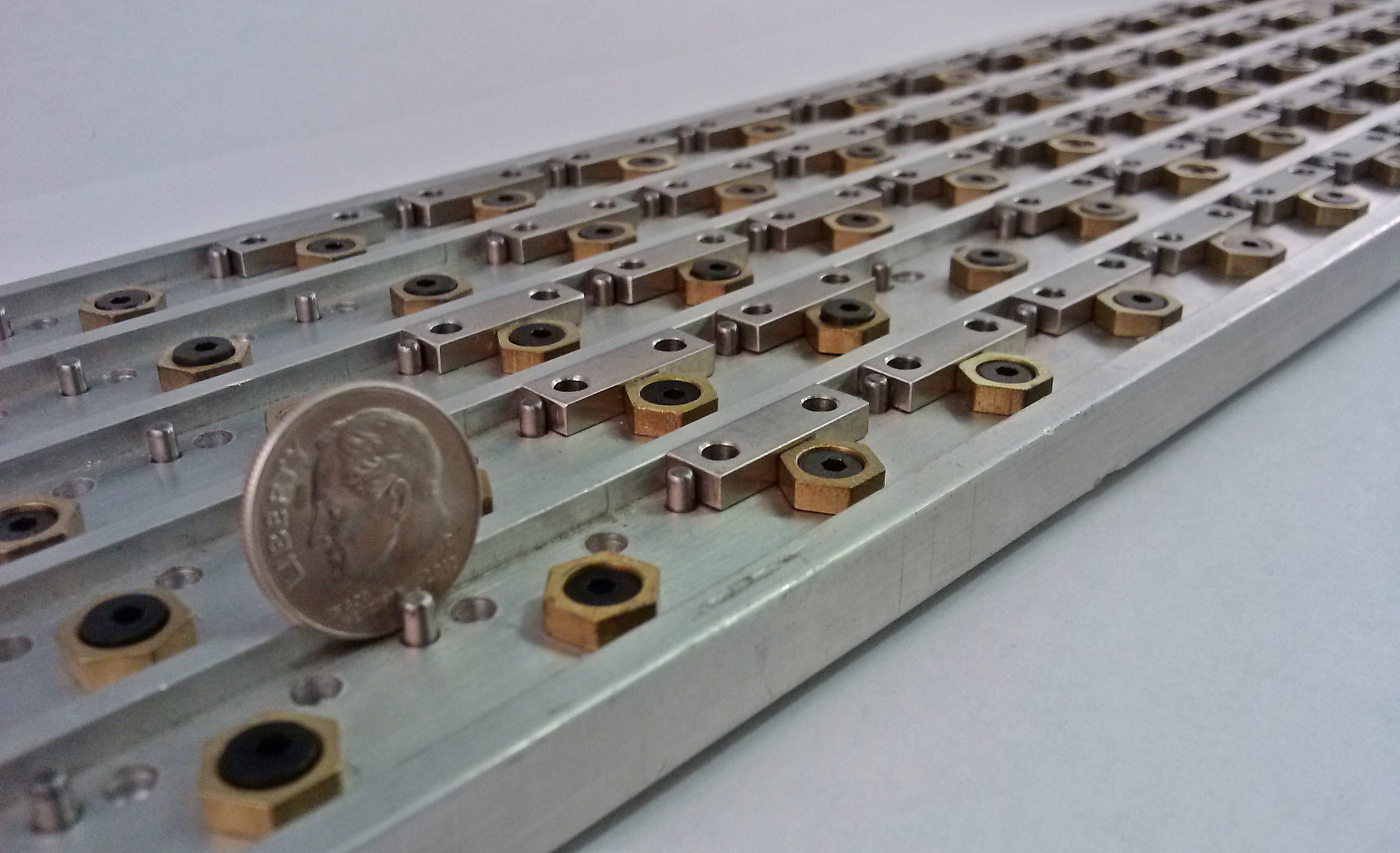

– Low profile for quick and easy installation for linear motion guide rails
– Cam action provides fast, strong clamping

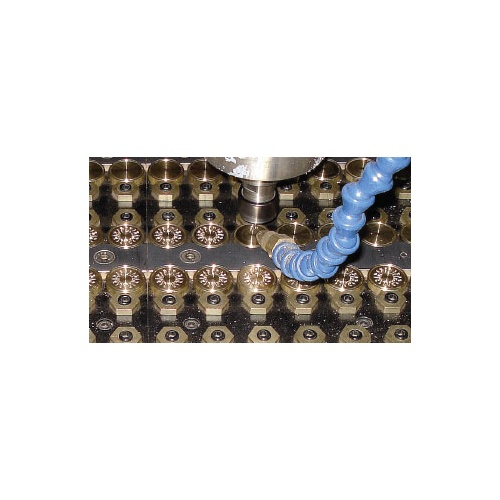

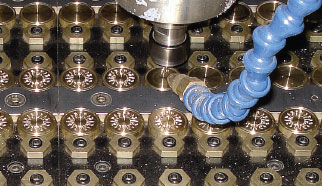

– Small size allows more parts per load
– Simple design keeps cost low
– 50218 our most popular LMGR size – available in bulk

NOTE: Clockwise rotation is recommended. Locating pin should be on the right of workpiece.

Inches

Part No. ABCDEFG*Max.
Torque
(ft/lbs)		Holding
Force(lbs.)		No. of
Clamps
per Pack		Replacement
Cam Screw		Replacement
Hex Washer
10202   8 – 32 5/64 .030 .312 .110 .350 .150 1.5 205 10 10363 10580
10207   10 – 32 3/32 .040 .500 .160 .340 .250 2.5 350 10 10366 10587
10204   1/4 – 20 1/8 .040 .625 .190 .470 .308 6.2 800 10 10365 10582
10205   5/16 – 24 3/16 .040 .812 .180 .460 .400 8.3 800 12 10369 10584
10201   5/16 – 18 3/16 .040 .812 .180 .460 .400 8.3 800 12 10367 10584
10206   3/8 – 16 3/16 .050 .812 .250 .710 .400 20.8 2000 10 10371 10586
10208   1/2 – 13 5/16 .100 1.000 .375 .900 .500 65.0 4000 8 10373 10588
10210   5/8 – 11 3/8 .100 1.187 .500 1.125 .590 100.0 6000 4 10375 10592
Stainless Steel
10214   8 – 32 5/64 .030 .312 .110 .350 .150 1.5 205 4 10362 10581
10203   1/4 – 20 1/8 .040 .625 .190 .470 .308 6.2 800 4 10364 10583
10213   5/16 – 18 3/16 .040 .812 .250 .460 .400 8.3 800 4 10368 10585

All clamps may be purchased in bulk packages of 50 pcs or more

Metric

Part No. ABCDEFGMax.
Torque
(N.M.)		Max.
Holding
Force(N)		No. of
Clamps
per Pack		Replacement
Cam Screw		Replacement
Hex Washer
50204   M 4 3 .76 7.93 2.80 9.6 3.80 2.0 910 10 50363 10580
50206   M 6 4 1.01 15.86 4.75 11.2 7.80 8.5 3558 10 50365 10582
50208   M 8 5 1.01 20.61 4.55 15.0 10.15 11.3 3558 12 50367 10584
50210   M10 7 1.27 20.61 6.35 19.0 10.15 28.0 8895 10 50369 10586
50212   M12 8 2.03 25.38 9.52 22.8 12.70 88.0 17790 8 50371 10590
50216   M16 12 2.54 30.13 12.70 28.5 15.00 125.0 26680 4 50373 10592
50218   M8 5 1.01 20.61 4.55 15.0 10.15 11.3 3,558 bulk 502181 10584
Stainless Steel
50214   M4 3 .76 7.93 2.80 9.6 3.80 2.0 910 4 50361 10581
50205   M6 4 1.01 15.86 4.75 11.2 7.80 8.50 3558 4 50364 10583
50207   M8 5 1.01 20.6 6.35 15.0 10.15 11.30 3558 4 50366 10585

All clamps may be purchased in bulk packages of 50 pcs or more
