Mitee-Bite Kopal Mono-Bloc Chain Clamps

Brand: Mitee-Bite CNC Fixture ClampsMitee-Bite CNC Fixture Clamps
$612.99 EA
Select
Cost: $612.99 EA -
Add to cart

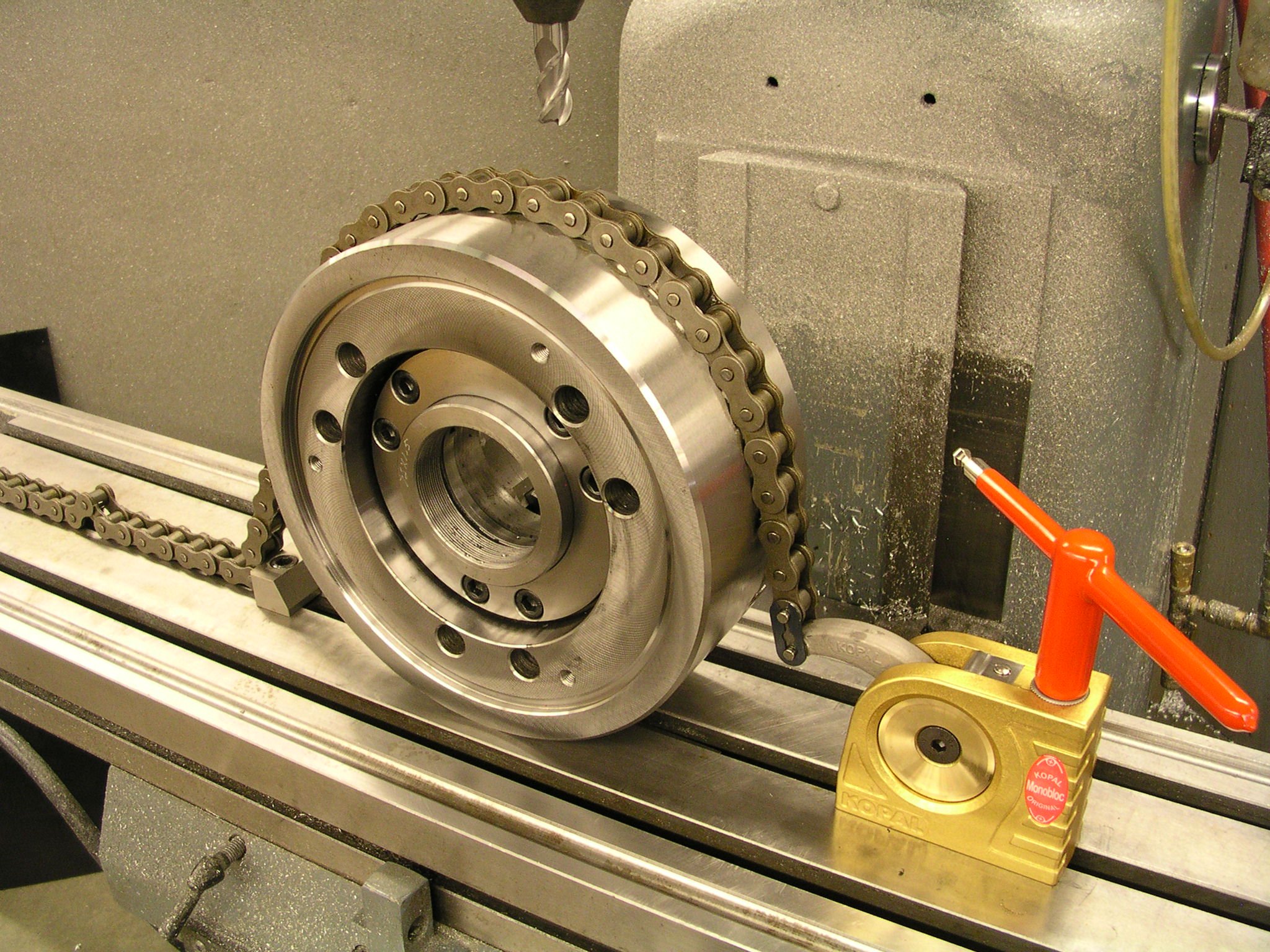

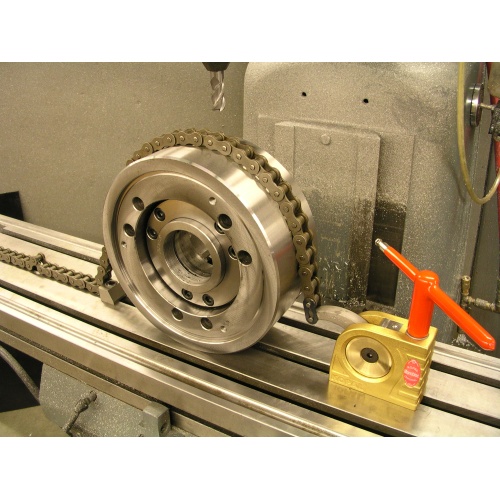

KOPAL® Mono-Bloc Chain Clamp

The Mono-Bloc Chain Clamp is a simple and rapid workholding solution for a wide array of applications. The Chain Clamp offers fast and powerful clamping with forces to 3,600 lbs. (16000N).

Additional lengths of chain can be added for large applications.

Part No.Description
25040* Mono-Bloc Chain Clamp with Clip, Anchor, Key and 1 Meter of Chain
25041 Master Link
25042 Extra Chain (1 meter)
25043 Anchor
25045 Protective Clips (5/pk)
25720 Wrench

*Includes (2) M10 mounting screws for anchor and clamp.
T-nuts sold separately – see chart

Special Screws and T-Nuts
for Mono-Bloc

(Order one screw and one nut per Mono-Bloc)

Part No.Description
25730 M10x35mm Screw for 9/16 T-Nut
25733 M10x40mm Screw for 5/8 & 3/4 T-Nut
25736 M10x45mm Screw for 13/16 & 7/8 T-Nut
25747 1/2xM10 T-Nut (12mm)
25748 9/16xM10 T-Nut (14mm)
25751 5/8xM10 T-Nut (16mm)
25754 3/4xM10 T-Nut (18mm)
25757 13/16xM10 T-Nut (20mm)
25760 7/8xM10 T-Nut (22mm)
monop_chain_thumb

To prevent marring or scratching on delicate pieces use the protective chain
clips. (25045) Minimum radius 6”.

Mono-Bloc Chain Clamp
