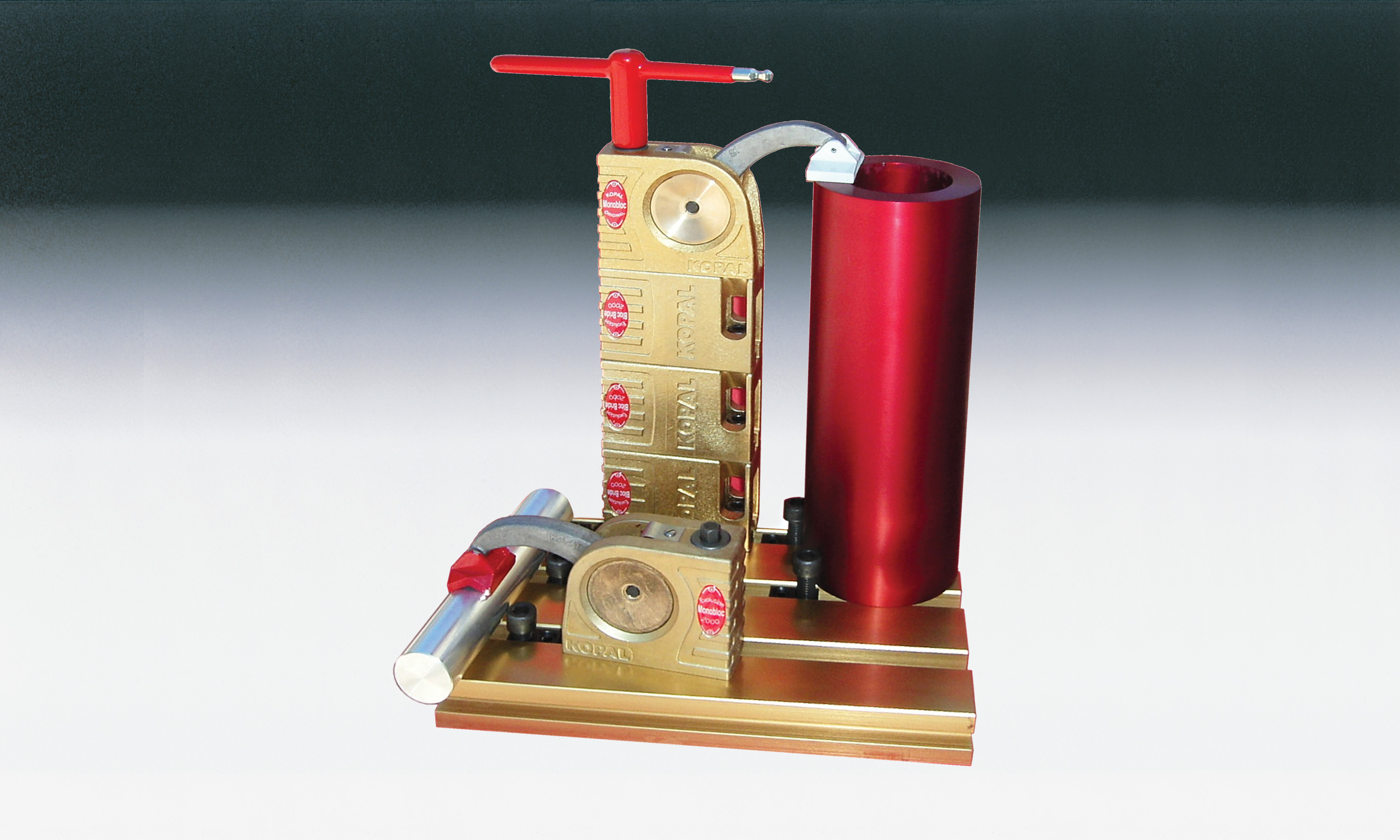

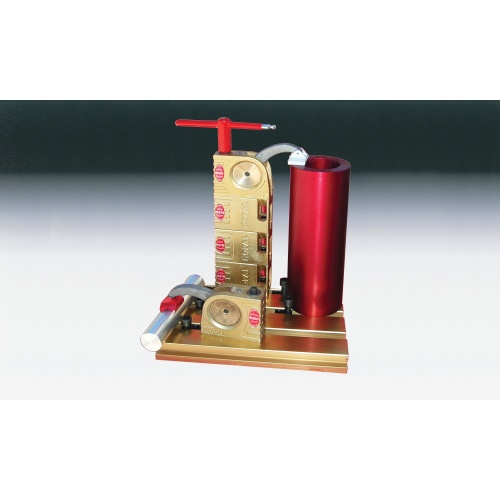

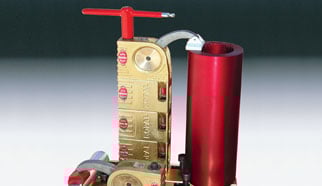

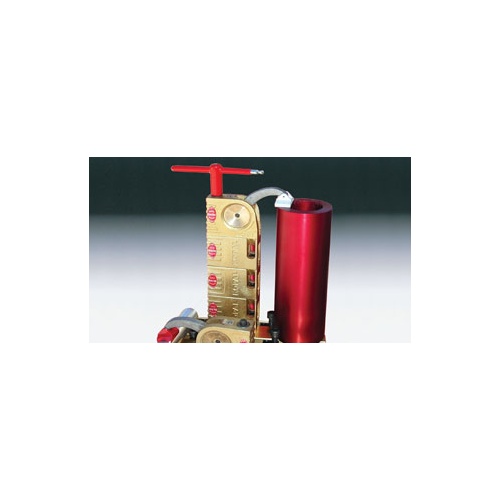

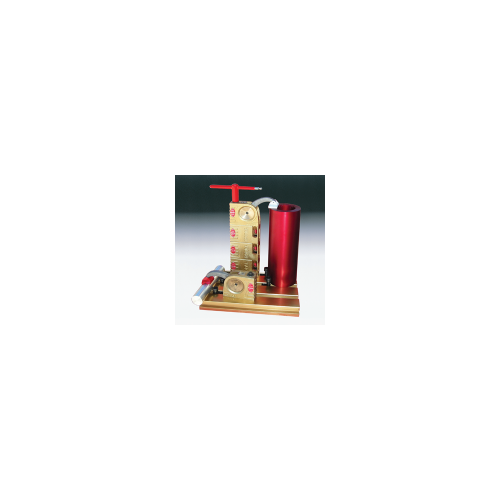

Kopal Mono-Bloc Clamps

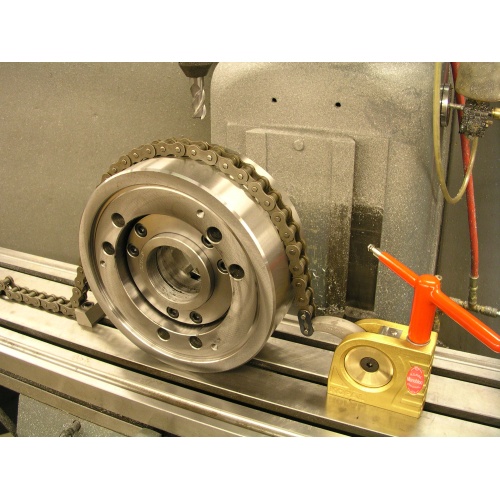

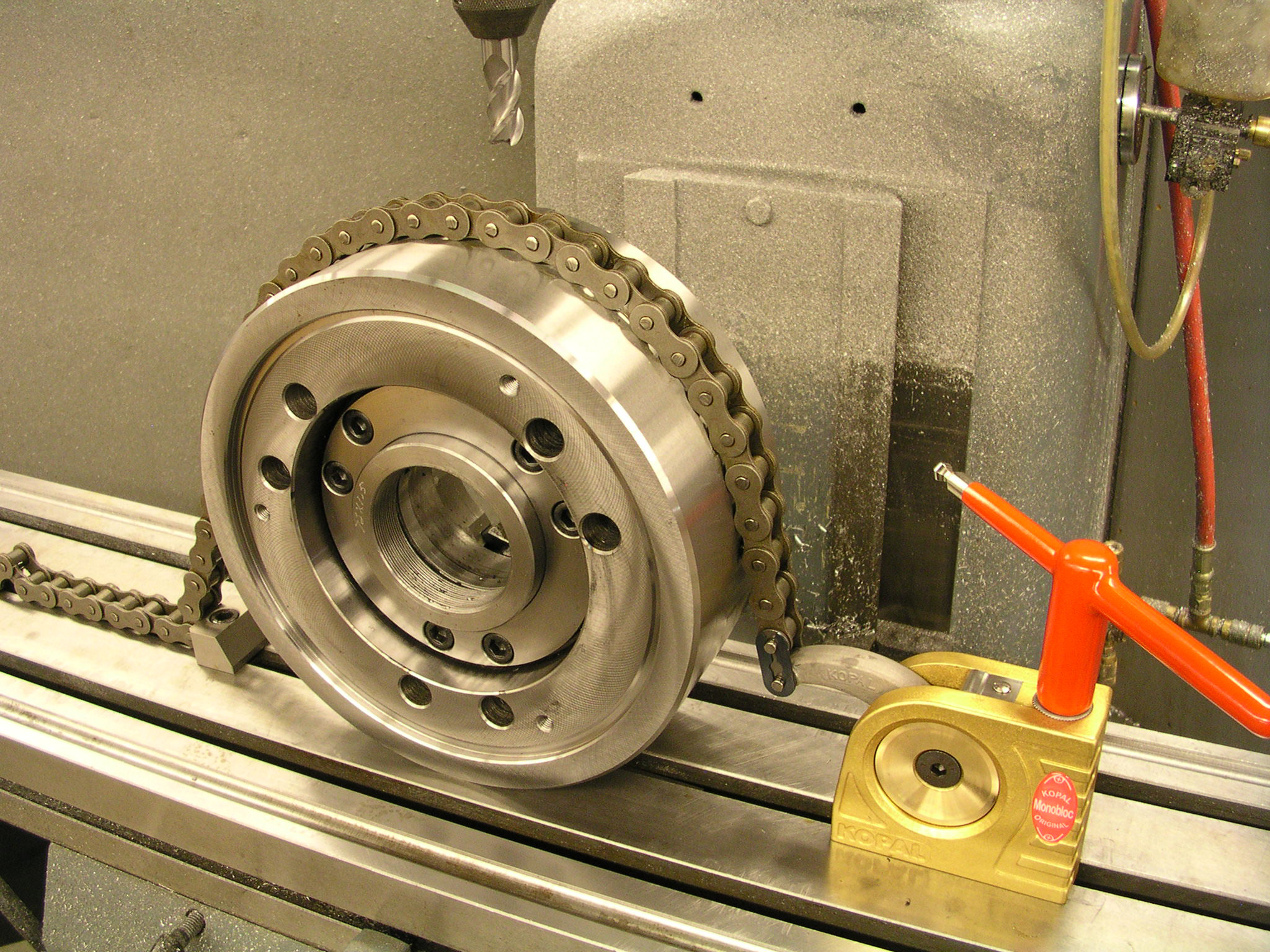

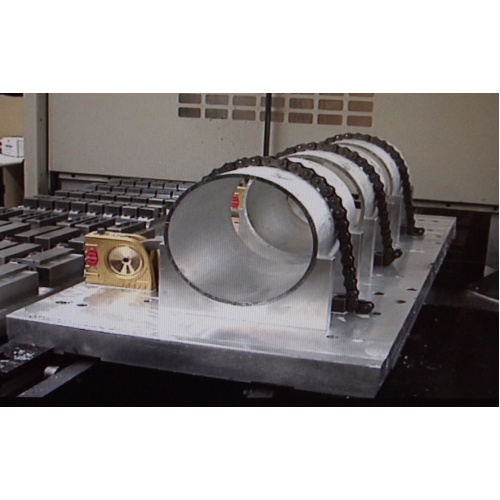

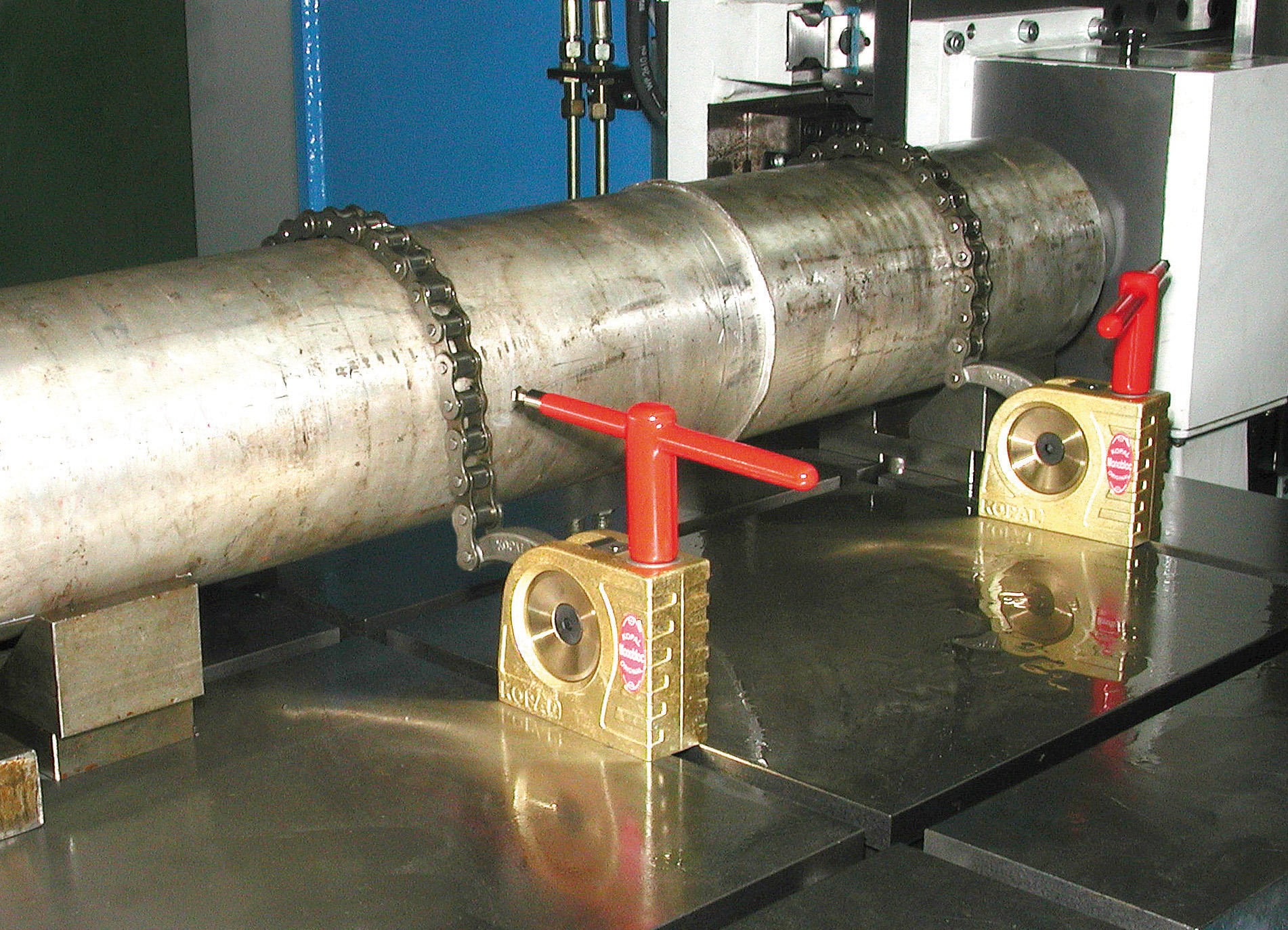

The Mono-bloc clamp is the quickest and easiest way to clamp parts on a Bridgeport-type mill.

One of the fastest and strongest milling clamps available anywhere
Modular design: Start with two clamps and build with tiers
Clamps are easily set up and broken down, making them ideal for odd-shaped parts and short cycle times.
Worm-and-gear design ensures that the clamp will not loosen with use
Up to 13" clamping height with riser blocks

Click here to view complete line of Mono-Bloc style clamps. (Requires Adobe Acrobat Reader.) Allow several weeks for delivery, as these items are not stocked. Customer may be responsible for shipping charges on rush orders. Call for details.

WITH REGULAR ARM
  • Clamping Range 0-4"
  • 3,500 lbs. damping force when tightened to a torque of 59 ft lbs.

WITH EXTENSION ARM
  • Clamping Range 0-5 1/2"
  • 1,900 lbs. damping force when tightened to a torque of 59 ft lbs.
Precision Worm & Gear Mechanism
When holding the workpiece, the worm can turn the gear but the gear cannot turn the worm. Thus, the clamp cannot loosen.
#1 Swivel Shoe
Light alloy swivel shoe provides protection against marring workpiece. The shoe is removable and free to swivel. It is secured by spring-loaded balls. A variety of shoes are available.
T-Wrench
Missing Image
8mm hex ball is used to tighten Mono-Bloc to riser or to table. The socket is used to clamp workpiece. Red comfort-grip handle.

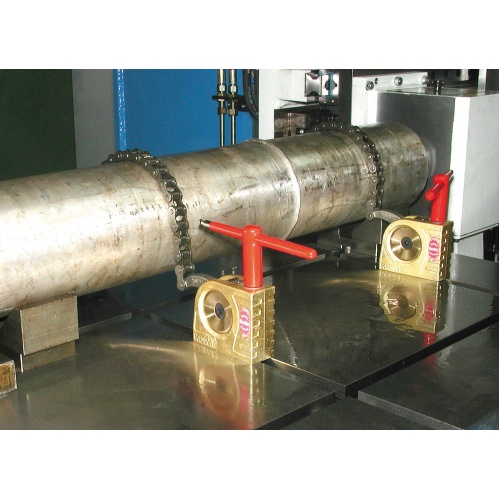

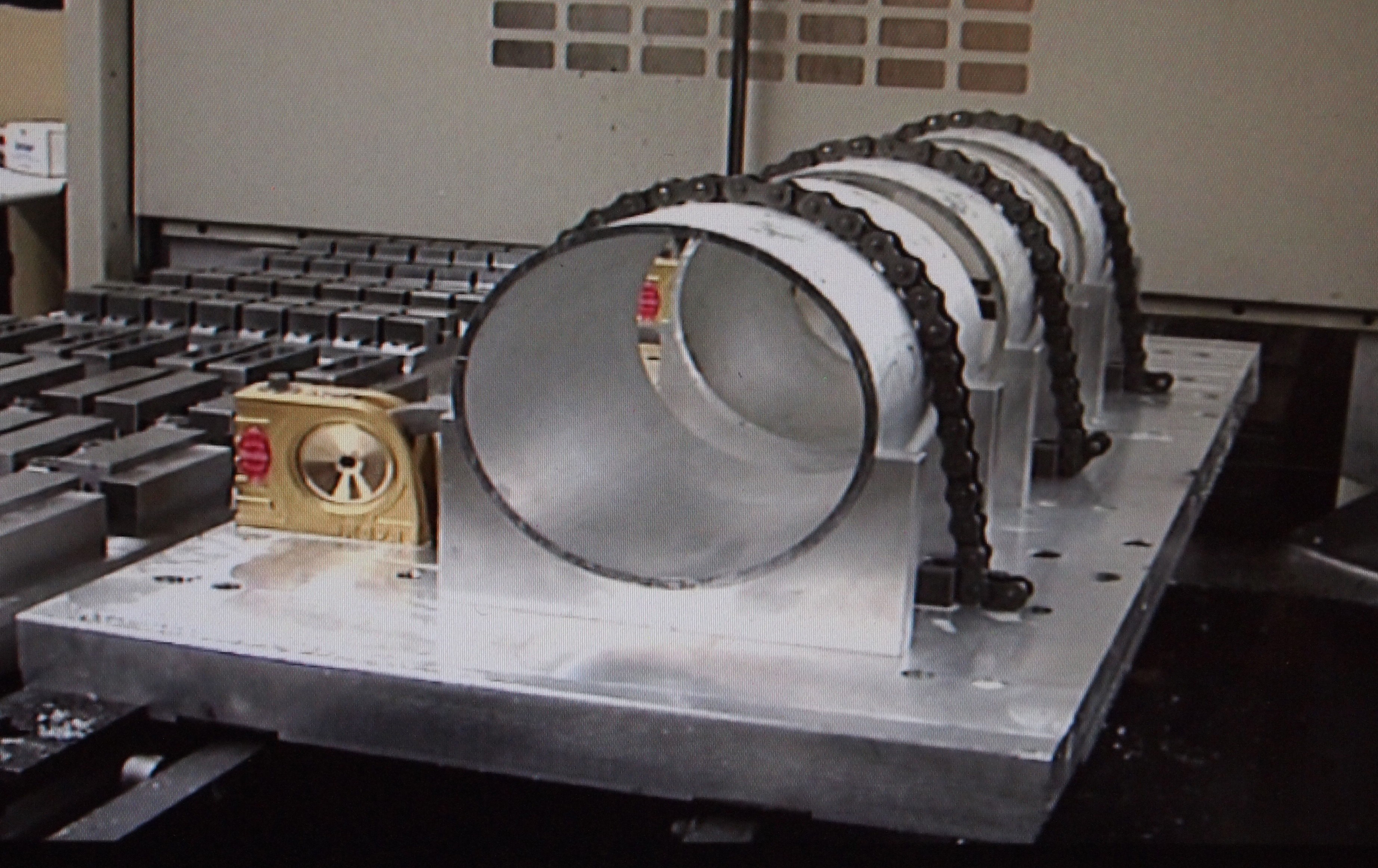

How the Mono-Bloc Clamps Work
4 Missing Images

Standard Duty Mono-Bloc Clamps
Part NumberDescription
25705 Standard-Duty Mono-Bloc w/ 2 5/8″ Arm
(includes T-wrench)
25710 Standard-Duty Riser Block
25515 Replacement Swivel Shoe
25720 T-Wrench for Standard-Duty Mono-Bloc
25540 Extension Arm
25310 Worm Drive

Deluxe Mono-Bloc Start-Up Kit
Part NumberT-Slot Size
25725 1/2″
25727 9/16″
25729 5/8″
25731 3/4″

Special Screws & T-Nuts for Mono-Bloc
Part NumberDescription
25730 M-10 x 35mm Screw for 9/16″ T-Nut
25733 M-10 x 40mm Screw for 5/8″ & 3/4″ T-Nut
25736 M-10 x 45mm Screw for 13/16″ & 7/8″ T-Nut
25748 9/16″ x M-10 T-Nut
25751 5/8″ x M-10 T-Nut
25754 3/4″ x M-10 T-Nut
25757 13/16″ x M-10 T-Nut
25760 7/8″ x M-10 T-Nut

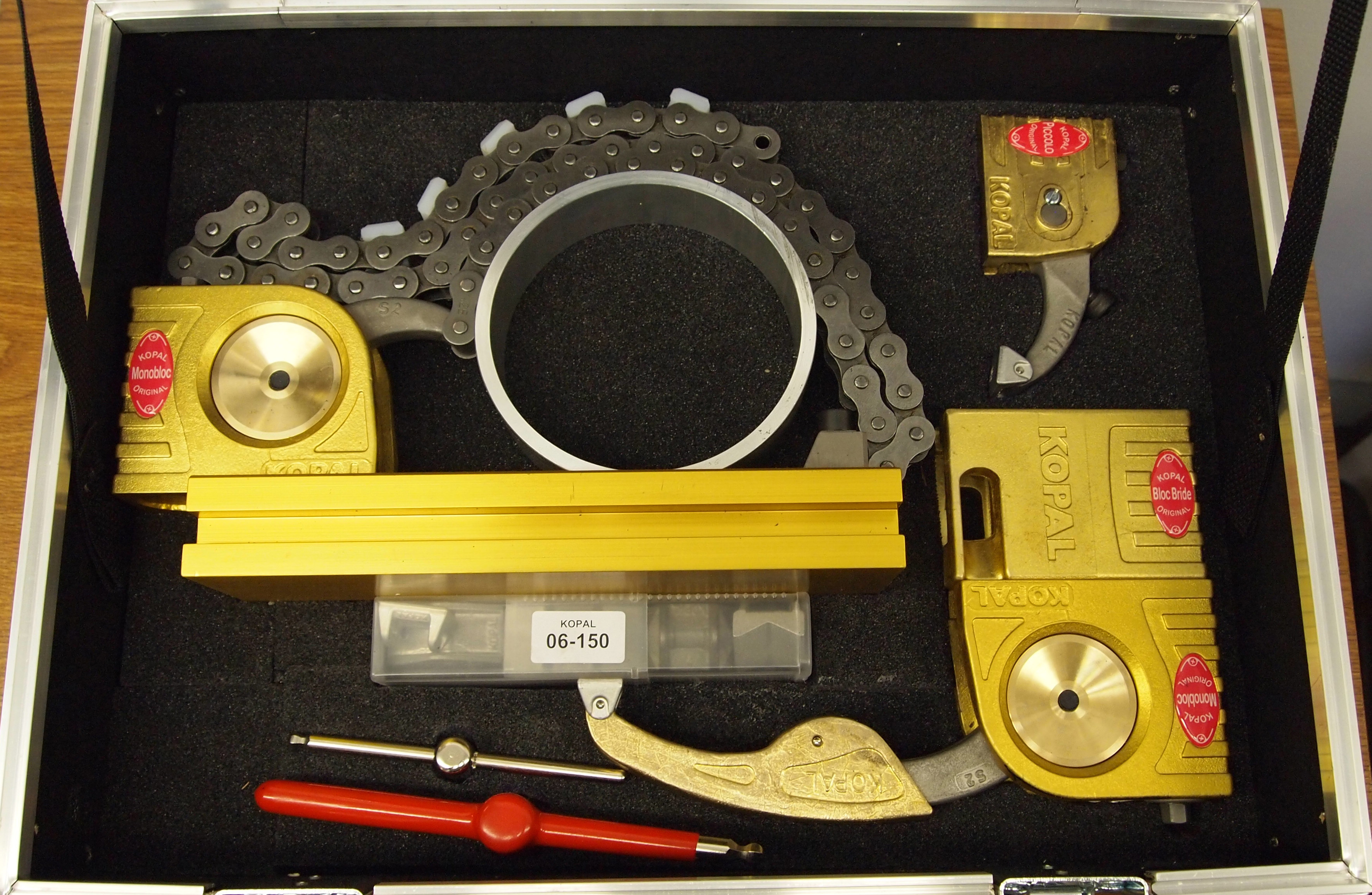

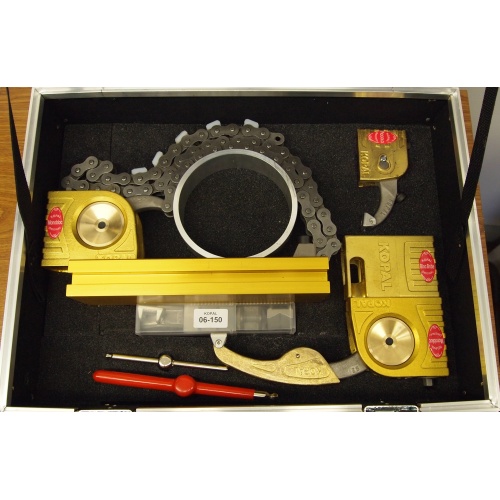

Contents of Starter Kit
Part NumberDescription
25705 2 Standard-Duty Mono-Blocs w 2 5/8″ Arm
25710 2 Standard-Duty Riser Blocks
25540 1 Extension Arm
25720 1 Standard-Duty T-Wrench
25730 2 M-10 x 35mm Screws
25733 2 M-10 x 40mm Screws
Kit includes high-impact plastic storage/carrying case with room to store above tools and space to store additional T-nuts for other size mills.

Replacement Swivel Shoes
Shoes #2 & 3 give you a larger clamping surface –
Shoes # 4 & 5 are for holding round work pieces.
Part NumberT-Slot Size
25518 #2
25520 #3
25522 #4
25524 #5
25530 Set of 4 (#2, 3, 4, 5)
