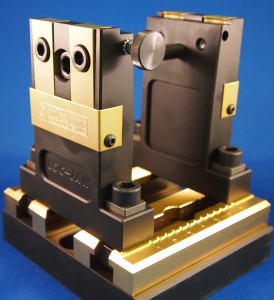

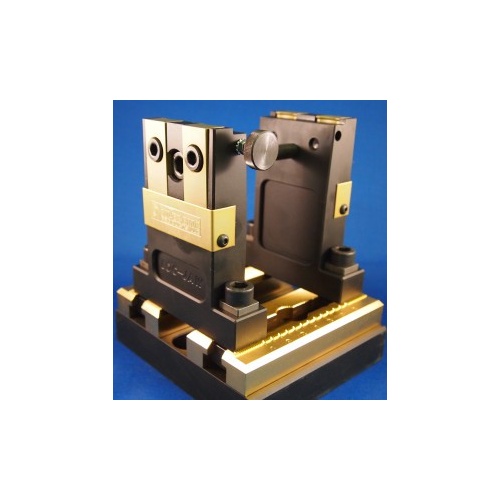

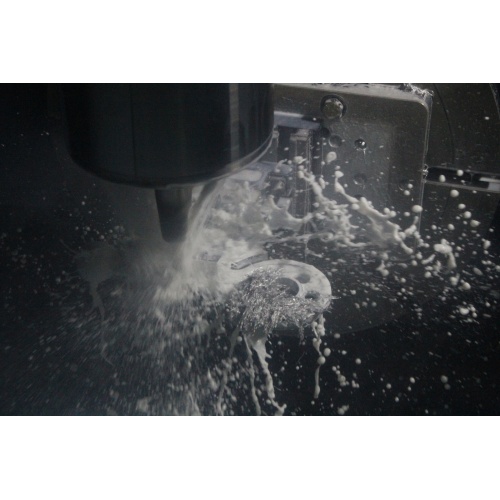

Mitee-Bite Loc-Jaw System

loc-jaw-pic4-e1432922407577-274x300
loc-jaw-pic4-e1432922407577-274x300loc-jaw-6img_0006img_0027img_0018img_0008
Brand: Mitee-Bite CNC Fixture ClampsMitee-Bite CNC Fixture Clamps

SKU: MITEE-14500_22696

SALE: $1,200.99 each
Select

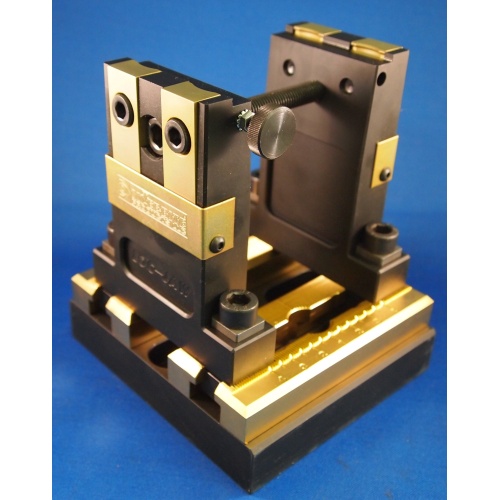

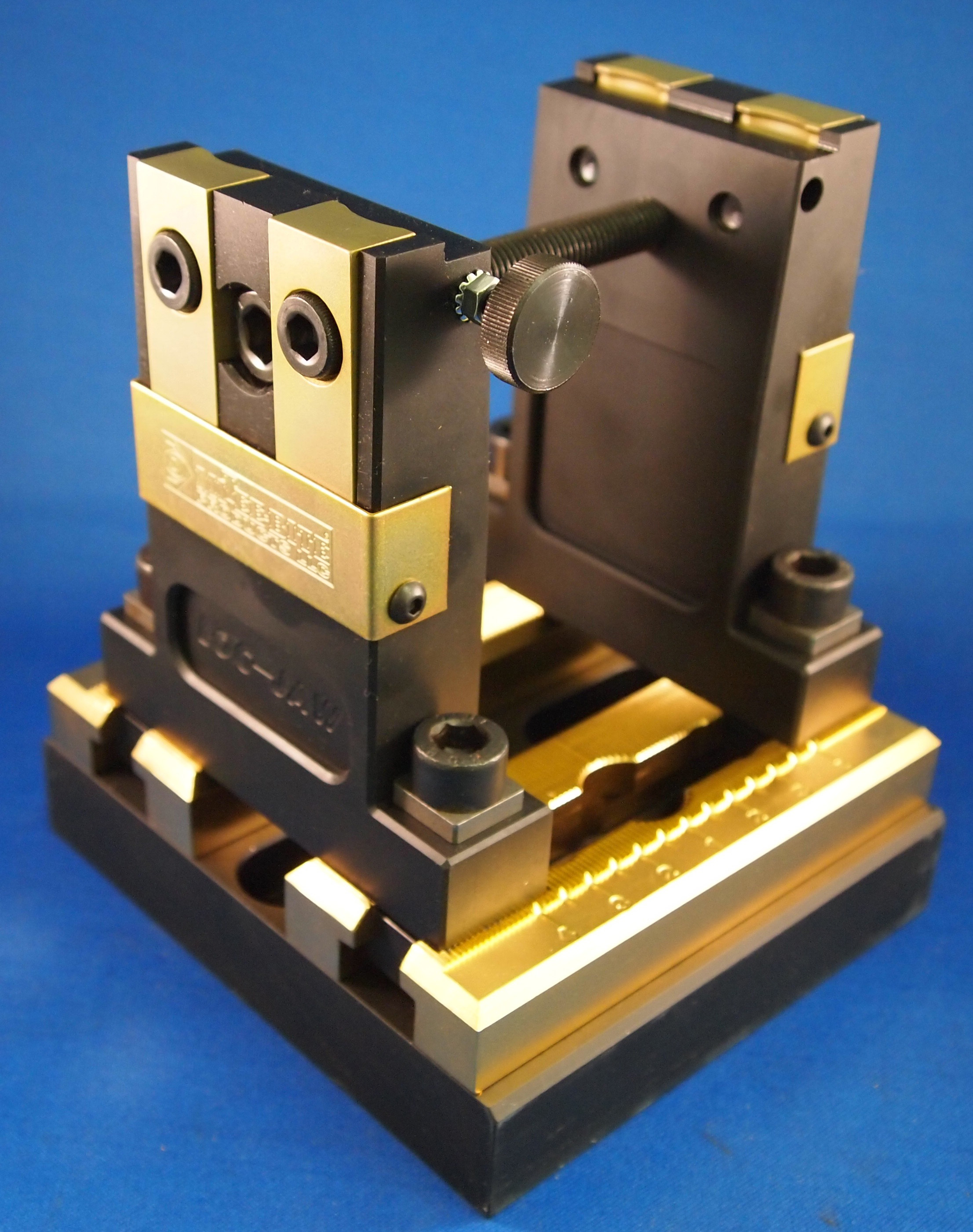

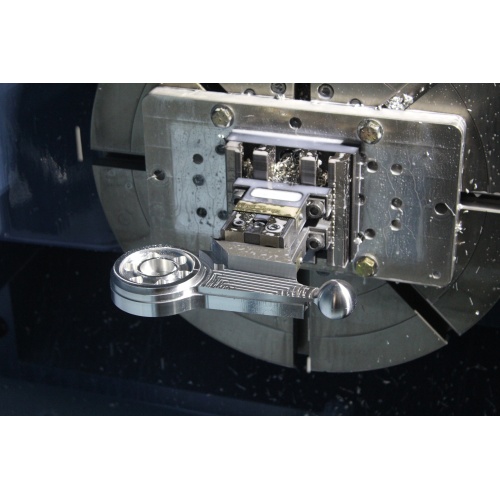

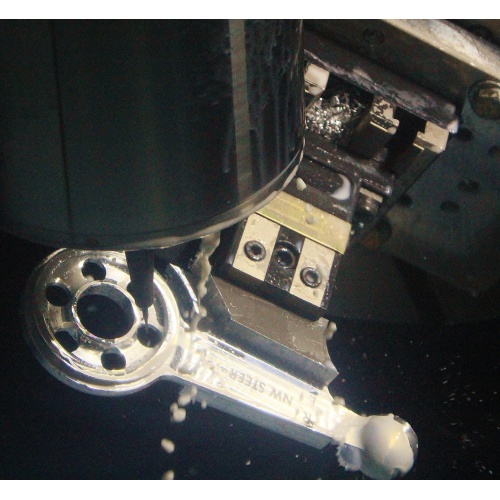

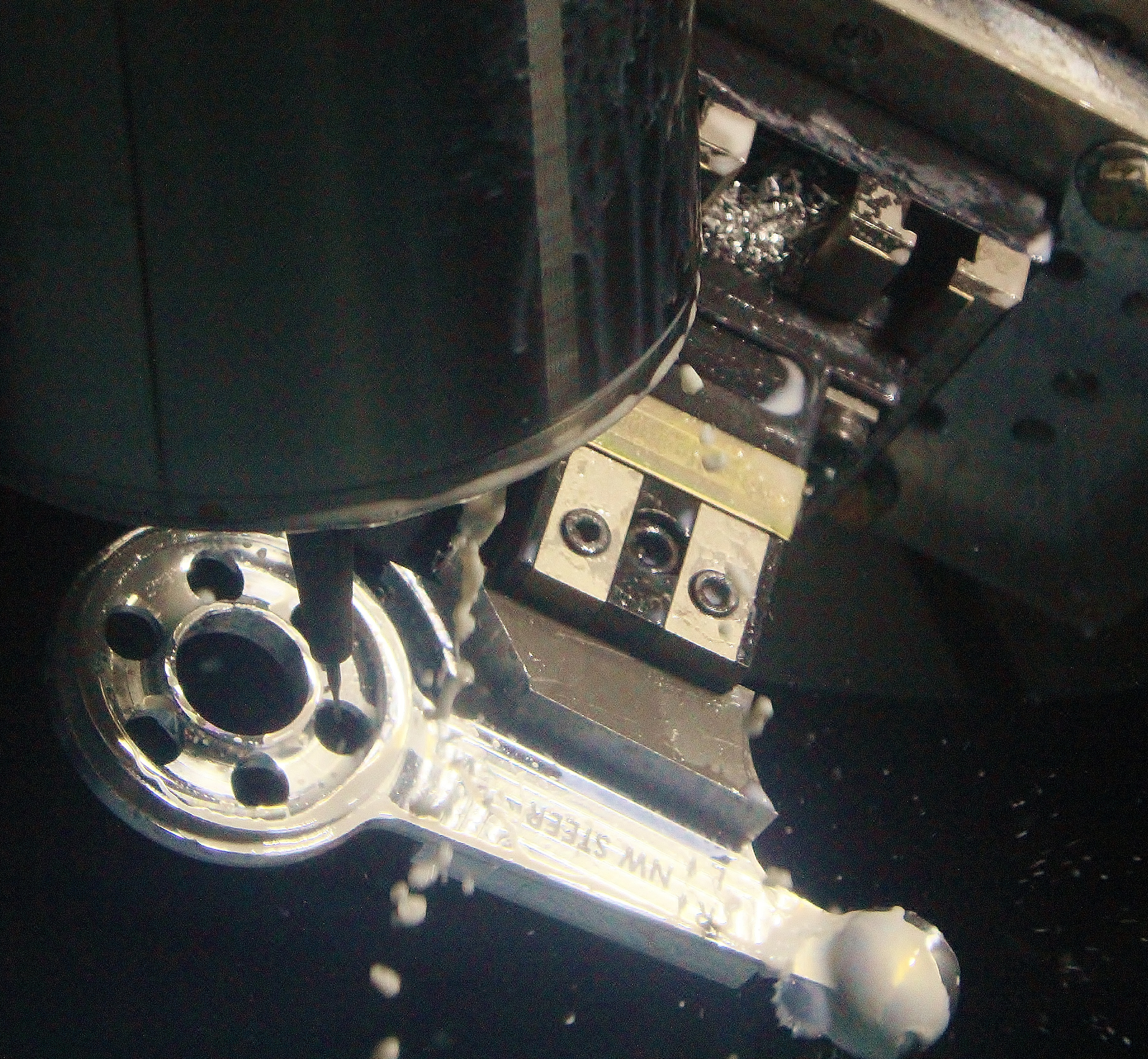

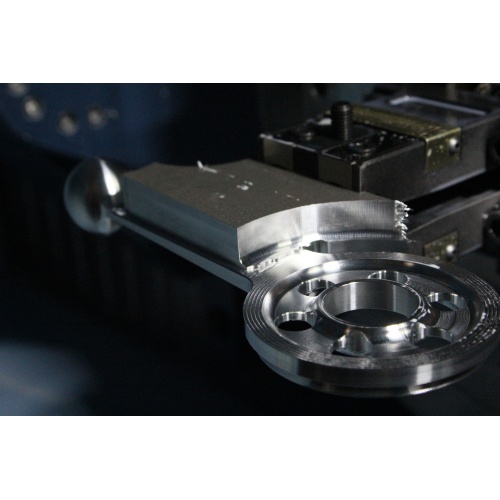

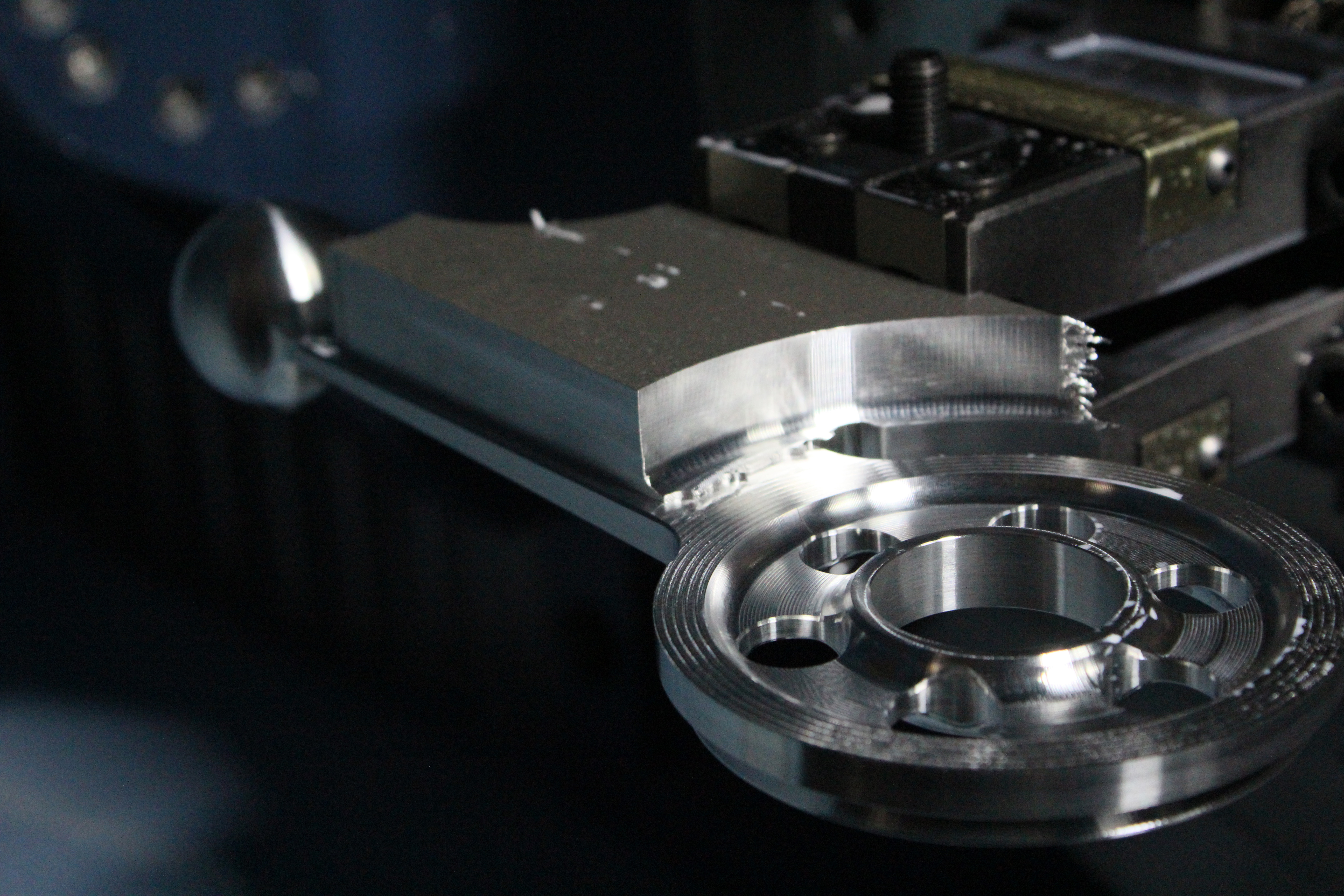

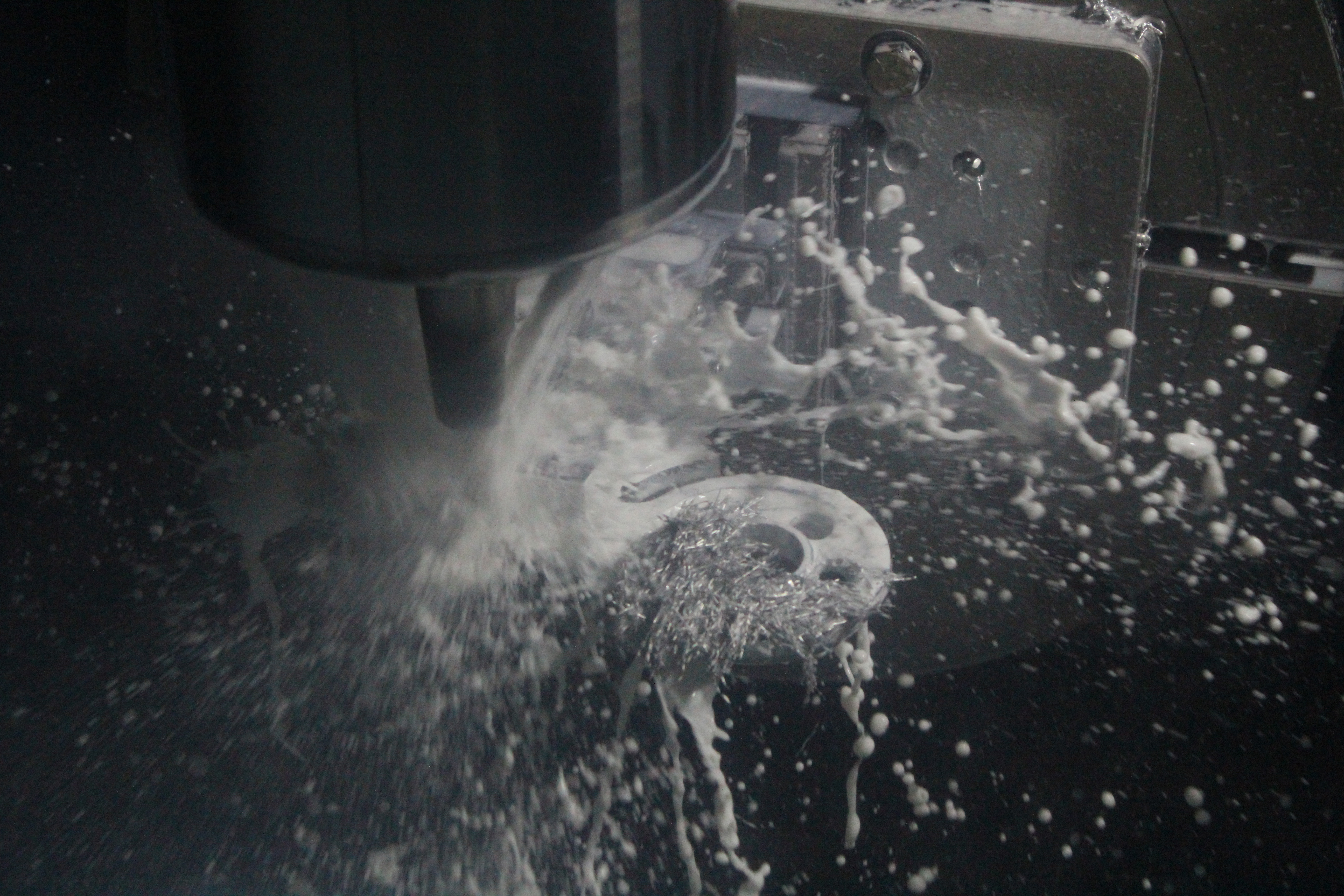

The Loc-Jaw® system was conceived to simplify, and allow greater tooling access and more versatility securing your parts when 4th and 5th axis machining. Designed to hold raw stock without a pre-op using the carrier method, penetrating material using the Knife-edge grippers or holding machined surfaces with the Blunt-edge grippers installed.

  • Unique design allows access to bottom of workpiece
  • Ability to hold parts from .500″ to 4.00″ or up to 1 Meter with optional extension kit
  • 6,000+ lbs of holding force gripping on only .125″ of material
  • Knife-Edge grippers designed to penetrate into material up to .060″ deep. Blunt Edge Grippers are also included for non-marring applications. All grippers heat treated A2.
  • Centering Disk included for Loc-Jaw® base
  • Set of locating pins included. (Liners installed in base)
  • Blunt-edge grippers with #2 or #3 grit carbinite coating are recommended for high speed machining on hard alloys

Using Extension Kit

PATENT #9,216,484

Torque
(Ft-lbs)
Holding Force
(lbs)
10 2,000
15 3,000
20 4,000
25 5,000
30 6,000

*Max torque of 25 f. lbs.
using Knife Edge grippers
on material > 40Rc due to
point contact.


Part
Number
Description
14500 Loc-Jaw® System
Ships fully assembled with all tools required

14525 Loc-Jaw® Extension Kit
Includes base plate with rails, threaded rod 1 meter long, and
locking nut with spacer

Replacement Parts

Part
Number
Description
14501 Loc-Jaw® Support Bolt #1 (M10 x 45mm)
14502 Loc-Jaw® Support Bolt #2 (M10 x 65mm)
14503 Loc-Jaw® Support Bolt #3 (M10 x 90mm)
14504 Loc-Jaw® Support Bolt #4 (M10 x 110mm)
14508 Loc-Jaw® Combo-Edge Grippers (2 per pack) – 1 side knife edge, 1 side blunt edge with Tungsten Carbide coating
14518 Loc-Jaw® Jaw Set – includes 2 Jaws, 4 Combo-Edge Grippers & Screws
14520 Loc-Jaw® Rail Set – includes 4 rails, Screws, Dowel Pins
