Mitee-Bite Multi-Fixture Clamps & Stops

Brand: Mitee-Bite CNC Fixture ClampsMitee-Bite CNC Fixture Clamps

SKU: MITEE-23140_22939

SALE: $49.99 EA
Select

Multi-Fixture Clamps and Stops

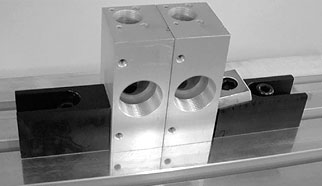

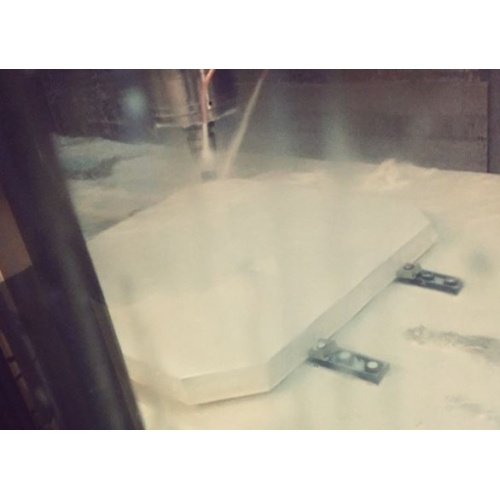

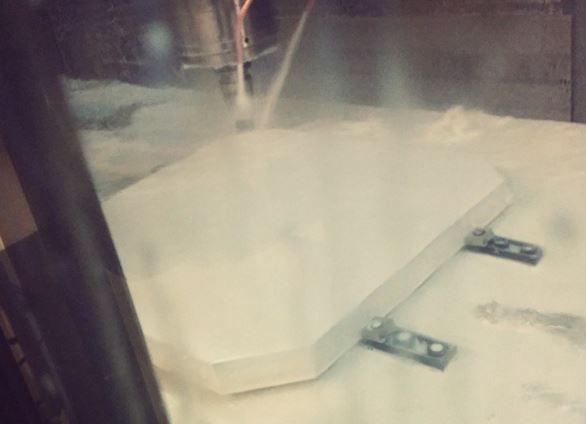

The MITEE-BITE Multi-Fixture Clamp offers increased versatility through its unique riser clamp design.

  • Provides flexible set ups for hard to hold parts
  • Works in both plates with tapped hole layouts or T-slot configurations.
  • Can be mounted vertically or horizontally.
  • Stops locate workpiece for repeat positioning.
  • Larger sizes are ideal for mold shop applications.
  • Tapered mounting slot prevents movement when clamping pressure is applied.
  • Steps, as well as end faces of flat stops, are precision ground.

MITEE-BITE also offers clamps and stops without a rest pad. These are designed for contacting a part at a higher point when the workpiece is resting on the table.

Multi -Fixture Clamps and Stops

Inch

Part No. ItemABCD
+.0000
-.0005
EFGCam Screw
H*
Max
Torque
(Ft/lbs.)
Holding
Force
(Lbs.)
Mtg.
Screw
SlotReplacement
Square
Washer
WITH STEPS
23140   Clamp 2.50 .75 .62 .4600 .31 .83 .53 10370 8.3 2000 5/16 Closed 21006
23180   Stop 2.50 .75 .75 .4600 .31 1.11 .53 N/A N/A N/A 5/16 Closed
23150   Clamp 3.75 1.12 .62 .4800 .37 1.68 .50 10372 65.0 4000 1/2 Closed 21016
23200   Stop 3.75 1.12 .87 .4800 .37 1.68 .50 N/A N/A N/A 1/2 Closed
53170   Clamp 4.21 1.50 1.62 1.3780 .37 1.82 NA 50373 100.0 6000 5/8 Open 21026
23240   Stop 4.21 1.50 2.00 1.3780 .37 1.82 N/A N/A N/A N/A 5/8 Open
WITHOUT STEPS
23145   Clamp 2.16 .75 .62 N/A N/A .83 .53 10370 8.3 2000 5/16 Closed 21006
23148   Stop 2.20 .75 .75 N/A N/A 1.11 .53 N/A N/A N/A 5/16 Closed
23155   Clamp 3.37 1.12 .62 N/A N/A 1.68 .50 10372 65.0 4000 1/2 Closed 21016
23158   Stop 3.30 1.12 .87 N/A N/A 1.68 .50 N/A N/A N/A 1/2 Closed
53172   Clamp 3.80 1.50 1.62 N/A N/A 1.82 N/A 50373 100.0 6000 5/8 Open 21026
23178   Stop 3.30 1.50 2.00 N/A N/A 1.82 N/A N/A N/A N/A 5/8 Open



Metric

Part No. ItemABCDEFGCam Screw
H*
Max
Torque
(N.m)
Holding
Force
(N.)
Mtg.
Screw
SlotReplacement
Square
Washer
WITH STEPS
53140   Clamp 63.5 19.1 15.8 11.68 8.0 21.1 13.5 50368 28.00 8900 M8 Closed 21006
23180   Stop 63.5 19.1 19.1 11.68 8.0 28.2 13.5 N/A 28.00 8900 M8 Closed
53150   Clamp 95.3 28.5 15.8 12.19 9.4 42.7 12.7 50372 88.00 17800 M12 Closed 51016
23200   Stop 95.3 28.5 22.1 12.19 9.4 42.7 12.7 N/A 88.00 17800 M12 Closed
53170   Clamp 107.0 38.1 41.2 35.00 9.4 46.2 N/A 50373 135.00 26700 M16 Open 21026
23240   Stop 107.0 38.1 50.8 35.00 9.4 46.2 N/A N/A 135.00 26700 M16 Open
WITHOUT STEPS
53145   Clamp 54.9 19.1 15.8 N/A N/A 21.1 13.5 50368 28.00 8900 M8 Closed 21006
23148   Stop 55.9 19.1 19.1 N/A N/A 28.2 13.5 N/A 28.00 8900 M8 Closed
53155   Clamp 85.6 28.5 15.8 N/A N/A 42.7 12.7 50372 88.00 17800 M12 Closed 51016
23158   Stop 83.5 28.5 22.1 N/A N/A 42.7 12.7 N/A 88.00 17800 M12 Closed
53172   Clamp 96.5 38.1 41.2 N/A N/A 46.2 N/A 50373 135.00 26700 M16 Open 21026
23178   Stop 83.8 38.1 50.8 N/A N/A 46.2 N/A N/A 135.00 26700 M16 Open
