Mitee-Bite Multi-Power Vac

Brand: Mitee-Bite CNC Fixture ClampsMitee-Bite CNC Fixture Clamps
CAD2,818.30 EA
Select
Cost: CAD2,818.30 EA -
Add to cart

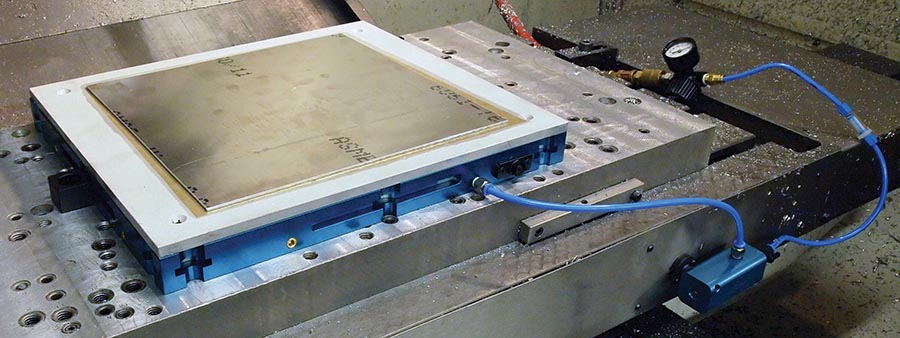

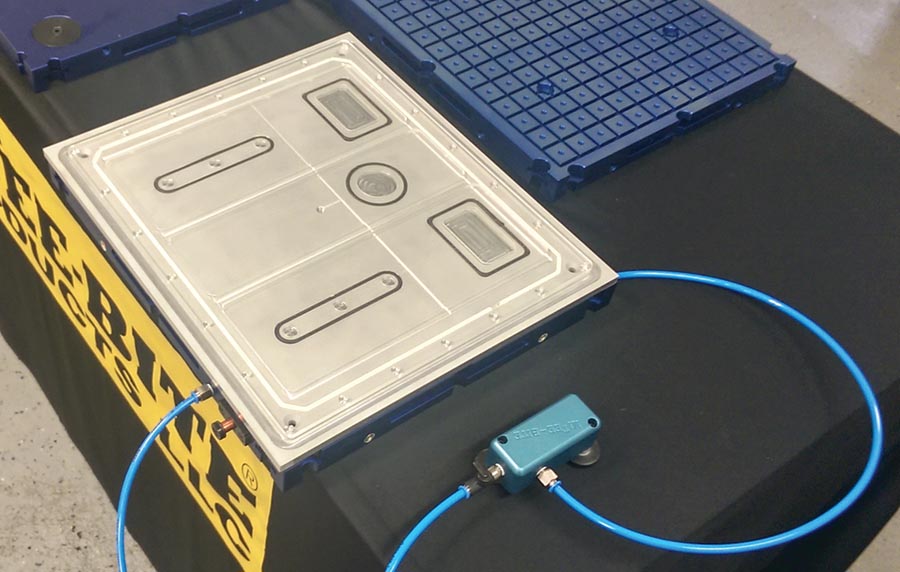

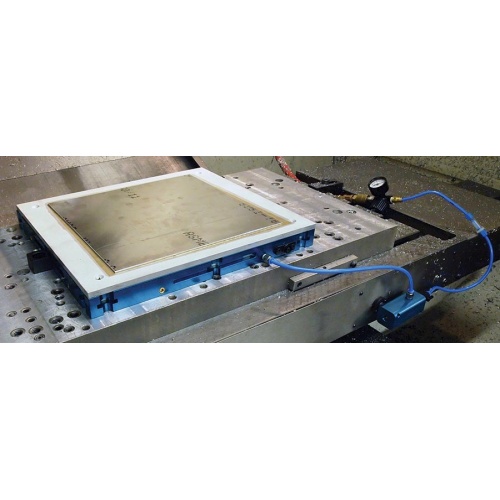

Mitee-Bite is proud to introduce possibly the most universal multi-functional vacuum system in today’s market. This system has several unique features to meet your vacuum workholding needs.

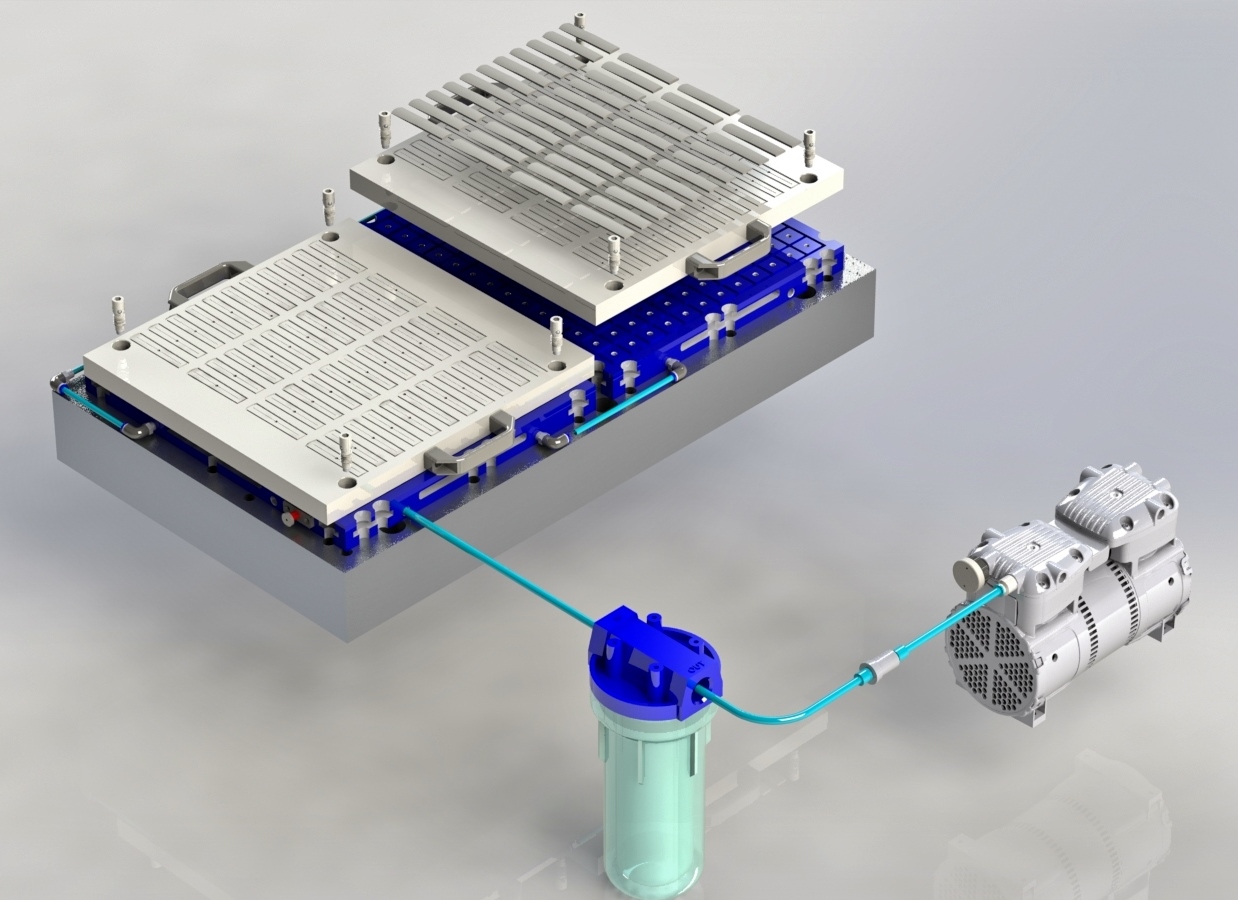

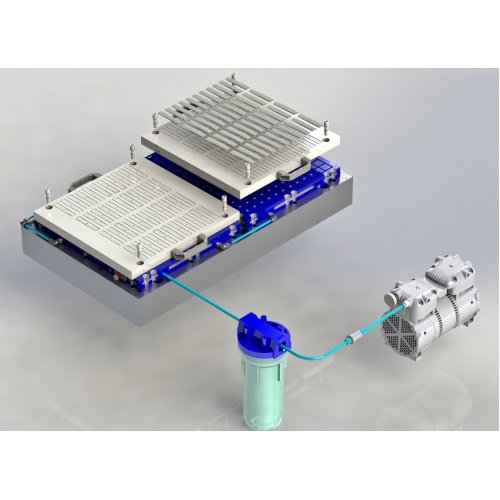

  • Can be powered with our Vacuum Generator (Shop Air) or Vacuum Pumps
  • 14″x 16″ with textured surface creating additional holding force through friction
  • 4 Vacuum ports allowing user to hold 1-4 small parts or 1 large part (ports can be plugged)

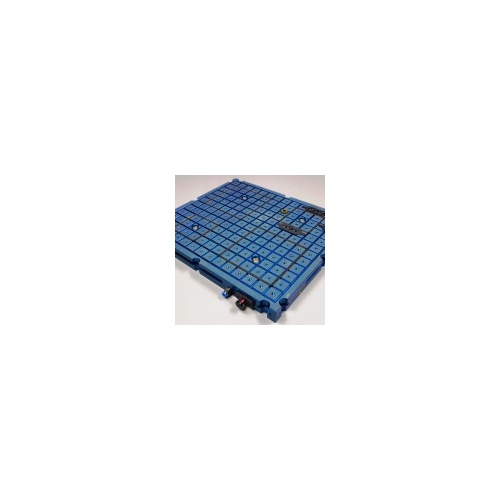

  • Grid plate tapped with M6 threads allowing multiple workholding solutions
  • 6 oversized steel washers machined below the bottom surface allows unit to be used for grinding operations on a magnetic chuck
  • Multiple Vacuum Generators can be used on each pallet if additional CFM is desired

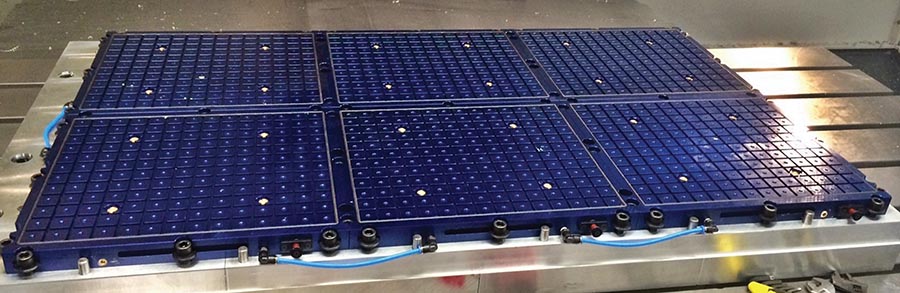

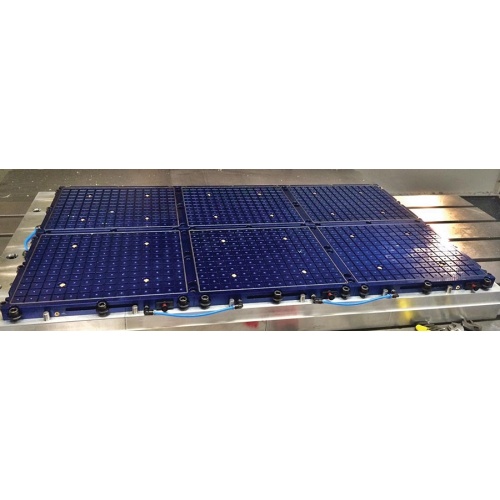

  • Multiple pallets can operate from (1) vacuum generator
  • Coolant Trap may be necessary when using external vacuum source (Trap sold separately)
Part NumberDescription
46000 1 Multi-Power Vac pallet with Vac Generator including all accessories and coolant trap
46100 Vac Generator with regulator/tubing/brass filter and push to connect fitting
46200 1 Multi-Power Vac pallet without Vac Generator including mtg. hardware and tubing
46250 Sacrificial Top Plate with mtg. screws
46050 Coolant trap with hose and fittings
46300 Vacuum pump 115 Volt. Comes with hoses and coolant trap
46330 Vacuum pump 230 Volt. Comes with hoses and coolant trap
