VersaGrip™ Vise Jaws

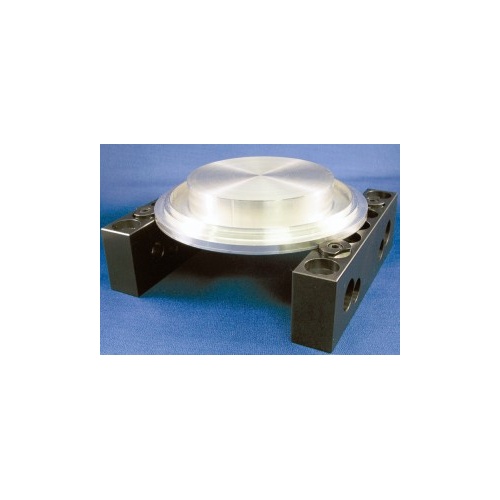

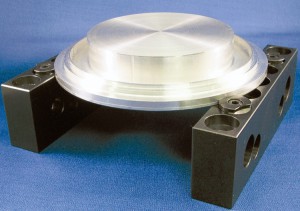

VersaGrip™, as the name implies, offers the versatility of clamping standard vise work as well as providing a solution for difficult applications that would normally require fixturing or machining soft-jaws. By simply replacing your current jaws with the VersaGrip™ system you can securely hold odd shaped parts while machining at speeds and feeds you never thought possible.

Large Dimensions Odd-Shaped Parts Multiple Parts Tombstone Application

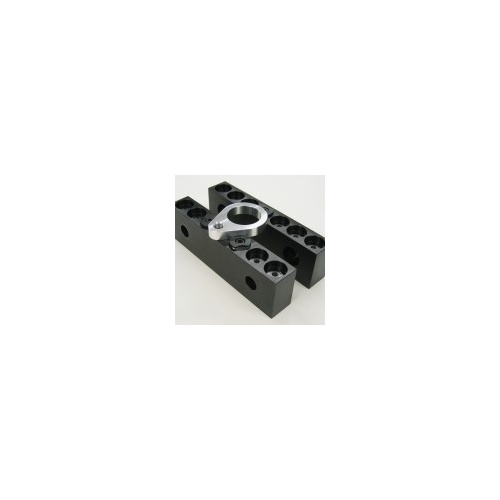

This system can accommodate a wide range of part sizes as well as holding multiple parts in a single cycle. The hardened (51-53 RC) VersaGrip™ has penetrating teeth designed to bite into your workpiece preventing lateral and horizontal movement. These grips will hold flame cut parts, castings, even parts with a negative draft!

versa_grip2versa_grip1

STEEL VISE JAW SET (Set includes 4 VersaGrips™ with M5 Screws)

Part No. Vise (metric)A (metric)B (metric)C (metric)D (metric)E (metric)
WITH MOUNTING HOLES
32166   4”/6” (100mm/150mm) 6.00 (150) 1.88 (47.75) 1.0 (25.4) 2.5/3.88 (63.5/98.55) .688/.94 (17.47/23.87)
32168   6” (150mm) 8.00 (200) 1.88 (47.75) 1.0 (25.4) 3.88 (98.55) .94 (23.87)
WITHOUT MOUNTING HOLES
33166   – 6.00 (150) 1.88 (47.75) 1.0 (25.4)
33168   – 8.00 (200) 1.88 (47.75) 1.0 (25.4)

*JAWS SETS ARE DRILLED METRIC

Replacement VersaGrips™
Part No. ABCRecommended
Gripping Height		No. of Grips
Per Pack
33175
32175		   .750
(19.05)		 .375
(9.52)		 10-32
(M5)		 .060-.140
(1.5mm-3.5mm)		 2
2
ATT40439

Talongrip™ & Versagrip™ Combo Kits

33006Talongrip™ & Versagrip™ 6” Combo Kit
Contents of Kit
32066 6″ Talongrip™ Vise Jaw Set
32166 6″ Versagrip™ Vise Jaw Set
33008Talongrip™ & Versagrip™ 8″ Combo Kit
Contents of Kit
32068 8″ Talongrip™ Vise Jaw Set
32168 8″ Versagrip™ Vise Jaw Set








NOTE: All jaws for #33006 are designed to fit on a 4″ or 6″ vise.
NOTE: All jaws for #33008 are designed to fit a 6″ vise.
