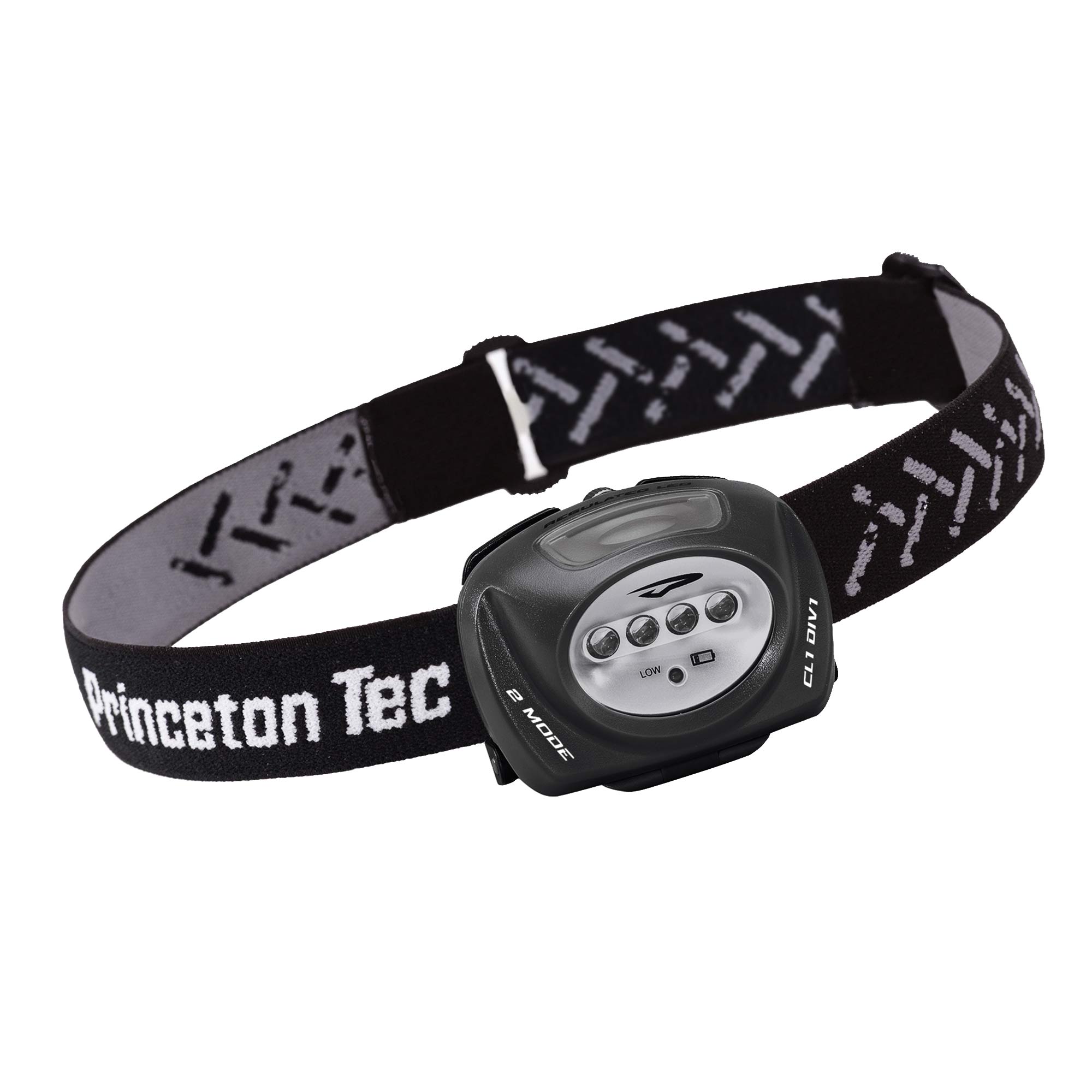

Princeton Quad II

The second in our series of Intrinsically Safe headlamps, the Quad II provides unparalleled design and performance.

The Quad II shares the same basic design principals as the original and proven Quad but takes it up to a UL Cl1 Div. 1 rating. The fundamental lighting characteristics of the Quad II provides a vast amount of area light for all purpose needs and performing up-close tasks. The light beam is smooth and wide allowing you to work with your hands without glare or reflection.

With its robust walls, superior materials, and waterproof design, the Quad II is suited for any environment.

Features:

• Intrinsically Safe

• UL Rating: Class I Division 1, Groups A, B, C & D

• UL Temp Code: T4

Includes Industrial Headlamp Kit:

• Rubber hard hat strap

• 3M Dual Lock

• Standard nylon headstrap

BATTERY POWER METER

The battery power meter provides continuous feedback on the condition of the batteries, indicating high, medium or low battery life. This information allows you to make educated decisions about changing batteries or packing a spare set.

FOCUSED WIDE BEAM

This beam pattern is an excellent choice for multipurpose activities. At close range, wide beams simulate normal daylight conditions and allow you to take advantage of your peripheral vision.

IPX7

IPX7 lights provide waterproof integrity down to 1 meter for up to 30 minutes.

MULTIPLE MODE

Multiple settings on many of our products give you the flexibility to adjust your light’s brightness to illuminate greater distances or to conserve battery power, depending on your needs.

REGULATED LED

Lights that feature regulated LEDs have a sophisticated regulating circuit that maintains initial brightness as long as the batteries have sufficient voltage. They are so sophisticated that if they had eyes, they would definitely wear a monocle. Traditional lights are very bright initially, but immediately begin to dim and continue to dim until the batteries are drained. Constant Brightness is a term used to describe products that have regulated LEDs.

UNDERWRITERS LABORATORIES INC.

Underwriters Laboratories Inc. (UL) is an independent, not-for-profit product-safety testing and certification organization. They have been testing products for public safety for more than a century. In order for a product to bear the certified UL Mark, it must pass all UL requirements at their testing facility.

FIRE/RESCUE

Difficult jobs in dangerous locations that don’t give you much control over your environment. Products in this category are durable and dependable, making one less thing for you to worry about – leaving you to focus on the important task at hand.

SAFETY/INDUSTRIAL

Does your job require work in less than ideal environments? Sometimes you need a little extra light, sometimes you need a primary light – and sometimes, that light needs to not only be bright, but be rated to work safely in hazardous conditions.

TRADE

Jobs that start before the sun rises, end after it sets – or are in dark spaces, large or small. You need a light that is going to work as hard as you do, in whatever conditions are thrown your way.

POWER

78 Lumens

LAMP

4 Ultrabright LEDs (regulated)

BURN TIME

105 hours

BATTERIES

3 AAA Alkaline or Lithium

WEIGHT

3.4oz / 101g

WATER RESISTANT

IPX7

WARRANTY

Lifetime

PERFORMANCE

FEATURES

Industrial Helmet Kit includes: rubber hard hat strap & 3M Dual Lock

Quad II mounted on hard hat
