12. Safe Use - Caliber Changes 9x19MM TO 5.56 NATO

GENERAL OVERVIEW:
CALIBERS CAN BE CHANGED IN THE FIELD WITHOUT TOOLS.

THE STANDARD RAVEN ACCOMODATES PISTOL CALIBERS
[9X19MM] [.40 S&W] [10MM] [.45 AUTO]


THE MID LENGTH RAVEN ACCOMODATES RIFLE CALIBERS
[5.56 NATO] [.22LR] [.410GA] [7.62x39] [.224 VALKYRIE] [.25-45 SHARPS] [350 LEGEND] [6.5 GRENDEL] [6.8 SPC] [.300 BLACKOUT] [.338 SPECTRE] [.450 BUSHMASTER] [.458SOCOM] [.50 BEOWULF] AND MORE.

SAFETY MEASURES BEFORE HANDLING:
BEFORE DOING ANY CALIBER CHANGES, ENSURE YOUR FIREARM IS FULLY UNLOADED AND SAFE! WE RECOMMEND KEEPING ALL LIVE AMMUNTION SEPARATE FROM YOUR RAVEN WHILE MAKING CHANGES.


TIP: ONCE A CALIBER CHANGE HAS BEEN COMPLETED, WE RECOMMEND YOU LOAD AND CYCLE (5) "DUMMY" AMMUNITION THROUGH THE RIFLETO CONFIRM THE CALIBER CHANGE HAS BEEN DONE SUCCESSFULLY.  ALWAYS DO A FUNCTION TEST OF LOADING, UNLOADING, AND PLACING THE FIREARM ON SAFE WITH "DUMMY" AMMUNTION BEFORE DOING ANY LIVE FIRE.

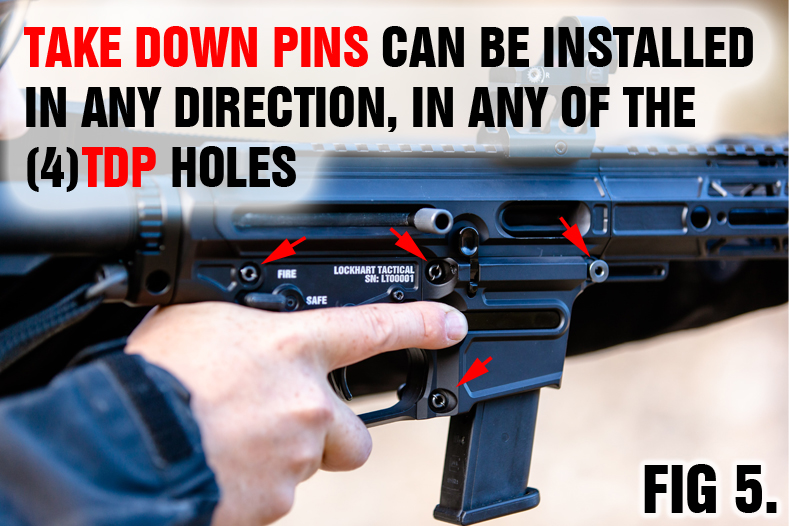

TAKE DOWN PINS WILL BE REFERRED TO AS TDP.
UPPER RECEIVER AND LOWER RECEIVER WILL BE REFFERED TO AS UPPER AND LOWER.

!! IF TDP DOES NOT EASILY REMOVE OR INSTALL, DO NOT FORCE IT! INSPECT FOR DIRT AND DEBRIS WHICH COULD BE HOLDING IT IN. GIVE IT A QUICK CLEAN AND THE PINS SHOULD FREELY REMOVE OR INSTALL. WE RECOMMEND EACH TIME YOU REMOVE THE TDP'S THAT YOU GIVE THEM A QUICK WIPE DOWN TO ENSURE THEY ARE CLEAN BEFORE REINSTALLING.

TO REMOVE THE FIRING BOLT:
1) REMOVE REAR TDP AND PIVOT UPPER ON THE FRONT TDP.
2) UNTHREAD SIDE CHARGING HANDLE IF INSTALLED AND REMOVE BOLT.
REMOVAL COMPLETE!


TO REINSTALL THE FIRING BOLT COMPLETE THE STEPS IN REVERSE.

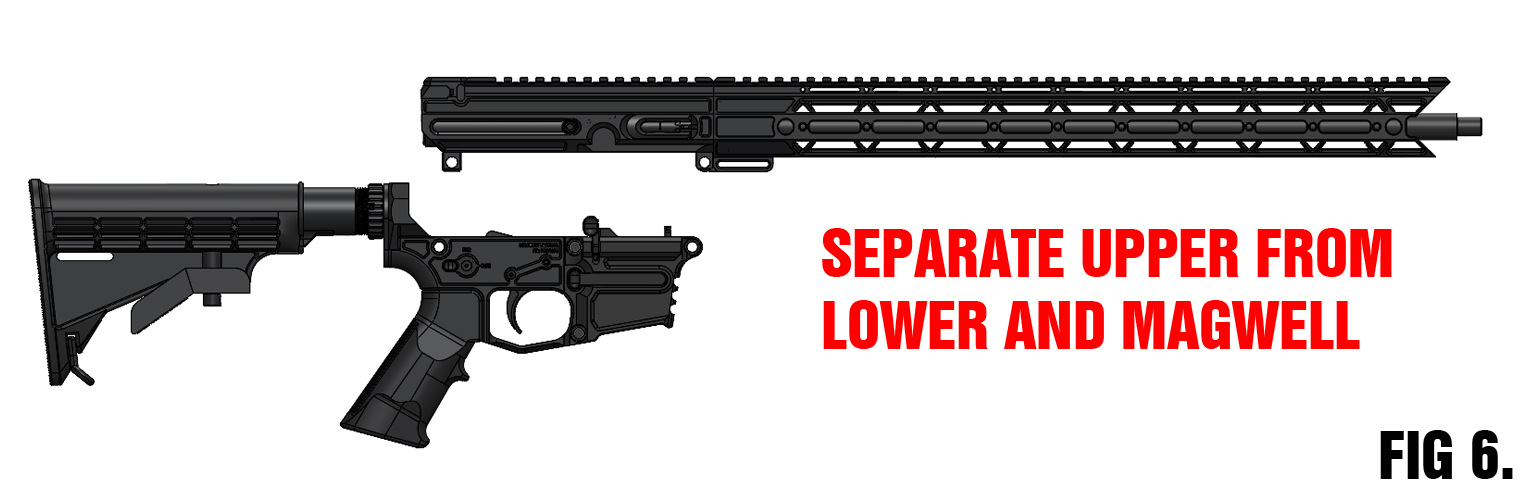

TO CHANGE THE MAGWELL SUB ASSEMBLY WITH UPPER ALREADY REMOVED:
1) REMOVE REMAINING (2) TDP AND SEPARATE LOWER FROM MAGWELL.
2) SELET NEW MAGWELL AND REINSTALL (2) TDP.
MAGWELL CHANGE COMPLETE!

!! WHEN CHANGING CALIBERS BETWEEN 9x19MM AND 5.56NATO ENSURE YOU HAVE THE CORRECT BUFFER WEIGHT INSTALLED! FAILURE TO DO SO WILL RESULT IN FAILING TO WORK PROPERLY, FIREARM DAMAGE, AND OR INJURY OR DEATH

STANDARD BUFFER WEIGHTS:
9x19MM REQUIRES 8OZ BUFFER WEIGHT
5.56 NATO REQUIRES 3.8OZ BUFFER WEIGHT

!! WHEN CHANGING CALIBERS, YOU MUST ENSURE TO MATCH THE BARREL TO THE CORRECT CALIBER SIZE. FAILURE TO DO SO WILL RESULT IN FIREARM FAILING TO WORK PROPERLY AND CAN RESULT IN INJURY OR DEATH.

!! WHEN CHANGING CALIBERS, YOU MUST ENSURE TO MATCH THE BOLT TO THE CORRECT CALIBER SIZE. FAILURE TO DO SO WILL RESULT IN FIREARM FAILING TO WORK PROPERLY AND CAN RESULT IN INJURY OR DEATH.

!! WHEN CHANGING CALIBERS, YOU MUST ENSURE TO MATCH THE BUFFER WEIGHT TO THE CORRECT CALIBER SIZE. FAILURE TO DO SO WILL RESULT IN FIREARM FAILING TO WORK PROPERLY AND CAN RESULT IN INJURY OR DEATH.
