Firing Pin Installation - Rifle Calibers

STOP!!

YOU MUST ENSURE YOUR FIREARM IS FULLY UNLOADED AND PROVED SAFE BEFORE USING!!

PROVE
POINT THE FIREARM IN THE SAFEST AVAILABLE DIRECTION.
REMOVE ALL AMMUNITION.
OBSERVE THE CHAMBER.
VERIFY THE FEEDING PATH.
EXAMINE THE BORE.

ONCE SAFE, YOU MAY PROCEED TO THE NEXT STEP.


STEP 1: REMOVE FIRING BOLT FROM THE UPPER.
DETAILED INSTRUCTIONS MAY BE FOUND IN SECTION 12. Raven Safe Use - Caliber Changes

STEP 2: REMOVE THE FIRING PIN RETAINING PIN FROM BOLT CARRIER.



STEP 3: INSERT THE FIRING PIN INTO BOLT CARRIER THEN REINSTALL FIRING PIN RETAINING PIN TO HOLD FIRING PIN IN PLACE.


YOU HAVE SUCCESSFULLY INSTALLED YOUR FIRING PIN!

IF YOU WISH TO REMOVE THE BOLT AND CAM PIN FOLLOW STEPS 4-5

STEP 5: COLLAPSE BOLT TOWARDS CARRIER TO ALLOW CAM PIN TO MOVE AWAY FROM GAS KEY TO ALLOW REMOVAL.

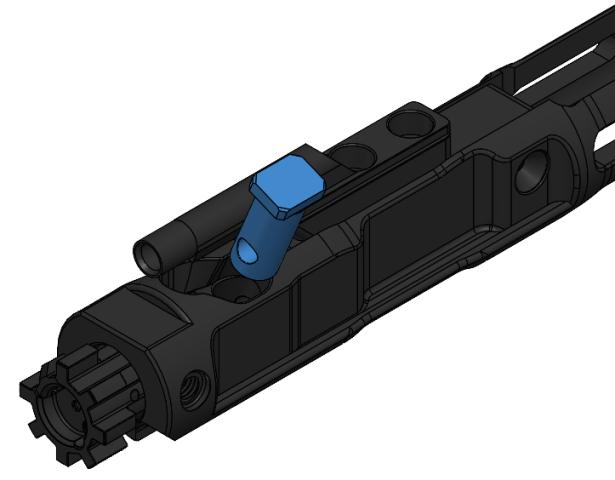

STEP 6: REMOVE CAM PIN BY PULLING UPWARDS

TO INSTALL ALL PARTS, FOLLOW IN REVERSE.

BE SURE TO READ AND FOLLOW THE REST OF OUR MANUAL TO TAKE CARE AND ENJOY YOUR RAVEN!
