Top Charging Handle Cover Block Installation

STOP!!

YOU MUST ENSURE YOUR FIREARM IS FULLY UNLOADED AND PROVED SAFE BEFORE USING!!

PROVE
POINT THE FIREARM IN THE SAFEST AVAILABLE DIRECTION.
REMOVE ALL AMMUNITION.
OBSERVE THE CHAMBER.
VERIFY THE FEEDING PATH.
EXAMINE THE BORE.

ONCE SAFE, YOU MAY PROCEED TO THE NEXT STEP.

INSTALLATION
STEP 1: SEPARATE THE UPPER FROM THE REST OF THE FIREARM TO MAKE INSTALLATION EASIER.

STEP 2: ALIGN THE TOP CHARGING HANDLE COVER BLOCK WITH THE UPPER RECEIVER.

STEP 3: PRESS THE BLOCK IN FROM THE REAR SIDE UNTIL ITS FULLY SEATED.
DO NOT HAMMER IT IN!

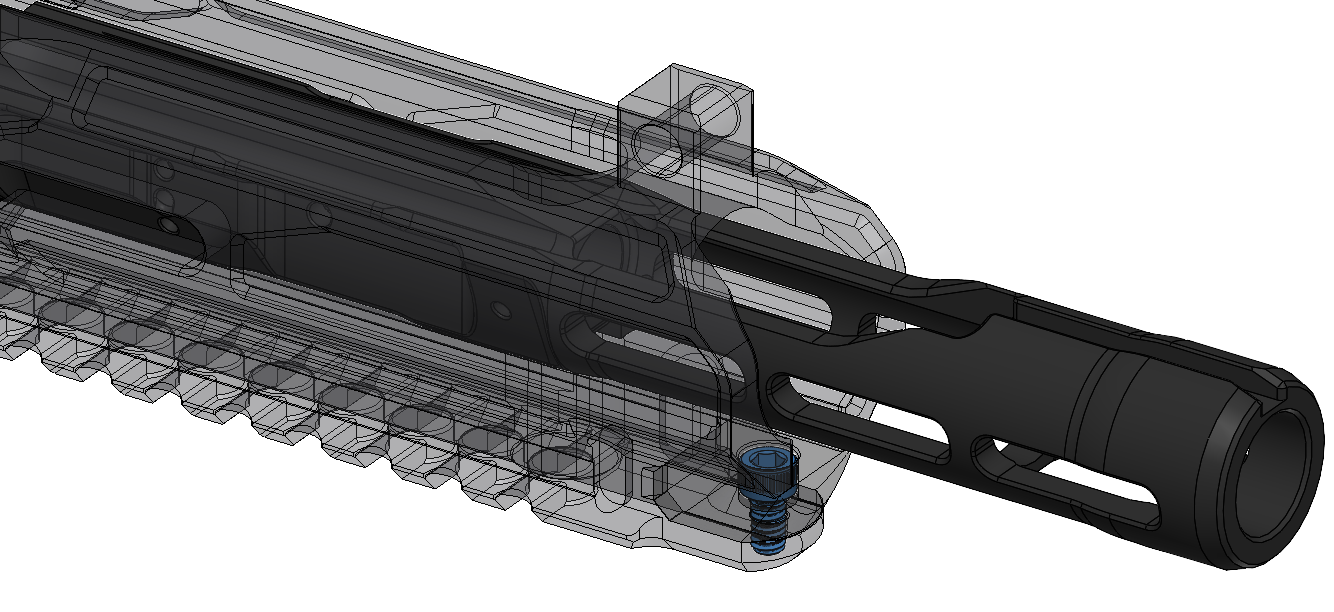

STEP 4: TURN THE UPPER RECEIVER OVER SO THAT THE SCREW HOLE WHICH HOLDS THE CHARGING BLOCK IN PLACE IS VISIBLE. INSERT THE INCLUDED 8-32 SOCKET CAP SCREW.

CAREFULLY TIGHTEN THE (1) SCREW UNTIL SNUG. IF YOU PLAN ON KEEPING THE COVER BLOCK INSTALLED ON YOUR FIREARM, WE RECOMMEND ADDING A TINY DROP OF BLUE COLORED LOCTITE.
WARNING: NEVER USE RED LOCTITE ON YOUR RAVEN!


STEP 5:
IF YOU HAVE THE RAVEN 9X19MM, YOU DO NOT NEED TO INSTALL / REMOVE THE COVER BLOCK WHEN INSERTING OR REMOVING YOUR FIRING BOLT

IF YOU HAVE THE RAVEN MID LENGTH [5.56] [7.62X39] [300 AAC BLACKOUT], YOU WILL NEED TO INSTALL / REMOVE THE COVER BLOCK AFTER INSERTING OR REMOVING YOUR BOLT CARRIER GROUP AS THE GAS KEY CANNOT PASS THROUGH THE COVER BLOCK.

ENSURE YOUR MID LENGTH BOLT CARRIER IS IN THE SAME POSITION AS SHOWN BELOW TO ENSURE YOU CAN EASILY ACCESS THE COVER BLOCK SCREW.


STEP 6: REASSEMBLY YOUR RAVEN. YOUR COVER BLOCK IS INSTALLED.
TIP: CONTINUOUSLY CHECK ALL SCREWS ARE TIGHT WHEN EVER CONDUCTING ROUTINE CLEANING AND OR INSPECTIONS.
