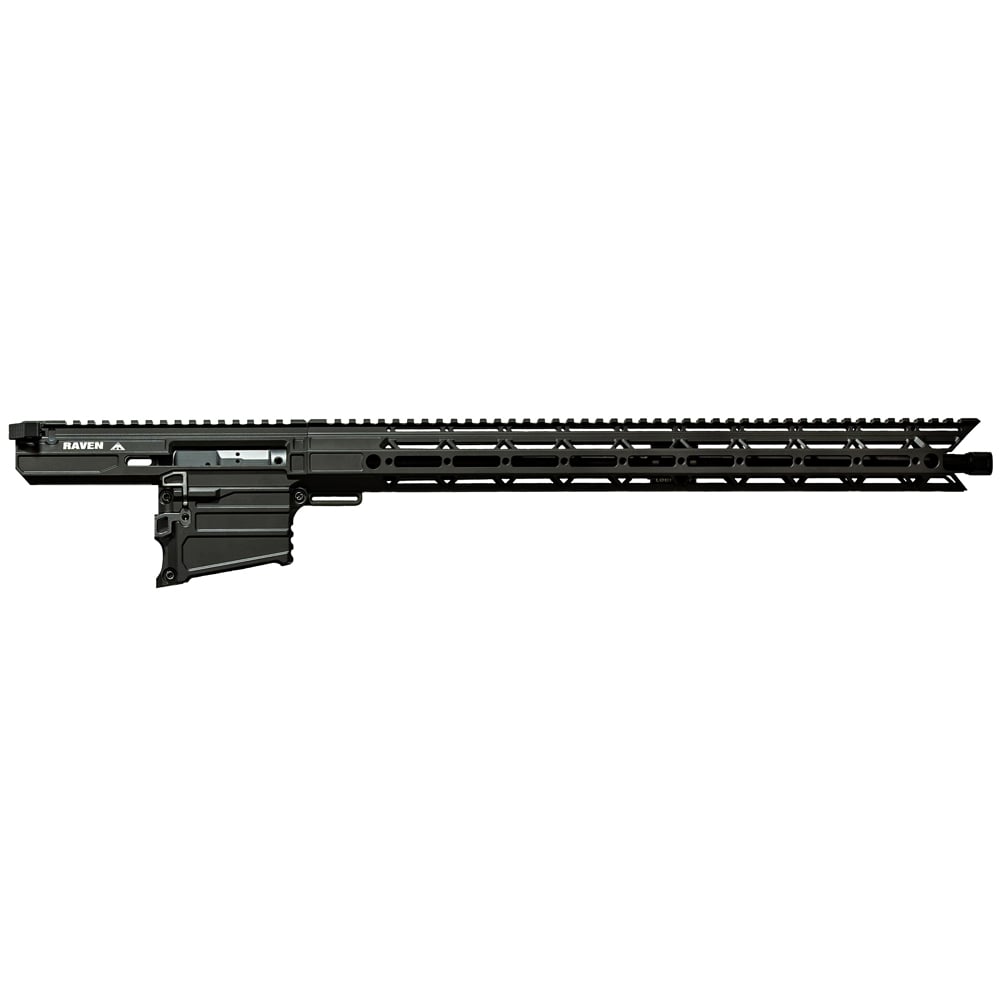

LTAC Raven Modular Caliber Kit - Standard Length - 9x19mm

Select Cerakote Color

Select Barrel

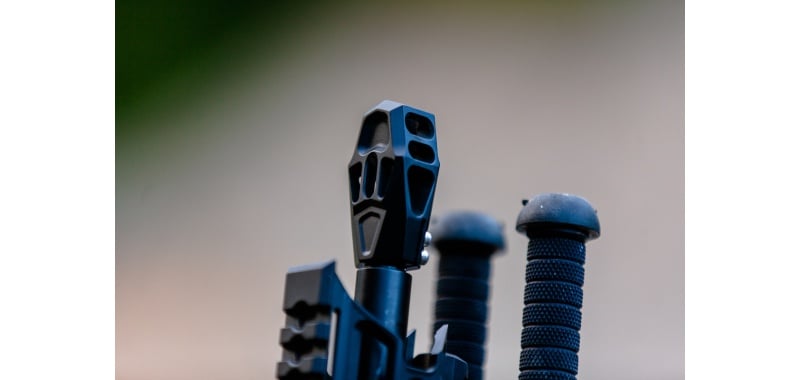

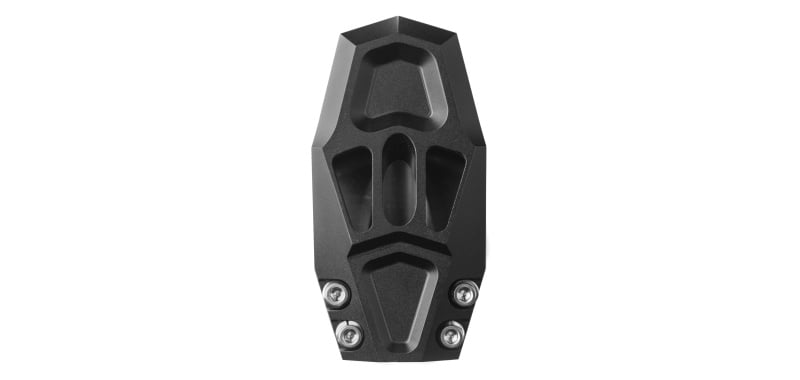

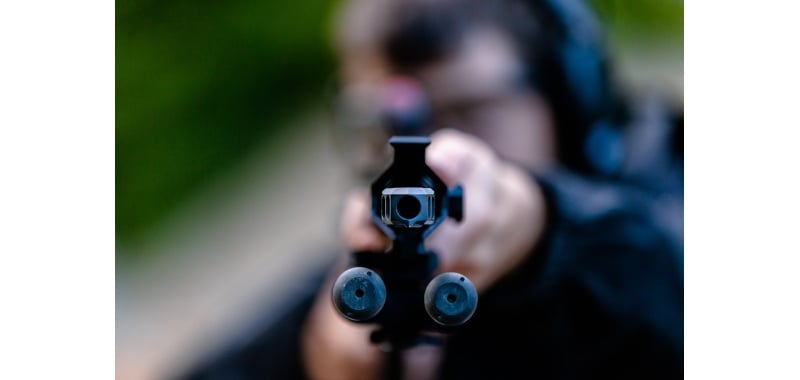

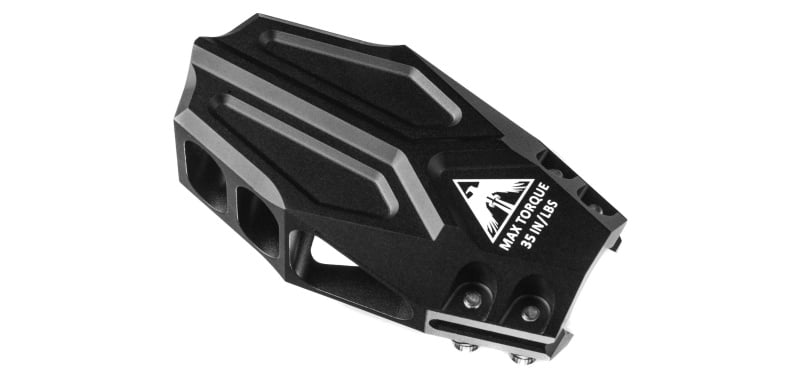

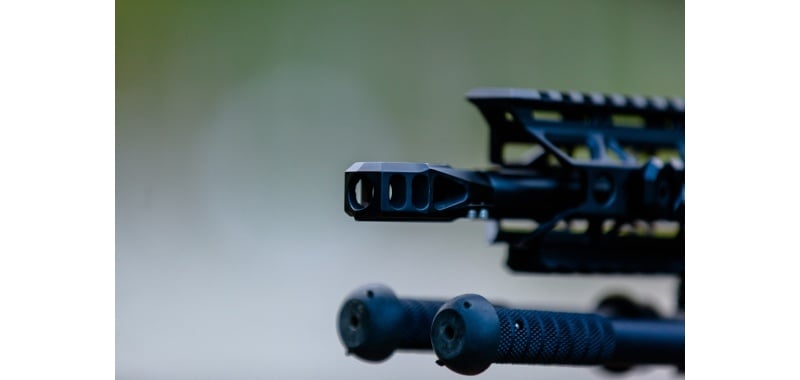

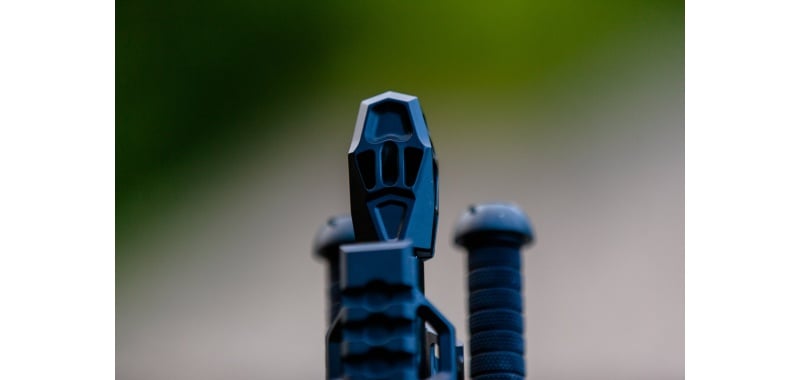

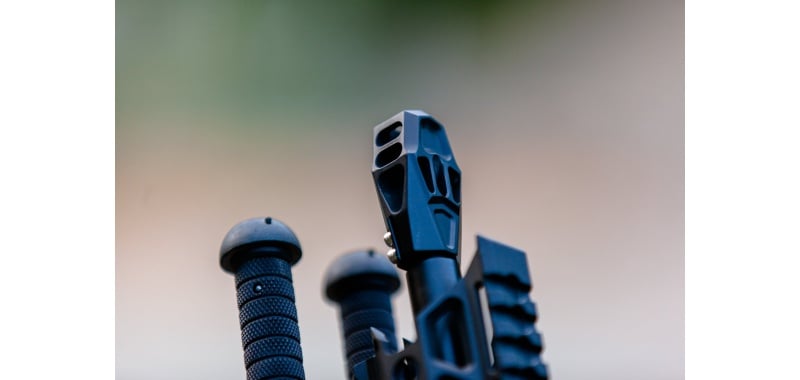

LTAC Talon 9MM Muzzle Brake 1/2-28 Thread

Made from 7075 billet aluminum with a Black Anodized coating.

Screws onto standard 1/2" x 28 threaded barrels.

Perfect for our Raven 9mm Carbine!

While shooting, gas is directed both sideways and upwards to reduce recoil while keeping you on target.

Specifications
- Fits all 9mm 1/2-28 Threaded Barrels
- Machined from Billet 7075-T6
- 9 Gas Ports Total (3 Left, 3 Right, 3 Top)
- Reduces Felt Recoil
- Keeps Firearm on Target
- Anodized Black

LTAC Talon Ambi Top Charging Handle - Standard Length [9MM]

LTAC Talon Ambidextrious Modular Top Style Charging Handle - Standard Length

Machined from 7075-T6 Aluminum and Anodized Black

Pull Handle is modular to allow expansions of any of our future low cost pulls in the future!

Fits:
Raven Short Length Upper [9mm] [10mm] [.40S&W] [.45AUTO]
Standard AR15
Standard AR9

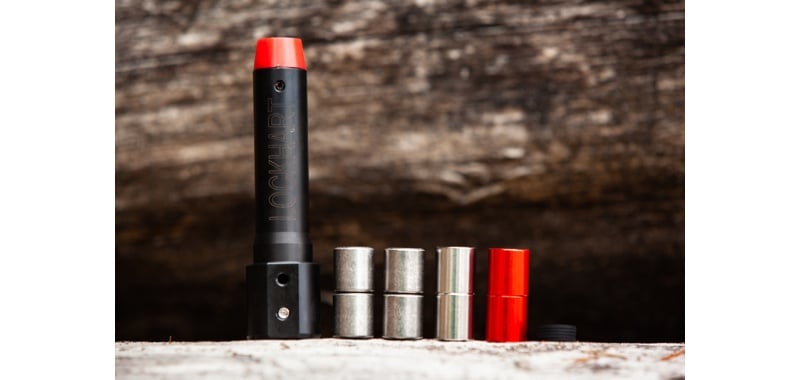

LTAC Tunable Adjustable Buffer with Weights (4.6 - 11oz) Pistol Calibers

Perfect for our Raven. Easily switch between pistol caliber buffer weights and tune your rifle for your exact ammunition loads.

Reduces Felt Recoil!
Makes rifle shoot even flatter!
Further reduces bolt cycling speed = even better feeding!

Features a 4 Inch Extended length Stainless body with a polyurethane bumper.
Drop in fit with any standard Mil-spec or commercial buffer tubes.

Each adjustable buffer kit comes with multiple weights allowing you to tune the weight combination of your rifle depending on what caliber you are shooting.

Comes with 2 aluminum, 2 stainless steel and 4 tungsten weights (4.6oz - 11oz)

Weights are easily adjusted in seconds.Empty Stainless Buffer - 4.6oz

Weight Codes:
W (Tungsten) 1.5 oz
SS (Stainless) 0.7 oz
Al (Aluminum) 0.2 oz

When tuning your rifle's buffer weight, ensure to consult a professional if you are not sure what you are doing. Failure to maintain a safe buffer weight can cause serious injury or worse.

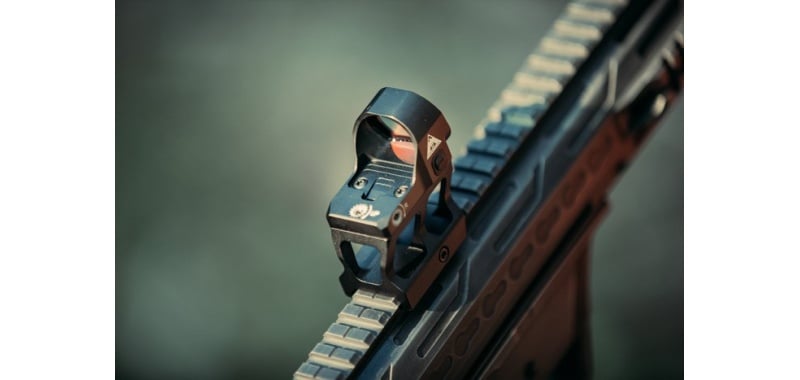

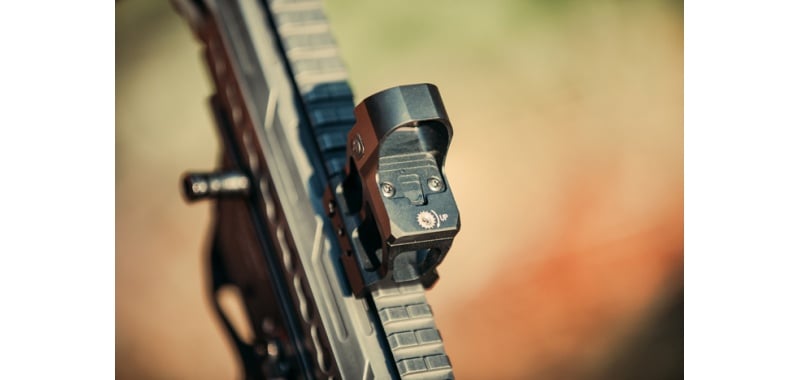

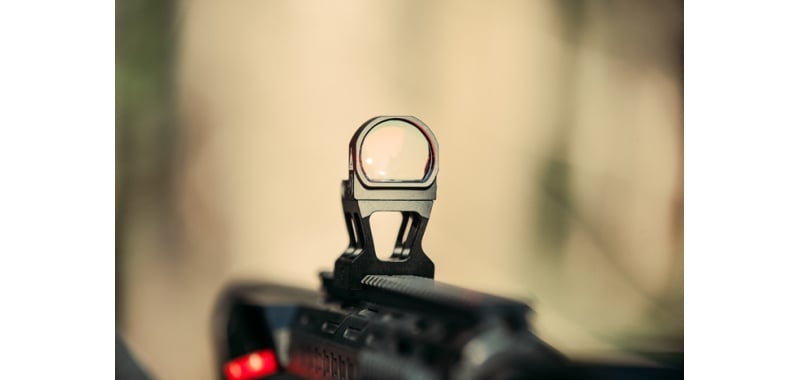

LTAC Micro Pistol Red Dot Optic (Motion Sensor) + Riser

THIS CAN ONLY BE PURCHASED AT THIS PRICE WITH A RAVEN CARBINE!

Our Lockhart Tactical Micro Pistol Red Dot Sight is Motion Activated!
Pick it up and the dot will instantly turn on.

Once you put it down, the dot will turn off after automatically.

Foot print: RMR

The Optic ships with an included picatinny rail mount to allow use on rifles and shotguns as well.
These are perfect for GLOCK MOS pistols or any other pistol which allows the direct mounting of an optic.

• Magnification: 1x
• Window Lens Size: 20x28mm (0.8x1.1")
• Length: 46mm / 1.8"
• Width: 32mm / 1.2"
• Height: 35mm / 1.4"
• Weight (net): 56g / 2.0oz
• Eye Relief: Free
• Optics Coating: Multi Coated
• Parallax: ±1.0MOA 100 yds
• Elevation Range: 45 MOA
• Windage Range: 45 MOA
• Dot Size: 3 MOA
• Dot Intensity: 8 levels & 2 night vision dot
• Mounting: Weaver, VT
• Battery Type: CR2032
• Battery Runtime: ≥20000 hours
• Finish: Black matte
• For close-in work and general shooting
• Real water proof at 1 meter with 30 minutes IPX6
• 4 Hours Auto Shut Down
• Pistol application Easily Connects with Glock MOS and others with adaper plates (not included)
• High quality aluminum alloy 6061 T6 in durable black matte finish
• >20,000 hours battery runtime (at weakest visible dot level)
• Tested on 9mm Pistols, 338 Lapua Magnum rifles and 12 GA shotguns
• Package includes: Picatinny mount,  rubber lens cover, hex keys and cleaning cloth

LTAC M-LOK 5.5" Picatinny Rails (13 Slot)

Specifications:

• Compatible with M-Lok
• MIL-STD-1913 & STANAG 4694 spec rails
• CNC machined from 6061-T6 aircraft grade aluminum
• Black anodized
• Laser etched position markers for quick reference
• Contoured for snag-free operation
• 13 Slots
• 5.5 Inch Length / 140mm

Hardware Included:

• #10-24 flat head screws
• M-Lok nuts

LTAC M-LOK 2.5" Picatinny Rails (5 Slot)

Specifications:

• Compatible with M-Lok
• MIL-STD-1913 & STANAG 4694 spec rails
• CNC machined from 6061-T6 aircraft grade aluminum
• Black anodized
• Laser etched position markers for quick reference
• Contoured for snag-free operation
• 5 Slots

Hardware Included:

• #10-24 flat head screws
• M-Lok nuts

Raven Spare Parts Kit - Wear Parts

Each Raven is designed and built using the highest quality materials to ensure a lifetime of function. The kit contents below include a comprehensive array of common wear parts, and a few small special pins which could be easily lost during routine maintenance.

Don't let a lost or worn out small part keep you from enjoy a day at the range!

9x19MM Spare Parts Kit Contents:
1x LTAC Raven Ejector [9mm] [10mm] [.40S&W] [.45AUTO]
1x LTAC Raven Bolt Extractor [9mm] [10mm] [.40S&W] [.45AUTO] [.223] [5.56] [7.62x39]
1x LTAC Raven Extractor Retaining Pin [9mm] [10mm] [.40S&W] [.45AUTO]
1x LTAC Raven Extractor Spring
1x LTAC Raven Extractor Spring Insert
1x LTAC Raven Standard Button Retaining Pin [9mm] [10mm] [.40S&W] [.45AUTO] [5.56]
1x LTAC Raven Firing Pin and Spring [9mm] [10mm] [.40S&W] [.45AUTO]
1x LTAC Raven Firing Pin Retaining Pin
2x LTAC Standard Length Take Down Pins
1x LTAC Raven Buffer Retainer
1x LTAC Raven Buffer Retainer Spring


5.56 Mid Length Spare Parts Kit Contents
1x LTAC Raven Bolt Assembly 5.56 - Black phosphate Coated
Bolt Assembly Includes:
- Bolt Body
- Extractor
- Extractor Spring
- Extractor Spring Insert
- Extractor Retaining Pin
- Ejector
- Ejector Spring
- Ejector Retaining Pin
- Gas Rings
1x LTAC Raven Standard Button Retaining Pin [9mm] [10mm] [.40S&W] [.45AUTO] [5.56]
1x LTAC Raven Firing Pin [5.56]
1x LTAC Raven Firing Pin Retaining Pin
2x LTAC Standard Length Take Down Pins
1x LTAC Raven Buffer Retainer
1x LTAC Raven Buffer Retainer Spring

.22LR Spare Parts Kit Contents
1x LTAC Raven Firing Pin [.22LR]
1x LTAC Raven Firing Pin Spring [.22LR]
1x LTAC Raven Firing Pin Retaining Pin
1x LTAC Raven Extractor [.22LR]
1x LTAC Raven Extractor Spring [.22LR]
1x LTAC Raven Extractor Roll Pin [.22LR]
1x LTAC Raven Recoil Spring [.22LR]
1x LTAC Raven Hardware Pack [.22LR]

Extractors:
The extractor is essentially a spring-loaded claw that snaps over and into the rim of the cartridge case. Its job is to pull a fired case out of the chamber. One extreme symptom of faulty extraction is that the gun fires and the bolt comes back, and the case is still in the chamber.

Ejectors:
The ejector is essentially a spring-loaded pin that forcibly pushes of the base of the cartridge case. Its job is to eject a fired case out of the ejection port of the firearm after it's been extracted out of the chamber. One extreme symptom of faulty ejector is that the gun fires, the bolt comes back, and the case remains attached to the bolt without ejecting.

Springs:
Each time a component is replaced, you should always replace the small associated springs. They are low cost and an effective way to prevent additional issues from arising through extended use.

Firing Pin:
The Firing pin is the direct contact between your firearm and chambered ammunition. One extreme symptom of a damaged or worn firing pin is that the gun does not fire after the trigger is pulled. After doing ACTS and PROVE, if you were to eject the cartridge, the primer would not show any signs of a firing pin strike or the firing pin strike would be very shallow in depth.

Retaining Pins:
On the Raven, threaded retaining pins hold magazine release and bolt catch buttons. Special retaining pins also hold the extractor in place on the pistol caliber bolts.

Take Down Pins:
The specialty take down pins could become lost in the field while cleaning. Ensure you always have a spare or two just in case!

Buffer Retainer:
The buffer retainer captures and holds the buffer weight and buffer spring inside the buffer tube. Through extended use it is possible for the buffer weight to bend or damage this retainer.

5.56 Bolt Assembly:
The bolt assembly is the most hard working component in your firearm. It locks and unlocks the bolt into battery in the chamber and handles the majority of the heavy firing pressures. Through extended use it is possible that the locking lugs could become broken or damaged. The bolt could also break at the cam pin hole. If any issue was to arrive, having a spare fully assembled bolt with all the associated parts gets you back up and running within seconds without needing a single tool. The fully assembled bolt also replaces the majority of other wear parts on your rifle at the exact same time.

Add Raven Handguard 18"

*** THIS CAN ONLY BE PURCHASED AS AN ADD ON WHEN BUYING A CALIBER KIT AT THIS PRICE! ***

Lockhart Tactical Raven 9 Spare Handguard 18".

Fits: (9mm) (10mm) (.40S&W) (.45AUTO) (.223) (5.56) (7.62x39)

A Handguard like no-other
Our barrel is concealed by our proprietary aluminum hand guard.
Understanding that one design doesn't work for everyone, we have incorporated five (5) built in QD sling studs while only weighting a mere 0.77lbs!

Accessorize Yourself
We also offer a dual picatinny mounting solution. Use either the twenty eight (28) provided MLOK attachment slots, or use our thirty (30) threaded holes to attach additional rails on the 3, 6, or 9 o'clock position.

• Free float. Made from 6061-T6 Aluminum
• Inside diameter: 1.26"
• Outside diameter: W-1.5" H-1.96"
• Engineered with advanced ergonomics for comfort and improved performance.
• Accessory rails can be placed at 3, 6, and 9 o'clock positions and can be joined to create continuous Pic Rail.
• (5) Five QD attachment points. Made to fit Magpul QD Sling Studs.
• Engineered to allow for low profile gas block to fit inside.

Includes:
Raven 9 Spare Handguard 18"
