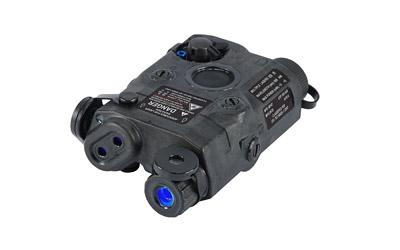

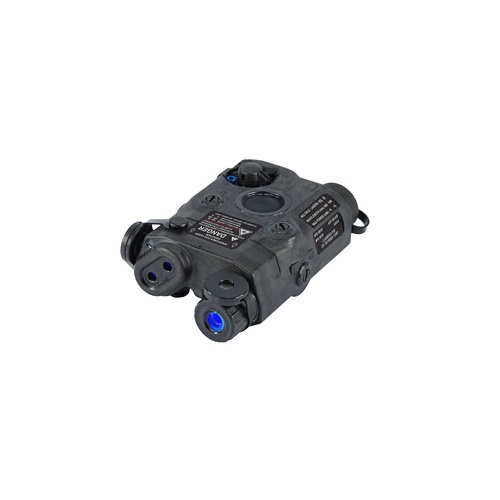

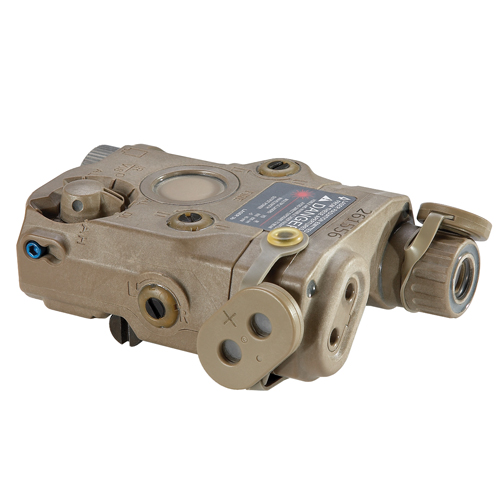

The Advanced Target Pointer/Illuminator/Aiming Laser (ATPIAL) is small, lightweight and easy to use. The aiming system has integrated infrared and visible aiming lasers and an infrared illuminator. The ATPIAL (AN/PEQ-15) has been battle-tested for use on small arms and crew-served weapons. This device is the U.S. Armed Forces standard for night direct-fire aiming and illumination.Some models are restricted for use by law enforcement and military organizations. Contact EOTech at 888-368-4656 or email for more information.The ATP-000-A18Vis is a visible only model that was created to support tactical training requirements for law enforcement and military organizations.
Product Details
Length/Width/Height:
4.6” x 2.8” x 1.6” (117 mm x 71 mm x 41 m)
Weight:
7.5 oz with batteries
Battery Power:
One 3-volt DL123 battery
Visible Aim Laser - ATPIAL
Output: 4.0 mW (Class IIIa)
Beam Divergence: 0.5 mrad
Wavelength: 605-665 nm
Range: > 25 m
IR Aiming Laser - ATPIAL
Output Power Low: 0.6 mW (Class I)
Output Power High: 25 mW (Class IIIb)
Beam Divergence: 0.5 mrad
Wavelength: 820-850 nm
Range: > 600 m (Low), 2000 m (High)
IR Illuminator - ATPIAL
Output Power Low: 3.5 mW (Class IIIa)
Output Power High: 30 mW (Class IIIb)
Beam Divergence: 1-105 mrad (minimum)
Wavelength: 820-850 nm
Range: > 2,000 m
Danger: Laser Radiation
Avoid direct exposure to beam
IR Laser
Power: 50 mW
Wavelength: 830 nm
Class IIIb
VIS Laser
Power: < 5 mW
Wavelength: 650 nm
Class IIIa
