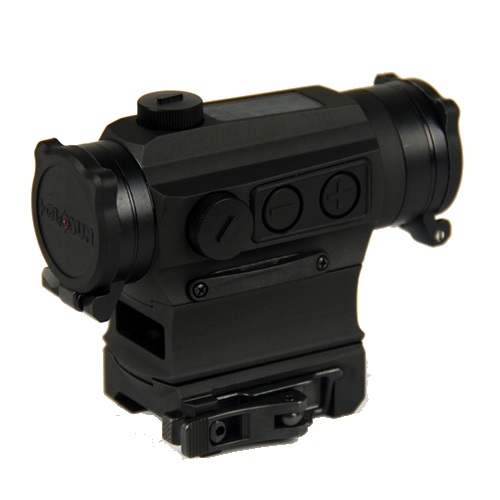

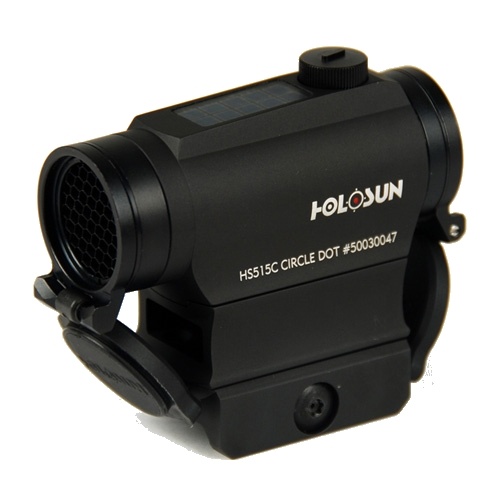

The PARALOW HS515C is a new compact red dot sight with the option of dot only or dot with circle reticle pattern. Employing new LED technology, the life time for one CR2032 battery can be up to 30,000 hours at a mid level dot intensity. The sight has attached non obstructing flip-up lens covers and kill flash. The sight may be installed on various firearms such as shotguns, pistols, rifles, air rifles and crossbows.
Features
● Parallax free with unlimited eye relief.
● Minimize vision obstruction with push button controls and streamlined housing design.
● Solar and battery power supplies.

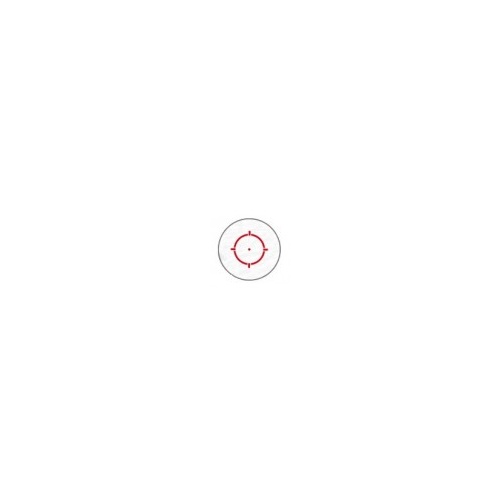

● Switch between circle dot and red dot reticles.
● Kill flash included.
● Battery tray.
● Flip-up lens covers won’t obstruct your vision.
● With H/L riser mounts.
● Quick release mount. Adaptable to Picatinny rails. The cross bolt for this sight is 5.00mm. This matches the Picatinny specification to ensure that the sight sight holds zero after remounting. The slots on a Weaver rail are slightly narrower. While the sight will mount on a Weaver rail, it will not completely seat into the slot.
● CNC machining with T6061-T6 aluminum housing.
Specifications
● 2MOA dot size with 65 MOA ring size.
● Adjustment value for each Click: 0.5 MOA
● Repeatable mounting accuracy: ≤2MOA
● Auto switch to solar mode after 12 hours on battery power.
● Brightness settings : 10 DL & 2 NV compatible
● Power supply:DC3V
● Waterproof rating: IP67
OPTICAL DATA |
Light source |
LED |
Red Dot Size |
2 MOA Dot; 65 MOA Circle |
Parallax |
Parallax free |
Eye Relief |
Unlimited |
Coating |
Multi-layer coating for all lens. |
magnification |
1X |
ELECTRONIC DATA |
Battery |
CR2032 |
Battery Life |
20,000 hours for circle dot at mid brightness setting 50,000 hours for single dot at mid brightness setting |
Brightness Setting |
9 DL & 2 NV compatible |
MECHANICAL DATA |
Housing Material |
Aluminum |
Housing Finish |
PEO/MAO housing finish |
Housing Color |
Black |
ENVIROMENTAL DATA |
Storage Temperature |
-40C to 70C |
Working Temperature |
-10C to 50C |
Waterproof |
1m / IP67 |
DIMENSIONS |
Dimension |
84x64x34mm |
Weight |
158g with high mount |
