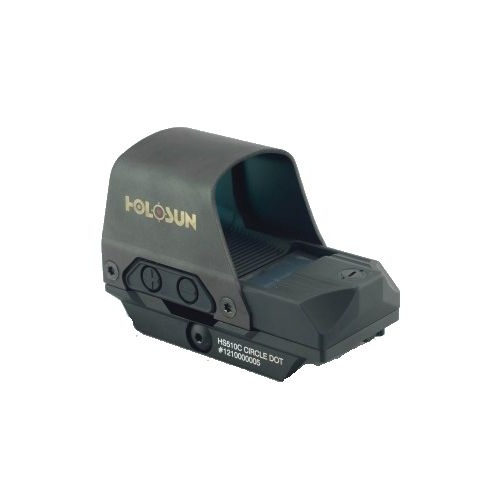

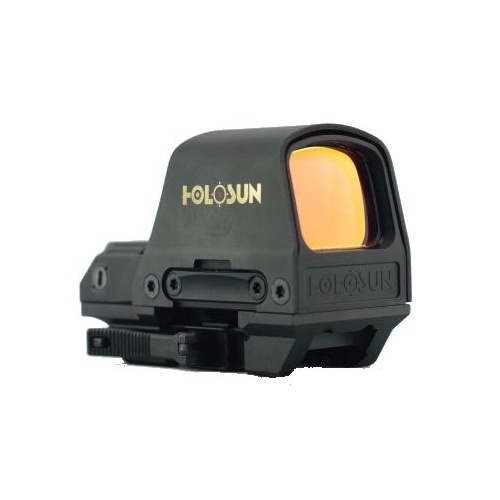

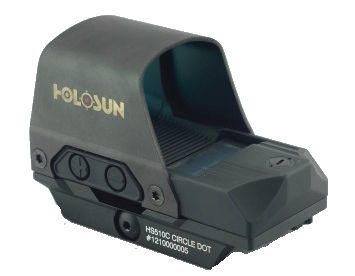

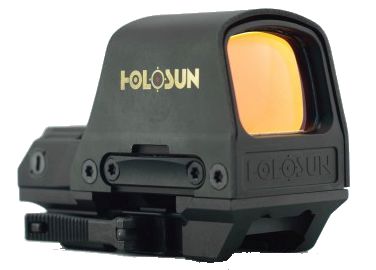

The HS510C Open Reflex Circle Dot Sight has an open frame for a wide sight picture. Always on, it is powered by solar cell under normal usage, and a back-up battery to supplement power requirements in low light conditions. The reticle can be switched between a 65 MOA circle with 2 MOA dot, or a 2 MOA dot only at the push of a button. Better yet, the same LED projects both reticles, so no re-zeroing is necessary.
Features
- Up to 50,000 hour battery life and Advanced Solar Fail Safe™ technology.
- Automatic reticle intensity adjustment in Solar Mode.
- 3 Reticle Options: 65MOA circle and dot, 2MOA dot only and 65MOA circle only
- Shake Awake™ - Motion on with last setting recall.
- Low battery warning.
- Parallax free, unlimited eye relief.
- IP67 Certified.
Specifications
- CNC Milled 6061 Aluminum Housing with a Titanium hood.
- 0.5 MOA Windage & Elevation adjustments per click.
- 10 day light and 2 night vision compatible reticle brightness settings.
- Comes with a 1.41" QD mount.
- Window Size 0.91x1.2 inches (32mm x 24mm).
| LED DATA |
| Reticle |
2 MOA Dot; 65 MOA Circle |
| OPTICAL DATA |
| Light source |
LED |
| Parallax |
Parallax free |
| Eye Relief |
Unlimited |
| Coating |
Multi-layer coating for all lens. |
| Magnification |
1X |
| ELECTRONIC DATA |
| Battery |
CR2032 |
| Battery Life |
50,000 hours for circle dot at mid brightness setting 20,000 hours for single dot at mid brightness setting |
| Brightness Setting |
10 DL & 2 NV compatible |
| MECHANICAL DATA |
| Housing Material |
Aluminum |
| Housing Finish |
PEO/MAO housing finish |
| Housing Color |
Black |
| Adjustment per Click |
0.5 MOA |
| ENVIROMENTAL DATA |
| Storage Temperature |
-40C to 70C |
| Working Temperature |
-30C to 60C |
| Waterproof |
1M |
| DIMENSIONS |
| Dimension |
91*65*40 mm |
| Weight |
264g |
| |
|
