Lockhart Tactical MSAT-L Fixed Turret System

Brand: Lockhart TacticalLockhart Tactical
CAD1,999.00 EA
Select Turret Mounting Platform
Cost: CAD1,999.00 EA -

PRE-ORDER PRICE ONLY
PRICE WILL NOT RISE FOR ANYONE LOCKED IN

Exact design subject to modification enhancements

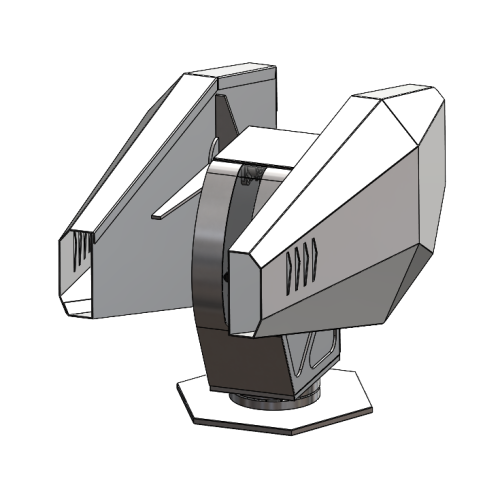

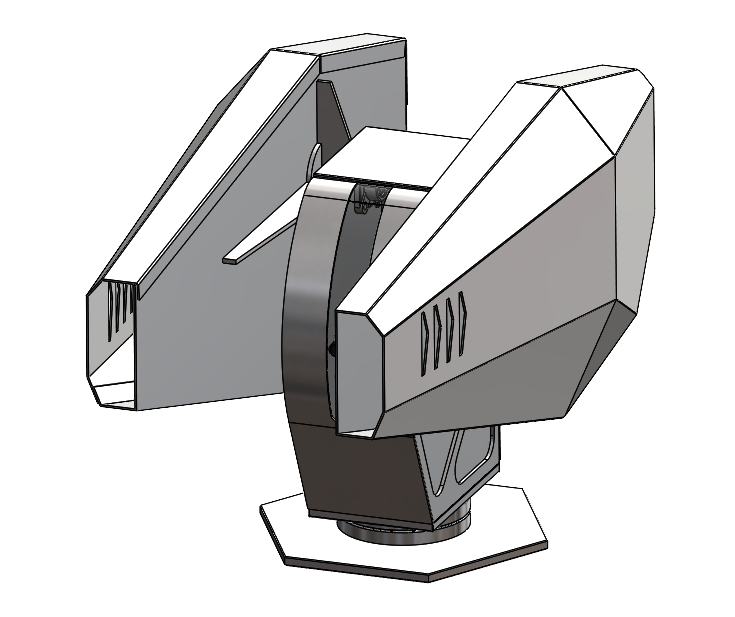

MSAT-L Modular Small Arms Turret - Light

Intended use: The MSAT-L is designed to be operated by a joystick for the ultimate range day experience. Perfect for sighing in a firearm or for individuals who cannot share in the safe shooting sport due to physical limitations.

Trigger Systems:
The modular trigger system only allows a normal rate of fire and does NOT increase the speed under any circumstances.

Use of the MSAT-L:
To operate the turret, simply power it on and activate all safety resets.
Use the included joystick to align the MSAT-L with your target, press and hold the deadman switch and then tap the fire button. A single shot will fire and reset, waiting for your next command.

Mounting Options to fit all types of small arms:
1) Picatinny Top Rail
2) Picatinny Bottom Rail
3) Gun Clamp

Complete Turret Base Assembly (including motors and drivers)
- Maximum Payload: 50KG (110LB)
- Withstands Recoil forces of up to 120ft lbs
- Pan Rotation: 360 Degrees
- Pan Speed Maximum: 180 Degrees / Second
- Tilt Rotation: +70 / -70 Degrees
- Tilt Speed Maximum: 180 Degrees / Second
- Both Axis are locked with wormgear drives to disallow unintentional movement.
- Built from Ultra High Strength 6061-T6 Military Grade Aluminum with Type 2 Hardcoat anodizing ensures rust proof operation.
- Heavy Duty fixed mounting pad which can be bolted or screwed down

Left Side Mounting Platform Accommodates:
1x Mounted Small Arms
1x Visible Laser
1x IR Laser
1x Optic Camera
1x Small Arms Weather Shield

Right Side Mounting Platform Accommodates:
1x Mounted Small Arms
1x Visible Laser
1x IR Laser
1x Optic Camera
1x
Small Arms Weather Shield

Turret Center Body Accommodates:
1x Visible Flashlight
1x IR Illuminator
1x Camera with Optical Zoom
1x Laser Range Finder
+ additonal accessory expansion

The MSAT-L contains 3 firing safeties.
1) The Control system for both left and right side are independently locked out and must be individually "RESET" before use to prevent unintentional use. User may also enable automatic shut down which turns off fire controls "X" minutes after no use. To reactive, simply press the reset buttons.

2) While using the Fire Joystick a deadman switch must be held down while user intends to fire.
3) User must also press the "FIRE" button.

Entire system will be completely plug and play to add accessories such as lasers, lights and different small arm mounting options.

What's Included: Left Platform Only
1x Complete Turret Base Assembly (including motors and drivers)
1x Left Side Mounting Platform
1x Waterproof Viewing Camera with Optical Zoom
1x Mechanical Trigger Mechanism
1x Connectivity Package to connect MSAT-L to laptop
1x Advanced MSAT-L Joystick
1x 532nm Green Laser + Mounting Bracket
1x Dual Orientation Picatinny Rail Clamping System

What's Included: Dual Platforms (Left + Right)
1x Complete Turret Base Assembly (including motors and drivers)
1x Left Side Mounting Platform
1x Right Side Mounting Platform
1x Waterproof Viewing Camera with Optical Zoom
2x Mechanical Trigger Mechanism
1x Connectivity Package to connect MSAT-L to laptop
1x Advanced MSAT-L Joystick
2x 532nm Green Laser + Mounting Bracket
2x Dual Orientation Picatinny Rail Clamping System

Optional Plug and Play Accessories:
Add IR Laser on each side
Add Optic Mounted Camera on each side
Add Small Arms Weather Shield on each side
Add Laser Range Finder on center
Add IR Laser Illuminator on center
Add Flashlight on center
