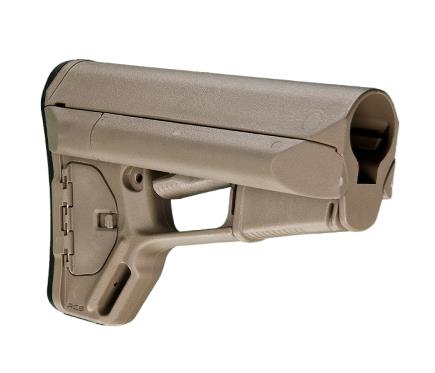

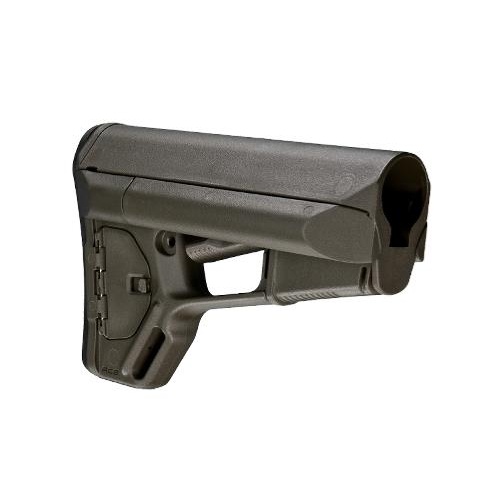

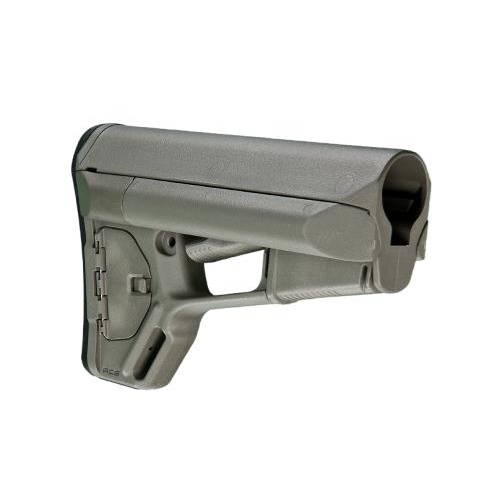

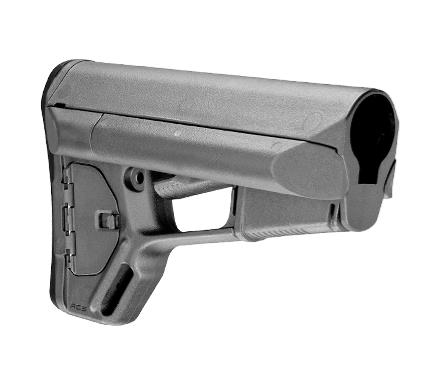

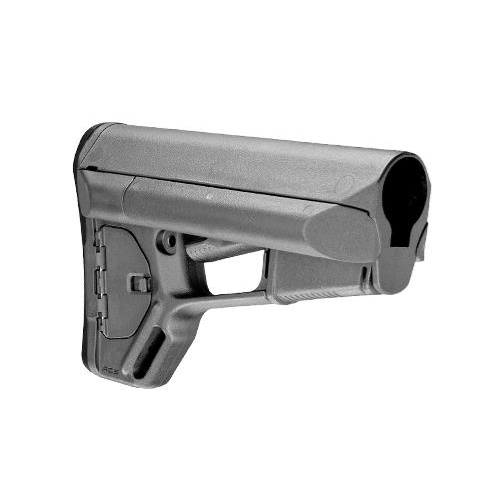

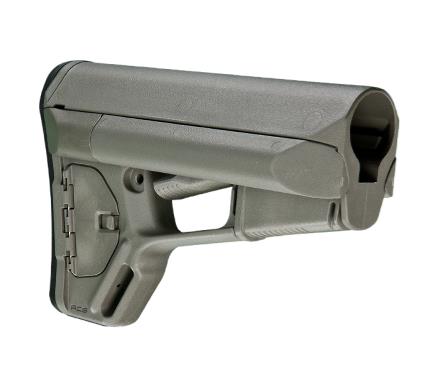

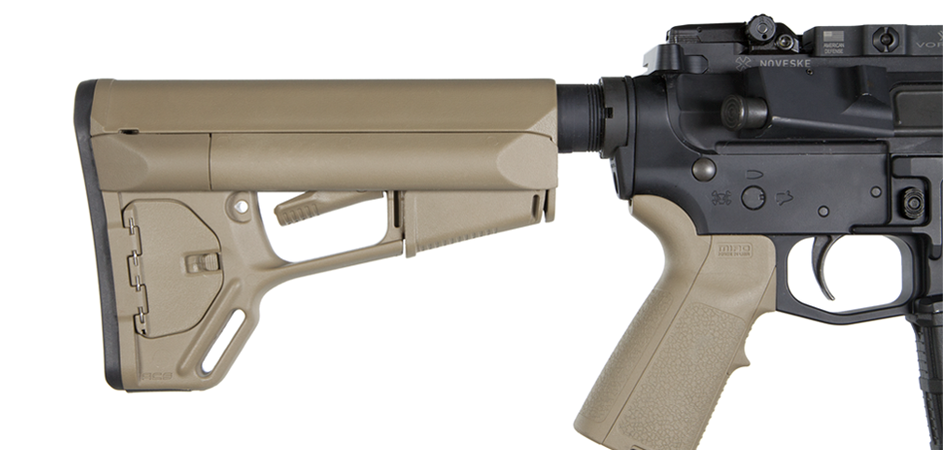

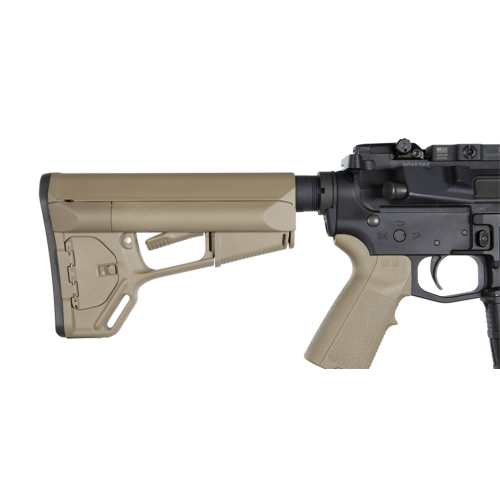

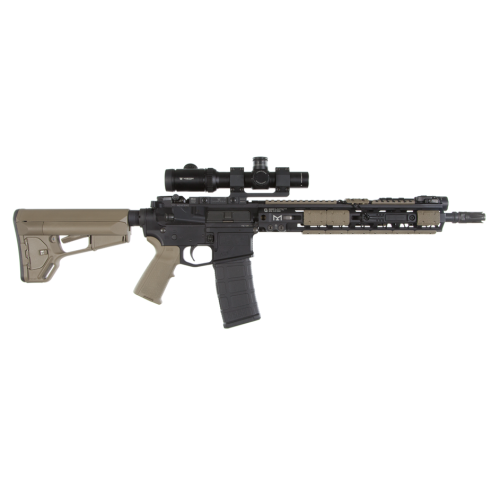

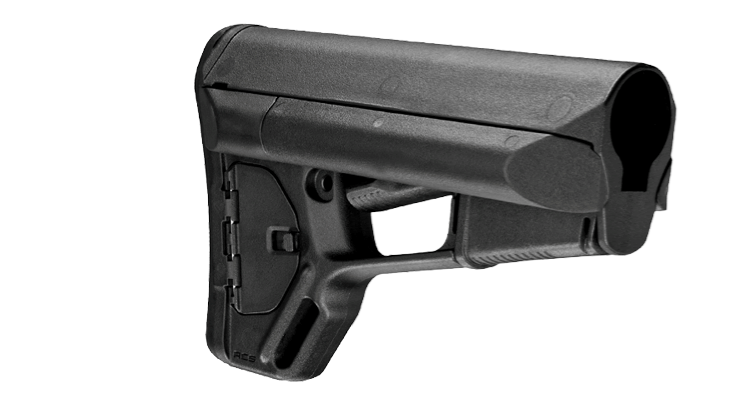

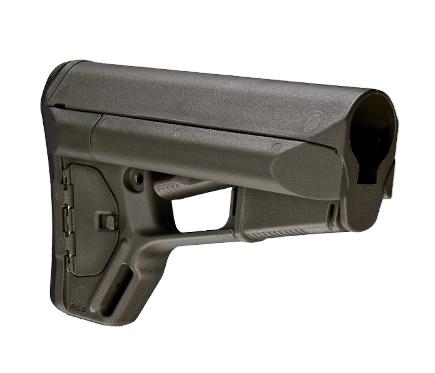

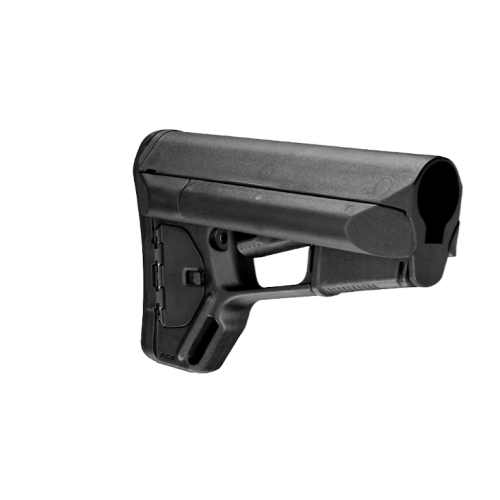

The patented Magpul ACS (Adaptable Carbine/Storage) – Commercial-Spec Model is a drop-in replacement buttstock for AR15/M16 carbines using commercial-spec sized receiver extension tubes. A streamlined, anti-snag profile shields the release latch to prevent accidental activation. Similar to the Magpul CTR®, the ACS also features a supplemental friction lock system that minimizes excessive stock movement for enhanced weapon stability and accuracy*. Dual, rear accessible, water-resistant battery storage tubes and an integral storage compartment in the butt of the stock provides multiple storage options. The ACS comes standard with a 0.30" thick rubber butt-pad which provides positive shoulder purchase to prevent slippage even with body armor or modular gear.
Made in U.S.A.
Features
- Mounts on commercial-spec sized carbine receiver extension tube (not included) from manufacturers such as Bushmaster, DPMS, Olympic, and others (please see the note below)

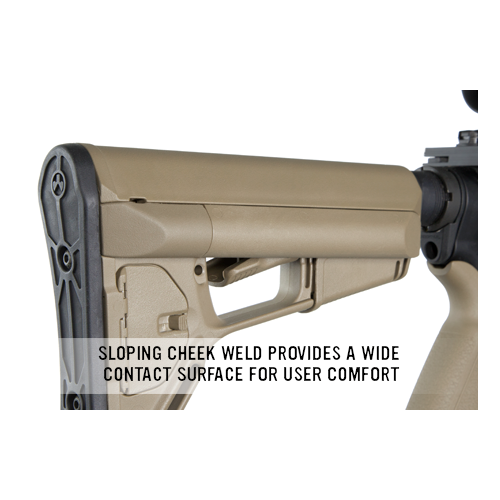

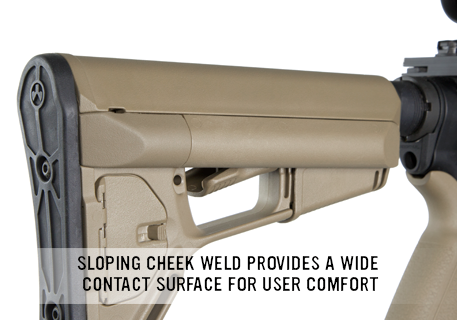

- Sloping cheek weld provides a wide contact surface for user comfort

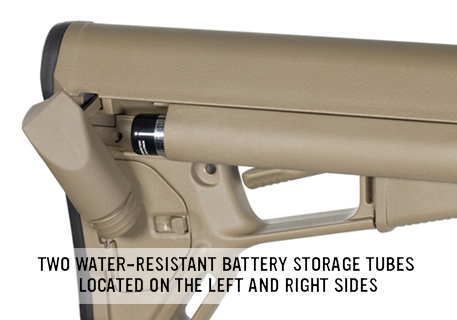

- Two water-resistant battery storage tubes located on the left and right sides of the stock
- Each tube will store up to three CR123 lithium or two AA batteries
- Tubes are accessible from the rear via a tethered, hand-removable rubber plug

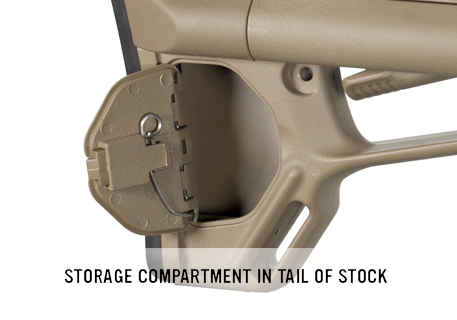

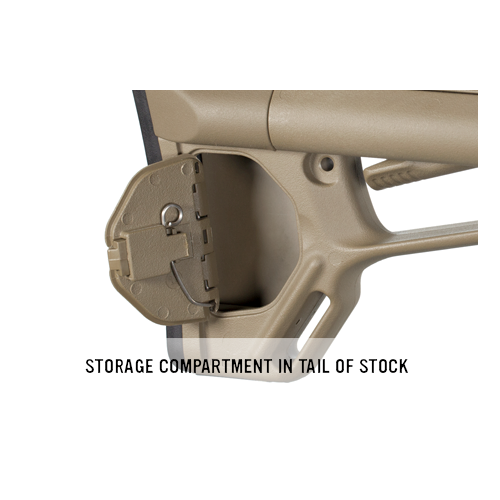

- Storage compartment in tail of stock with positive latching access door on right hand side
- Supplemental friction lock minimizes accuracy robbing wobble*

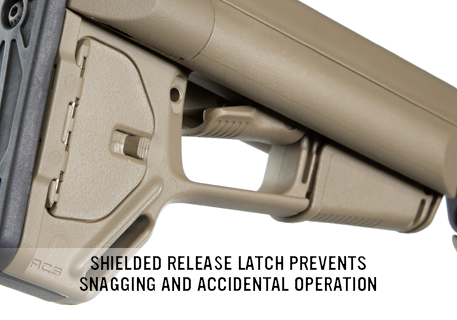

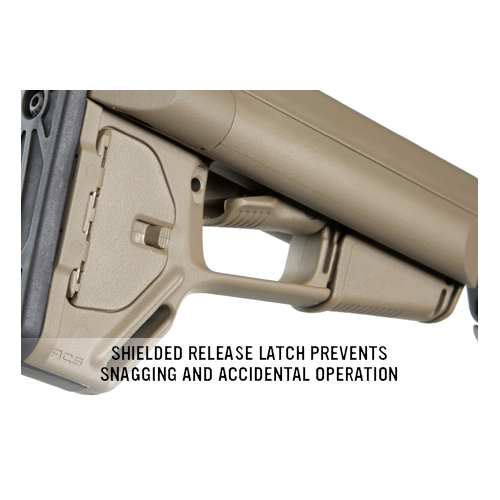

- Shielded release latch prevents snagging and accidental operation
- Premium chrome-silicon lock spring provides positive locking and long service life

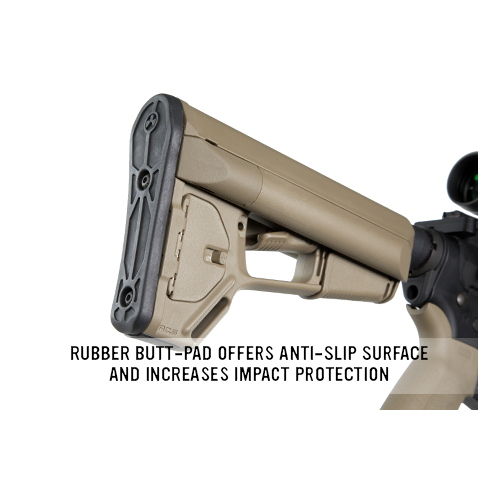

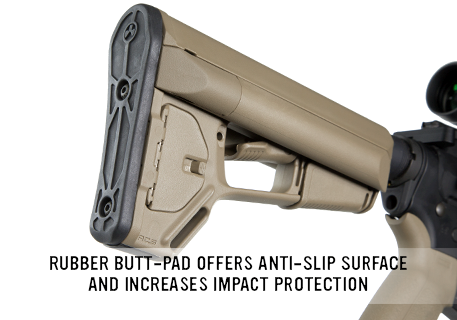

- Replaceable 0.30" Rubber Butt-Pad offers an anti-slip surface and increases impact protection
- Compatible with Magpul ASAP® and other receiver-mount sling attachments
- Sling Mounts
- Mid - Now includes the QD Swivel Sling Mount that fits up to 1.5" push-button swivels
- Rear/Bottom - 1.00" sling loop
Optional Accessories**
- Extended Rubber Butt-Pad, 0.55"
- Enhanced Rubber Butt-Pad, 0.70"
Specifications**
- ACS, Commercial-Spec (stock configuration)
- Weight: 0.88 lb.
- Weight, w/ Rec. Extension: 1.22 lb.
- Length, Maximum: 7.95 in.
- Width, Maximum: 2.58 in.
- LOP Adjustment Range: 3.80 in.
- LOP, M4 Collapsed: 11.75 in.
- LOP, M4 Extended: 15.55 in.
NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): mil-spec and commercial-spec. If you have a mil-spec extension on your rifle, make sure to order the Mil-Spec ACS. Please see the "Related Info" section above to determine which tube you have.
* Friction lock performance may vary depending on the host receiver extension's dimensional tolerances.
** Specifications based on extended-length (slant-back) commercial-spec receiver extension and may vary depending on tube manufacturer.
Standard Rubber Butt-Pad, 0.30" weight: 0.08 lb. Optional Extended Rubber Butt-Pad, 0.55" (weight: 0.11 lb.) or Enhanced Butt-Pad, 0.70" (weight: 0.13 lb.) may be used with either Mil-Spec or Commercial-Spec ACS stocks.
