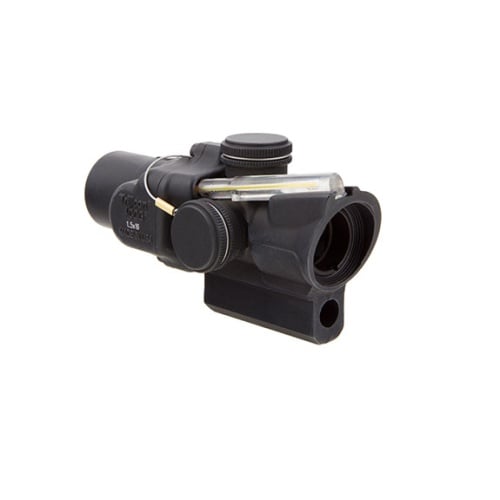

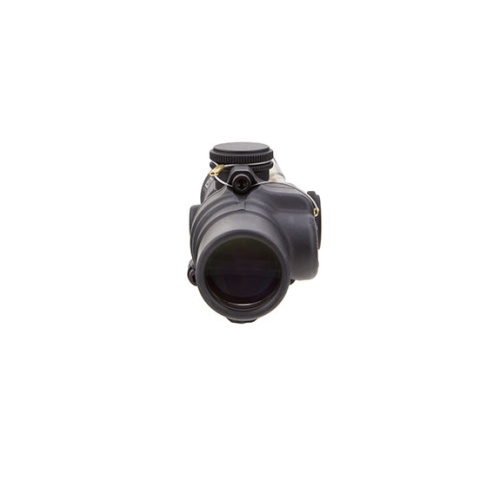

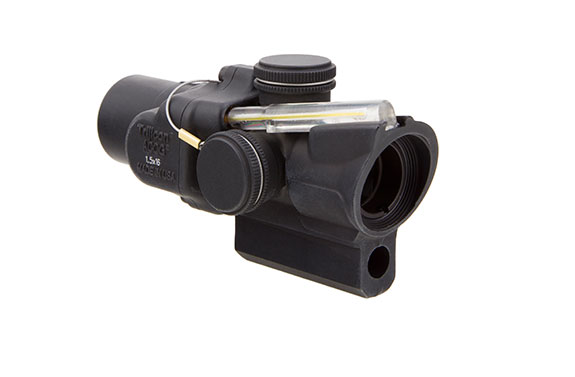

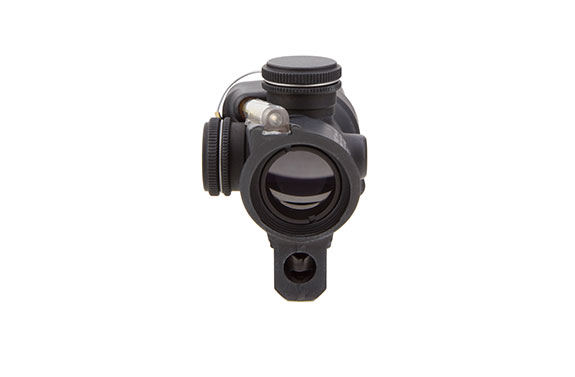

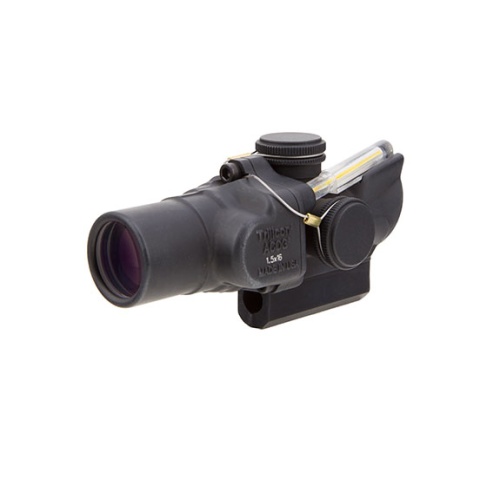

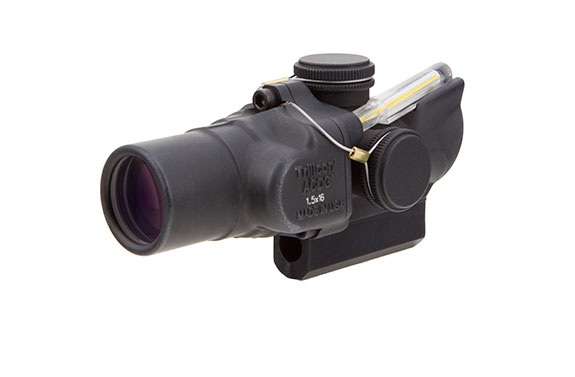

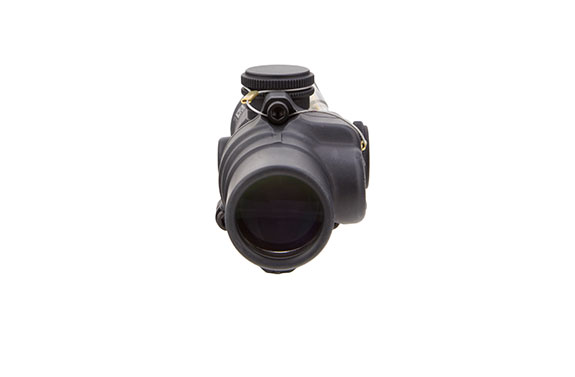

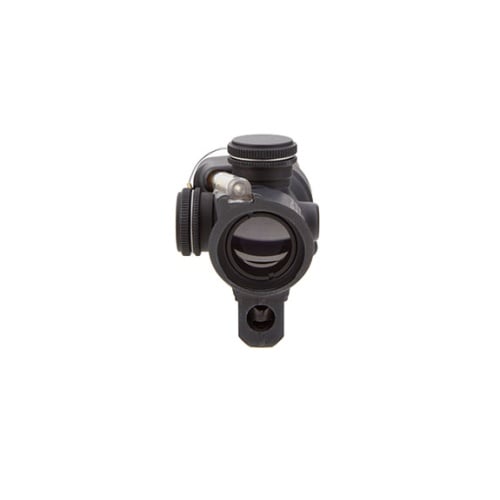

The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact

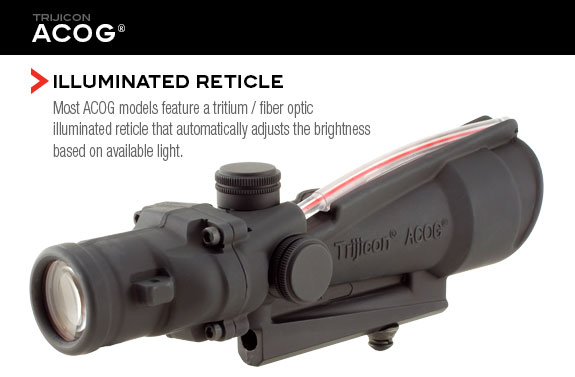

riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance

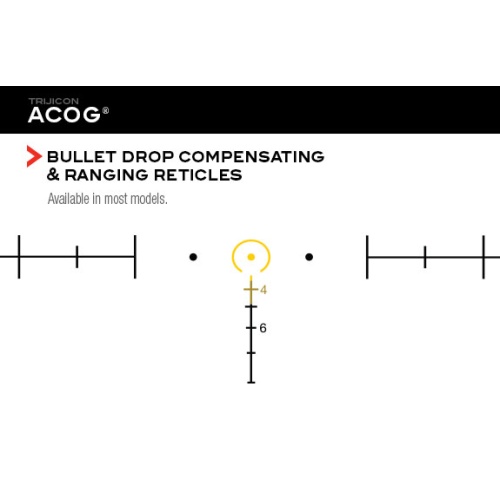

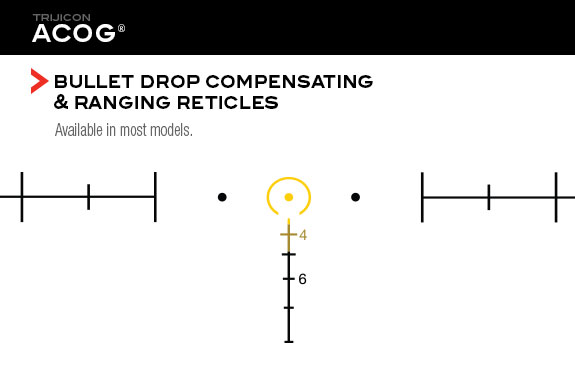

marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.
FEATURES
Wrapped in a smaller package, at 4.9 ounces, this ACOG is perfect for fast-moving tactical teams operating in close quarters or for speed-oriented competition venues. This very compact model provides weapons like the M16/M4 with excellent fire control capability. Targets are easier and quicker to acquire through the 1.5x16 models because of the larger field of view (7.4 degrees) and eye-friendly design.
INCLUDED IN PACKAGE:
- 1 Carry Handle Screw and Washer Set (TA30)
- 1 Compact ACOG Scopecoat (TA62)
- 1 LENSPEN® (TA56)
- 1 Trijicon Logo Sticker (PR15)
- 1 Manual
- 1 Warranty Card
SPECIFiCATIONS
| Magnification |
1.5x |
| Objective Size (mm) |
16mm |
| Bullet Drop Compensator |
No |
| Length (in) |
4 in. / 101.6mm |
| Weight (oz) |
5.1 oz. / 144.5g |

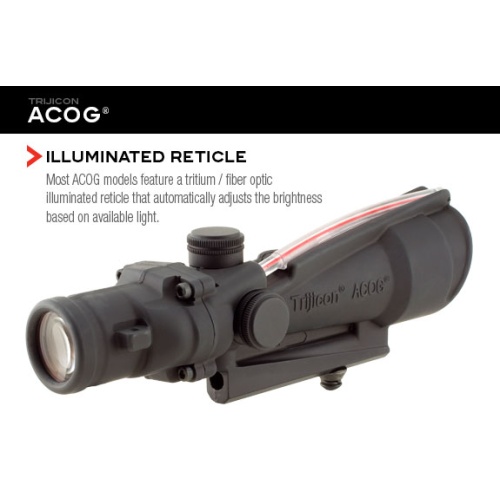

| Illumination Source |
Fiber Optics & Tritium |

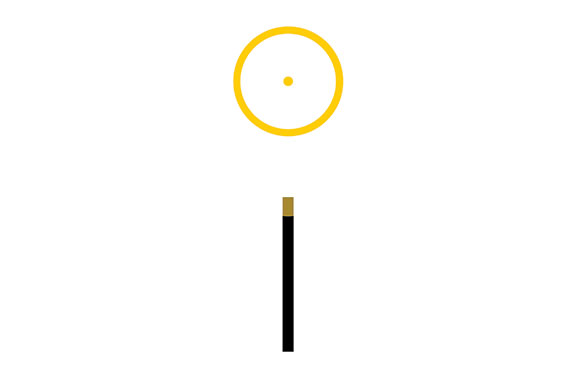

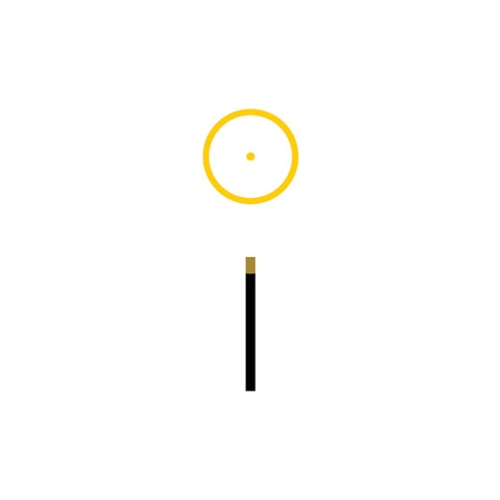

| Reticle Pattern |
Circle Dot |
| Day Reticle Color |
Amber |
| Night Reticle Color |
Amber |
| Bindon Aiming Concept |
Yes |
| Eye Relief (in) |
2.4 in. / 61mm |
| Exit Pupil (mm) |
0.42 in. / 10.7mm |
| Field of View (Degrees) |
7.4º |
| Field of View @ 100 yards (ft) |
39 ft. / 11.9m |
| Adjustment @ 100 yards (clicks/in) |
2 clicks/in |

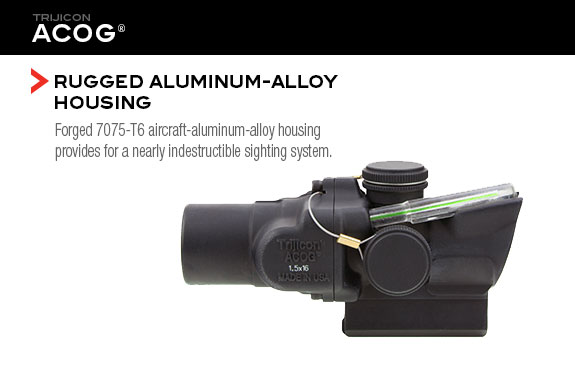

| Housing Material |
Forged Aluminum |
