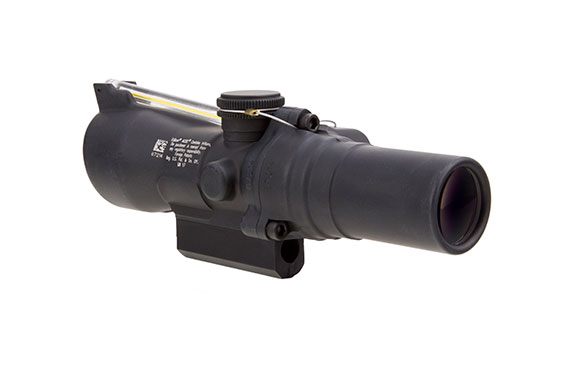

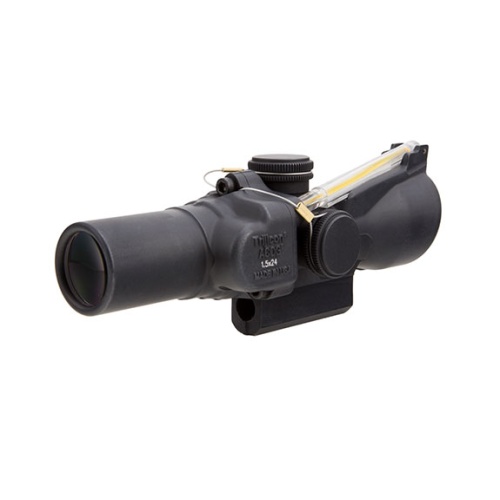

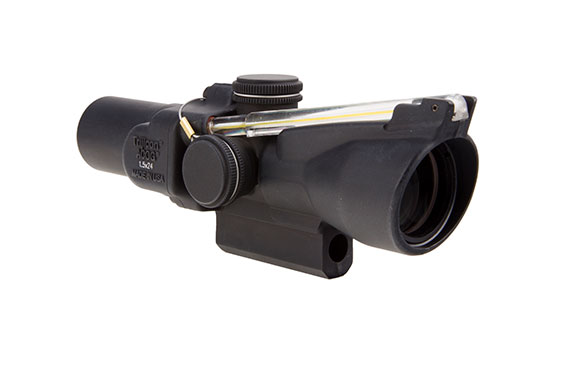

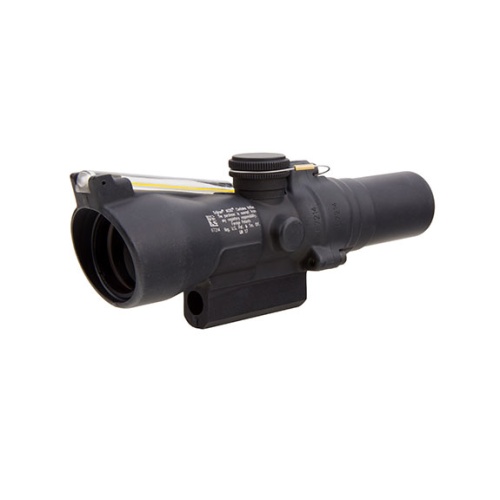

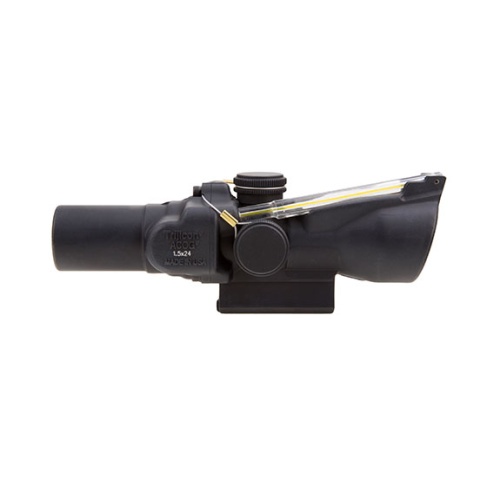

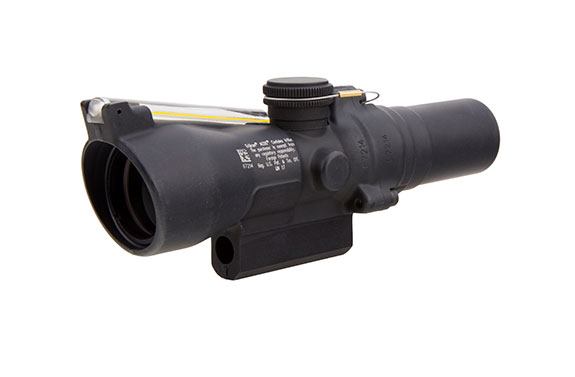

The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact
riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance

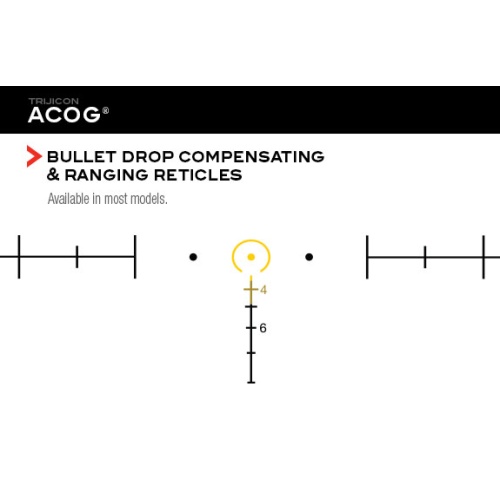

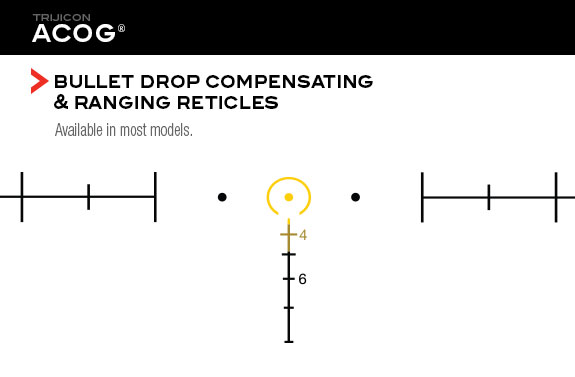

marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.
FEATURES
This model provides a large exit pupil and long eye relief allowing for great freedom in eye position. This makes it extremely fast acquiring targets at very close range while maintaining the added precision possible with 1.5x magnification.
INCLUDED IN PACKAGE:
- 1 Carry Handle Screw and Washer Set (TA30)
- 1 Compact ACOG Scopecoat (TA62)
- 1 LENSPEN (TA56)
- 1 Trijicon Logo Sticker (PR15)
- 1 Manual
- 1 Warranty Car
SPECIFICATIONS
| 1.5x |
| Objective Size (mm) |
24mm |
| Bullet Drop Compensator |
No |
| Length (in) |
5.8 in. / 147mm |
| Weight (oz) |
6.3 oz. / 179.1g |

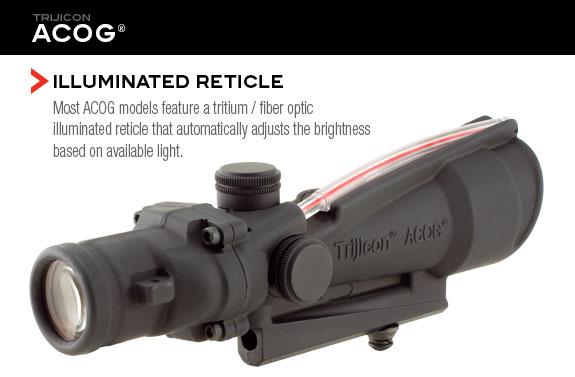

| Illumination Source |
Fiber Optics & Tritium |

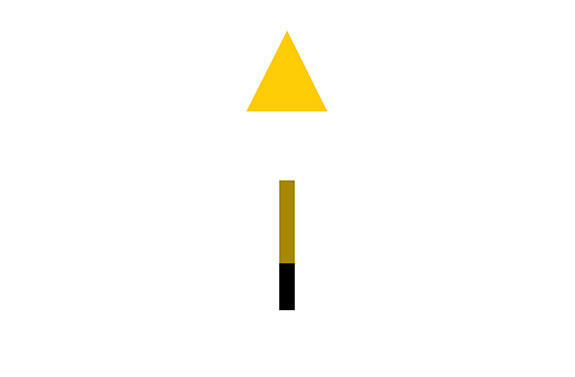

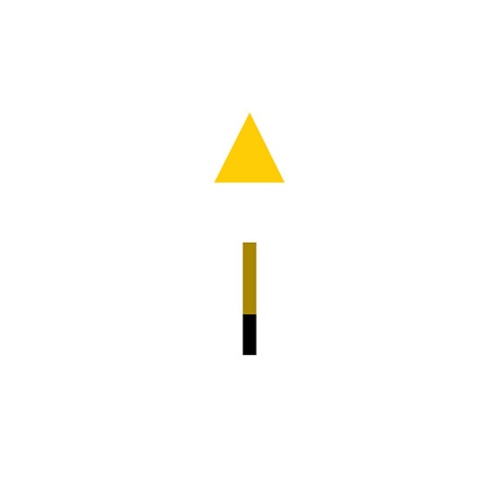

| Reticle Pattern |
Triangle |
| Day Reticle Color |
Amber |
| Night Reticle Color |
Amber |
| Bindon Aiming Concept |
Yes |
| Eye Relief (in) |
3.6 in. / 91.4mm |
| Exit Pupil (mm) |
0.63 in. / 16.0mm |
| Field of View (Degrees) |
4.9° |
| Field of View @ 100 yards (ft) |
25.6 ft. / 8.6m |
| Adjustment @ 100 yards (clicks/in) |
2 clicks/in |

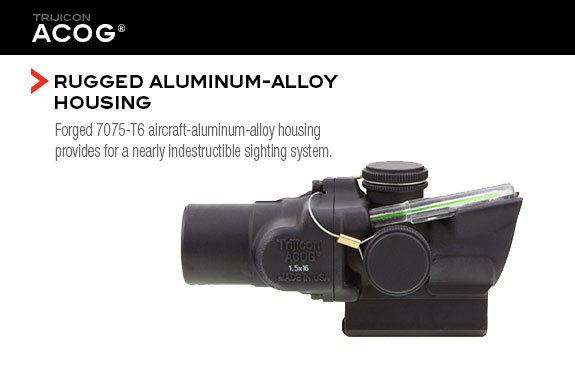

| Housing Material |
Forged Aluminum |
