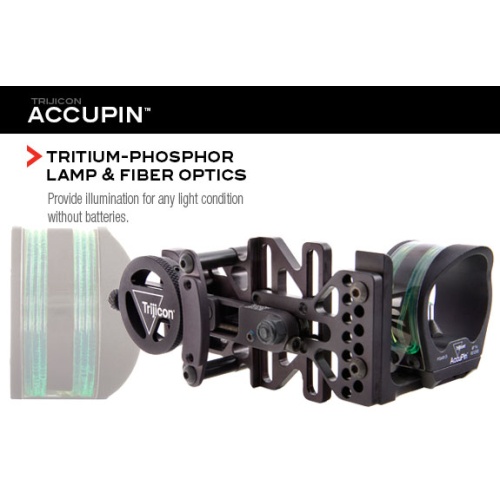

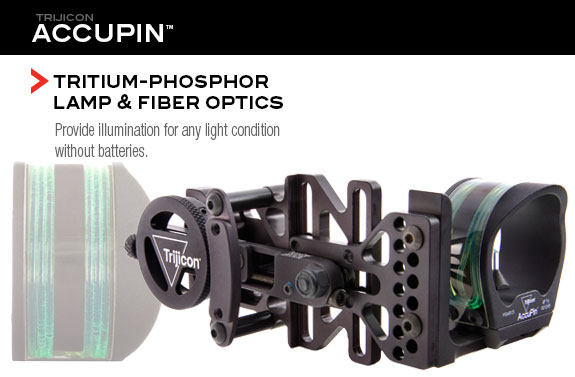

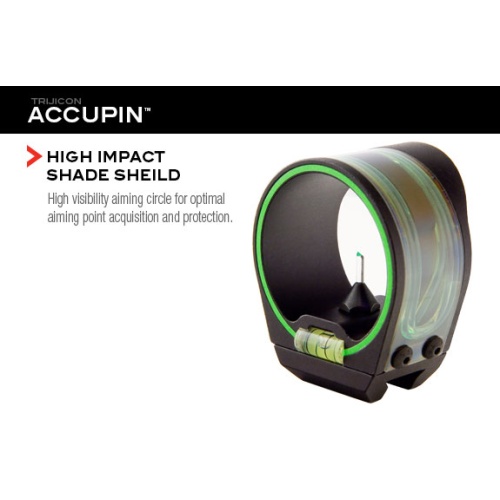

The Trijicon AccuPin Bow Sight System is a battery-free single pin bow sight with an

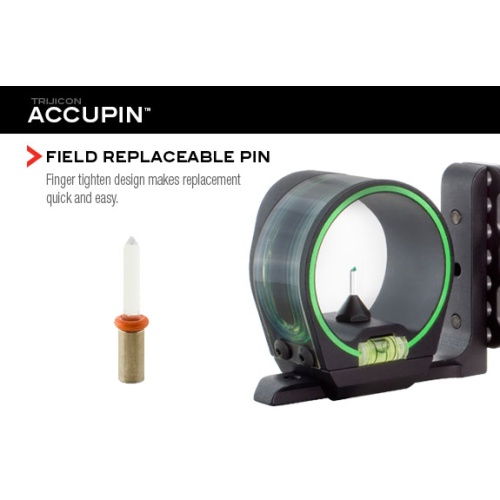

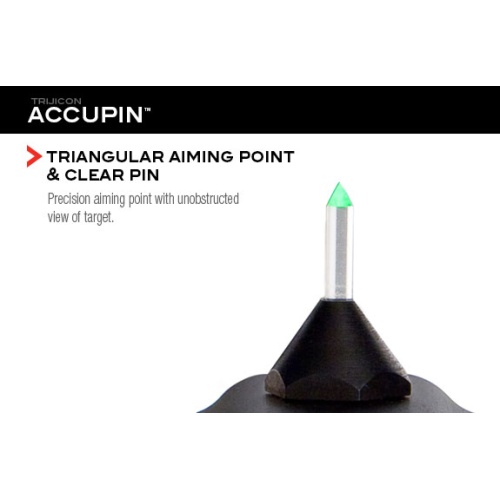

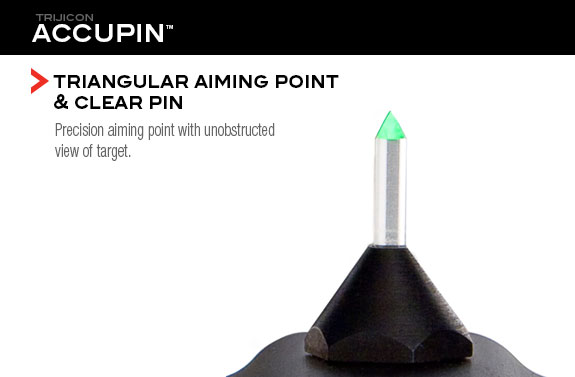

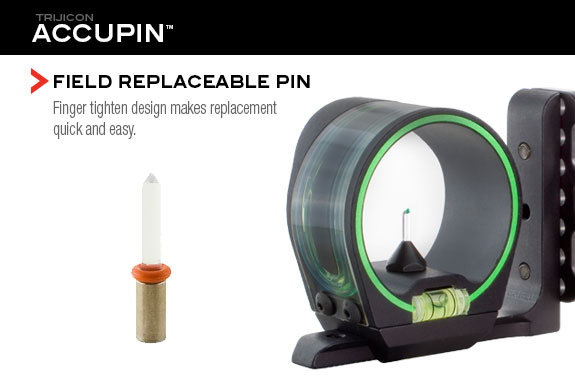

adjustable mount. The AccuPin sight features a field replaceable fiber optic pin with

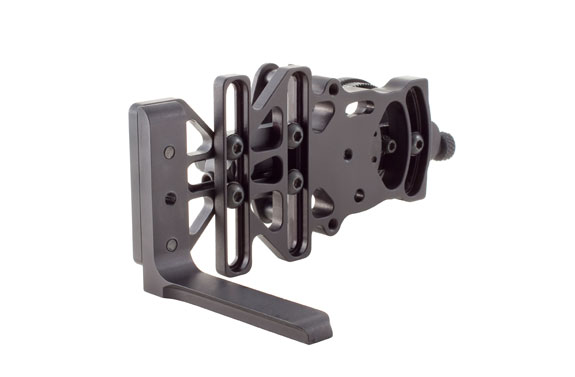

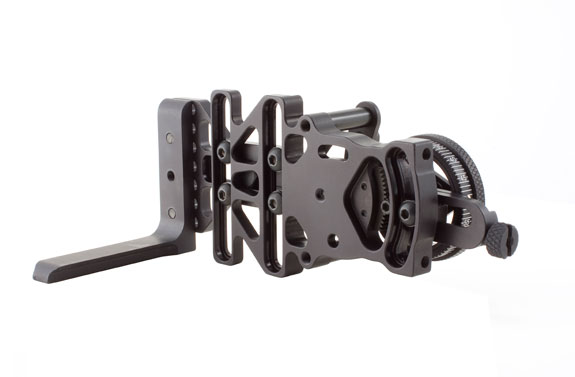

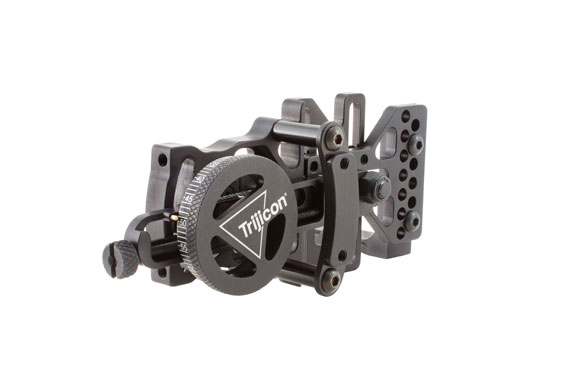

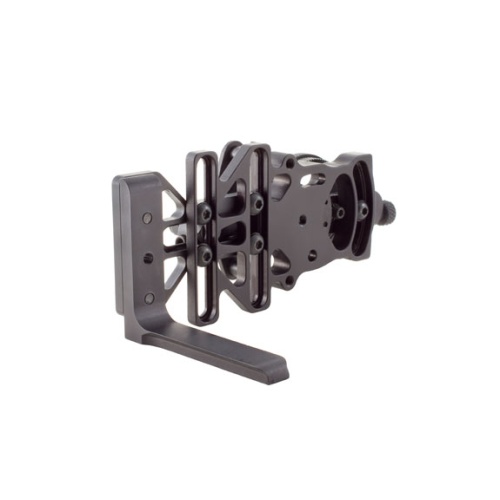

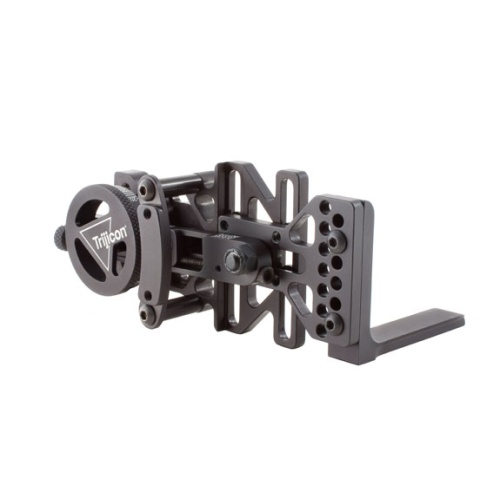

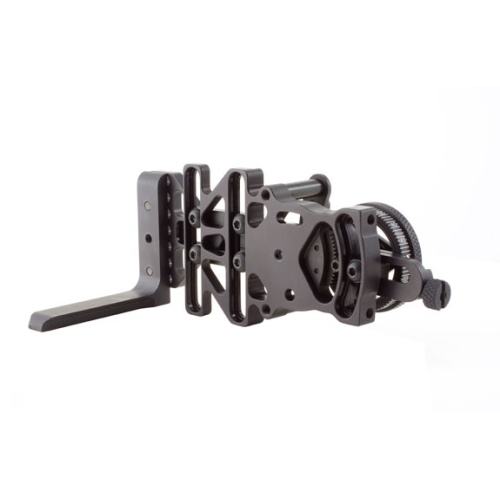

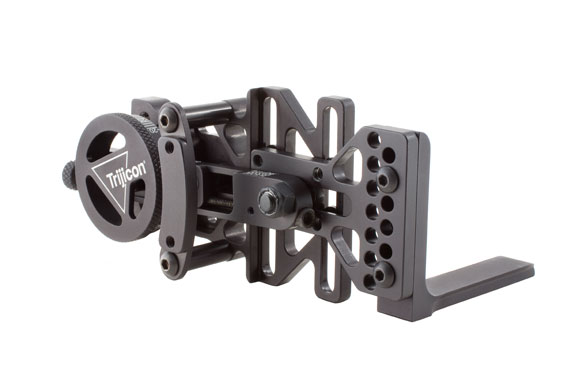

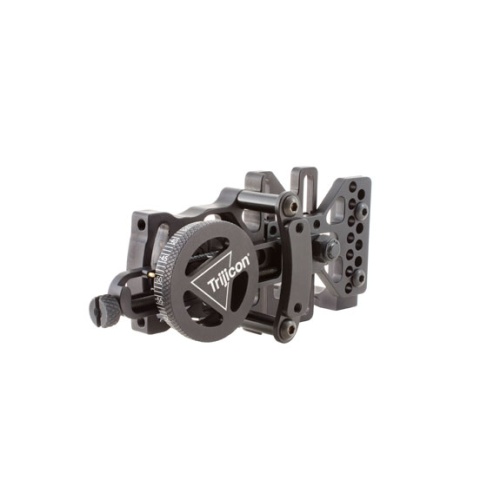

a bright triangular aiming tip. The AccuDial mounting system is engineered to
synchronize to any bow/arrow speed combination for easy range adjustment at
one yard increments.
FEATURES:

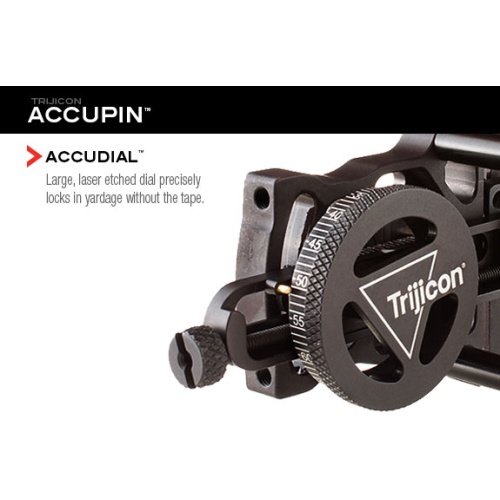

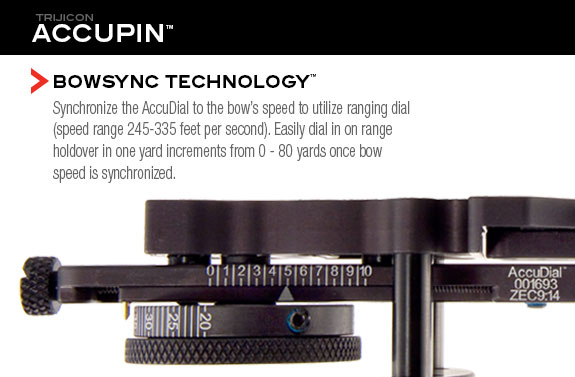

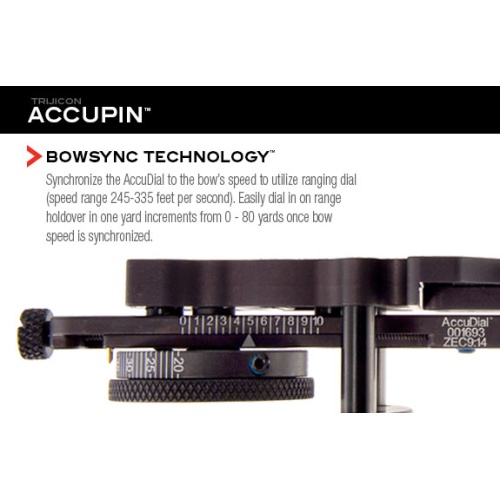

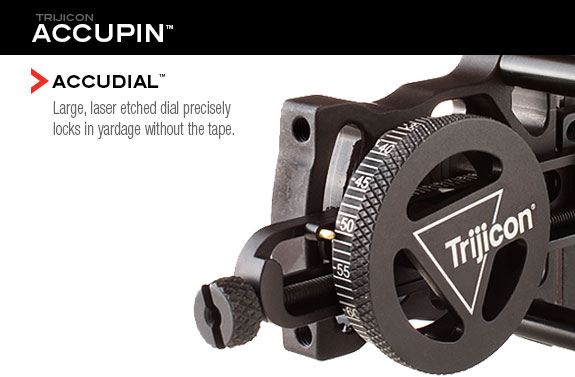

The revolutionary AccuDial™ right-handed mount equipped with BowSync™ technology has an infinitely variable transmission and enables exact range adjustment and synchronization for any bow/arrow speed combination. Its laser etched dial makes on-the-fly adjustments quickly and accurately—without having to rely on a clumsy strip of tape. The AccuDial is so tough it is guaranteed for life.
SPECIFICATION:
| Weight (oz) |
8 oz (227g) |
| Housing Material |

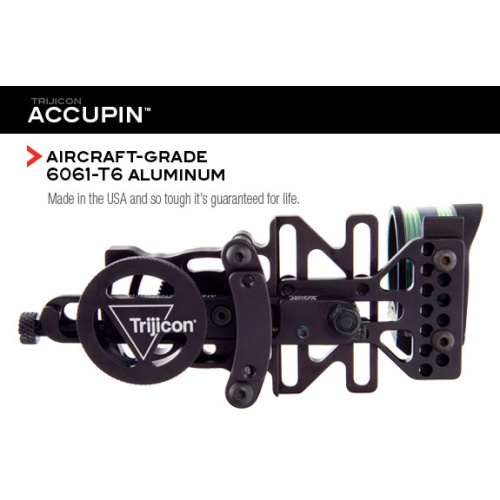

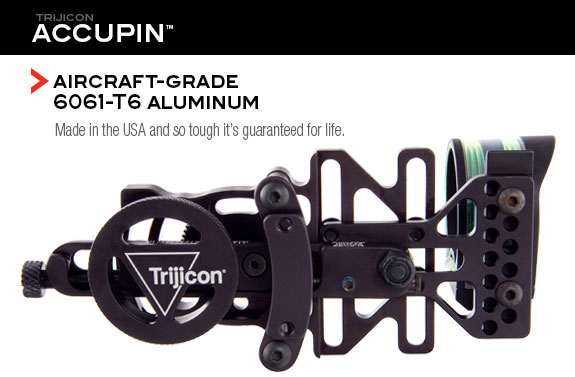

Anodized Aircraft Grade Aluminum |
| Operating Temperature |
-31ºF to +176ºF (-35ºC to +80ºC) |
| Dimensions |
6.0 in. x 3.7 in. x 2.8 in. |
| Right/Left Hand |
Left Handed |
| Shock |
200 G's |
| Finish |
Matte Black |
| Adjustment Range (Bow Speed) |
245 to 335 feet/second |
| Adjustment Range to Target |
0 to 80+ yards |
| Adjustment Increments (Range to Target) |
1 yard |
| Sights |
Accepts Trijicon AccuPin™ sight, side-mounted aperatures / scope which utilize #10-32 studs, or sights with Weaver or MIL-STD-1913 (Picatinny) bases (requires rail adapter). |
| Gears & Hardware |
Blackened Stainless Steel |
| Indicator Pin (On Range to Target Dial) |
Brass |
