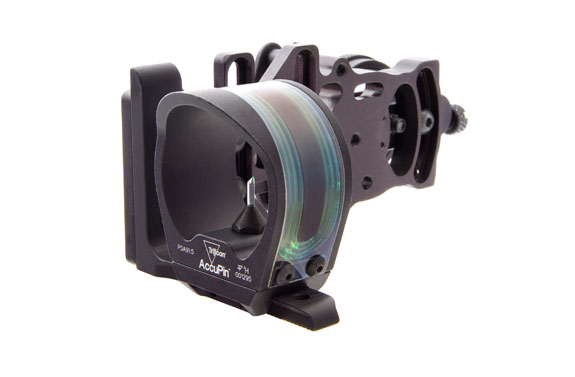

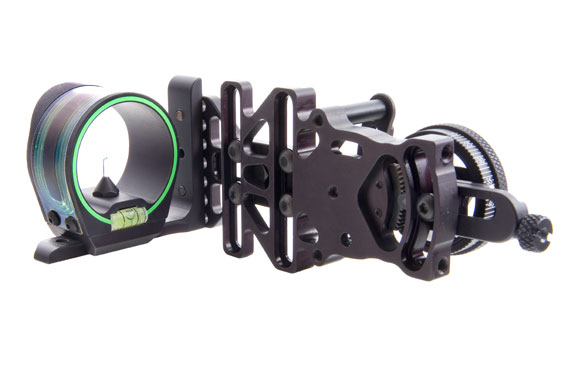

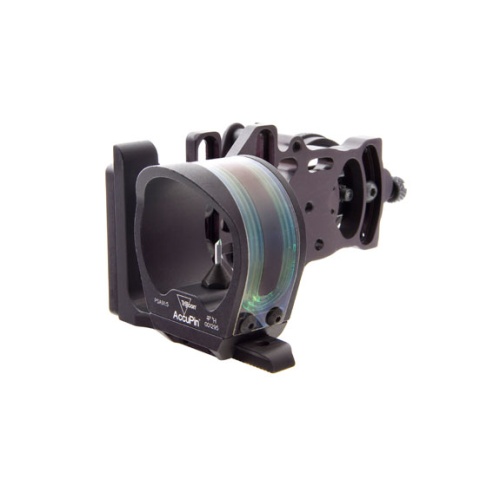

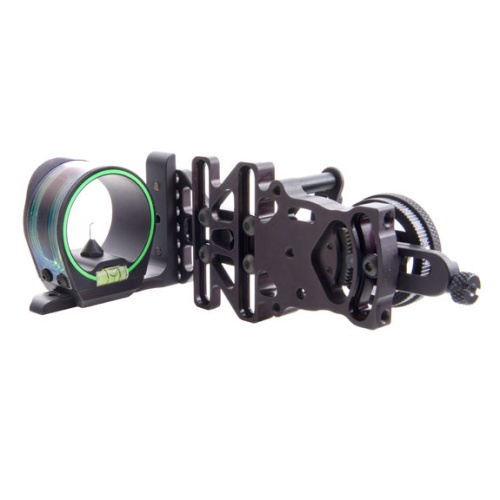

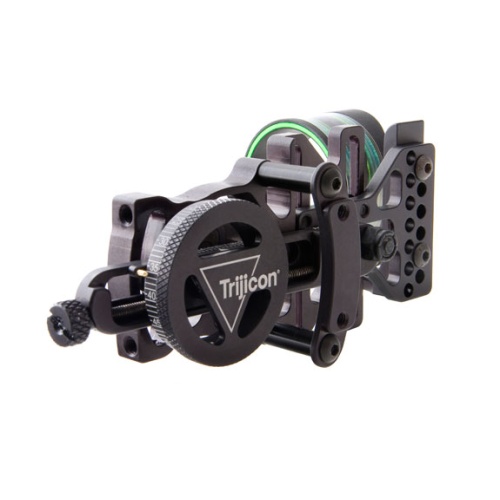

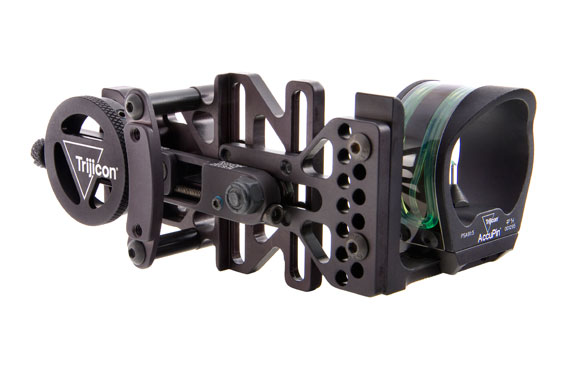

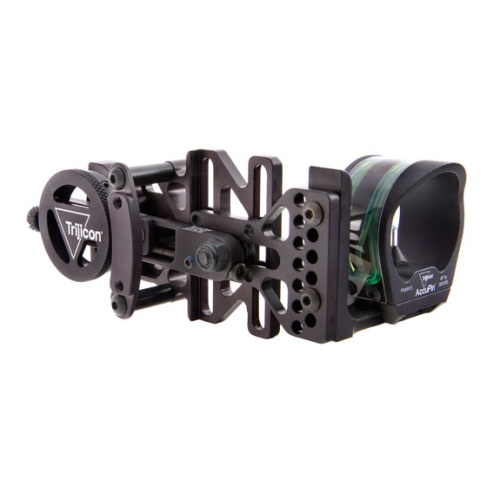

The Trijicon AccuPin Bow Sight System is a battery-free single pin bow sight with an

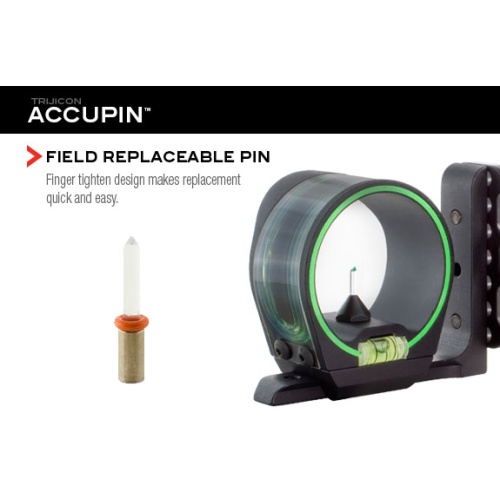

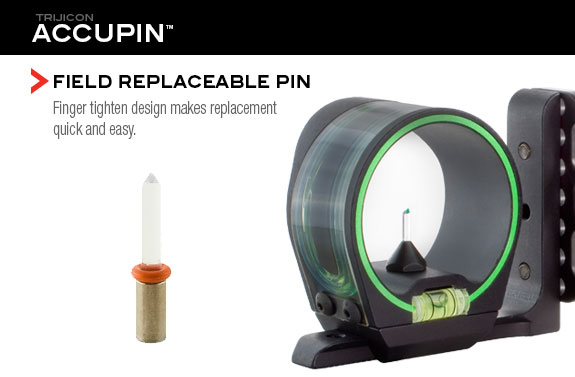

adjustable mount. The AccuPin sight features a field replaceable fiber optic pin with
a bright triangular aiming tip. The AccuDial mounting system is engineered to
synchronize to any bow/arrow speed combination for easy range adjustment at
one yard increments.
FEATURES:

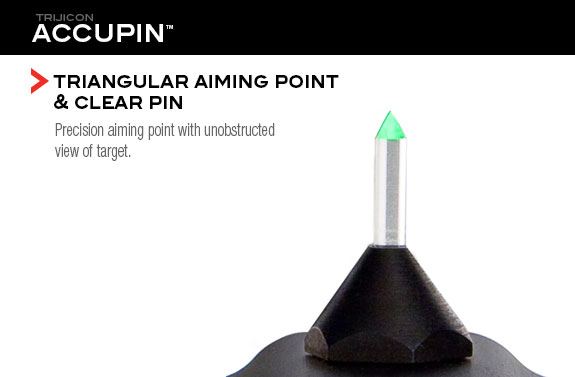

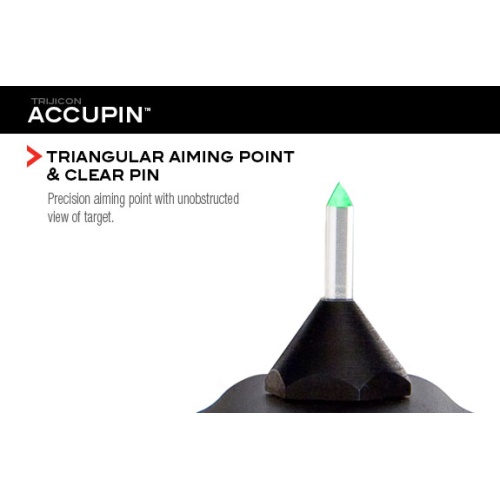

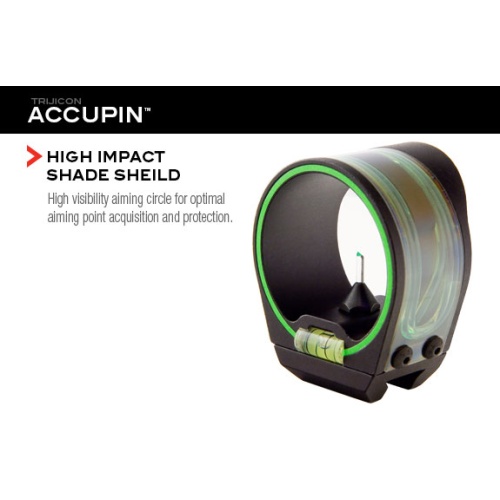

The heart of Trijicon AccuPin's innovative design lies in its triangular aiming tip and clear aiming pin. With a precision aiming point and zero obstructions, this one-of-a-kind configuration has an aiming point that actually points to your target instead of obscuring it.

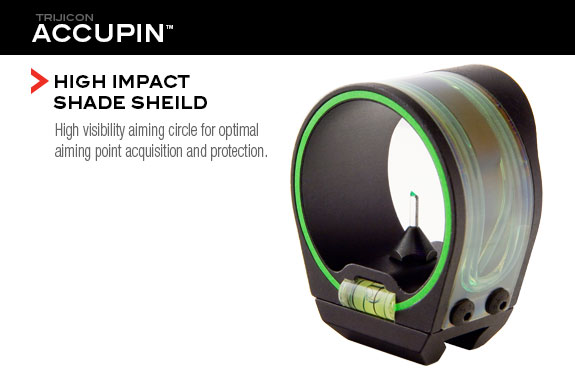

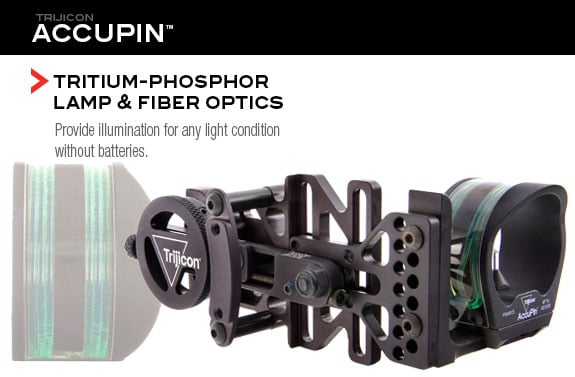

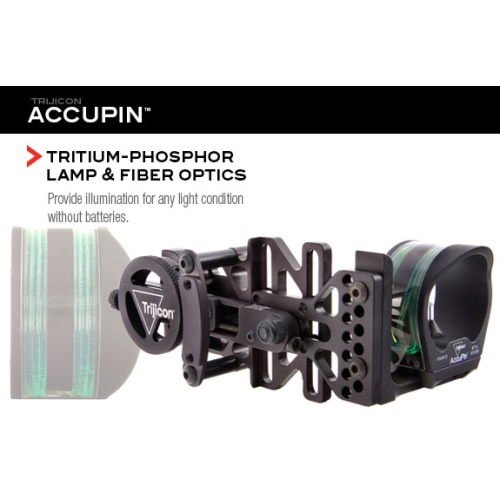

For the ultimate in visibility and aiming precision— even in the toughest conditions—the AccuPin incorporates the acclaimed Trijicon dual-illumination/ battery-free system. With a combination of fiber optics and tritium pioneered and perfected in their world-class riflescopes, the Trijicon AccuPin is the brightest pin sight on the market.

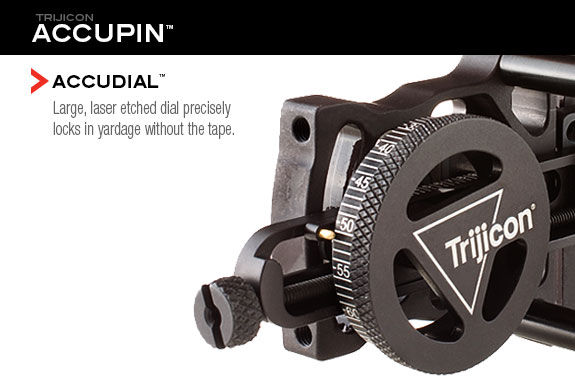

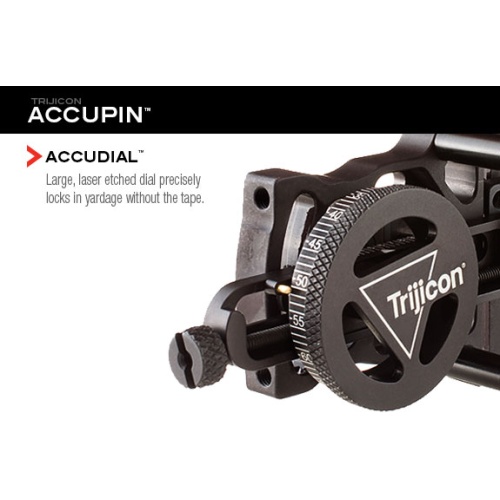

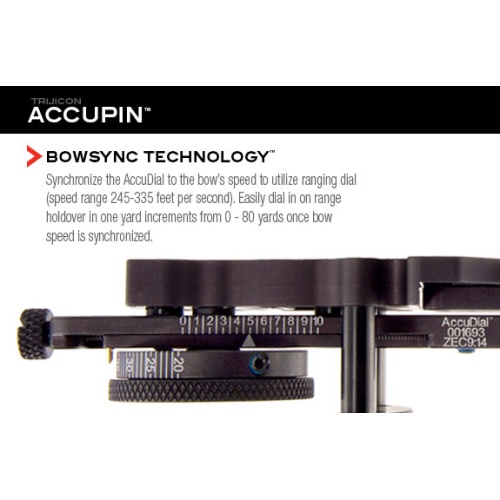

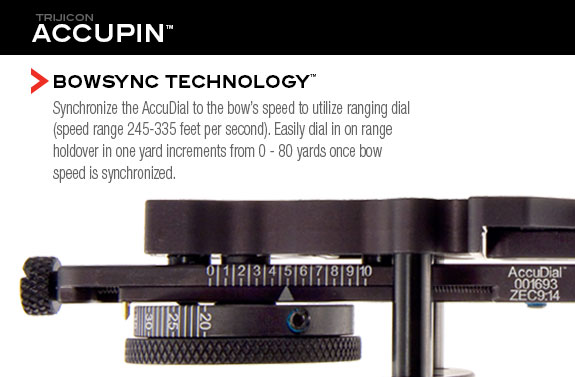

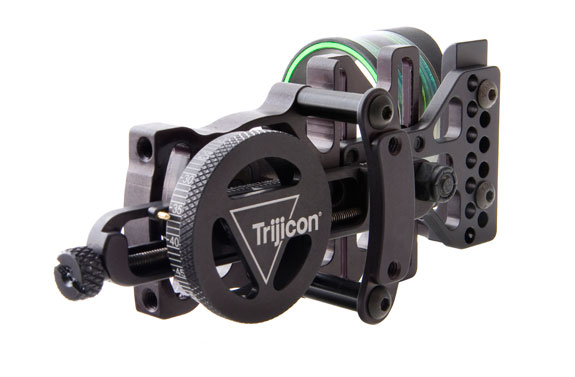

The revolutionary AccuDial™ mount equipped with BowSync™ technology, has an infinitely variable transmission, it enables exact range adjustment and synchronization for any bow/arrow speed combination. Its laser etched dial makes on-the-fly adjustments quickly and accurately—without having to rely on a clumsy strip of tape.
Together, the right- handed AccuPin and AccuDial combination form a refined system that stands as a benchmark for sight and mount integration.
The Trijicon AccuPin and its combination of fiber optic and tritium illumination are Pope & Young Legal.
SPECIFICATION:
Magnification |
1x |
Weight (oz) |
10.29 oz. (65g) |
Illumination Source |
Fiber Optics & Tritium |
Reticle Pattern |
Triangle |
Day Reticle Color |
Green |

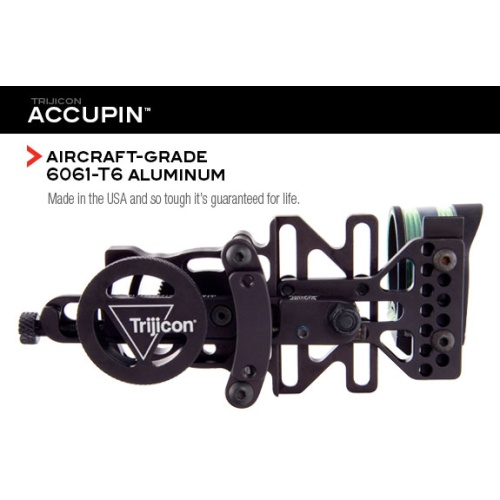

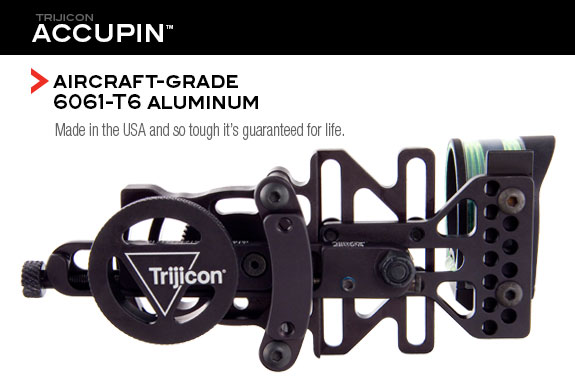

Housing Material |
Aircraft Grade Aluminum (Anodized coating protects against corrosion and outside elements) |
Operating Temperature |
-31ºF to +176ºF (-35ºC to +80ºC) |
Dimensions |
6.0 in. x 3.7 in. x 2.8 in. |
Aperture |
Single Pin |
Right/Left Hand |
Right Handed |
Sight Window |
1.77 in. (45mm) |
Shock |
200 G's |
Finish |
Matte Black |
Adjustment Range (Bow Speed) |
245 to 335 feet/second |
Adjustment Range to Target |
0 to 80+ yards |
Adjustment Increments (Range to Target) |
1 yard |
Gears & Hardware |
Blackened Stainless Steel |
Indicator Pin (On Range to Target Dial) |
Brass |
