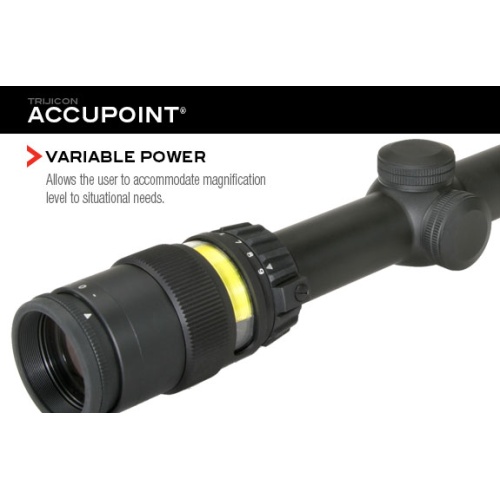

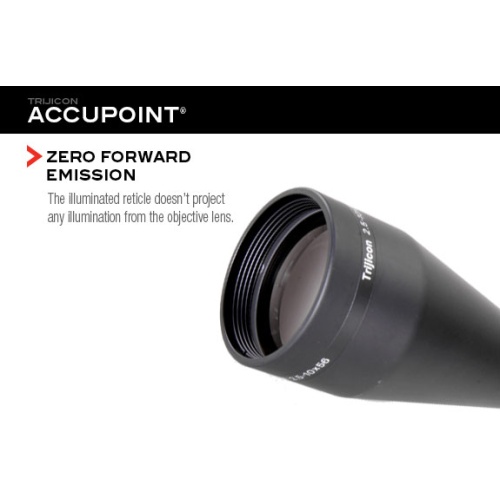

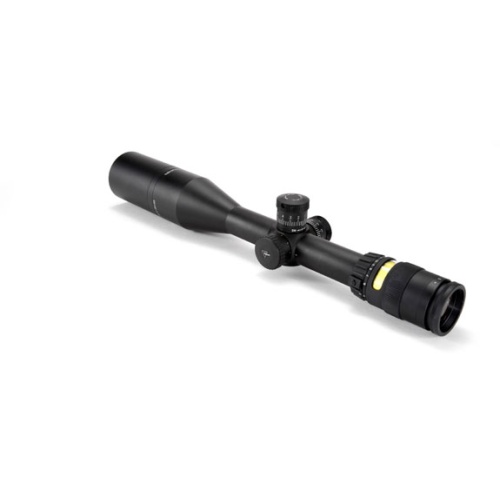

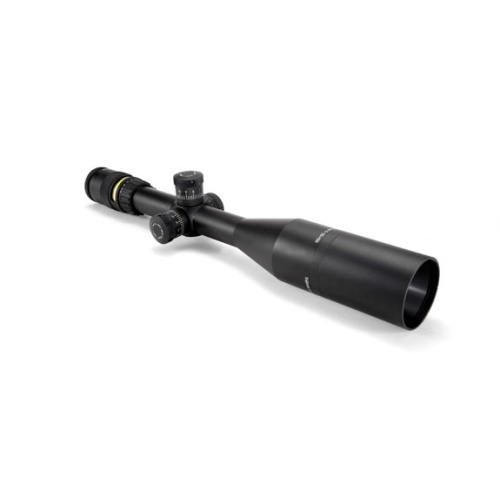

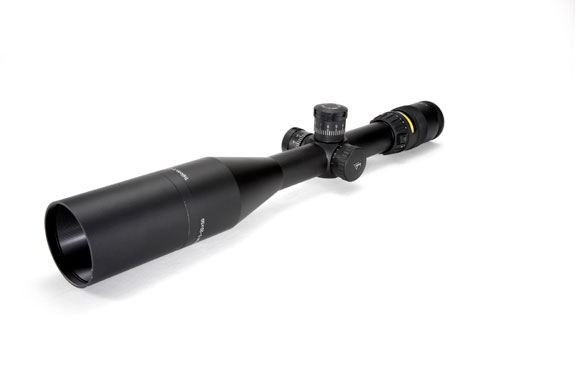

The Trijicon AccuPoint is a high-quality, variable powered sporting riflescope featuring
a battery-free illuminated reticle, superior glass clarity and rugged construction. Designed
to stand up to the elements, the AccuPoint maintains the refinement needed for precise

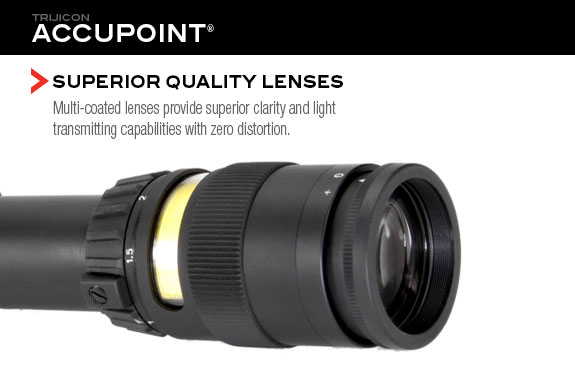

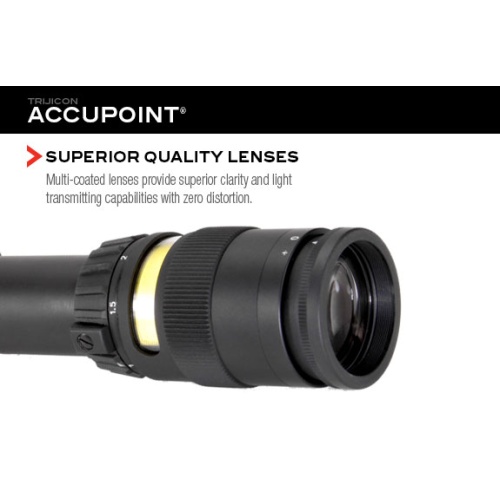

windage and elevation adjustments. The multi-layer coated lenses provide superior light
transmission, while the illuminated reticle aids in quick target engagement. The AccuPoint
provides a quick focus eyepiece and long eye relief.
FEATURES
Trijicon’s longest-range AccuPoint scope, it gives tactical shooters, varmint hunters and law enforcement snipers the ability to accurately extend their range in any light.

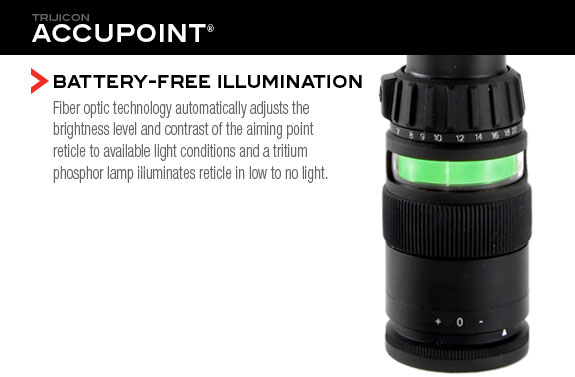

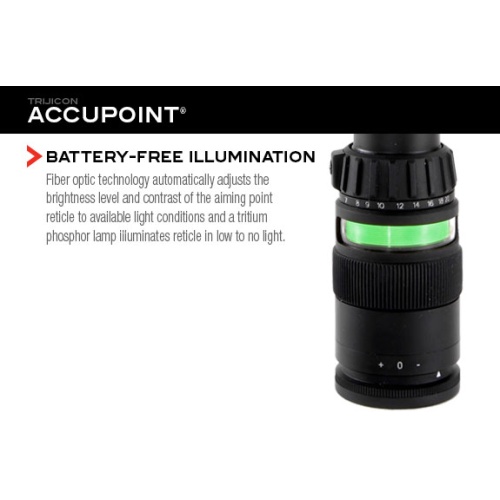

Advanced fiber-optics and tritium aiming-point illumination speeds target acquisition and extends available shooting hours
Dual-illumination system automatically adjusts aiming-point brightness to existing lighting conditions

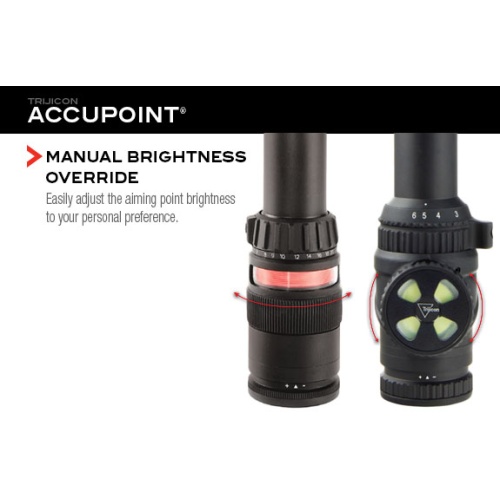

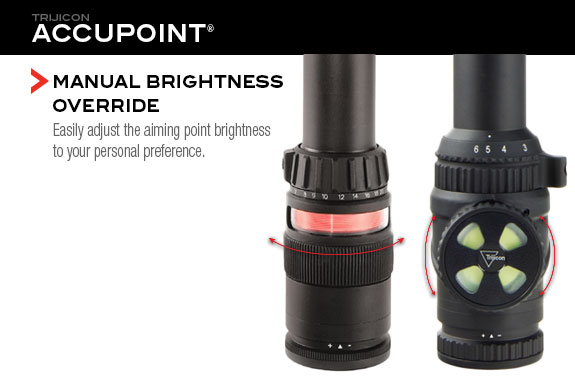

Manual brightness override allows shooters to easily adjust the reticle to suit their preferences
30mm tube offers a greater range of mounting options

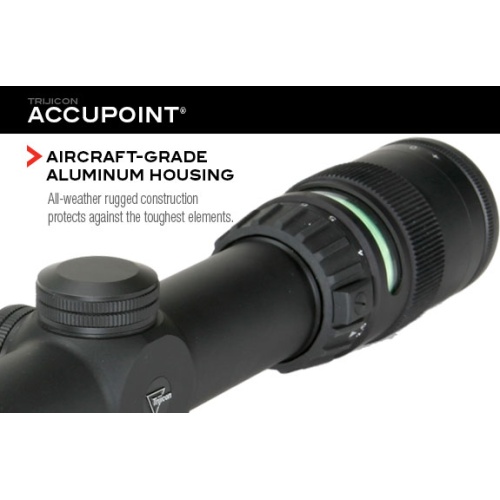

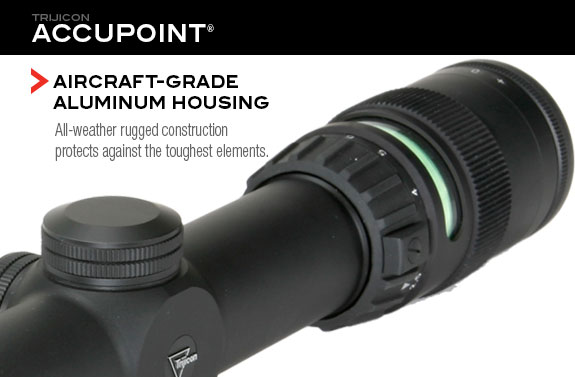

Rugged, aircraft-quality, hard-anodized aluminum body offers all- weather protection
Unmatched long eye relief protects against the recoil of higher caliber rifles
Easy-to-use external turret controls for windage and elevation adjustment
Side parallax adjuster for enhanced accuracy at long range
The TR23-1 also includes:
- 1 Sunshade
- 1 Trijicon Logo Sticker (PR15)
- 1 LENSPEN® (TA56)
- 1 Set of Lenscaps
- 1 AccuPoint Manual
- 1 Warranty Card
- 1 Warranty Card
SPECIFICATIONS

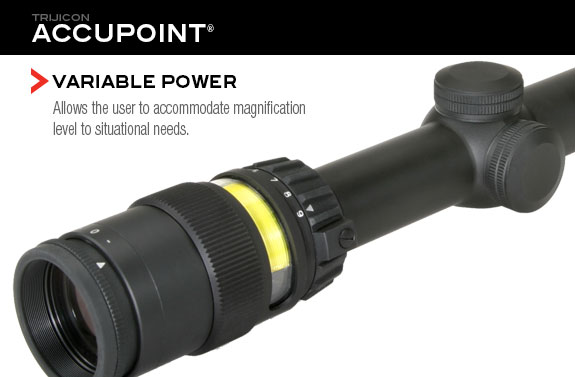

Magnification |
5x-20x |
Objective Size (mm) |
50 |
Bullet Drop Compensator |
No |
Length (in) |
13.6 w/out sunshade 16.6 w/ sunshade |
Weight (oz) |
26.9 w/out sunshade 29.4 w/ sunshade |
Illumination Source |
Fiber Optics & Tritium |

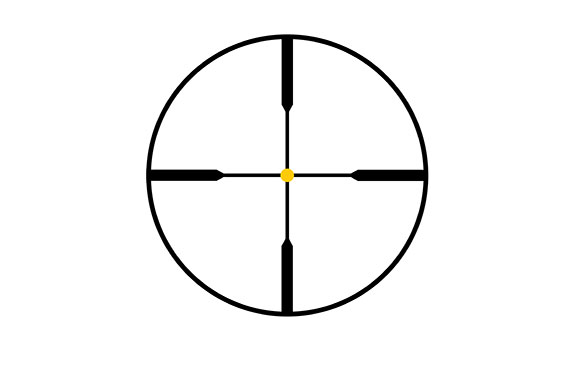

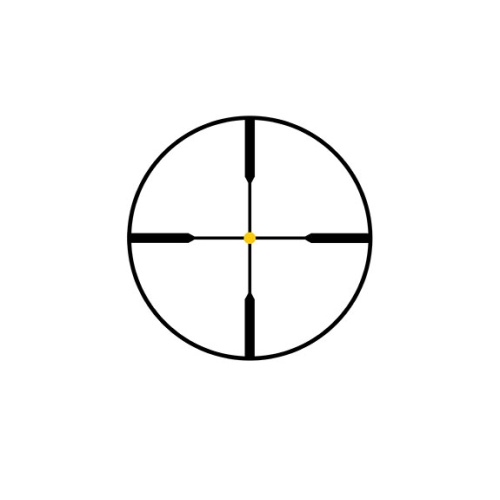

Reticle Pattern |
Standard Duplex Crosshair Click here for chart. |
Day Reticle Color |
Amber |
Night Reticle Color |
Amber |
Bindon Aiming Concept |
No |
Eye Relief (in) |
3.8 to 4.1 |
Exit Pupil (mm) |
10 to 2.5 |
Field of View @ 100 yards (ft) |
19.1 to 5.1 |
Adjustment @ 100 yards (clicks/in) |
1/4 (0.25) MOA per click |
Tube Size |
30mm |
Housing Material |
6061-T6, black hard coat anodized |
Dimensions |
Click here for chart. |
Adjustment Range |
40 MOA Total Travel |
Waterproof |
10ft. (3m.) |
