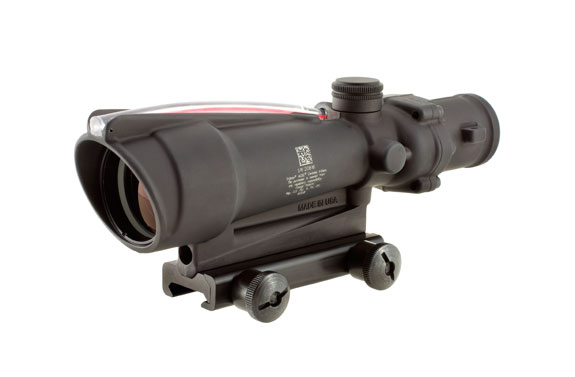

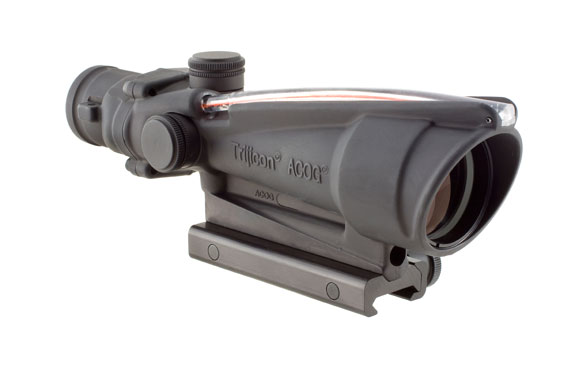

The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact
riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance

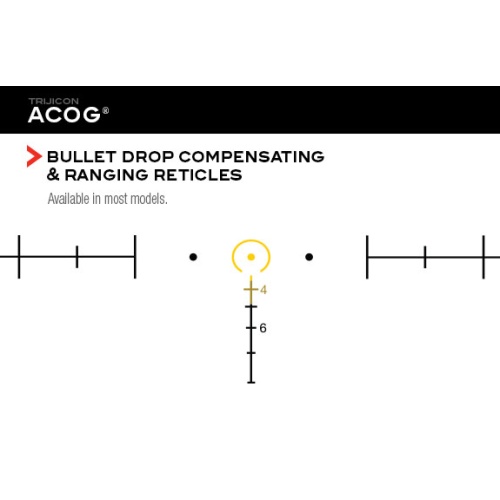

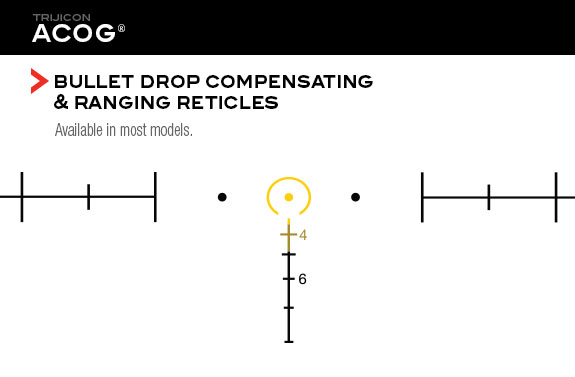

marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.
FEATURES

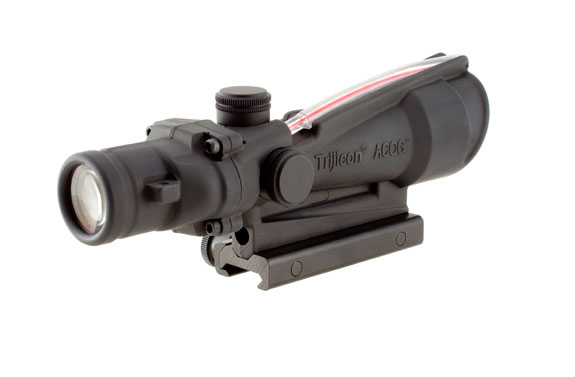

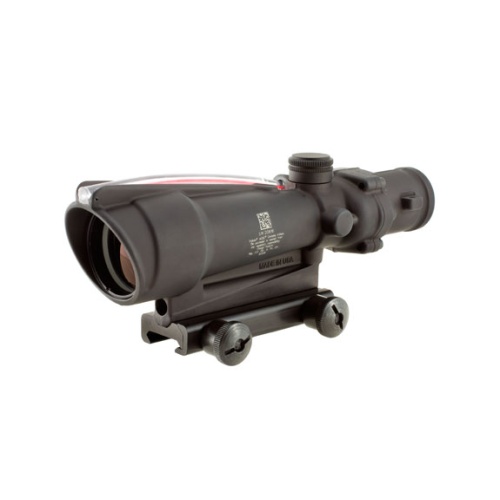

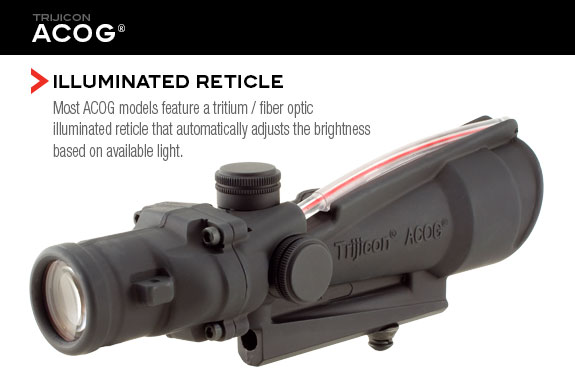

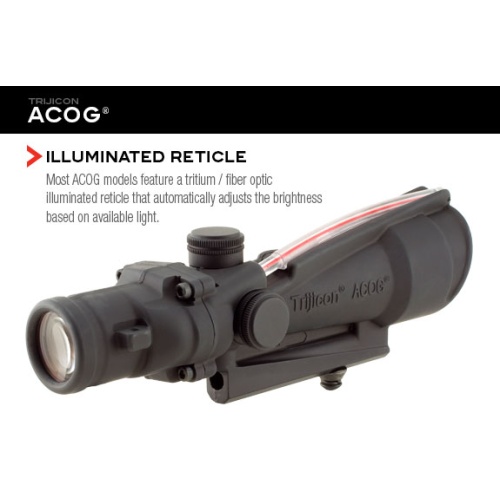

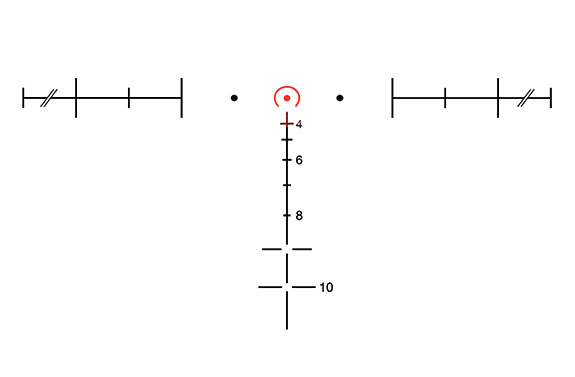

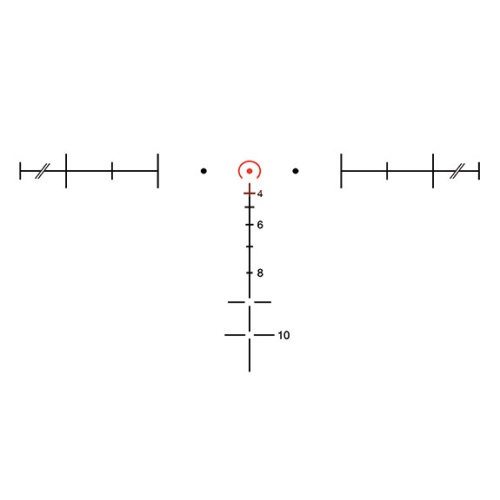

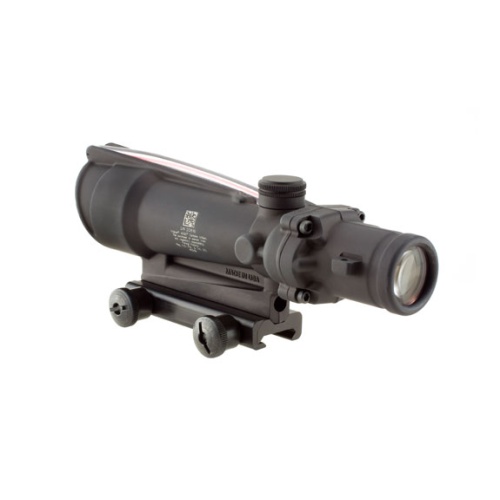

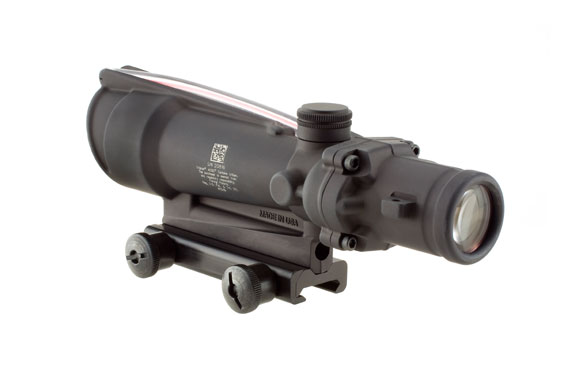

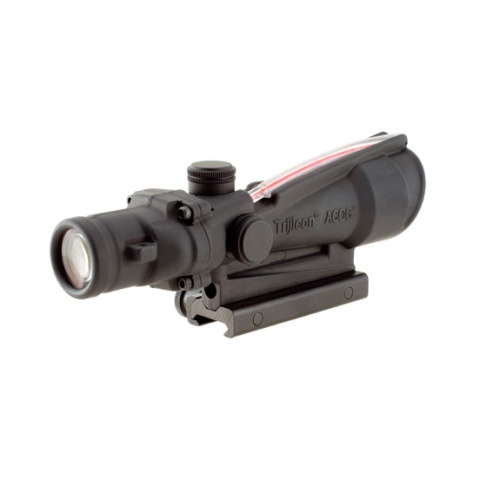

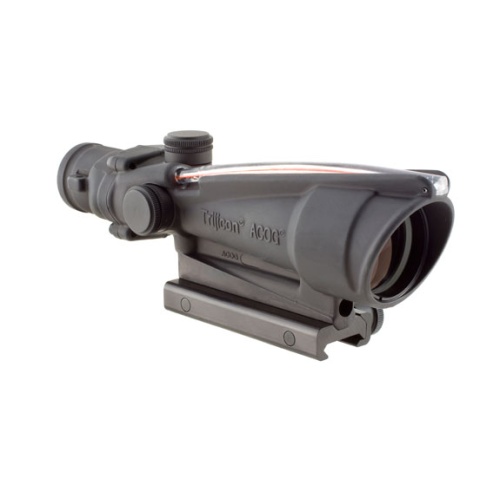

ACOG 3.5x35 scope with Red Horseshoe BAC Reticle and Target Reference System—the ranging reticle is calibrated for 5.56 (.223 cal) flat-top rifles to 1000 meters. Includes Flat Top Adapter. Daytime illumination is provided by fiber optics and Tritium illuminates the scopes at night.
The TA11H also includes:
- 1 Flattop Adapter for Military Style Rail (TA51)
- 1 3.5x35 Scopecoat (TA63)
- 1 LENSPEN (TA56)
- 1 Lanyard Assembly for Adjuster Caps (TA71E)
- 1 Trijicon Logo Sticker (PR15)
- 1 ACOG BAC Manual
- 1 Warranty Card
SPECIFICATIONS
| Magnification |
3.5x |
| Objective Size (mm) |
35 |
| Bullet Drop Compensator |
Yes |
| Length (in) |
8 |
| Weight (oz) |
14 |
| Illumination Source |
Fiber Optics & Tritium |
| Reticle Pattern |
Horseshoe w/ Target Reference System |
| Day Reticle Color |
Red |
| Night Reticle Color |
Red |
| Calibration |
0.223 |
| Bindon Aiming Concept |
Yes |
| Eye Relief (in) |
2.4 |
| Exit Pupil (mm) |
10 |
| Field of View (Degrees) |
5.5 |
| Field of View @ 100 yards (ft) |
28.9 |
| Adjustment @ 100 yards (clicks/in) |
3 |
| Mount Comes With |
Carry Handle |
| Housing Material |
Forged Aluminum |
