The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact
riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance

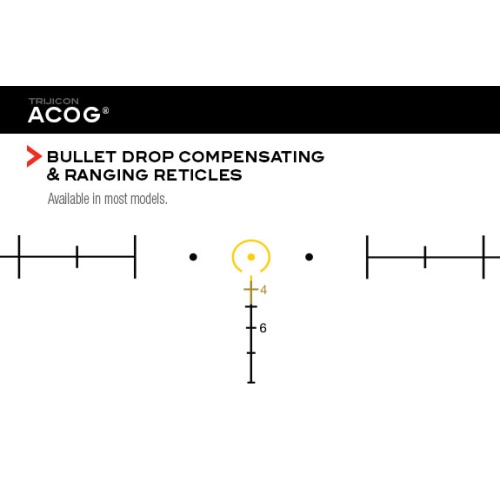

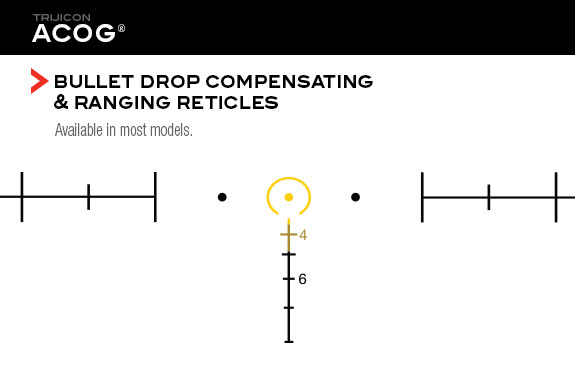

marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.
FEATURES

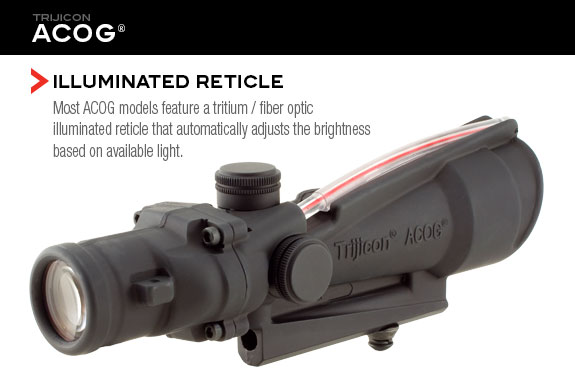

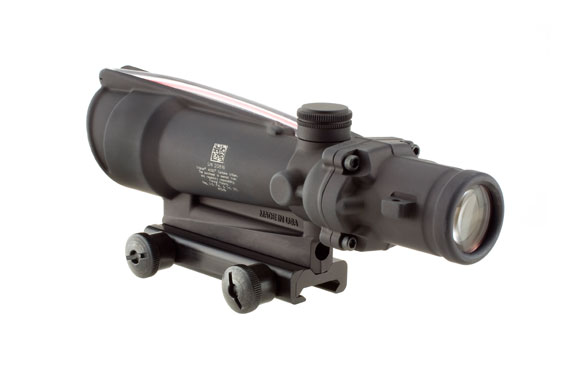

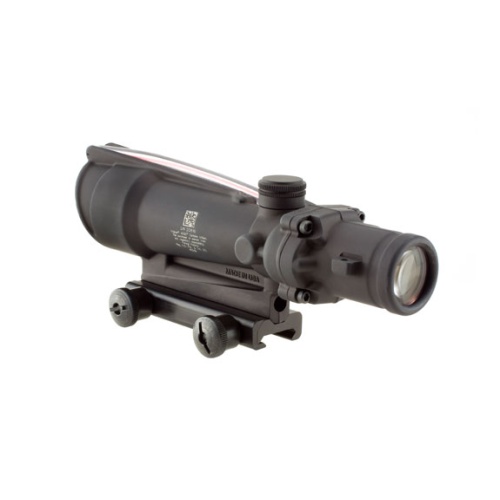

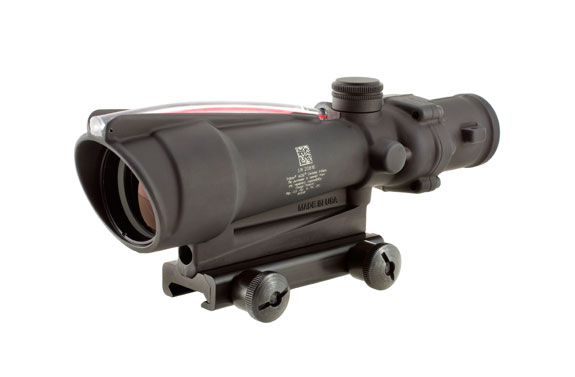

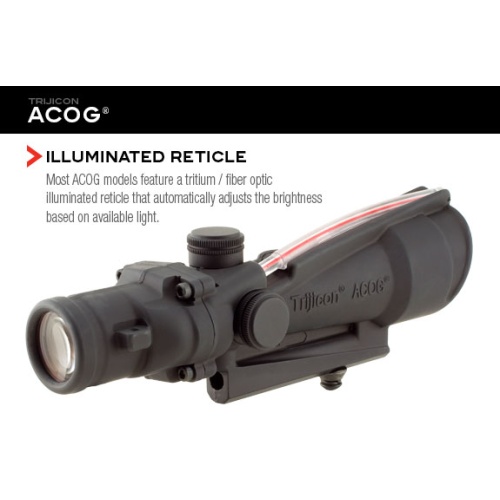

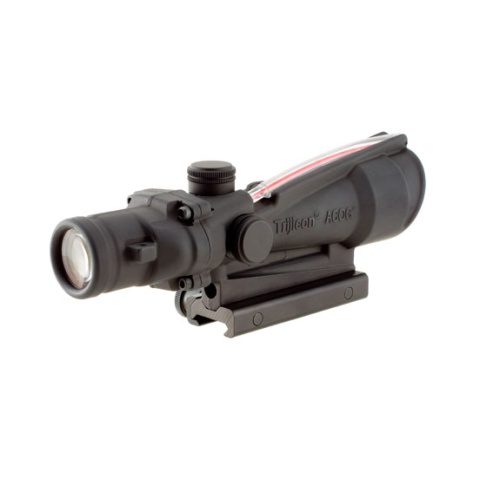

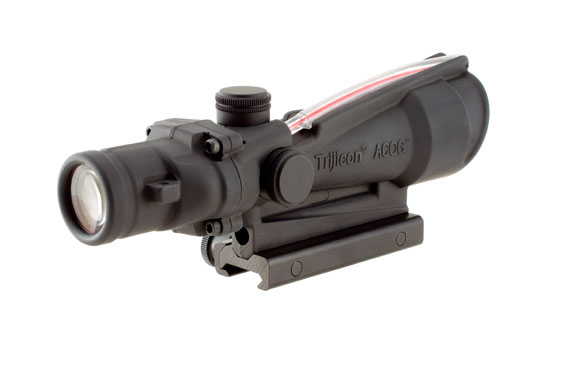

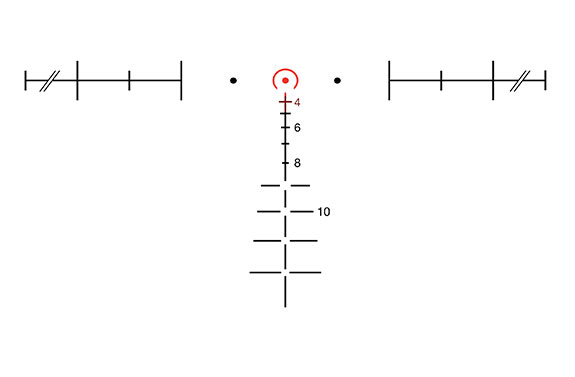

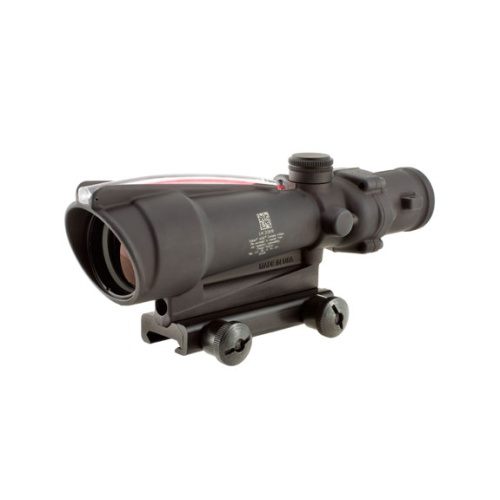

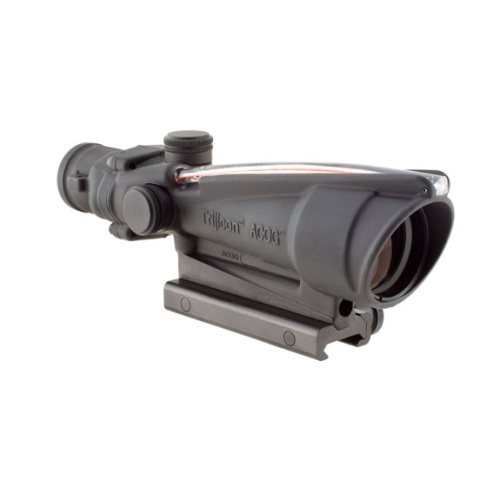

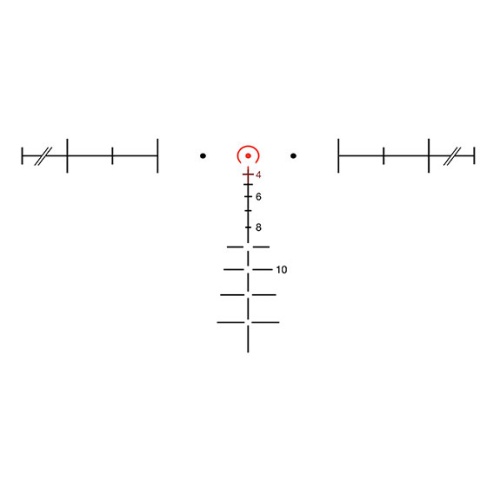

ACOG 3.5x35 Scope with Red Horseshoe BAC Reticle—includes Flattop Adapter. Features dual illumination (Fiber optics provides daylight illumination and tritium illuminates reticle at night). The ranging reticle is calibrated for 7.62(.308 cal) flattop rifles out to 1200 meters.
The TA11H-308 also includes:
- 1 Flattop Adapter for Military Style Rail (TA51)
- 1 3.5x35 Scopecoat (TA63)
- 1 LENSPEN (TA56)
- 1 Lanyard Assembly for Adjuster Caps (TA71E)
- 1 Trijicon Logo Sticker (PR15)
- 1 ACOG Manual
- 1 Warranty Card
SPECIFICATIONS
| Magnification |
3.5x |
| Objective Size (mm) |
35 |
| Bullet Drop Compensator |
Yes |
| Length (in) |
8 |
| Weight (oz) |
14.0 w/out mount |
| Illumination Source |
Fiber Optics & Tritium |
| Reticle Pattern |
Horseshoe w/ Target Reference System |
| Day Reticle Color |
Red |
| Night Reticle Color |
Red |
| Calibration |
0.308 |
| Bindon Aiming Concept |
Yes |
| Eye Relief (in) |
2.39 |
| Exit Pupil (mm) |
10 |
| Field of View (Degrees) |
5.5 |
| Field of View @ 100 yards (ft) |
28.9 |
| Adjustment @ 100 yards (clicks/in) |
3 |
| Mount |
TA51 |
| Mount Comes With |
TA51 |
| Housing Material |
Forged Aluminum |
