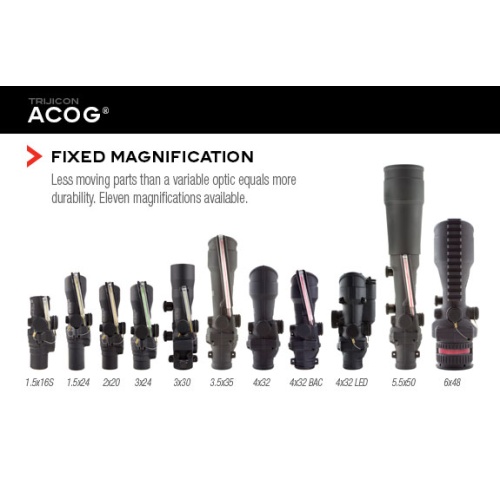

The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact
riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance

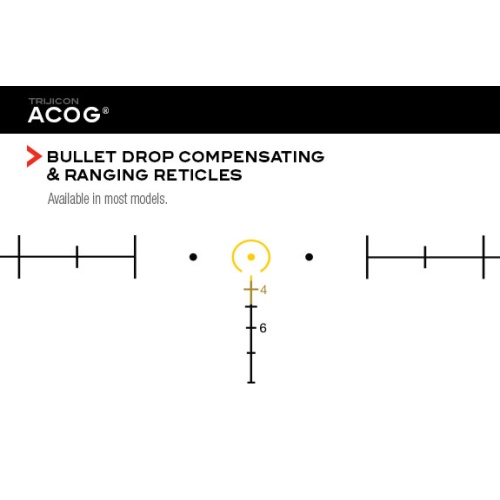

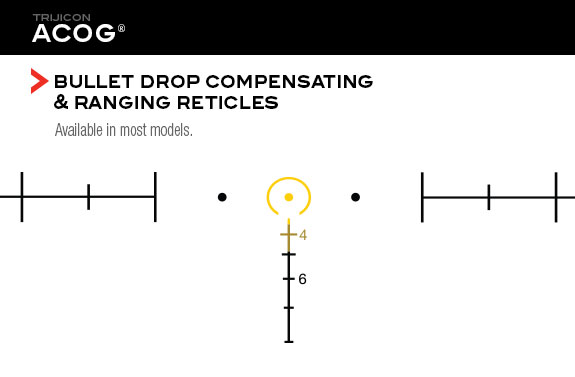

marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.
FEATURES

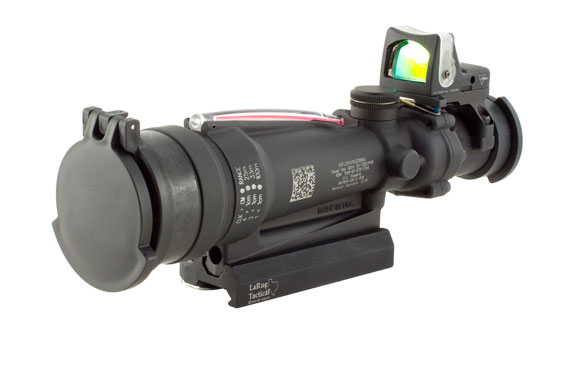

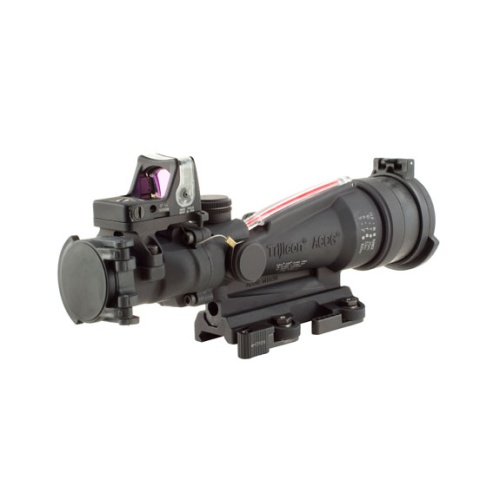

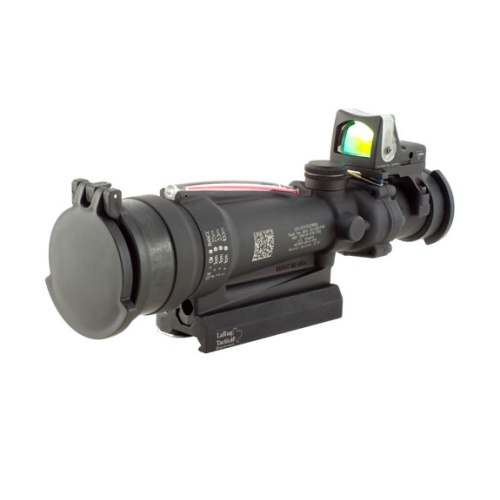

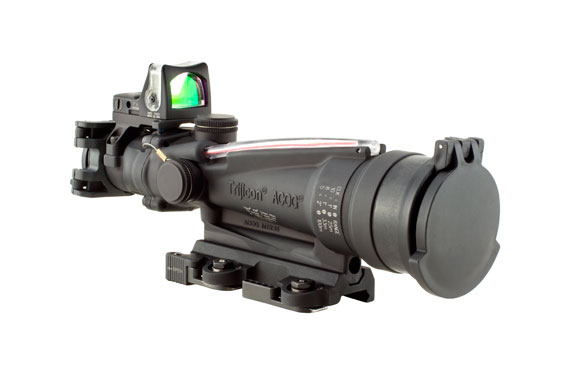

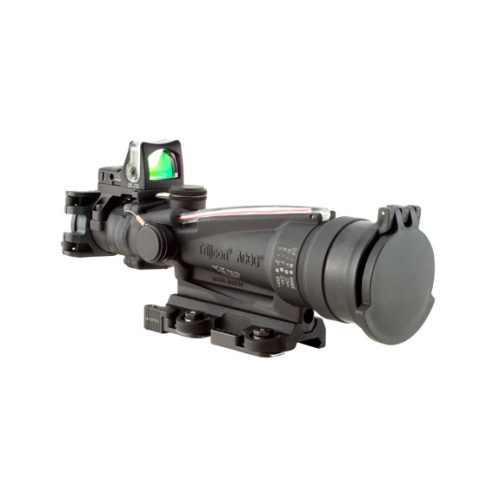

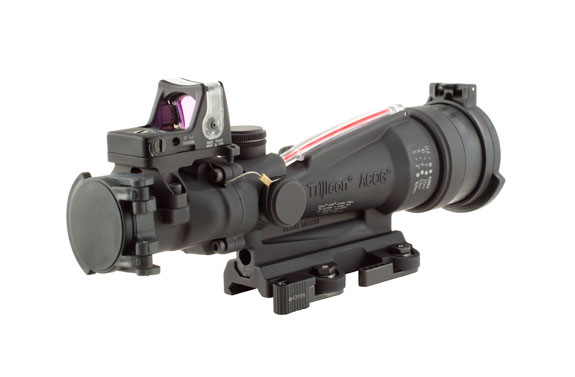

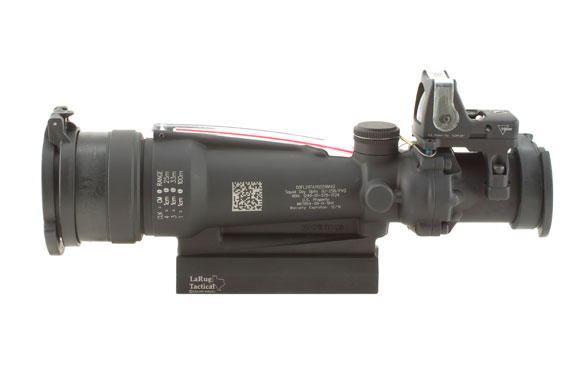

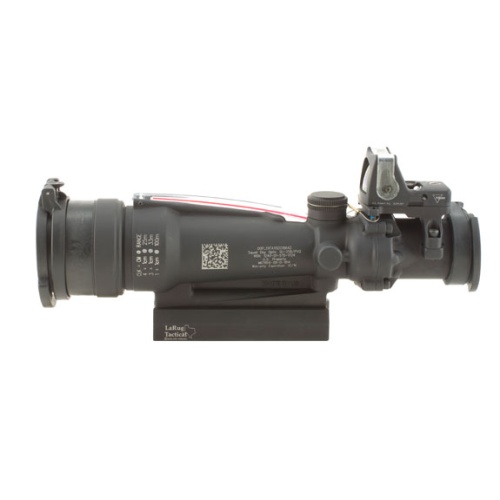

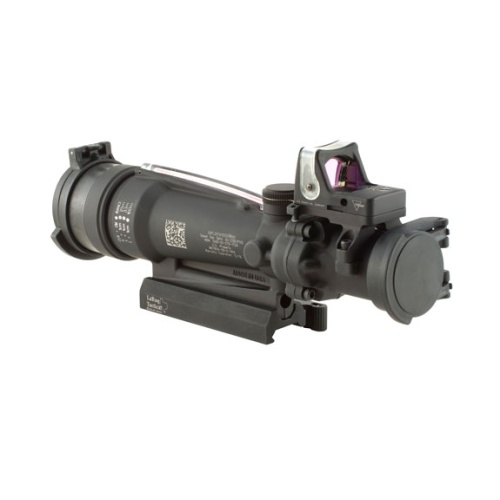

In 2009, the U.S. Marine Corps selected the Trijicon ACOG® 3.5x35 as its Squad automatic-weapon Day Optic (SDO). The SDO will mount on the M249 light machinegun to assist gunners in target detection, recognition and identification. This model includes the Trijicon RMR, providing the operator with quick target acquisition at close quarter distances or when vehicular mounted.
TA11SDO-CP also includes:
- 9.0 MOA RMR® Dual Illuminated Amber Dot Sight (RM05)
- LaRue Tactical Quick Detach Mount
- Tenebrax killFlash® Anti-Reflective Device
- Set of Flip Up Lens Caps
- SDO Pouch
- 1 LENSPEN® (TA56)
- 1 Lanyard Assembly for Adjuster Caps (TA71E)
- 1 Trijicon Logo Sticker (PR15)
- 1 ACOG Manual
- 1 Warranty Card
SPECIFICATIONS
| Magnification |
3.5x |
| Objective Size (mm) |
35 |
| Bullet Drop Compensator |
Yes |
| Length (in) |
8.7 |
| Weight (oz) |
20.8 |

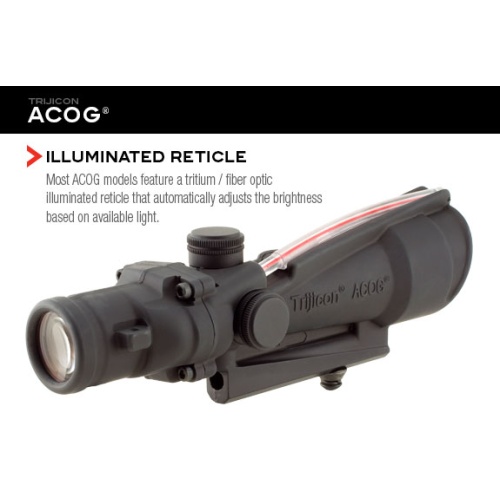

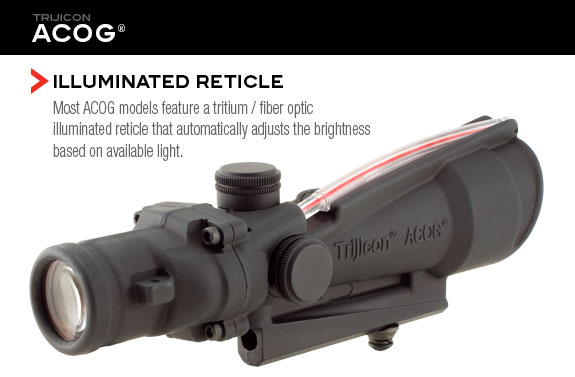

| Illumination Source |
Fiber Optics & Tritium |

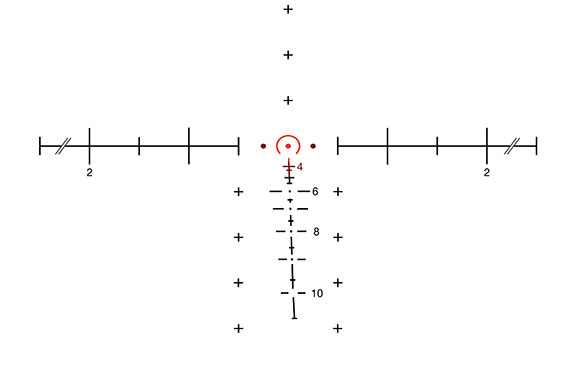

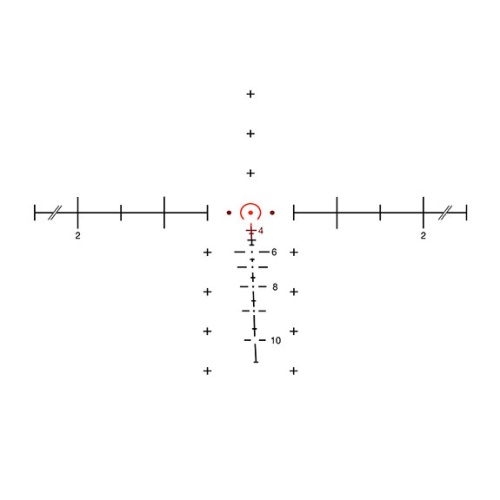

| Reticle Pattern |
Horseshoe w/ Target Reference System |
| Day Reticle Color |
Red |
| Night Reticle Color |
Red |
| Bindon Aiming Concept |
Yes |
| Eye Relief (in) |
2.4 |
| Exit Pupil (mm) |
10 |
| Field of View (Degrees) |
28.9 |
| Field of View @ 100 yards (ft) |
4 |
| Adjustment @ 100 yards (clicks/in) |
.1 mils per click |
| Mount |
LaRue Tactical Mount |
| Mount Comes With |
LaRue Tactical Mount |

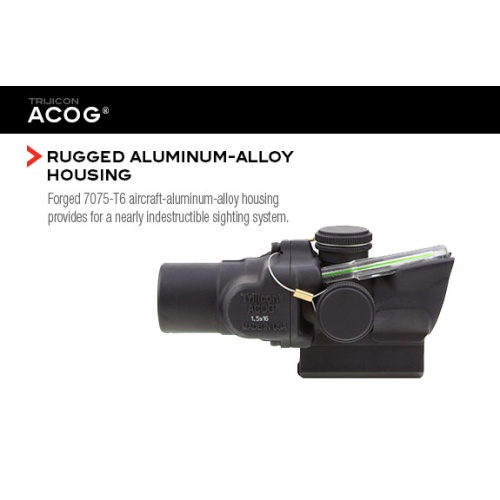

| Housing Material |
Forged Aluminum |
