The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact
riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance

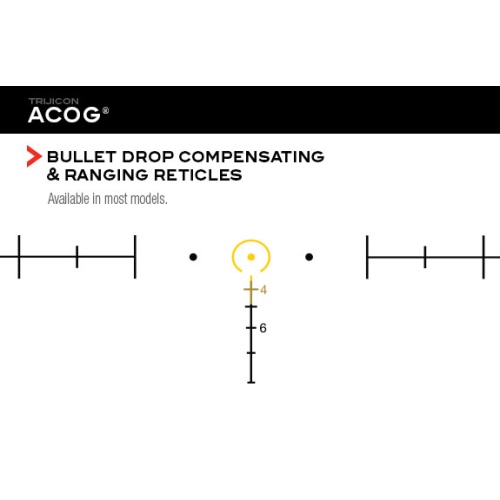

marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.
FEATURES

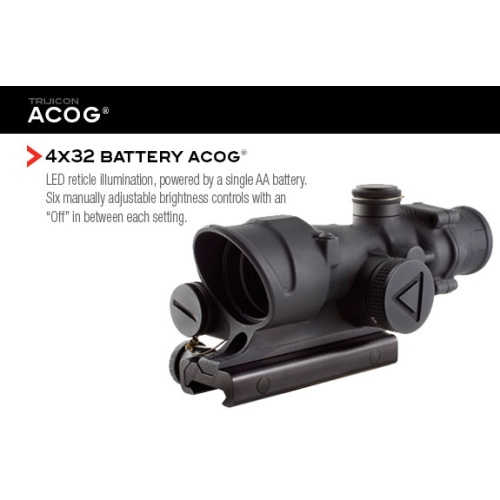

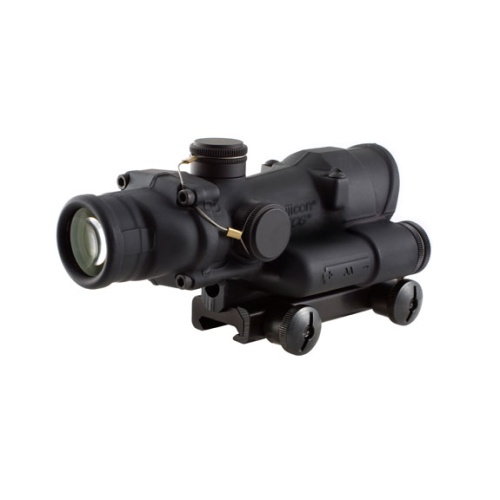

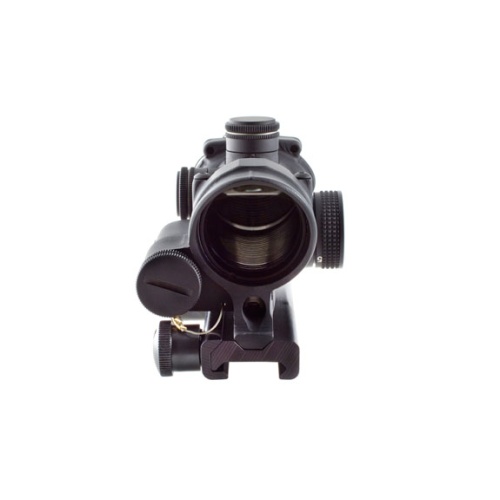

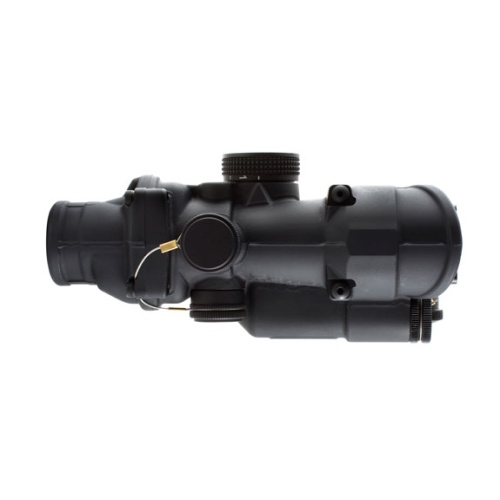

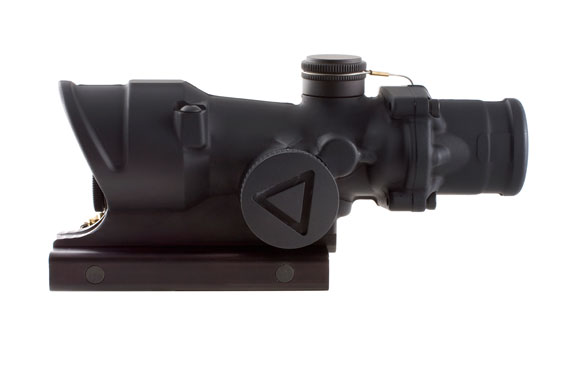

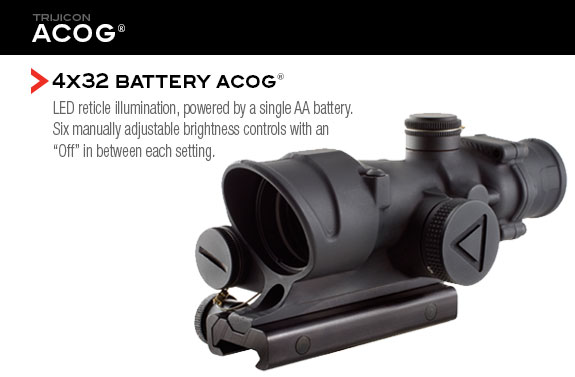

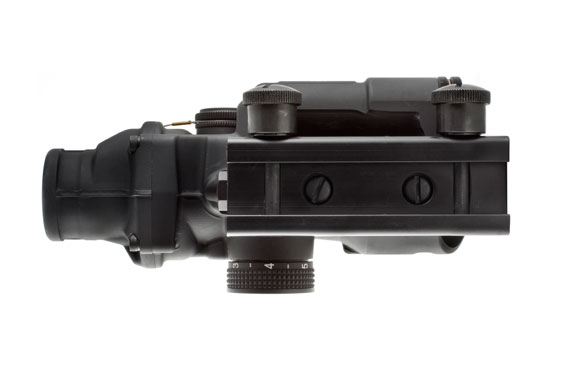

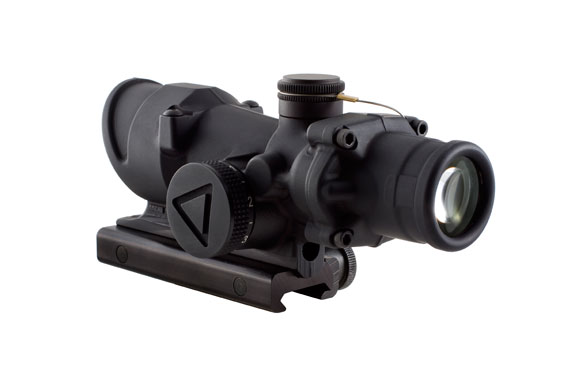

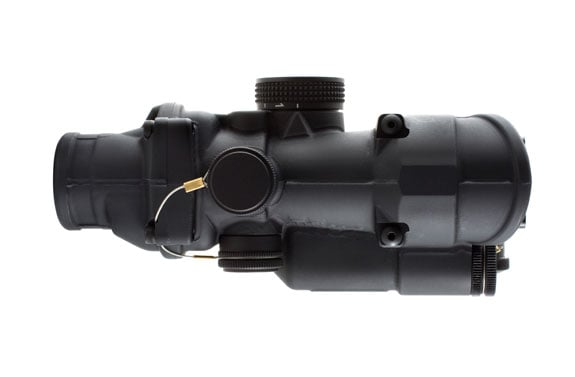

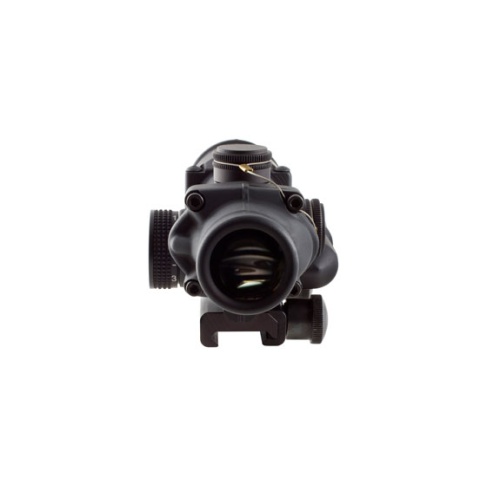

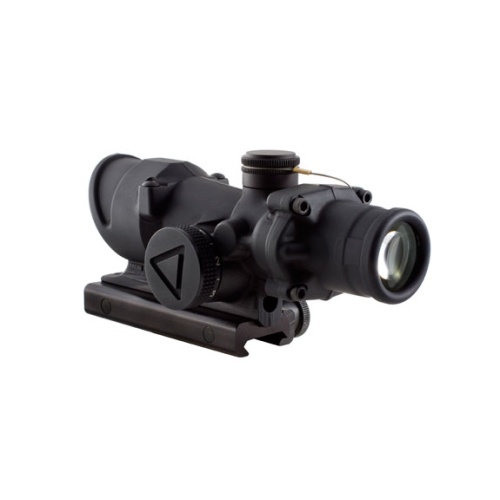

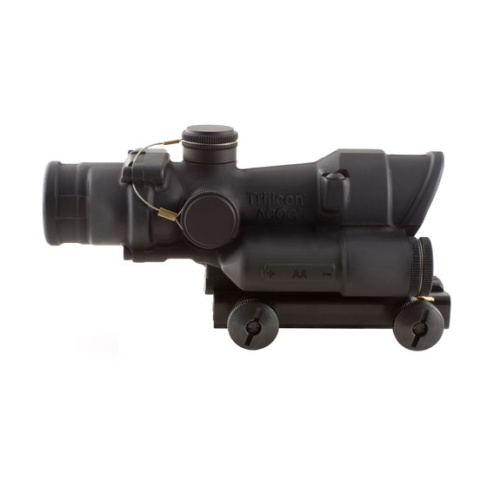

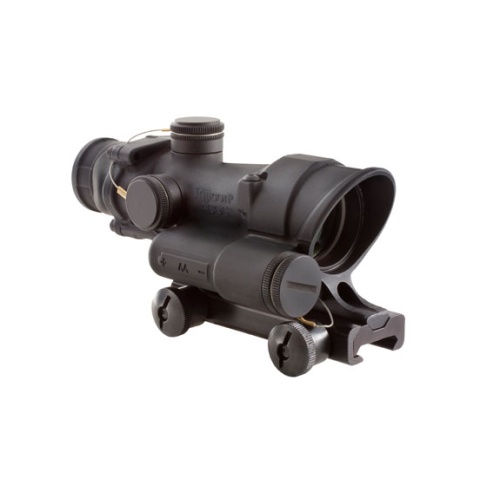

With the same rugged precision as the legendary Trijicon ACOG, the Trijicon 4x32 Battery ACOG delivers robust engineering and enhanced user control. Powered by a single AA battery, the electronics offer an outstanding level of reliability with a straightforward brightness dial, allowing the operator to determine how much to illuminate the reticle—even in transitional lighting. The body has been optimized by moving the RMR mount forward to maximize its performance in conjunction with the ACOG. Fully night vision device compatible, the Trijicon 4x32 Battery ACOG is also compatible with most other 4x32 ACOG accessories available.
The TA02 also includes:
- 1 Thumbscrew Flattop Adapter (TA51)
- 1 AA Battery
- 1 LENSPEN® (TA56)
- 1 Lanyard Assembly for Adjuster Caps (TA71E)
- 1 Lanyard Assembly for Battery Cap
- 1 Trijicon Logo Sticker (PR15)
- 1 Manual
- 1 Warranty Card
SPECIFICATIONS
Magnification |
4x |
Objective Size (mm) |
32mm |
Bullet Drop Compensator |
Yes |
Length (in) |
6.0 in |
Weight (oz) |
18.1 oz. with TA51 Mount and Alkaline Battery |
Illumination Source |
LED |

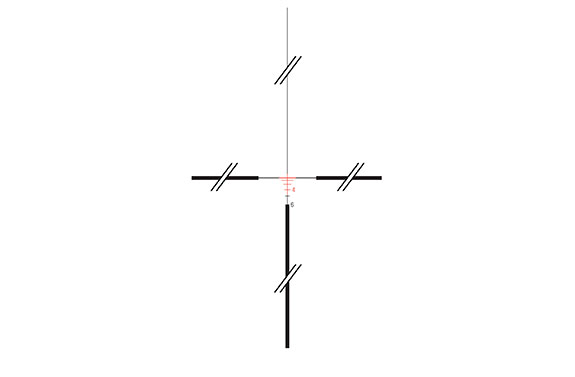

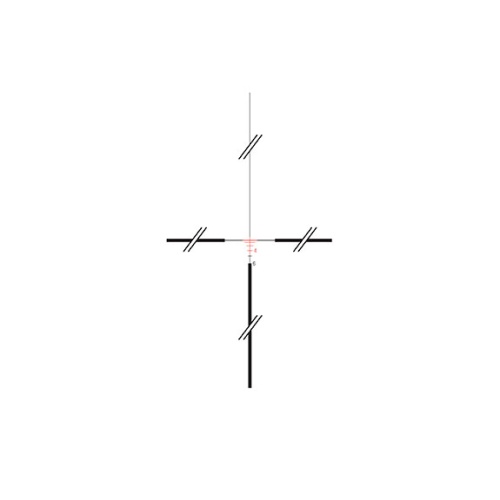

Reticle Pattern |
Crosshair |
Day Reticle Color |
Red |
Night Reticle Color |
Red |
Calibration |
0.223 |
Bindon Aiming Concept |
Yes |
Eye Relief (in) |
1.5 in. |
Exit Pupil (mm) |
8mm |
Field of View (Degrees) |
7° |
Field of View @ 100 yards (ft) |
36.8 ft. |
Adjustment @ 100 yards (clicks/in) |
2 clicks per in. |
Mount Comes With |
TA51 |

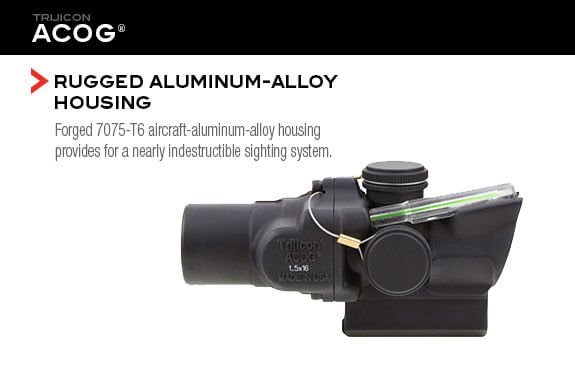

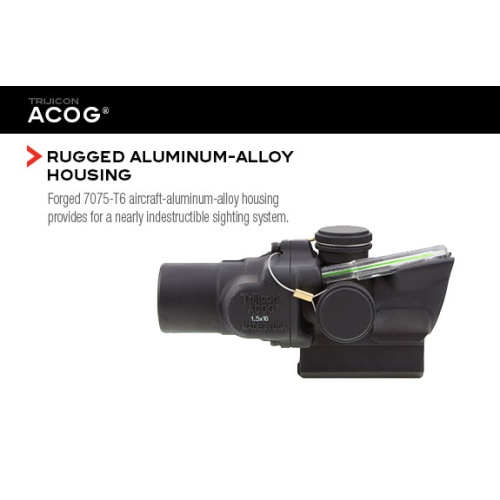

Housing Material |
Forged Aluminum |
Batteries |
Single AA Lithium or Alkaline Battery |
Battery Life |
Over 12,000 hours on setting #4 using supplied alkaline battery at 21ºC (70ºF) |
