The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact
riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance
marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.
FEATURES

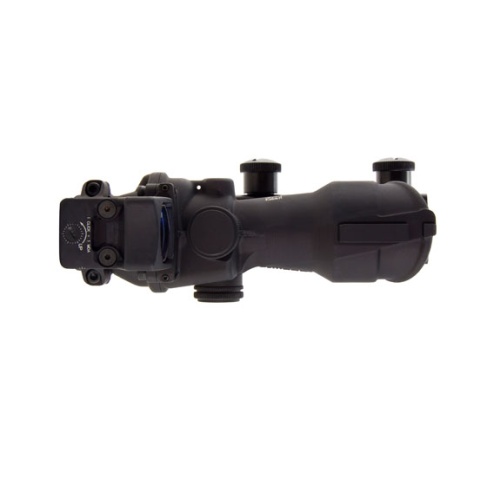

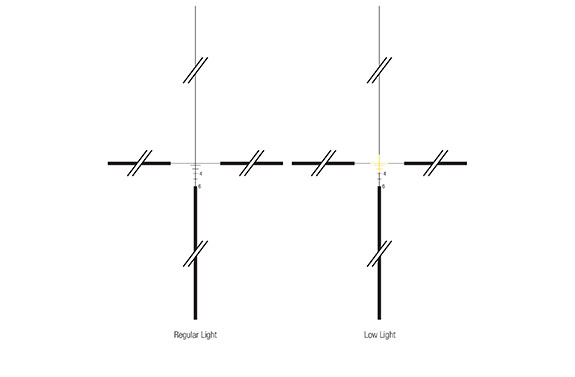

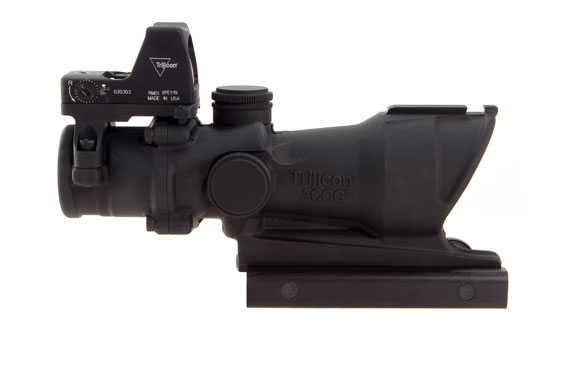

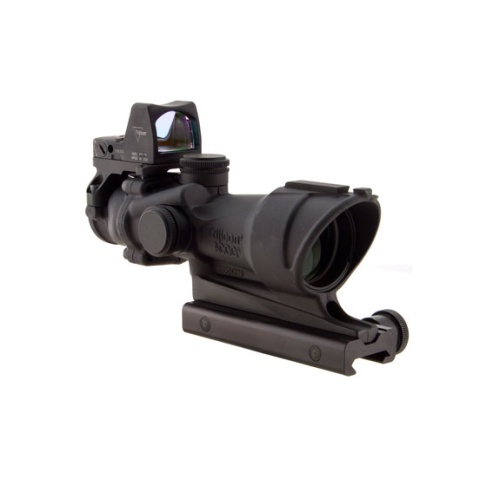

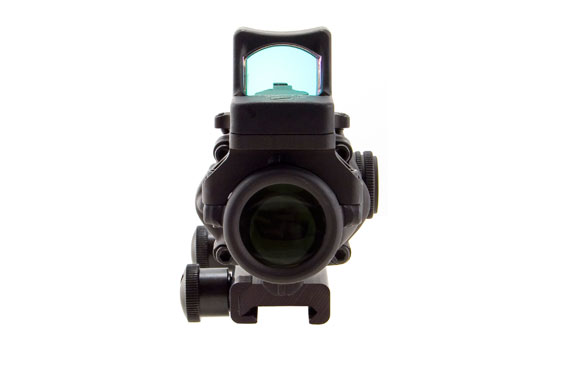

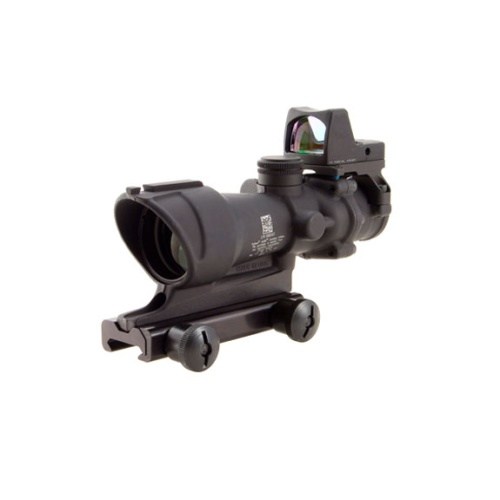

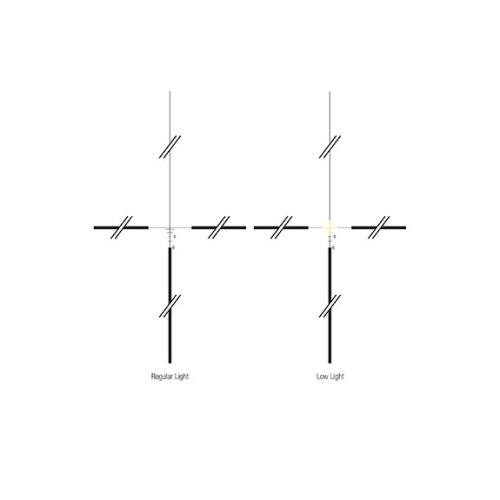

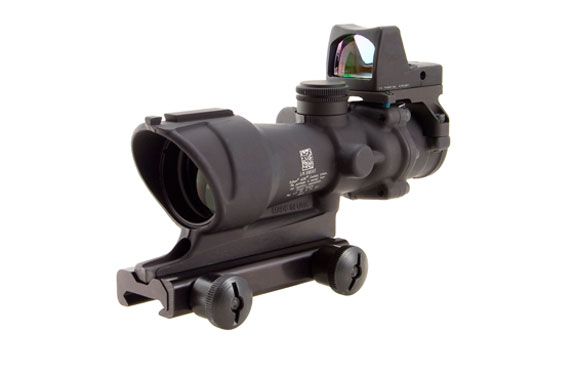

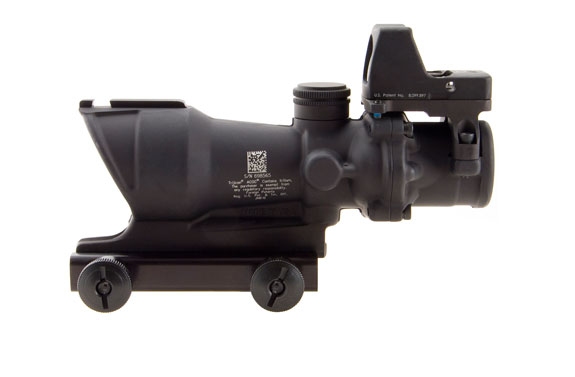

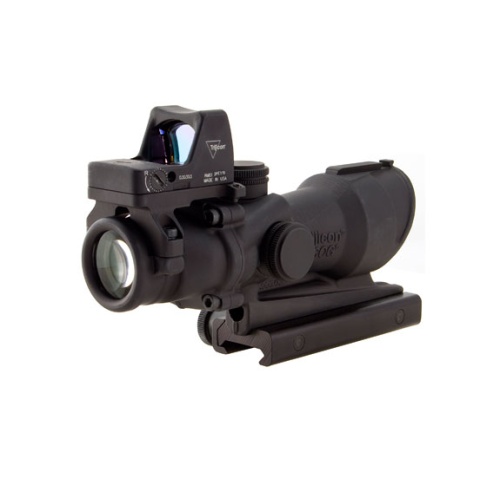

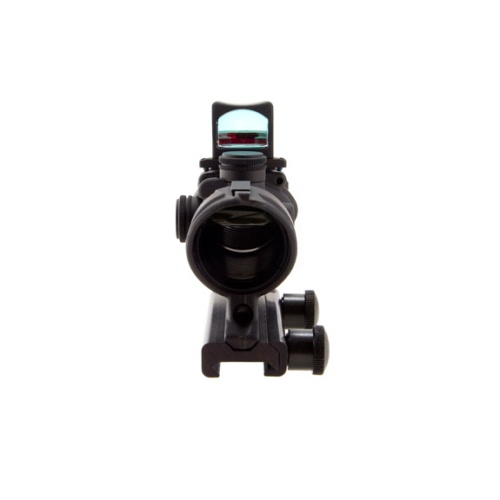

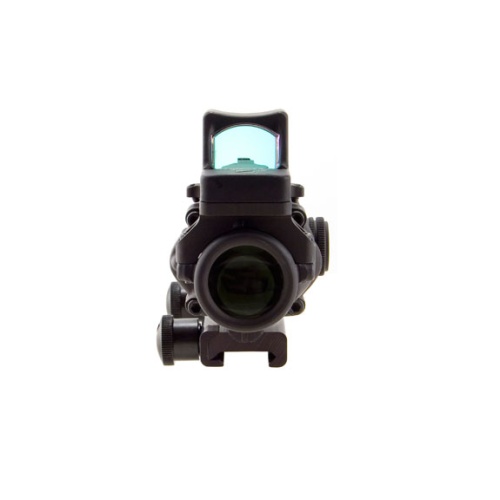

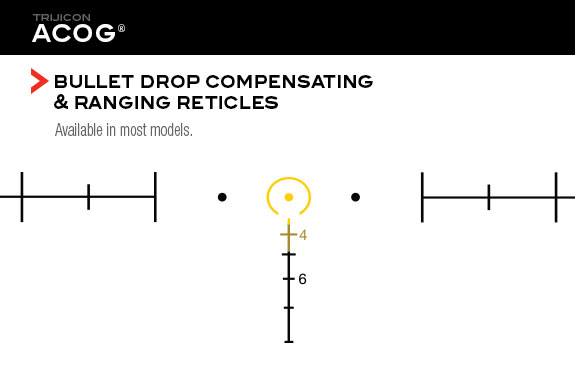

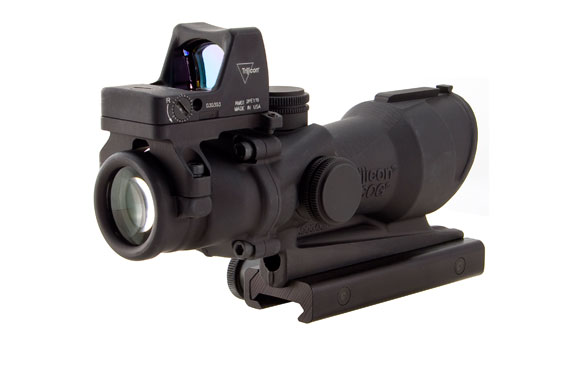

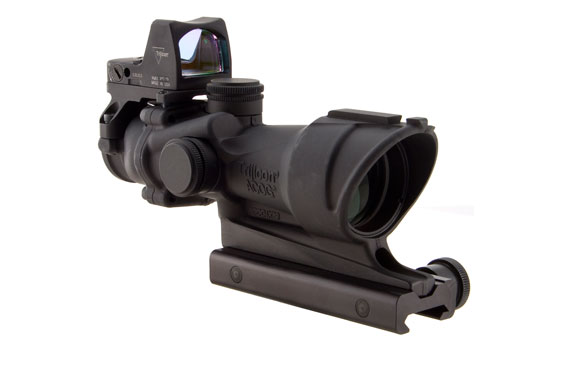

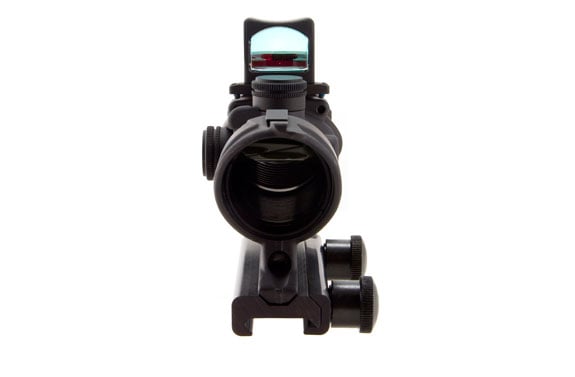

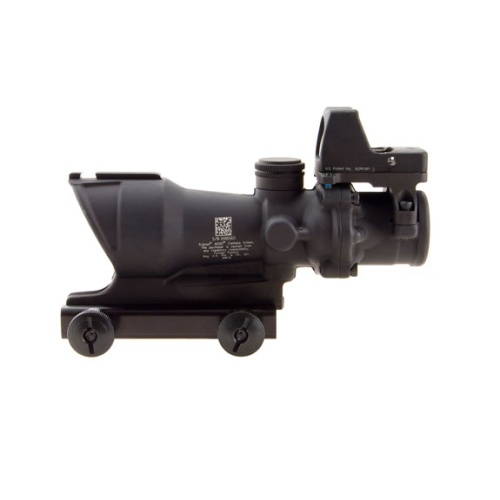

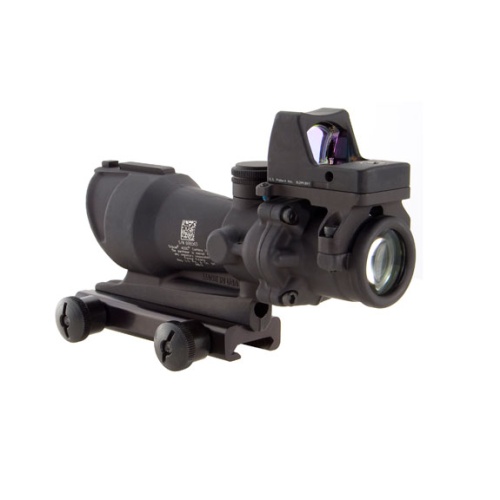

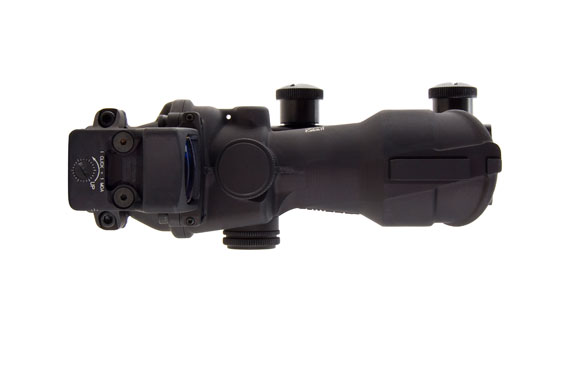

The TA01NSN-RMR combines the technology of the battle-tested Trijicon ACOG (4x32) gun sight with the 3.25 MOA Trijicon RMR™ red dot sight. This provides the shooter with the option of quick acquisition close range sighting with the Trijicon RMR sight and the precision for longer range shooting with the Trijicon ACOG 4x32. This ability to adjust to tactical situations gives the user the needed edge when the lives are on the line and success is the only acceptable outcome. The ranging reticle allows for bullet drop compensation out to 600 meters without any manual adjustments. The reticle will appear black during the daytime and will glow amber in the dark, thanks to Trijicon’s patented tritium illumination.
The TA01NSN-RMR also includes:
- 1 3.25 MOA Trijicon RMR (RM01)

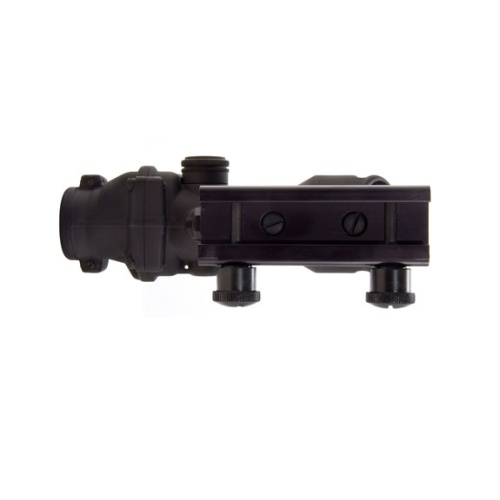

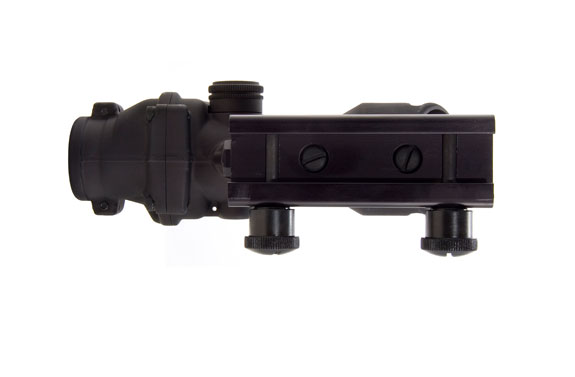

- 1 ACOG Thumbscrew Flattop Adapter (TA51)
- 1 Set of Rubber Scope Caps for ACOG (TA52)
- 1 LENSPEN® (TA56)
- 1 Lanyard Assembly for Adjuster Caps (TA71E)
- 1 Trijicon Logo Sticker (PR15)
- 1 Manual
- 1 Warranty Card
SPECIFICATIONS
| Magnification |
4x |
| Objective Size (mm) |
32 |
| Bullet Drop Compensator |
Yes |
| Length (in) |
5.8 |
| Weight (oz) |
14.96 w/out RMR |
| Illumination Source |
Tritium |

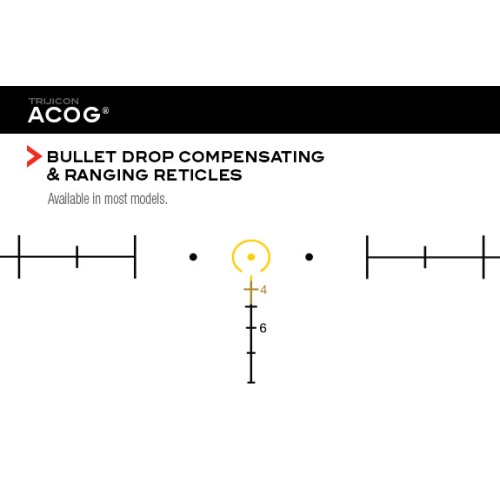

| Reticle Pattern |
Crosshair |
| Day Reticle Color |
Black |
| Night Reticle Color |
Amber |
| Calibration |
0.223 |
| Eye Relief (in) |
1.5 |
| Exit Pupil (mm) |
8 |
| Field of View (Degrees) |
7 |
| Field of View @ 100 yards (ft) |
36.8 |
| Adjustment @ 100 yards (clicks/in) |
2 |
| Mount |
TA51 |
| Mount Comes With |
TA51 |

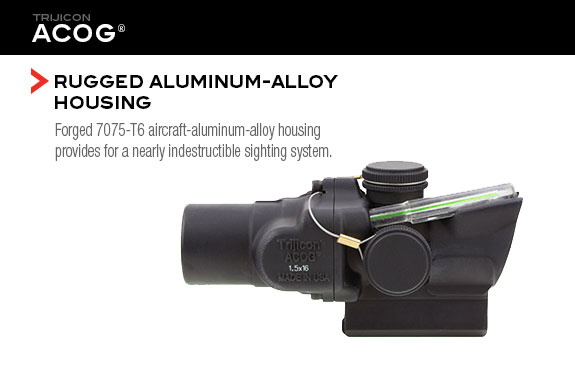

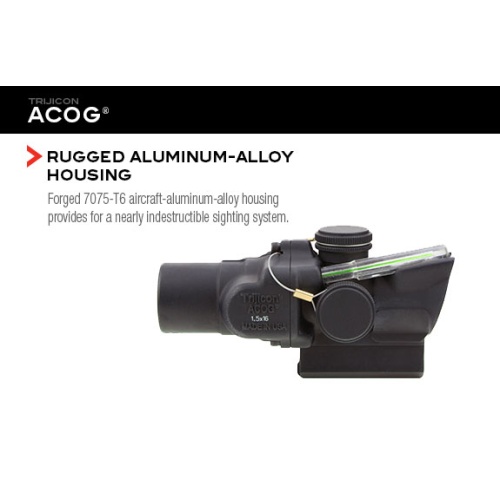

| Housing Material |
Forged Aluminum |
