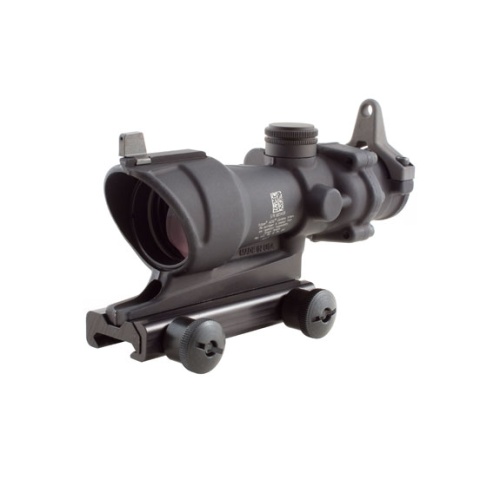

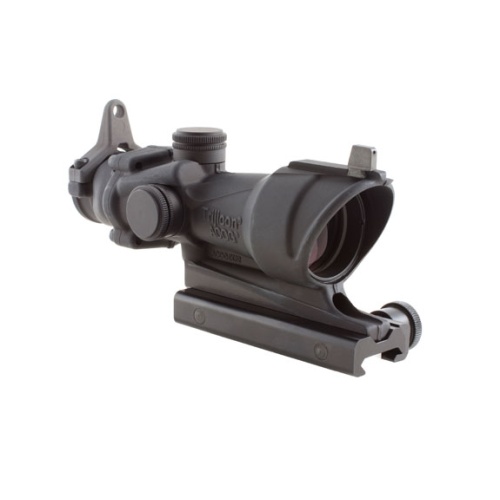

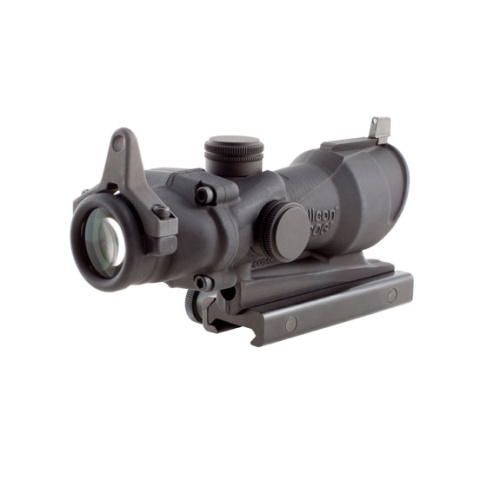

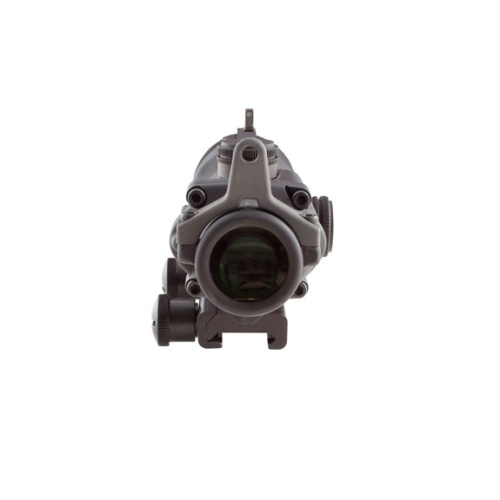

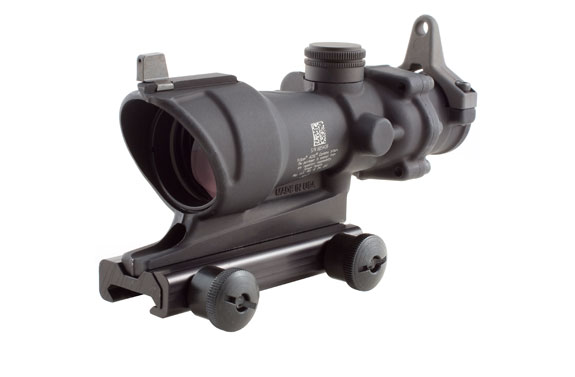

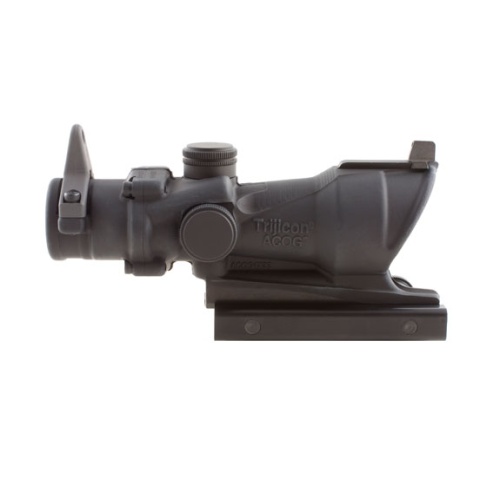

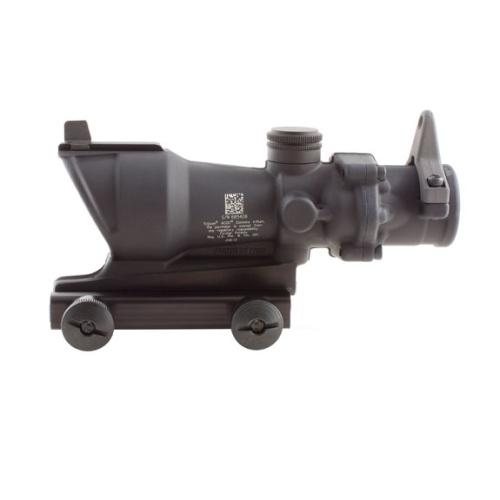

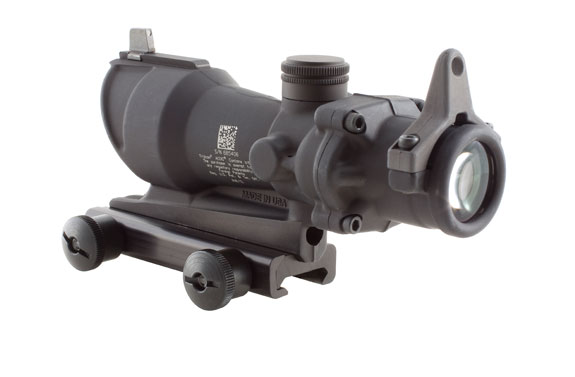

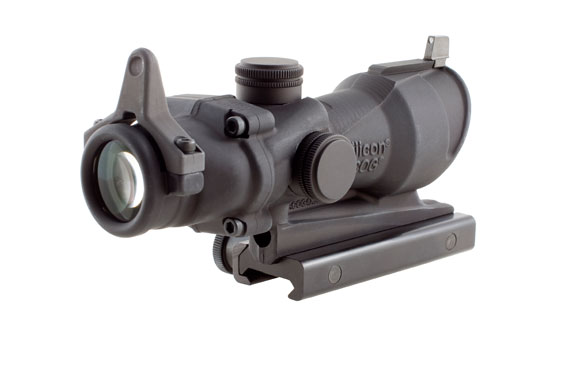

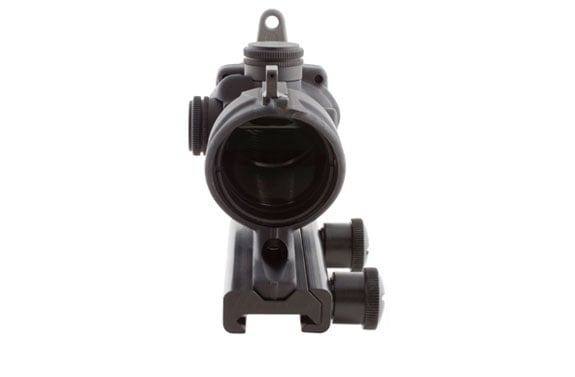

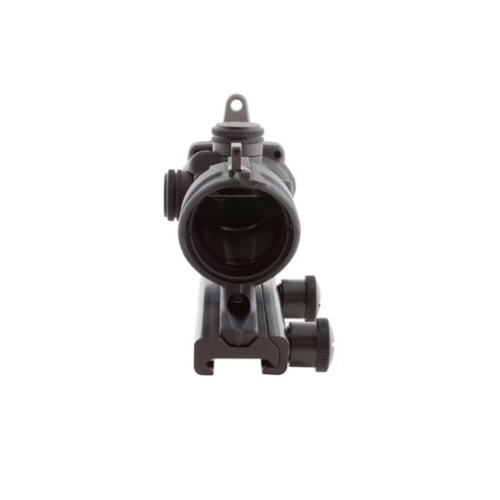

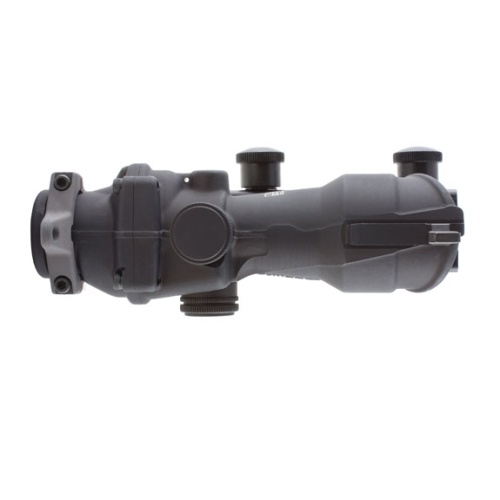

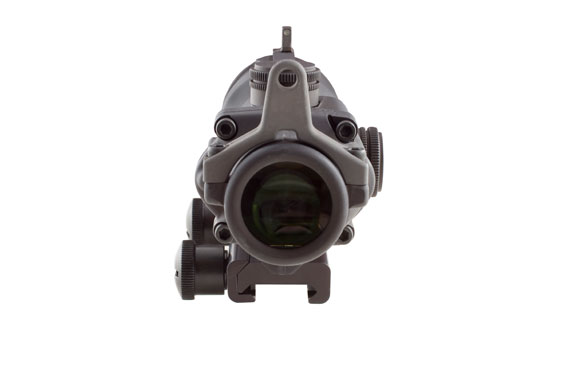

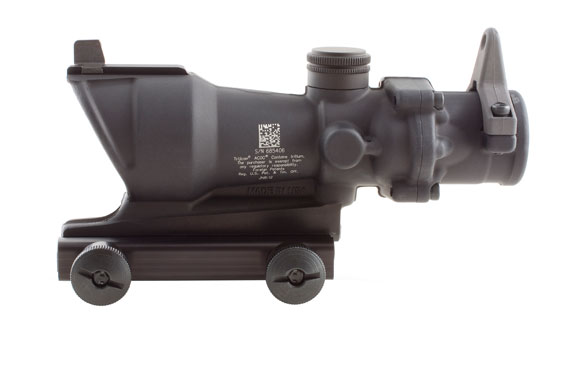

The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact
riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance

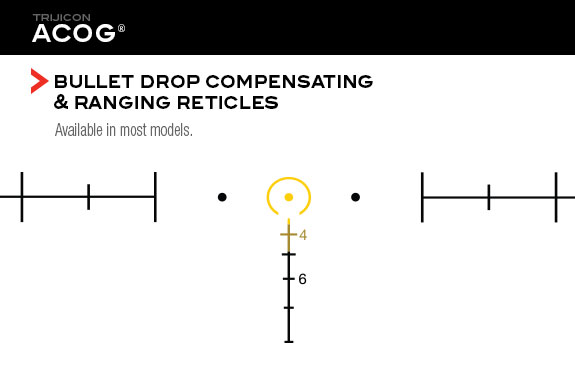

marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.
FEATURES

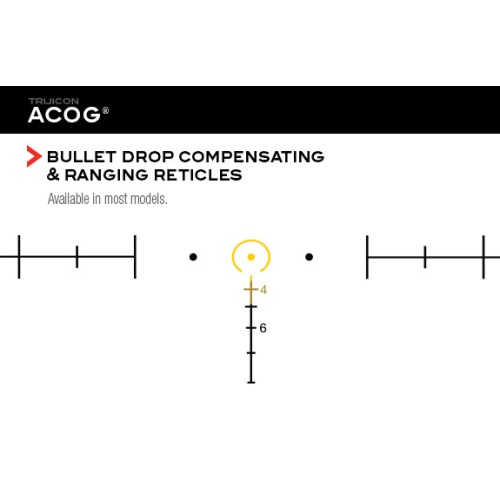

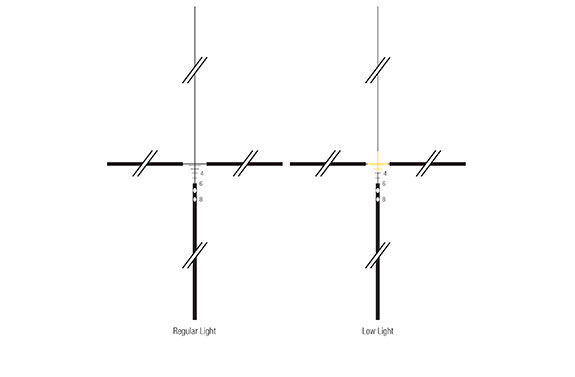

Designed to the exact specifications of the US Special Operations Command for use by elite US forces. The ranging reticle allows for bullet drop compensation out to 800 meters without any manual adjustments. The reticle will appear black during the daytime and will glow amber in the dark, thanks to Trijicon’s patented tritium illumination. Includes backup Iron Sights. No batteries needed!

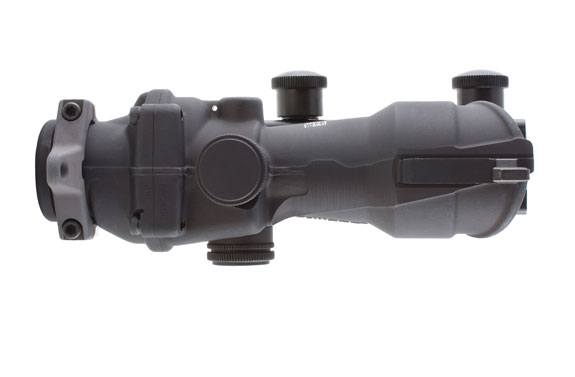

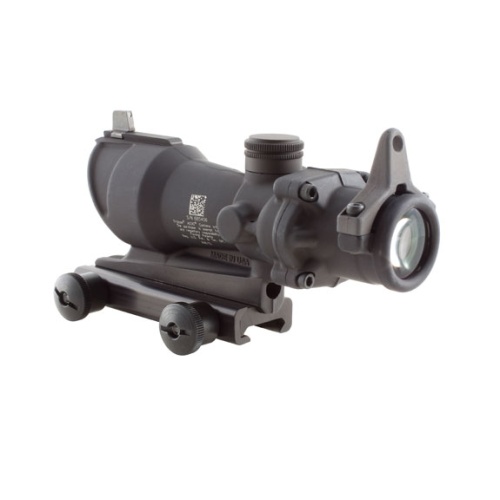

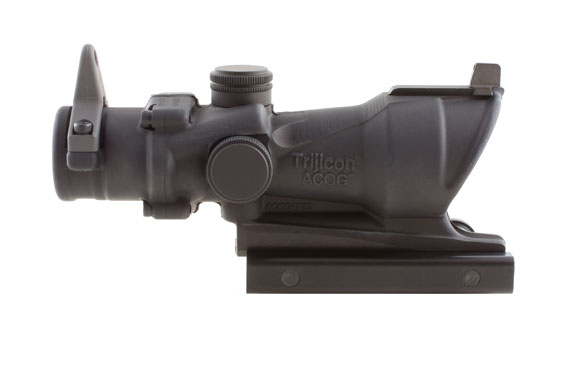

The TA01NSN-308 also includes:

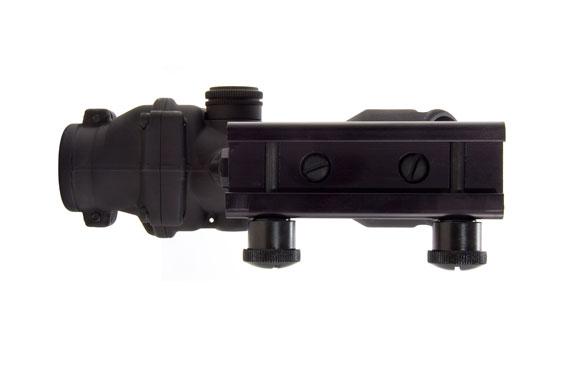

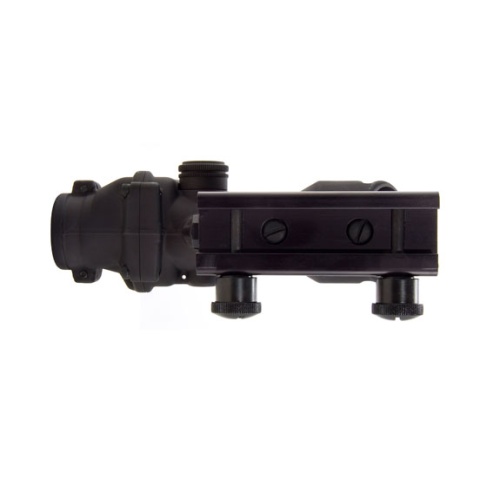

- 1 ACOG Thumbscrew Flattop Adapter (TA51)
- 1 Rubber Scope Cap Cover (TA52)
- 1 Set of Backup Iron Sights
- 1 LENSPEN® (TA56)
- 1 Lanyard Assembly for Adjuster Caps (TA71E)
- 1 Trijicon Logo Sticker (PR15)
- 1 ACOG Manual
- 1 Warranty Card
SPECIFICATIONS
Magnification |
4x |
Objective Size (mm) |
32 |
Bullet Drop Compensator |
Yes |
Length (in) |
5.8 |
Weight (oz) |
14.96 |

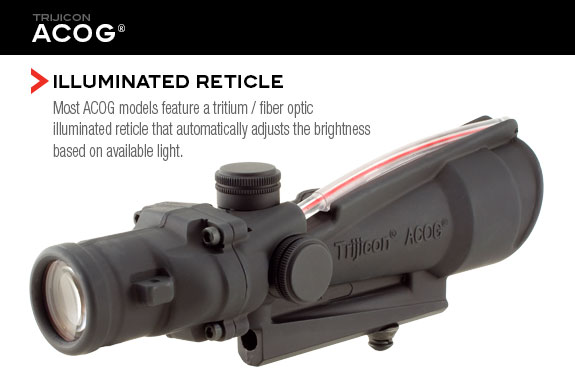

Illumination Source |
Tritium |

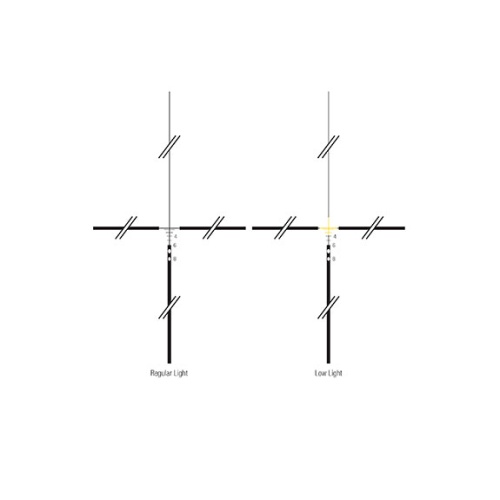

Reticle Pattern |
Crosshair |
Day Reticle Color |
Black |
Night Reticle Color |
Center Amber |
Calibration |
0.308 |
Eye Relief (in) |
1.5 |
Exit Pupil (mm) |
8 |
Field of View (Degrees) |
7 |
Field of View @ 100 yards (ft) |
36.8 |
Adjustment @ 100 yards (clicks/in) |
2 |
Mount |
TA51 |
Mount Comes With |
Flattop |

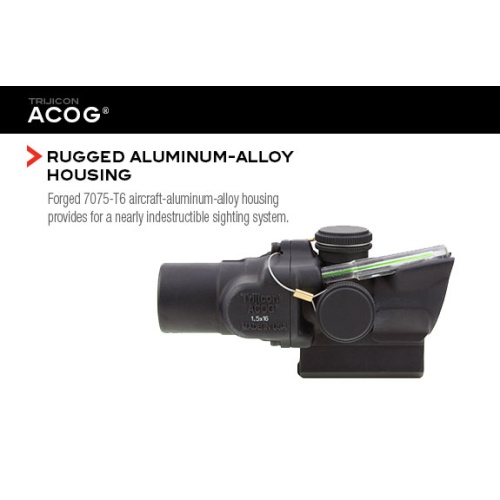

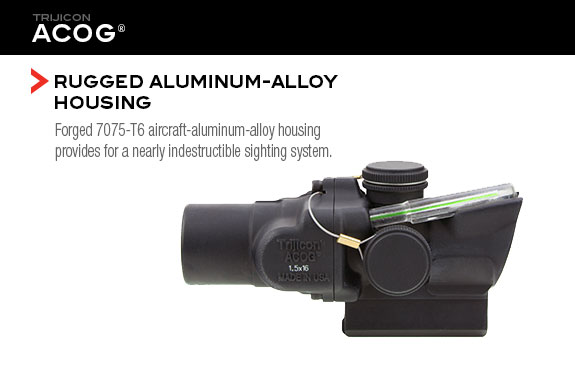

Housing Material |
Forged Aluminum |
