The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact
riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance
marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.
FEATURES

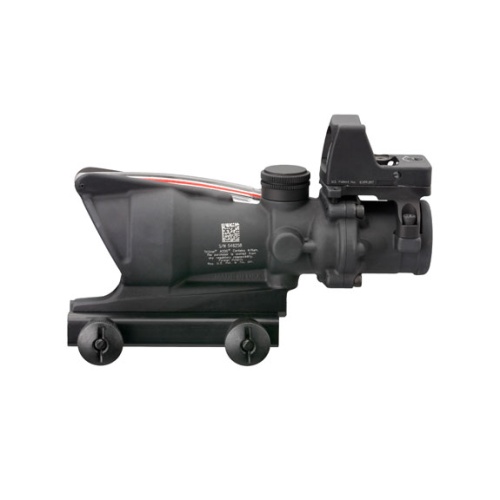

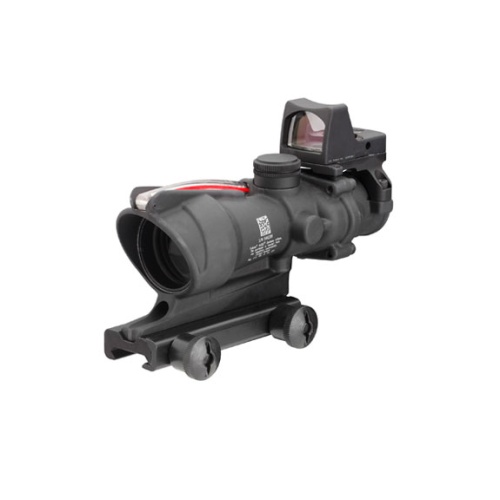

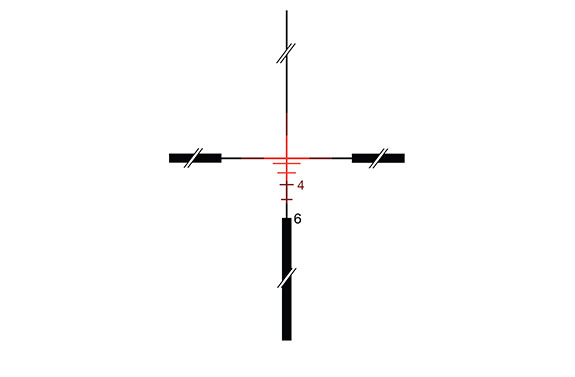

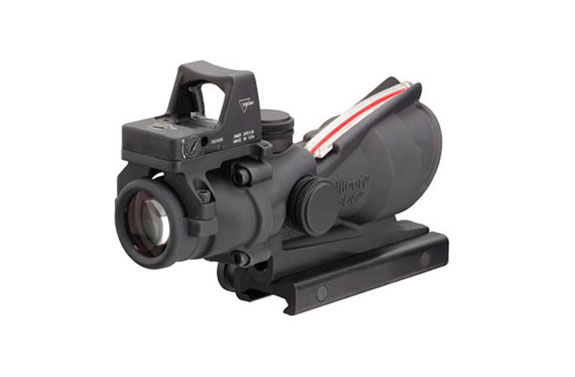

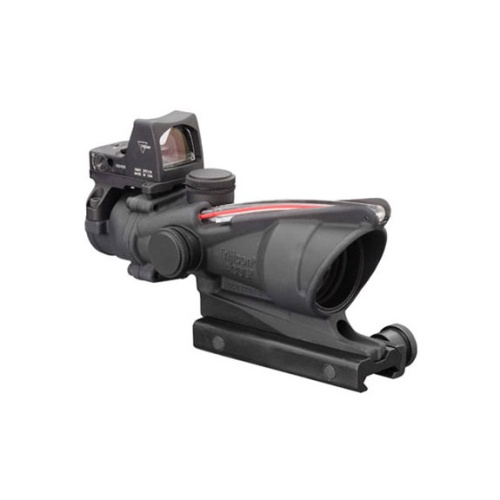

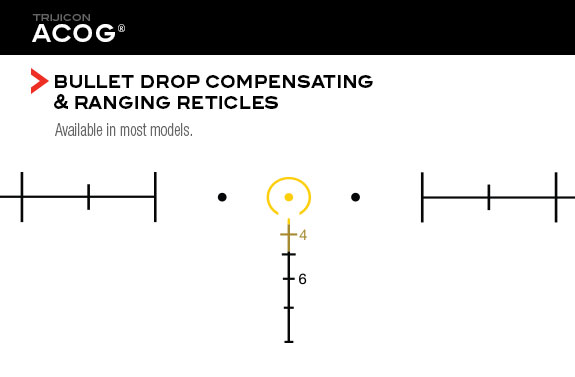

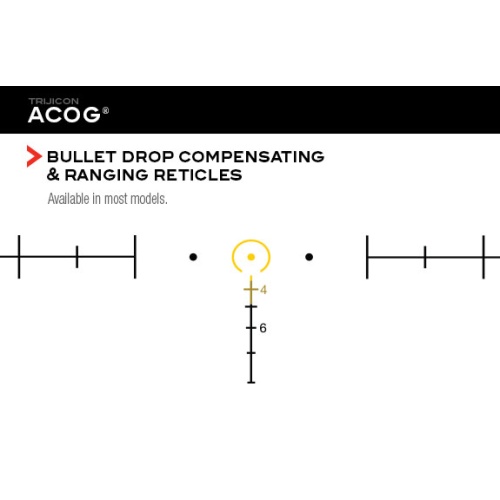

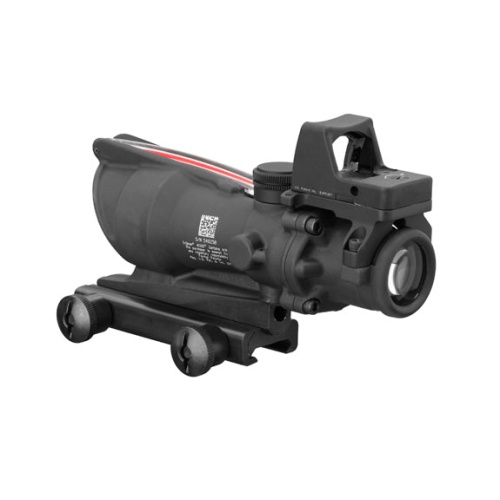

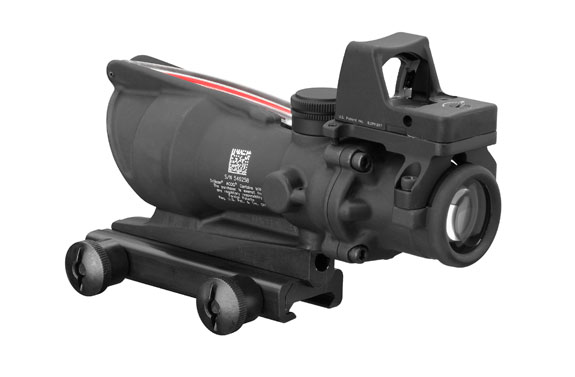

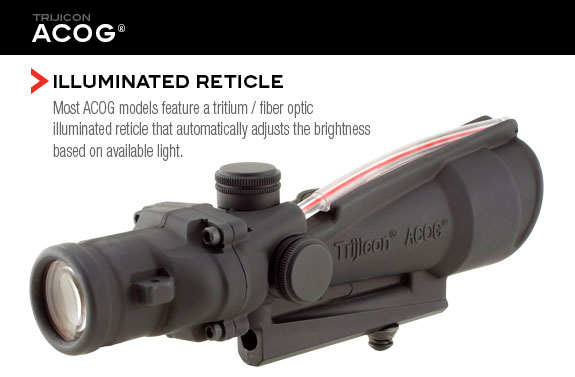

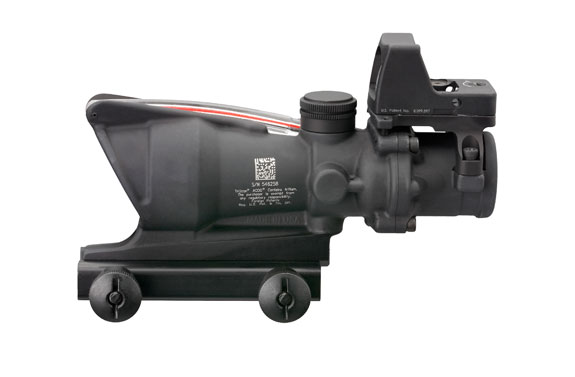

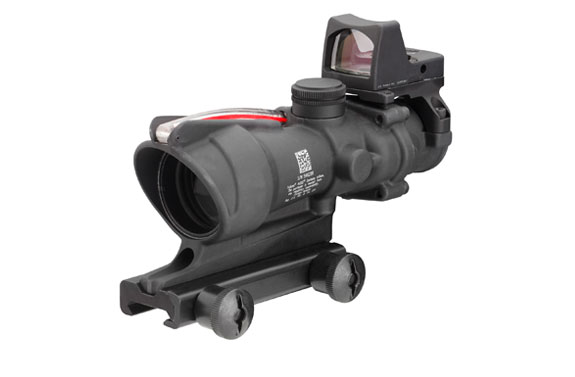

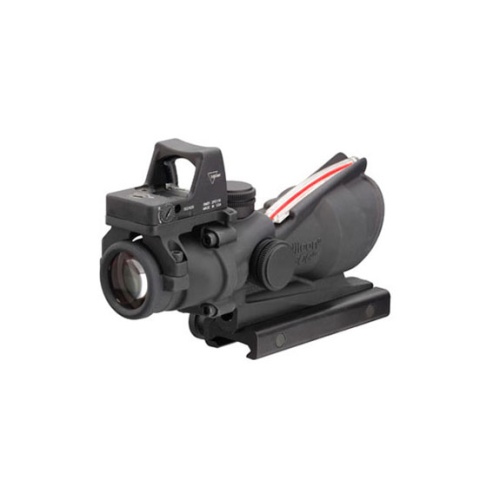

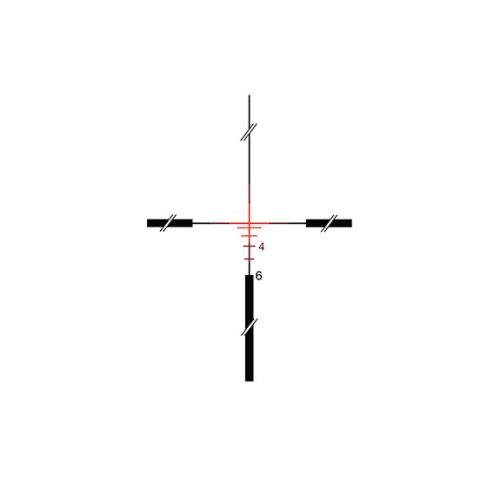

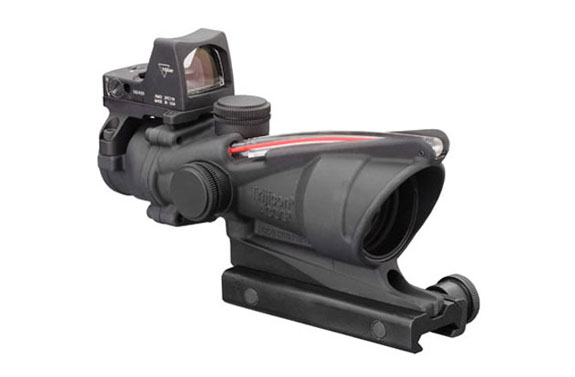

Adapted from the battlefields, US Forces have begun improving this proven Trijicon ACOG scope by adding a small red dot sight on top for close encounter missions. Trijicon has now created a similar model for the public, the TA31RMR. The main Trijicon scope provides a dual-illuminated reticle using fiber optics and tritium for bright aiming point in any light condition. The ranging reticle allows for bullet drop compensation out to 600 meters without any manual adjustments. A Trijicon RMR® sits on top with a 3.25 MOA aiming dot.
The TA31RMR also includes:
- 1 3.25 MOA Trijicon RMR® (RM01)
- 1 Flattop Mount (TA51)
- 1 LENSPEN® (TA56)
- 1 Lanyard Assembly for Adjuster Caps (TA71E)
- 1 Trijicon Logo Sticker (PR15)
- 1 ACOG BAC Manual
- 1 Warranty Card
SPECIFICATIONS
| Magnification |
4x |
| Objective Size (mm) |
32 |
| Bullet Drop Compensator |
Yes |
| Length (in) |
5.8 |
| Weight (oz) |
15.1 w/out RMR |
| Illumination Source |
Fiber Optics & Tritium |
| Reticle Pattern |
Crosshair |
| Day Reticle Color |
Red |
| Night Reticle Color |
Red |
| Calibration |
0.223 |
| Bindon Aiming Concept |
Yes |
| Eye Relief (in) |
1.5 |
| Exit Pupil (mm) |
8 |
| Field of View (Degrees) |
7 |
| Field of View @ 100 yards (ft) |
36.8 |
| Adjustment @ 100 yards (clicks/in) |
2 |
| Mount |
TA51 |
| Mount Comes With |
TA51 |

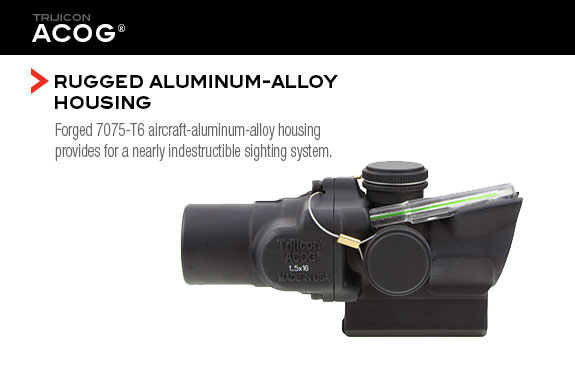

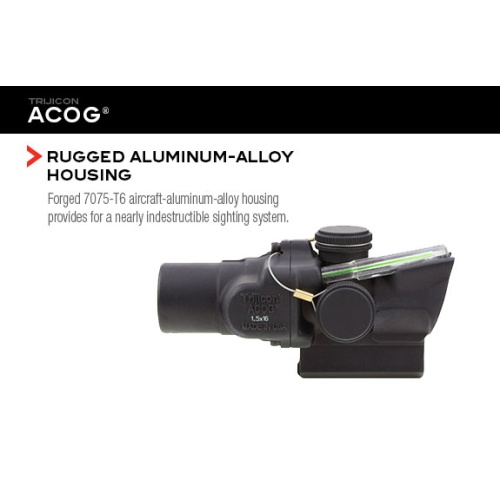

| Housing Material |
Forged Aluminum |
