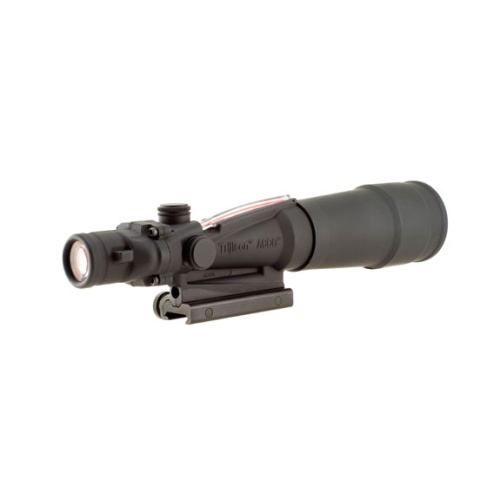

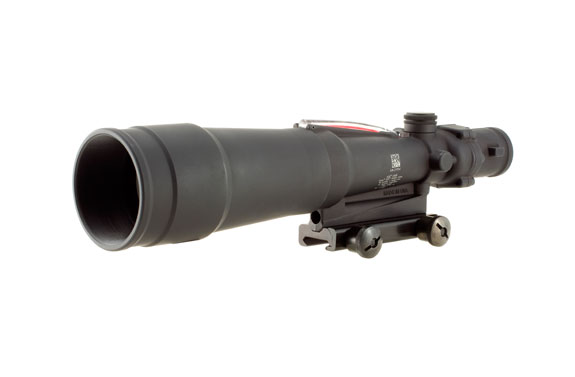

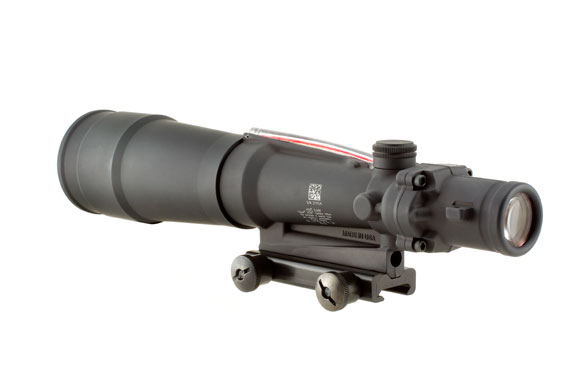

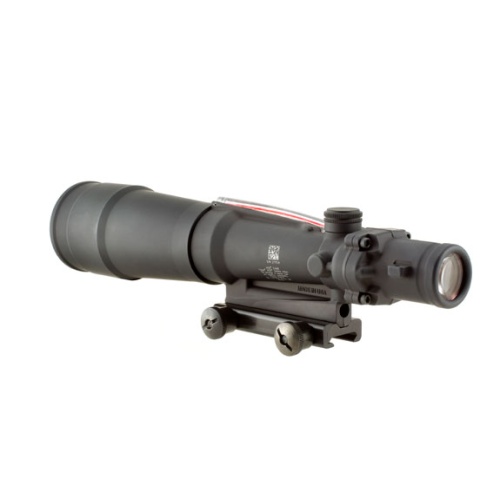

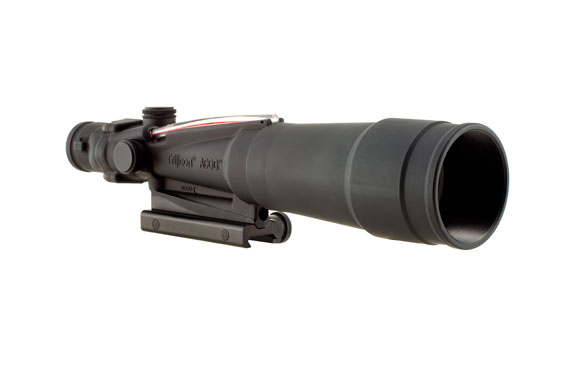

The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact

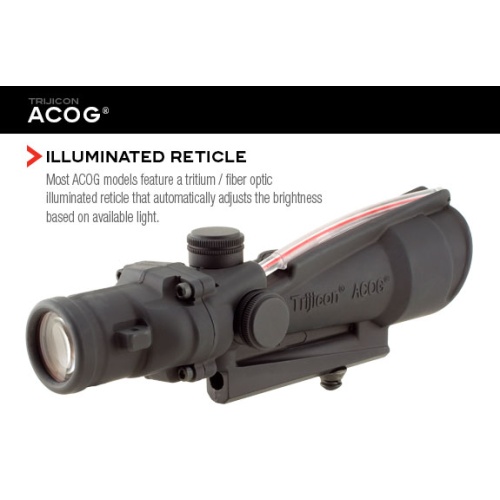

riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance

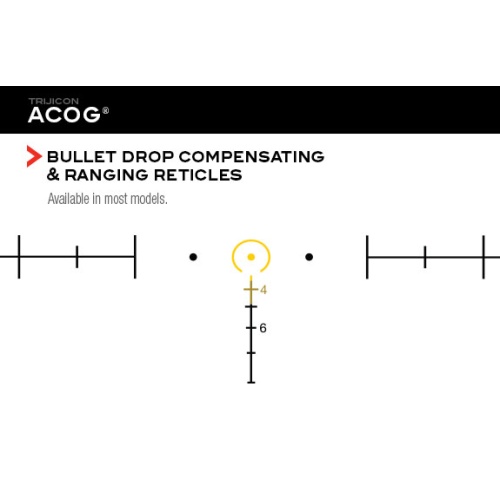

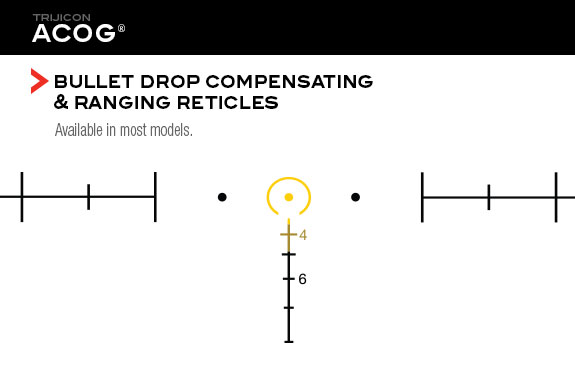

marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.
FEATURES

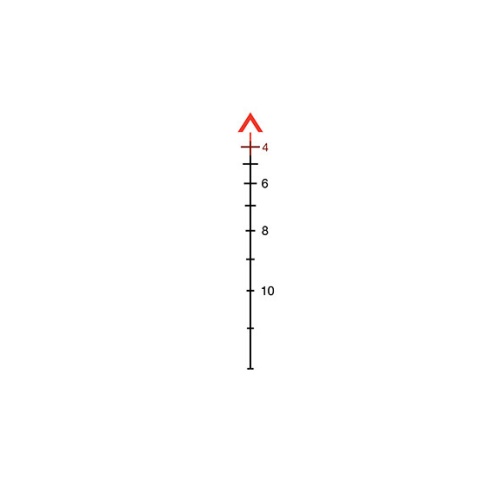

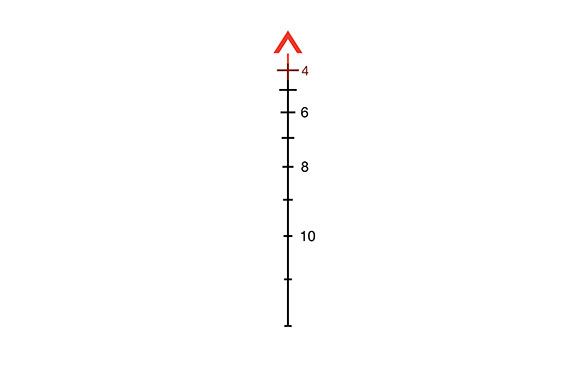

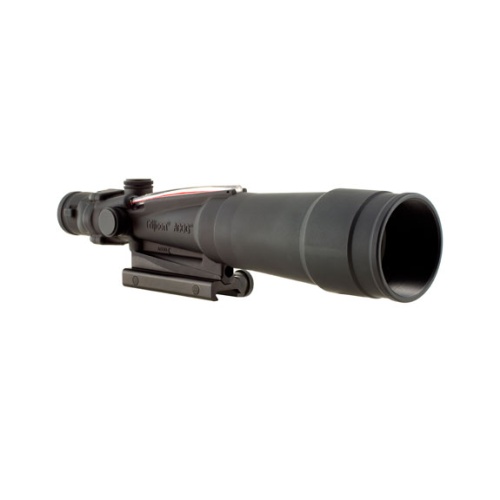

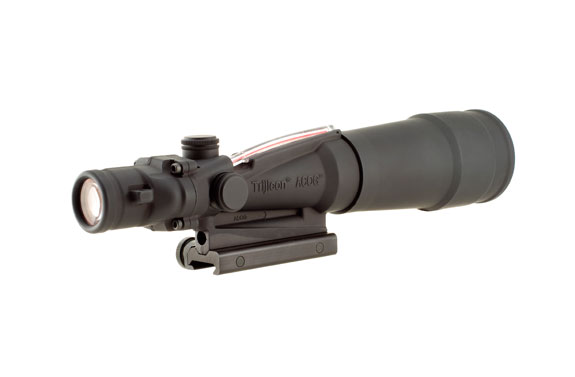

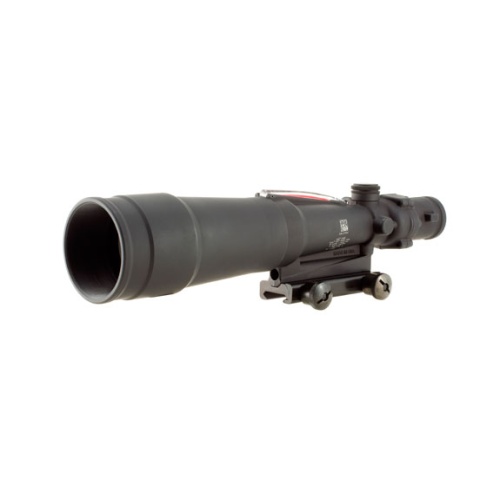

ACOG 5.5x50 Red Chevron BAC Flattop.308 Reticle includes flat top adapter. The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is 19 in. at 300 meters. This allows range estimation for silhouette targets.
The TA55A also includes:
- 1 ACOG Flattop Adapter for Military Style Rail (TA51)
- 1 5.5x50 Scopecoat (TA65)
- 1 LENSPEN® (TA56)
- 1 Lanyard Assembly for Adjuster Caps (TA71E)
- 1 Trijicon Logo Sticker (PR15)
- 1 Manual
- 1 Warranty Card
SPECIFICATIONS
| Magnification |
5.5x |
| Objective Size (mm) |
50 |
| Bullet Drop Compensator |
Yes |
| Length (in) |
12 |
| Weight (oz) |
25.6 w/ mount |

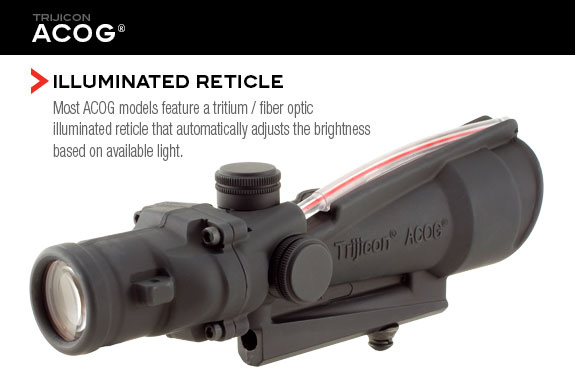

| Illumination Source |
Fiber Optics & Tritium |
| Reticle Pattern |
Chevron |
| Day Reticle Color |
Red |
| Night Reticle Color |
Center Red |
| Calibration |
0.308 |
| Bindon Aiming Concept |
Yes |
| Eye Relief (in) |
2.2 |
| Exit Pupil (mm) |
9.1 |
| Field of View (Degrees) |
3.5 |
| Field of View @ 100 yards (ft) |
18.4 |
| Adjustment @ 100 yards (clicks/in) |
5 |
| Mount |
TA51 |
| Mount Comes With |
Flattop |

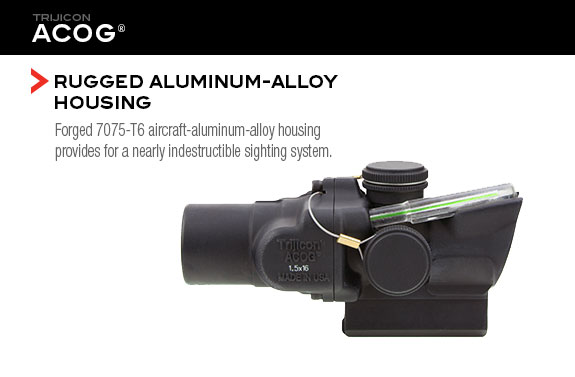

| Housing Material |
Forged Aluminum |
