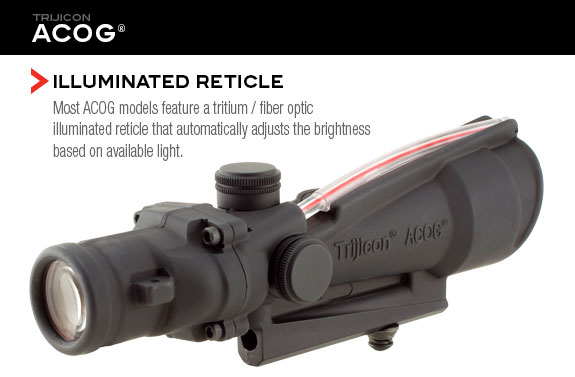

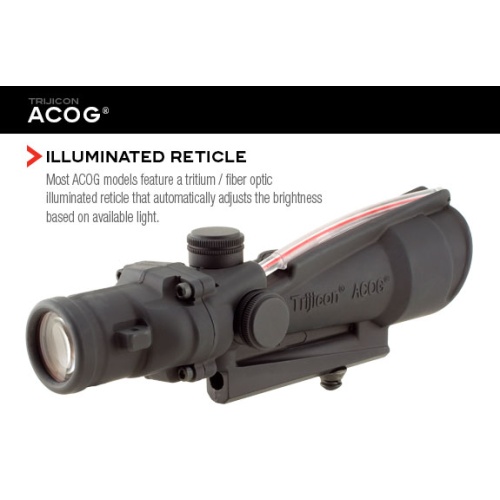

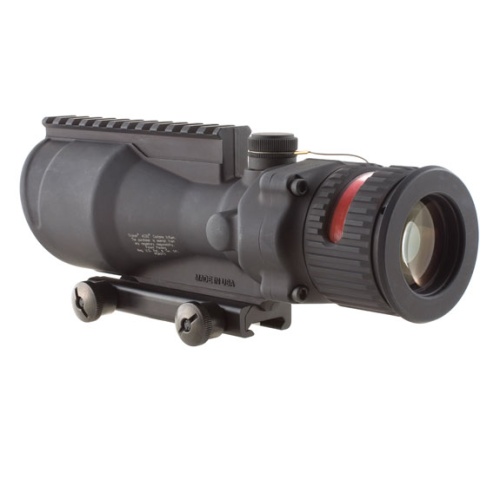

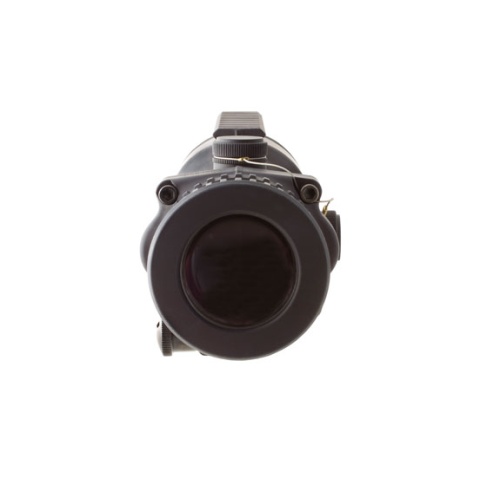

The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact
riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance

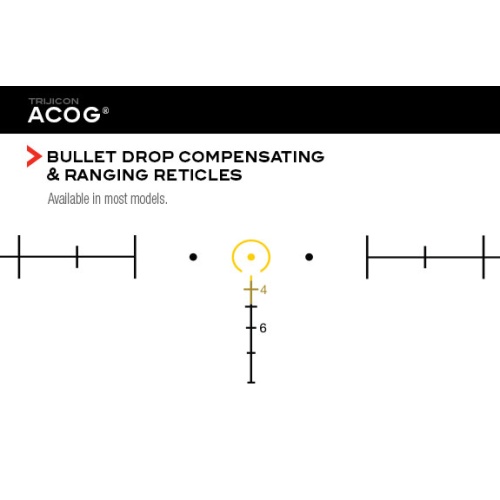

marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.
FEATURES

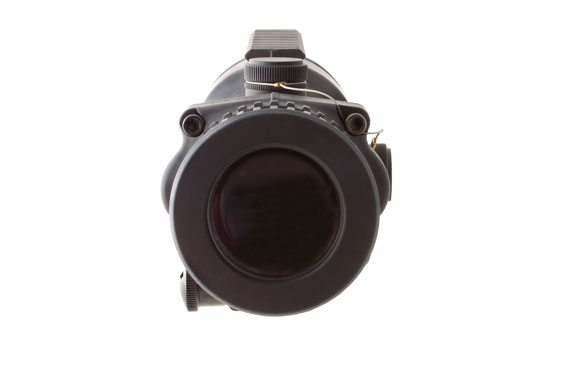

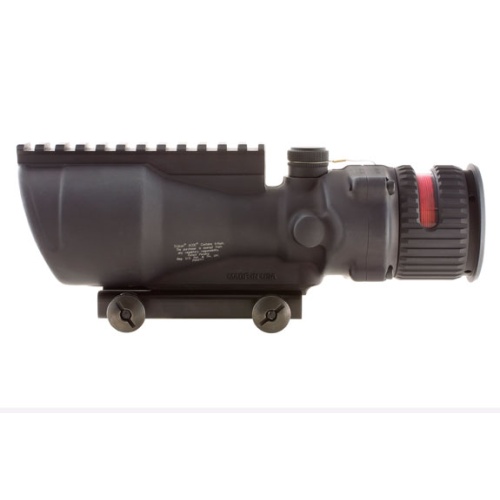

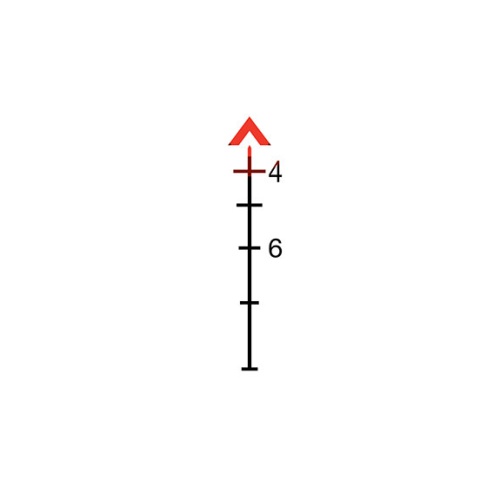

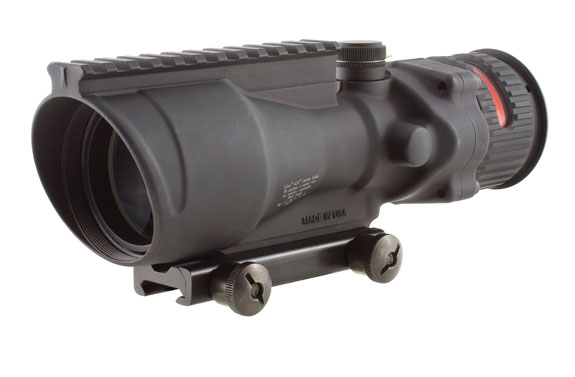

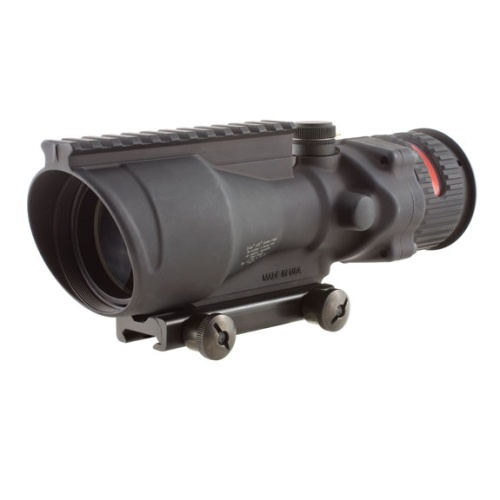

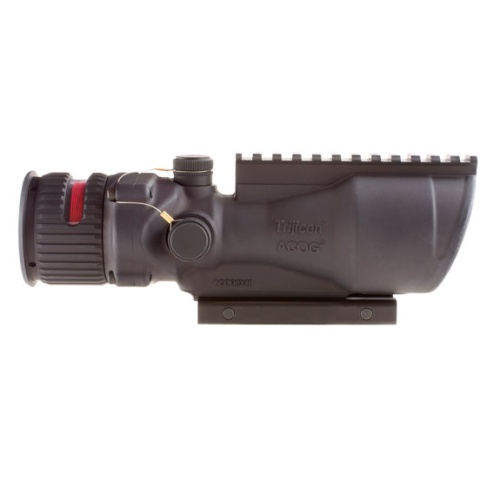

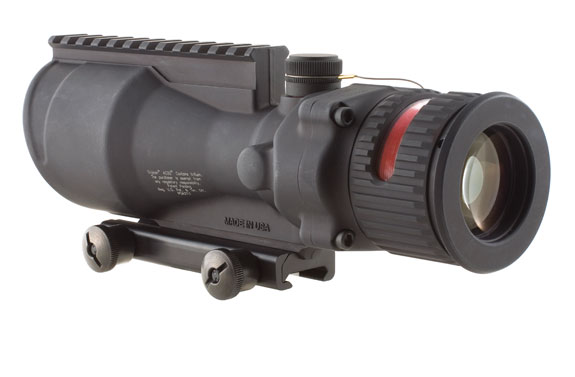

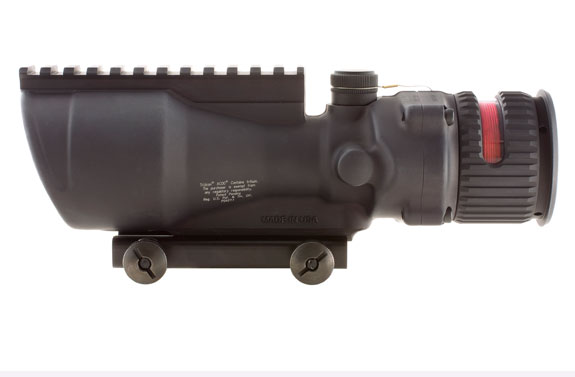

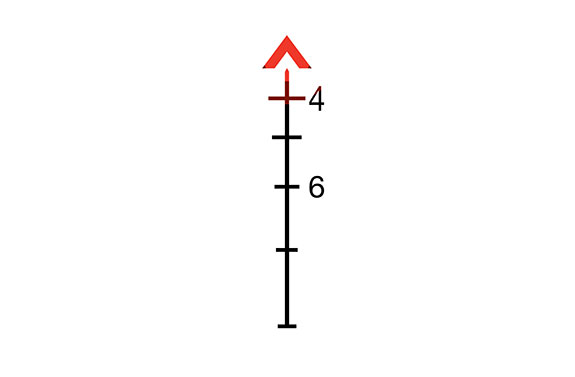

The military’s need for a magnified, self-luminous tactical sight that enhances target identification and increases hit probability on extended-range shots has given rise to the new Trijicon ACOG® 6x48. Powered by Trijicon’s patented fiber optics and tritium-based technology, the new TA648 ACOG® reticle features a red chevron aiming point. It also incorporates a bullet drop compensator (BDC) with additional aiming points estimated for trajectory of the 5.56mm M855 out to 800 meters. To further improve target acquisition and hit potential, the new ACOG® 6x48 incorporates Trijicon’s Bindon Aiming Concept™ (BAC) – a revolutionary both-eyes-open method of aiming. Like other members of the Trijicon ACOG® line, the new ACOG® 6x48 is battery free and waterproof to 500 feet.
The TA648 also includes:
- 1 Picatinny Rail Adapter (TA75)
- 1 LENSPEN® (TA56)
- 1 Lanyard Assembly for Adjuster Caps (TA107)
- 1 Trijicon Logo Sticker (PR15)
- 1 Manual
- 1 Warranty Card
SPECIFICATIONS
| Magnification |
6x |
| Objective Size (mm) |
48 |
| Bullet Drop Compensator |
Yes |
| Length (in) |
9 |
| Weight (oz) |
36.9 |
| Illumination Source |
Fiber Optics & Tritium |
| Reticle Pattern |
Chevron |
| Day Reticle Color |
Red |
| Night Reticle Color |
Red |
| Calibration |
0.223 |
| Bindon Aiming Concept |
Yes |
| Eye Relief (in) |
2.7 |
| Exit Pupil (mm) |
8 |
| Field of View (Degrees) |
3.3 |
| Field of View @ 100 yards (ft) |
17 |
| Adjustment @ 100 yards (clicks/in) |
4 |
| Mount |
TA75 |
| Mount Comes With |
TA75 |

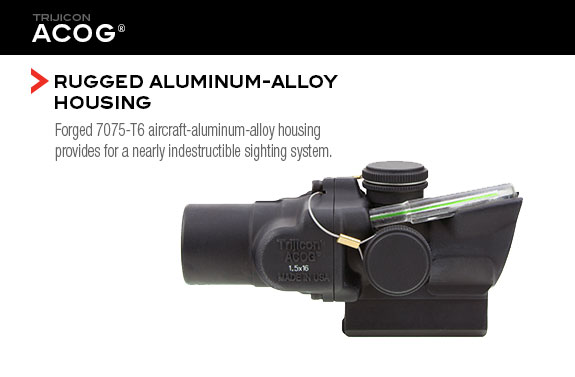

| Housing Material |
Forged Aluminum |
