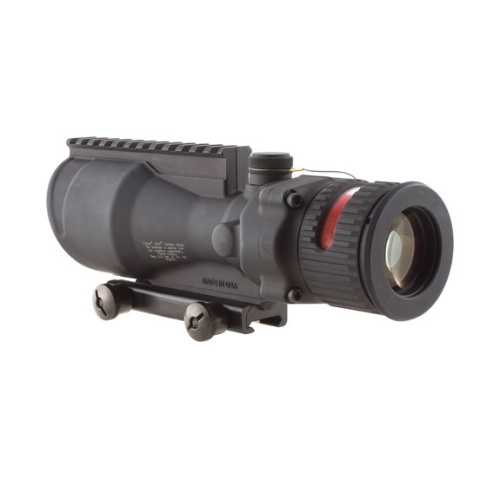

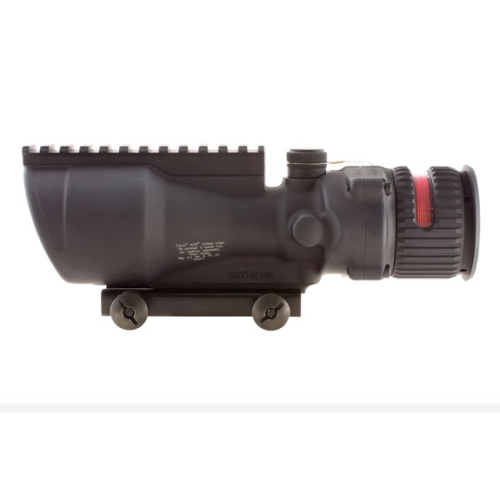

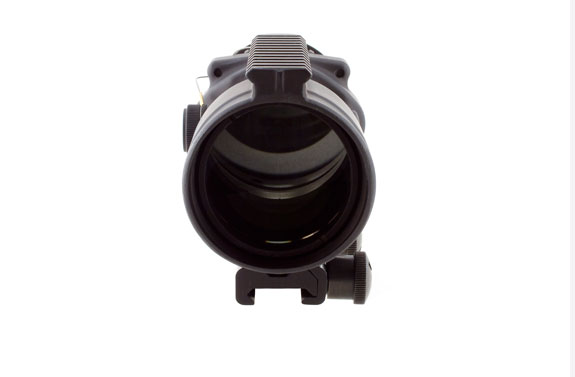

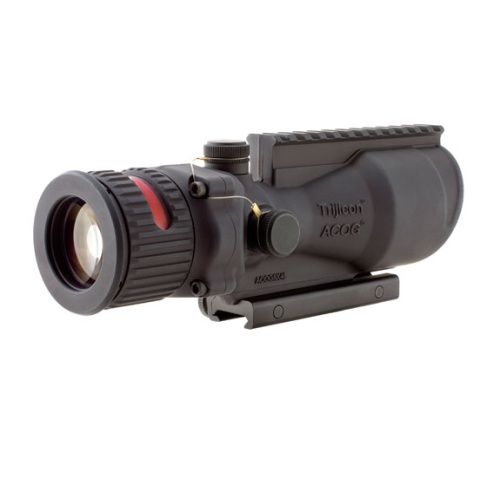

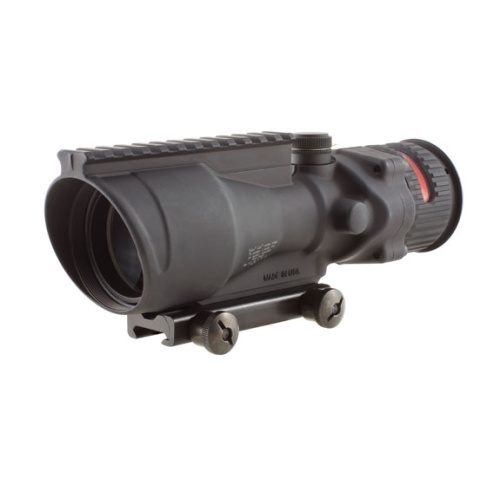

The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact

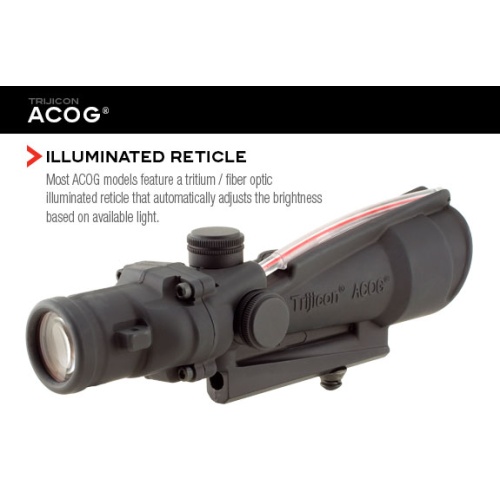

riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance

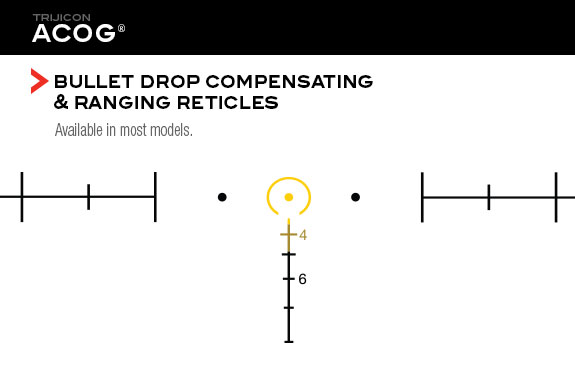

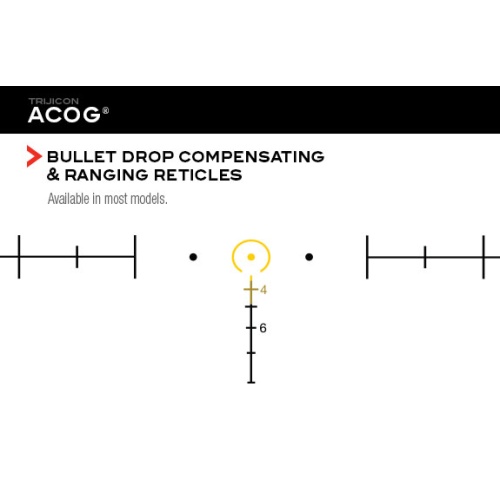

marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.
FEATURES

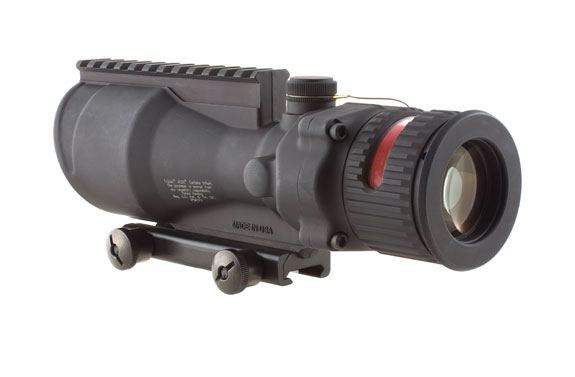

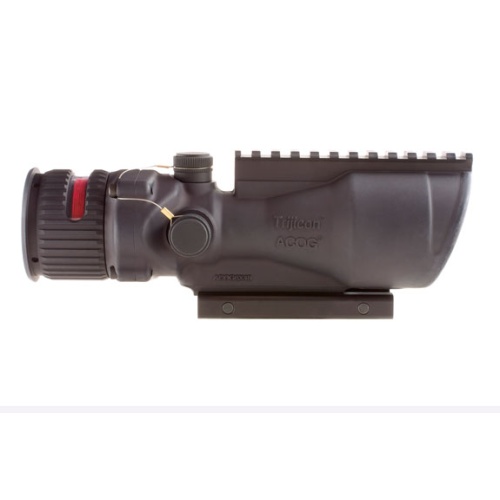

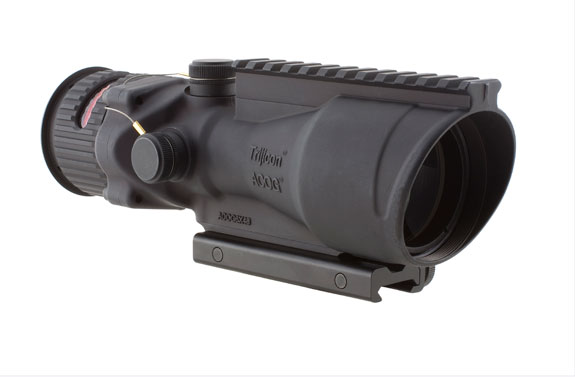

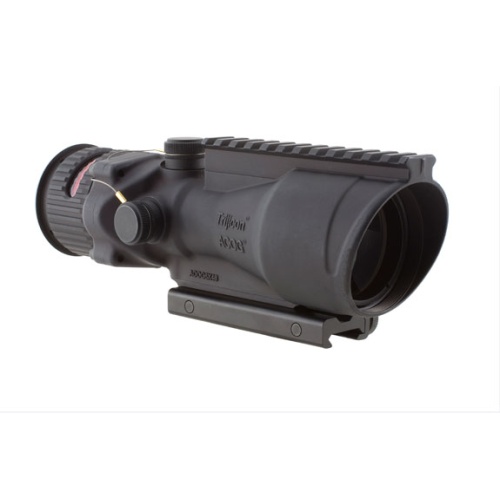

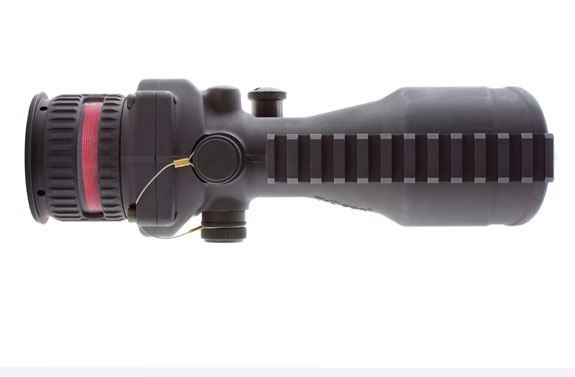

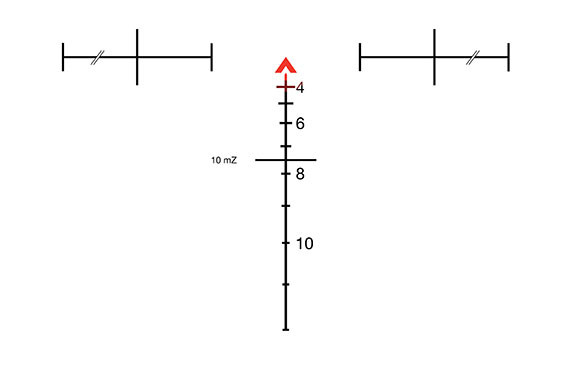

he military’s need for a magnified, self-luminous tactical sight that enhances target identification and increases hit probability on extended-range shots has given rise to the new Trijicon ACOG® 6x48. Powered by Trijicon’s patented fiber optics and tritium-based technology, the new TA648-308 ACOG® reticle features a red chevron aiming point. It also incorporates a bullet drop compensator (BDC) with additional aiming points estimated for trajectory of the 7.62mm M80 out to 1200 meters. To further improve target acquisition and hit potential, the new ACOG® 6x48 incorporates Trijicon’s Bindon Aiming Concept™ (BAC) – a revolutionary both-eyes-open method of aiming. Like other members of the Trijicon ACOG® line, the new ACOG® 6x48 is battery free and waterproof to 328 feet.
The TA648-308 also includes:

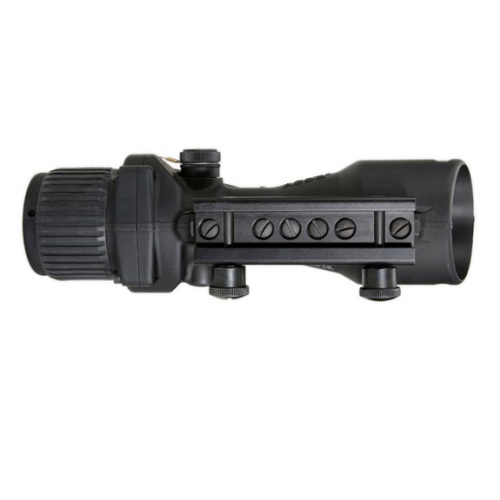

- 1 Picatinny Rail Adapter (TA75)
- 1 LENSPEN® (TA56)
- 1 Lanyard Assembly for Adjuster Caps (TA107)
- 1 Trijicon Logo Sticker (PR15)
- 1 Manual
- 1 Warranty Card
SPECIFICATIONS
Magnification |
6x |
Objective Size (mm) |
48 |
Bullet Drop Compensator |
Yes |
Length (in) |
9 |
Weight (oz) |
36.9 |
Illumination Source |
Fiber Optics & Tritium |

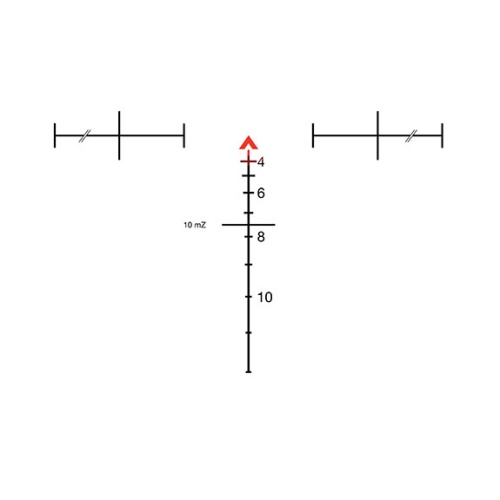

Reticle Pattern |
Chevron w/ Target Reference System |
Day Reticle Color |
Red |
Night Reticle Color |
Red |
Calibration |
0.308 |
Bindon Aiming Concept |
Yes |
Eye Relief (in) |
2.7 |
Exit Pupil (mm) |
8 |
Field of View (Degrees) |
3.3 |
Field of View @ 100 yards (ft) |
17 |
Adjustment @ 100 yards (clicks/in) |
4 |
Mount |
TA75 |
Mount Comes With |
TA75 |

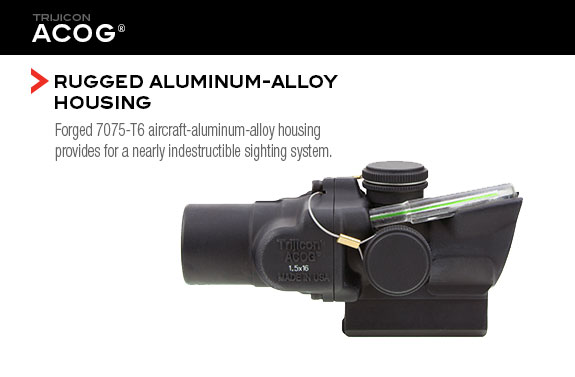

Housing Material |
Forged Aluminum |
