Trijicon Dual Illuminated Crosshair .223 / 55gr. Ballistic Reticle Scope

CAD1,738.49 EA
Cost: CAD1,738.49 EA -

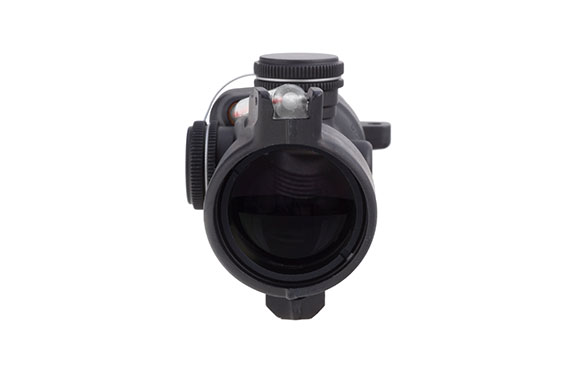

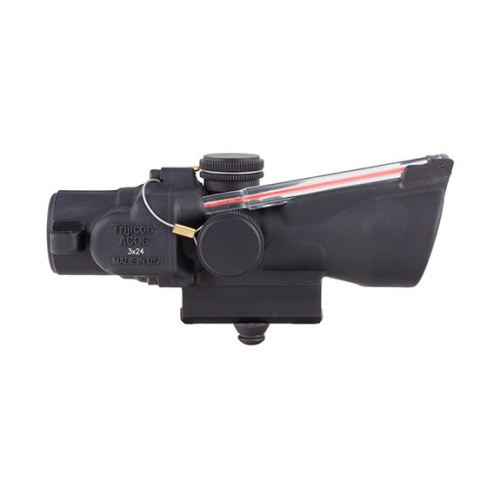

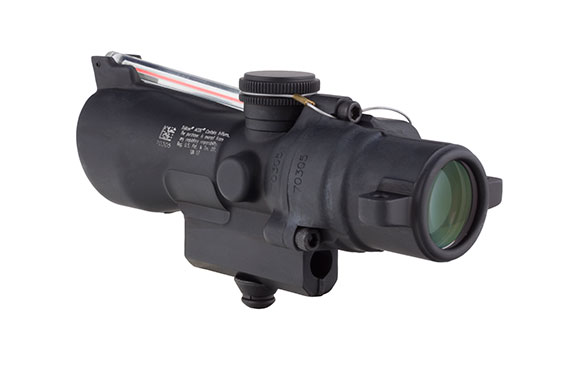

The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact
riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is
designed to be extremely durable and reliable. Combining traditional, precise distance

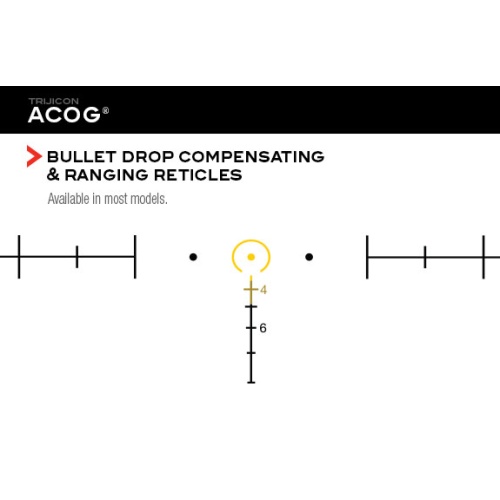

marksmanship with CQB speed, many variants include a bullet drop compensated (BDC)
reticle. Every feature of its design was chosen for a single purpose: to provide increased
hit potential in all lighting conditions.

FEATURES

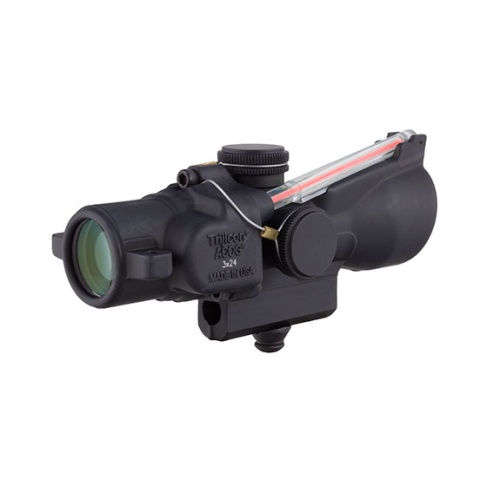

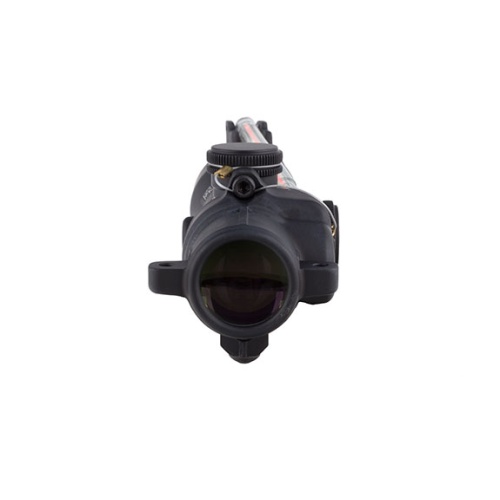

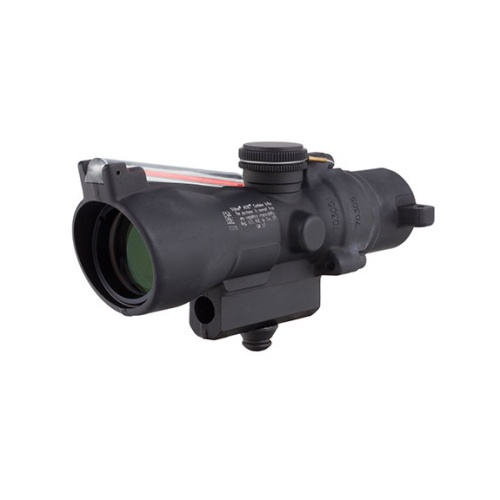

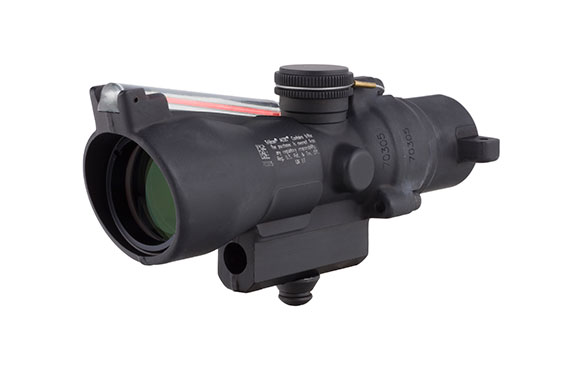

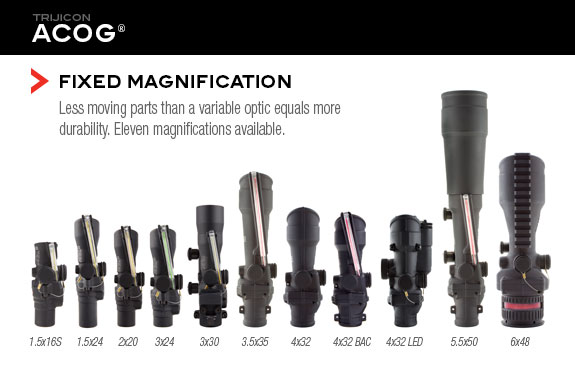

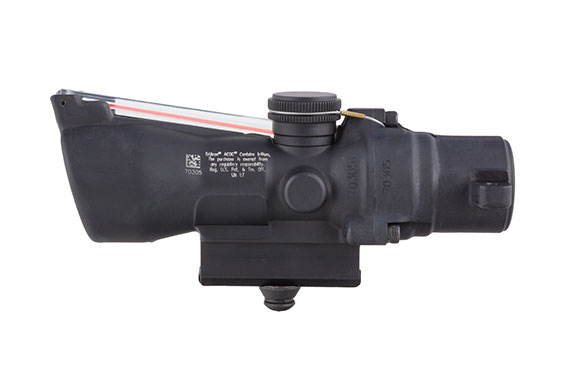

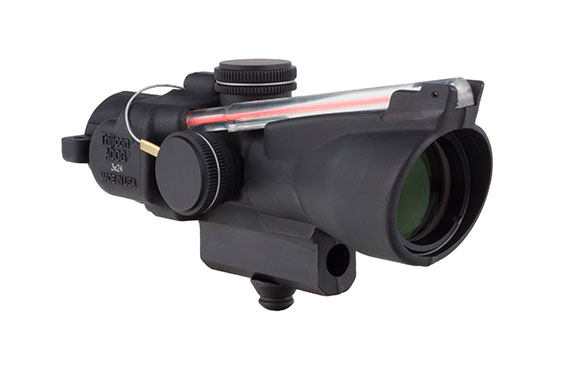

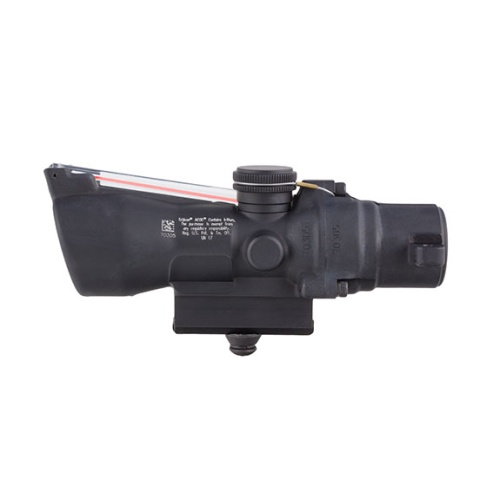

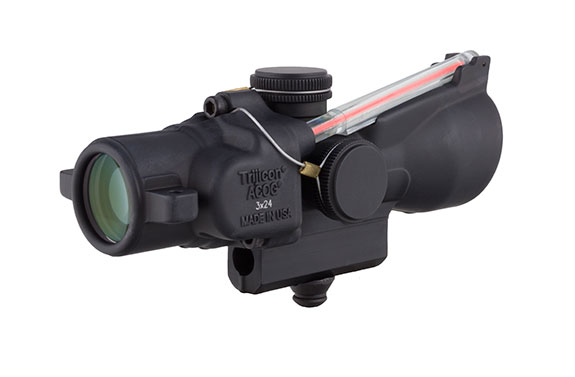

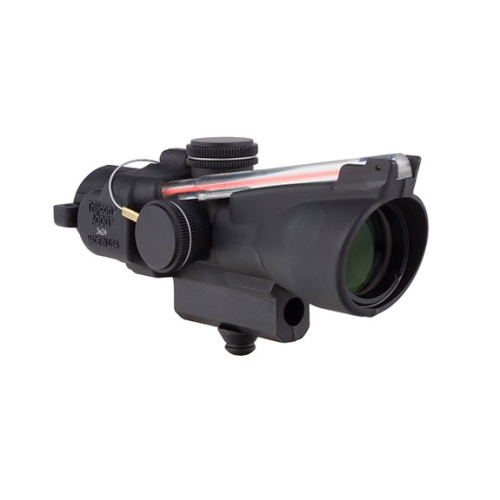

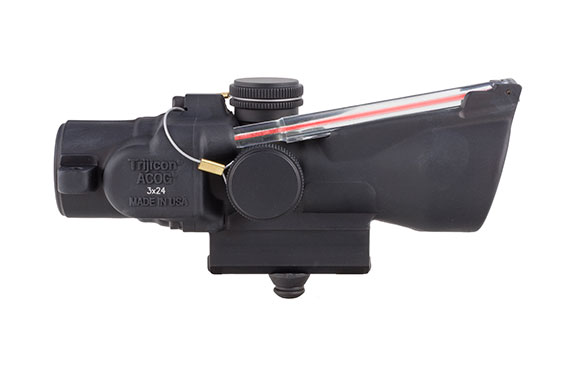

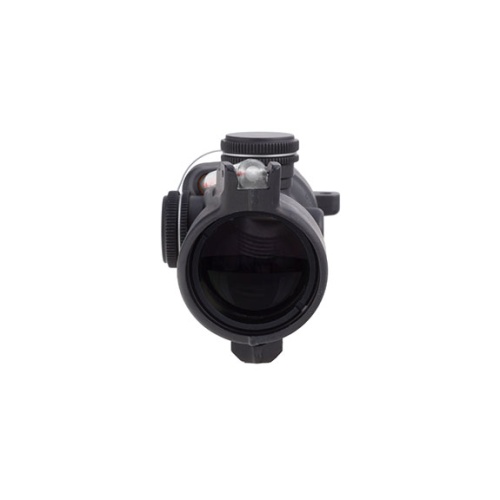

The Trijicon ACOG 3x24 Scope is a fixed magnification riflescope with an illuminated reticle pattern for use in any lighting conditions.

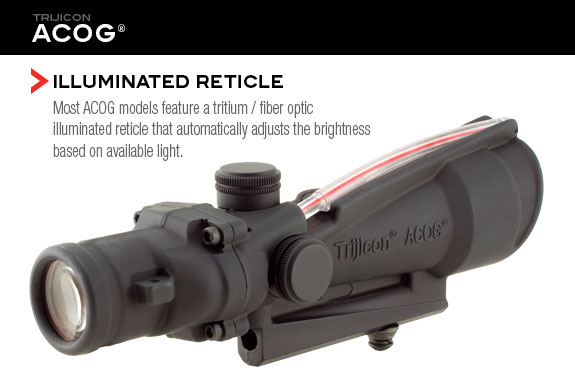

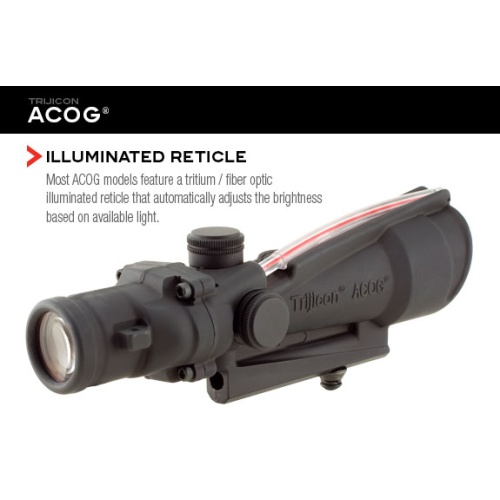

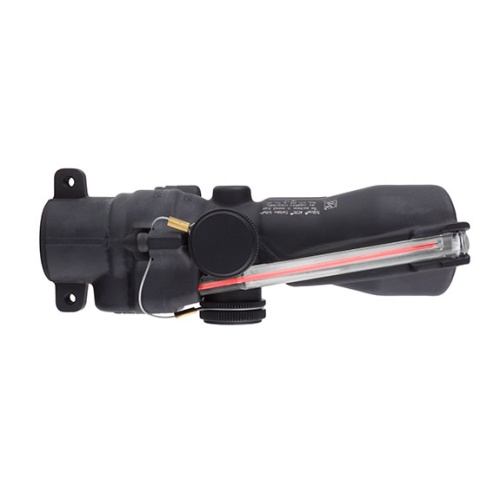

Dual illumination provides two sources of battery-free illumination – fiber optics and tritium. The fiber optics use ambient light to automatically adjust the brightness level and contrast of the reticle to available light conditions. The tritium-phosphor lamp glows in low-light conditions.

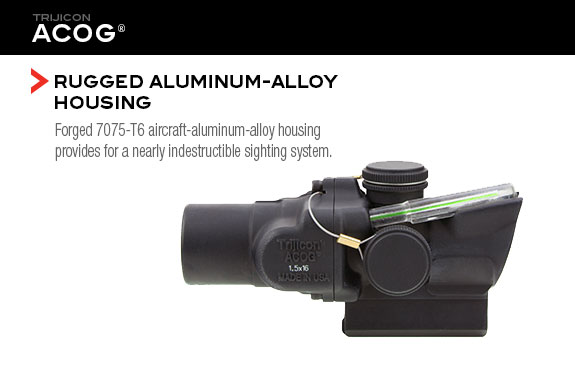

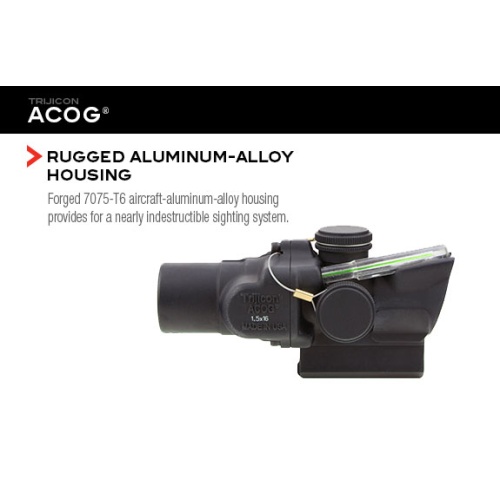

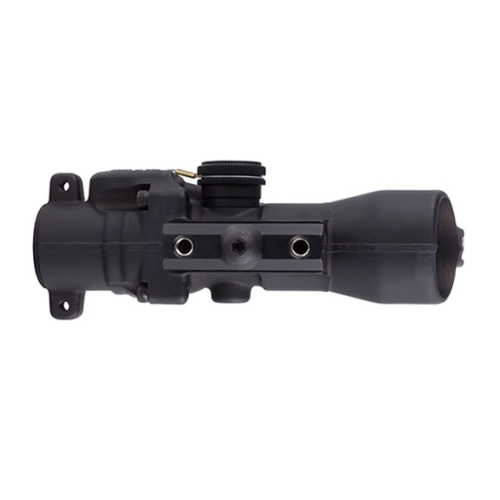

The ACOG body is designed to be extremely rugged and reliable. The forged 7075-T6 aircraft-grade aluminum alloy housing provides for a nearly indestructible sighting system. No other magnified optic has been used more in combat than the Trijicon ACOG.

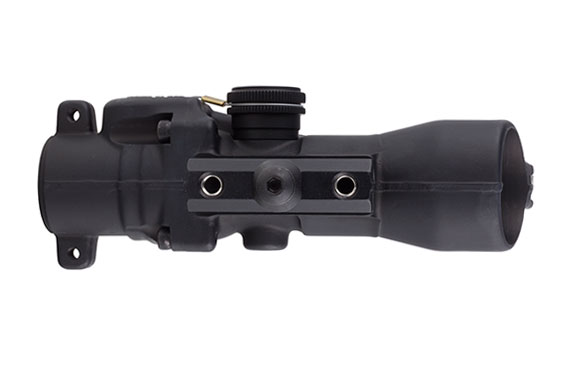

Mounting bosses are integrated into the housing (near the eyepiece) to allow the easy addition of a Trijicon RMR® (not included) with the RM54 mount (not included).

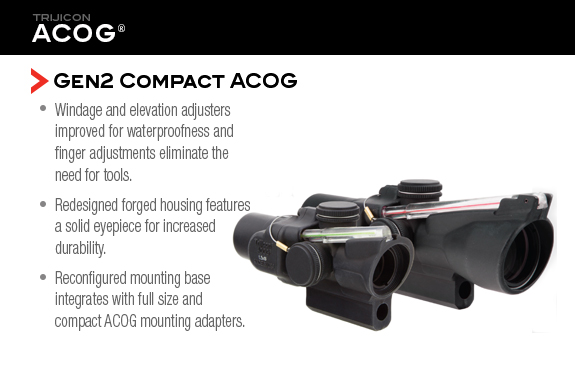

No tools are needed for windage and elevation adjustments because the ACOG features external adjusters. All adjuster caps are provided with a lanyard assembly to minimize the loss of caps.
The Bindon Aiming Concept (BAC) allows the operator to keep both eyes open while engaging targets and maintaining maximum situational awareness. For more information on what BAC is and how it works, click here.
Made in the USA.

Note: This optic requires a mounting adapter (sold separately).

INCLUDEDINPACKAGE:

  • 1 ACOG Scope
  • 1 Mounting Screw (for M16 Carry Handle)
  • 1 Set of External Adjusters Caps with Lanyard Assembly (AC10014)
  • 1 Scopecoat
  • 1 LENSPEN (TA56)
  • 1 Trijicon Logo Sticker (PR15)
  • 1 ACOG Manual
  • 1 Warranty Card

SPECIFICATIONS

Magnification 3x
Objective Size (mm) 24mm
Bullet Drop Compensator Yes
Weight (oz) 6.1 oz. / 173g
Illumination Source Fiber Optics & Tritium

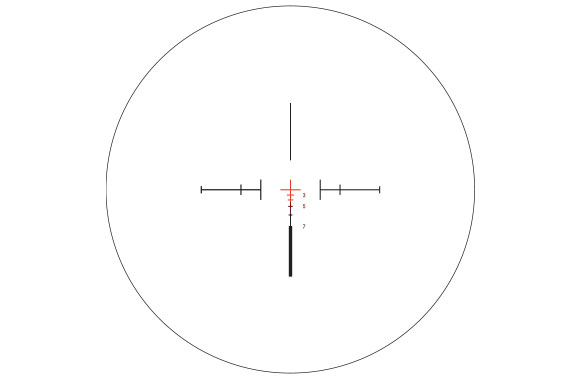

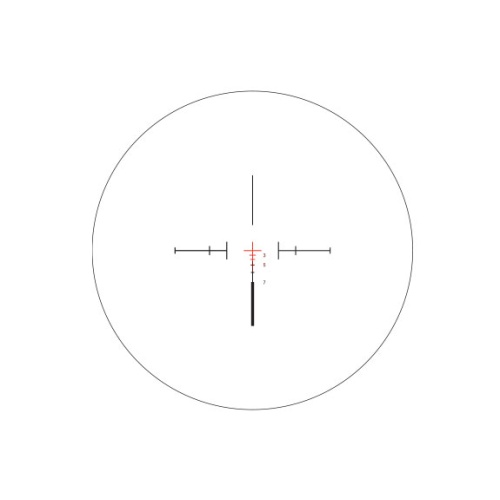

Reticle Pattern Crosshair .223 / 55gr.
Day Reticle Color Red
Night Reticle Color Red
Bindon Aiming Concept Yes
Eye Relief (in) 1.4 in. / 35.6mm
Exit Pupil (mm) 0.31 in. / 8mm
Field of View (Degrees) 4.9°
Field of View @ 100 yards (ft) 25.6 ft. / 8.6m
Adjustment @ 100 yards (clicks/in) 2 clicks/in.
Housing Material Forged Aluminum
Dimensions 5.0" L x 1.8" W x 2.1" H
127 x 46 x 53mm
