5.56 - GOLD Upgrade Kit (Add Left Bolt Catch Only)

STOP!!

YOU MUST ENSURE YOUR FIREARM IS FULLY UNLOADED AND PROVED SAFE BEFORE USING!!

PROVE
POINT THE FIREARM IN THE SAFEST AVAILABLE DIRECTION.
REMOVE ALL AMMUNITION.
OBSERVE THE CHAMBER.
VERIFY THE FEEDING PATH.
EXAMINE THE BORE.

ONCE SAFE, YOU MAY PROCEED TO THE NEXT STEP.

TOOLS REQUIRED:
STANDARD BUTTON RETAINING PIN REQUIRES 5/64 INCH HEX ALLEN KEY
BLUE LOCTITE (OPTIONAL)

LTAC - RAVEN 5.56 - GOLD UPGRADE KIT (ADD LEFT BOLT CATCH ONLY) CONTENTS:
1X BOLT CATCH PLUNGER
1X BOLT CATCH PLUNGER SPRING
1X LEFT BOLT CATCH REAR - MID LENGTH
1X RAVEN STANDARD BUTTON RETAINING PIN

NOTE: WE RECOMMEND ADDING A SMALL AMOUNT OF BLUE LOCTITE TO THE RETAINING PIN THREADS BEFORE INSTALLING.

DO NOT USE RED LOCTITE!

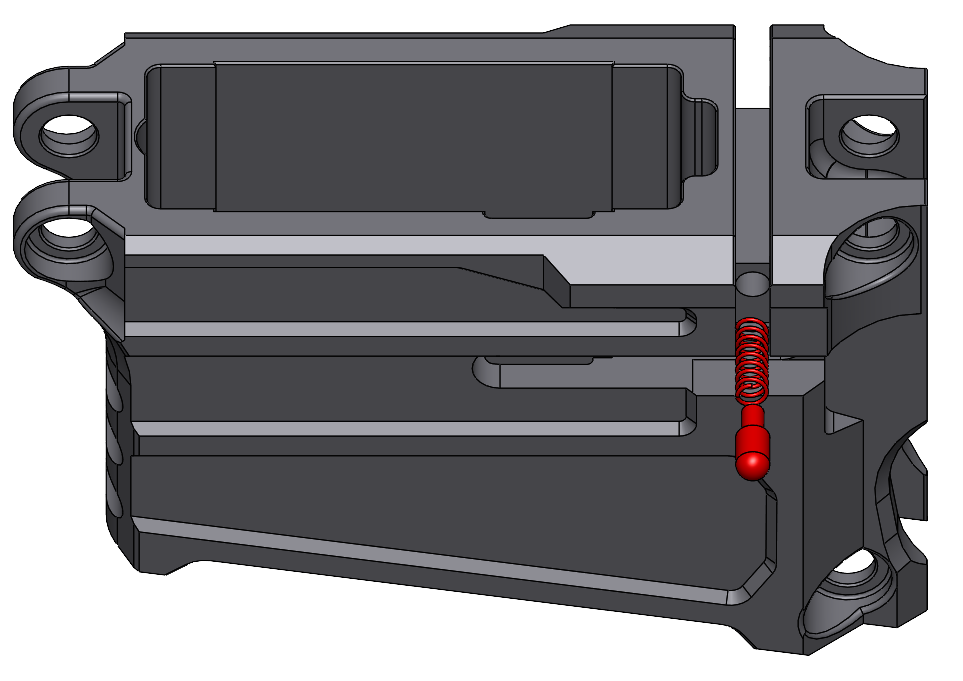

STEP 1: INSTALL BOLT CATCH PLUNGER SPRING ONTO THE BOLT CATCH PLUNGER
STEP 2: PLACE THE BOLT CATCH PLUNGER ASSEMBLY INTO THE BOLT CATCH PLUNGER HOLE ON THE LEFT SIDE OF THE MAGAZINE WELL. THE ROUNDED END OF THE BOLT CATCH PLUNGER SHOULD BE FACING OUTWARDS WITH THE SPRING INSIDE THE MAGWELL.

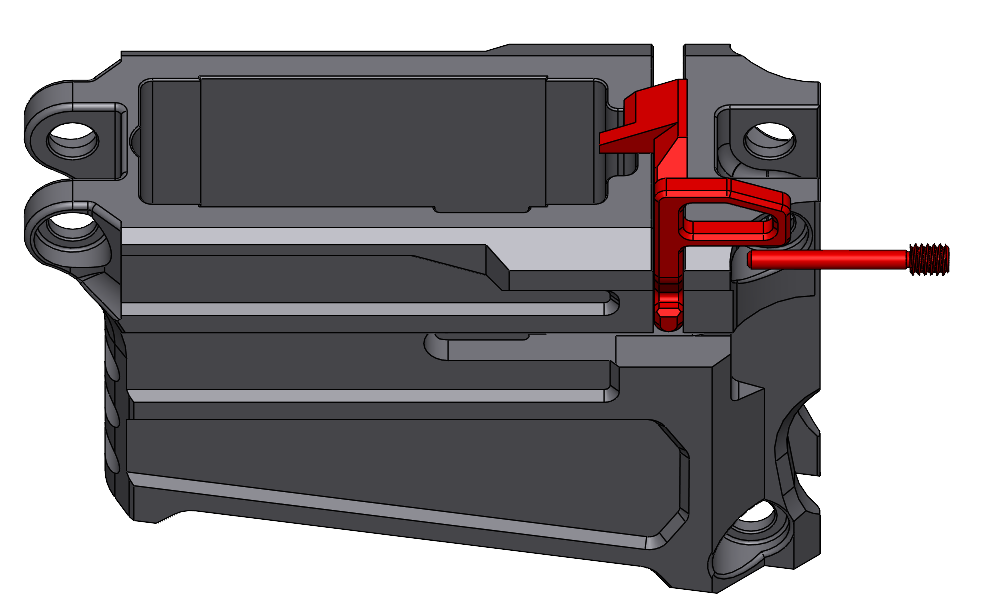

STEP 3: PLACE THE LEFT BOLT CATCH REAR INTO THE BOLT CATCH SLOT AND INSTALL THE THREADED RETAINING PIN.
NOTE: ENSURE RETAINING PIN THREADS ARE IN MAGWELL ENOUGH TO ALLOW TAKE DOWN PIN TO BE INSTALLED AND REMOVED PROPERLY.

STEP 4: CONFIRM THE BOLT CATCH IS WORKING PROPERLY BY PRESSING THE BOTTOM SIDE OF THE BOLT CATCH. YOU SHOULD FEEL THE RESISTANCE AS THE TOP OF THE BOLT CATCH LIFTS UP. ONCE YOU LET GO, THE BOLT CATCH SHOULD QUICKLY RETURN TO IT'S RESTING POSITION AGAIN.

ONCE TESTING IS COMPLETE, YOUR PARTS ARE READY FOR USE!
