Brass Deflector and Side Charging Cover Installation

STOP!!

YOU MUST ENSURE YOUR FIREARM IS FULLY UNLOADED AND PROVED SAFE BEFORE USING!!

PROVE
POINT THE FIREARM IN THE SAFEST AVAILABLE DIRECTION.
REMOVE ALL AMMUNITION.
OBSERVE THE CHAMBER.
VERIFY THE FEEDING PATH.
EXAMINE THE BORE.

ONCE SAFE, YOU MAY PROCEED TO THE NEXT STEP.

TOOLS REQUIRED:
1/16 0.062 INCH HEX ALLEN KEY
BLUE LOCTITE (OPTIONAL)

Instructions work for all Brass Deflectors and Side Charging Covers
LTAC Raven Side Charging Cover - Standard Length [9x19mm]
LTAC Raven Side Charging Cover - Mid Length [5.56 NATO]
LTAC Raven Side Charging Cover - Long Length [7.62 NATO]
LTAC Raven Mid Length Upper Brass Deflector [5.56 NATO]
LTAC Raven Long Length Upper Brass Deflector [7.62 NATO]

NOTE: WHILE NOT NEEDED IN MOST CASES, YOU MAY ADD A SMALL AMOUNT OF BLUE LOCTITE TO THE SCREW THREADS BEFORE INSTALLING FOR MORE PERMANENT INSTALLS.

DO NOT USE RED LOCTITE!

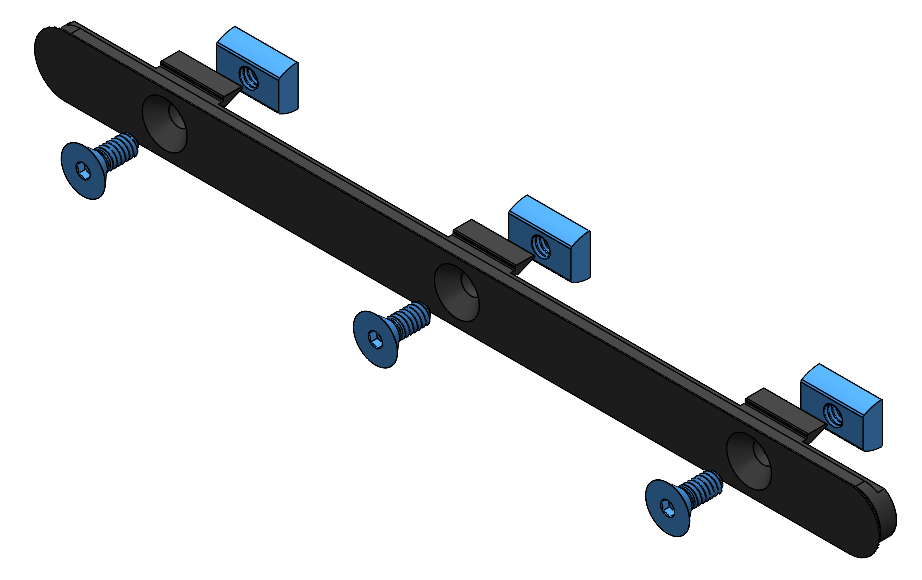

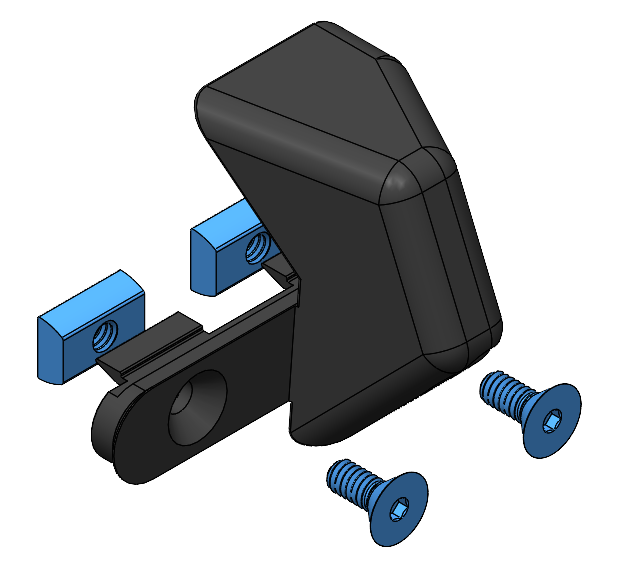

STEP 1: INSTALL SUPPLIED SCREW INTO WEDGE LOCK AS SHOWN. DO NOT TIGHTEN!
STEP 2: INSERT SIDE COVER ASSEMBLY INTO UPPER RECEIVER. TIGHTEN SCREWS UNTIL SNUG. DO NOT OVER TIGHTEN OR YOU CAN DAMAGE THE THREADS.

STEP 3: CONFIRM THE INSTALLATION IS SECURE BY USING YOUR HAND TO ENSURE THE WEDGES ARE HOLDING THE COVER / BRASS DEFLECTOR IN PLACE PROPERLY.

IF THE PARTS ARE MOVING WHILE PULLING / PUSHING GENTLY WITH YOUR HAND, LOOSEN SCREWS, MOVE PARTS INTO PLACE AND RETIGHTHEN SLIGHTLY TIGHTER THAN BEFORE. ONCE AGAIN, DO NOT OVER TIGHTEN AS YOU CAN DAMAGE THE THREADS.

NOTE: THESE ARE DESIGNED TO HAVE SUFFICIENT HOLDING FORCE TO REMAIN IN PLACE DURING REGULAR SHOOTING. DO NOT APPLY LARGE FORCE AND TRY TO RIP THEM OFF.

IF THE BRASS DEFLECTOR IS INSTALLED, YOU CANNOT USE THE SIDE CHARGING HANDLE ON THE RIGHT HAND SIDE!

ONCE TESTING IS COMPLETE, YOUR PARTS ARE READY FOR USE!
